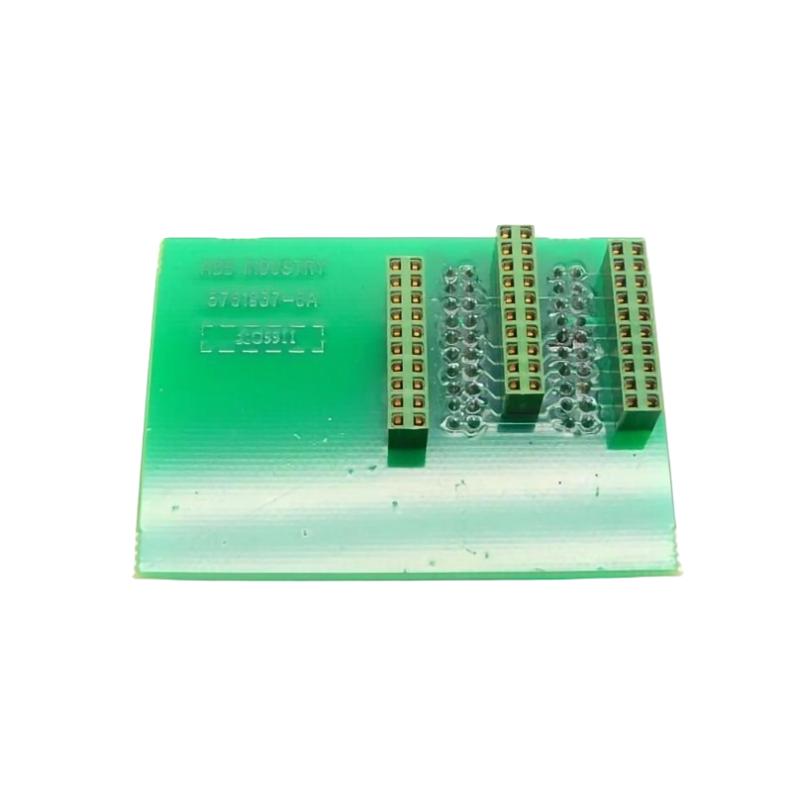

The ABB SDCS-REB-1 Pulse Distribution Interface Module is a specialized interface board used in ABB DC drive platforms such as DCS500 and DCS600 systems. It is designed to distribute and isolate firing pulses that control the thyristor bridge circuits responsible for regulating motor power.
In a typical DC drive architecture, the control board generates firing signals that determine when each thyristor in the converter bridge should conduct. The SDCS-REB-1 receives these signals and distributes them to multiple pulse transformer boards, ensuring accurate and synchronized triggering of the forward and reverse bridges.
With integrated optocoupler isolation and industrial-grade design, the module helps protect control electronics from ground loops and electrical interference. This makes the SDCS-REB-1 a critical component for stable motor operation in high-power industrial environments such as steel processing, mining, and heavy manufacturing plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-REB-1 |
| Manufacturer | ABB |
| Module Type | Pulse Distribution / Interface Module |
| System Compatibility | ABB DCS500 / DCS600 DC Drive Systems |
| Supply Voltage | +24 V DC external power supply |
| Trigger Bridge Capacity | Up to 4 forward bridges and 4 reverse bridges |
| Isolation Method | Optocoupler isolation |
| Monitoring Output | 1 isolated transistor output |
| Output Rating | Max 60 V DC / 50 mA |
| Mounting | Control board installation with grounded mounting points |
| Operating Temperature | −20°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (L × W × H) | 70 × 50 × 18 mm |
| Weight | 0.02 kg |
The module works together with pulse transformer boards such as SDCS-PIN-41 and signal boards like SDCS-PIN-51, distributing firing commands to ensure proper thyristor switching in DC converters.
Recommended Related Models
These ABB modules are commonly used alongside the SDCS-REB-1 within SDCS-based drive architectures.
| Model | Description |
|---|---|
| SDCS-PIN-51 | Signal Interface Board |
| SDCS-PIN-41A | Pulse Transformer Interface Board |
| SDCS-POW-1 | Control Power Supply Module |
| SDCS-POW-4 | Auxiliary Power Supply Board |
| SDCS-CON-2A | Drive Control Processor Board |
These modules together form the core electronic control structure for ABB DC drive systems.
Popular ABB Models
The following ABB automation products are widely deployed in industrial automation and process control systems.
| Model | Module Type |
|---|---|
| PM590-ETH | PLC CPU Module |
| CI840A | Communication Interface Module |
| AI830A | Analog Input Module |
| SB822 | Redundant Power Supply Module |
| PP865A | Industrial Operator Panel |
These products are known for their reliability, long service life, and compatibility with large automation infrastructures.
