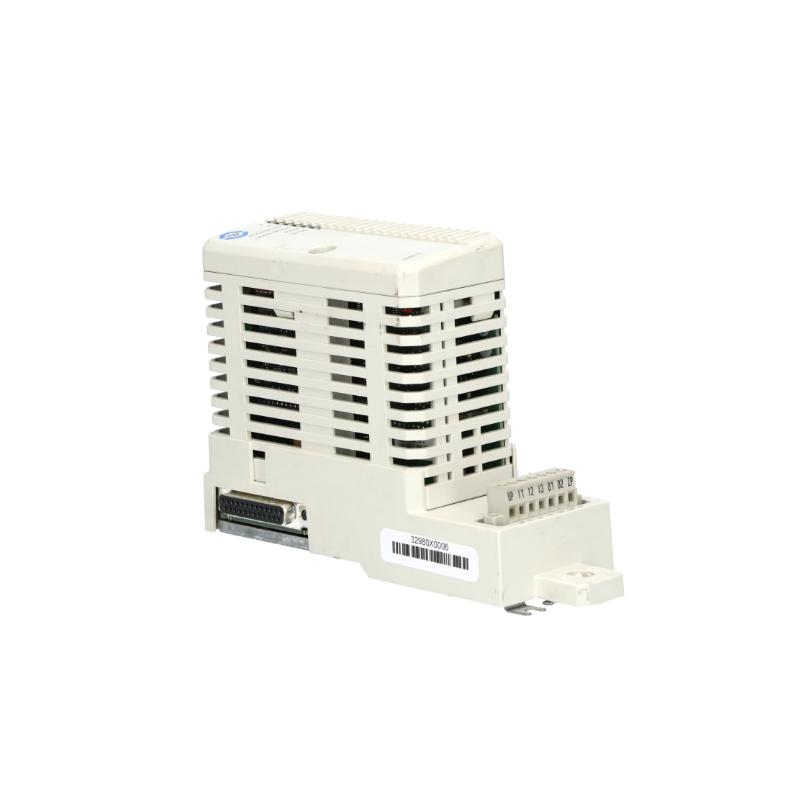

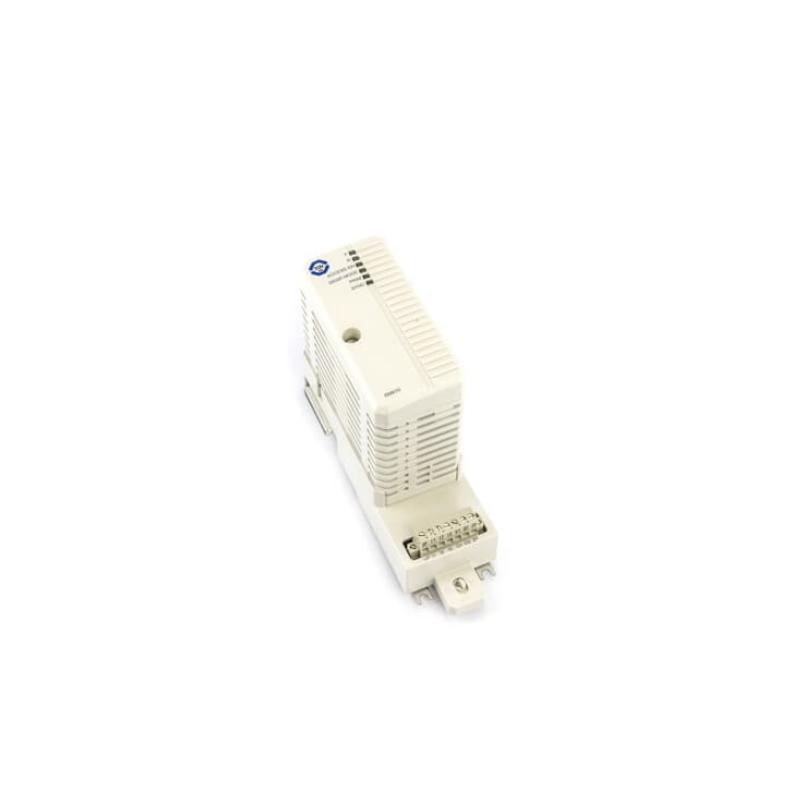

The ABB SM810K01 Safety CPU Module is a high-integrity safety processing unit designed for ABB AC 800M controllers and the System 800xA distributed control system (DCS). It functions as a safety supervision and logic processing module used in Safety Instrumented Systems (SIS) where reliable fault detection and safe shutdown operations are critical.

This module integrates advanced safety logic processing, redundancy capability, and continuous diagnostic monitoring to ensure secure and stable operation in critical industrial processes. It supervises the primary controller (such as PM865) and executes safety-related tasks to maintain operational integrity in hazardous environments.

The SM810K01 is widely deployed in industries including oil & gas, chemical processing, power generation, and manufacturing, where system reliability and compliance with functional safety standards are essential.

Technical Specifications

Parameter	Specification
Model	SM810K01
Manufacturer	ABB
Product Type	Safety CPU Module Kit
Platform Compatibility	AC 800M Controller / System 800xA
Processor	MPC862P Microprocessor (96 MHz)
Memory	4 MB Flash PROM, 32 MB SDRAM
Input Voltage	24 V DC
Current Consumption	160 mA typical (250 mA max)
Power Consumption	Approx. 3.8 W
Communication Interface	CEX Bus
Safety Integrity Level	SIL 2 (IEC 61508)
Isolation	Galvanic Isolation
Diagnostics	Built-in monitoring and self-test
Operating Temperature	0°C to +60°C
Storage Temperature	−40°C to +85°C
Installation	Control cabinet rack mounting
Dimensions (L × W × H)	59 × 127.5 × 185 mm
Weight	0.7 kg

The module supports hot-swap replacement in redundant configurations, allowing maintenance without shutting down the system.

Recommended Related Models

These modules are frequently used together with the SM810K01 within ABB safety and control architectures.

Model	Description
PM865	AC 800M Processor Module
BC810	CEX Bus Interconnection Unit
SM811K01	Safety CPU Module Kit
CI840A	Communication Interface Module
AI830A	Analog Input Module

These components combine to create a reliable automation and safety control infrastructure.

Popular ABB Models

The following ABB automation products are widely used in industrial control systems worldwide.

Model	Module Type
PM590-ETH	PLC CPU Controller
SB822	Redundant Power Supply Module
PP865A	Industrial Operator Panel
CI801	Communication Interface Module
AI830A	Analog Input Module

These products are commonly deployed in large-scale automation systems requiring high reliability and long operational life.

Applications

The ABB SM810K01 Safety CPU Module is designed for industrial environments where functional safety and continuous process monitoring are essential.

Typical applications include:

Safety instrumented systems (SIS)
Emergency shutdown systems (ESD)
Fire and gas monitoring systems
Power generation turbine protection
Chemical reactor safety control
Oil and gas process safety systems
Industrial plant safety interlock systems

By providing reliable safety logic processing, the module ensures that hazardous situations trigger safe shutdown procedures quickly and accurately.

Advantages

Certified Functional Safety
Complies with IEC 61508 safety standards, making it suitable for critical safety applications.

High Processing Performance
Equipped with a 96 MHz processor and large memory capacity to handle complex safety logic.

Redundant Architecture Support
Supports redundant configurations for increased system availability and fault tolerance.

Advanced Diagnostics
Continuous system monitoring helps detect faults early and enables predictive maintenance.

Hot-Swap Capability
Modules can be replaced without shutting down the entire control system.

Robust Industrial Design
Built to withstand electrical noise, vibration, and temperature variations common in heavy industry.

Technical FAQs

1. What is the ABB SM810K01 used for?
It is a safety CPU module used to execute and supervise safety logic within ABB AC 800M control systems.

2. Which ABB systems support the SM810K01?
It is designed for ABB System 800xA and AC 800M controller architectures.

3. What safety certification does the module support?
The module supports SIL 2 functional safety according to IEC 61508.

4. What processor is used in the module?
It uses a 96 MHz MPC862P microprocessor.

5. How much memory does the module have?
It includes 4 MB flash memory and 32 MB SDRAM.

6. What is the typical power consumption?
The module consumes about 3.8 W during normal operation.

7. Can the module operate in redundant systems?
Yes, it supports redundant configurations for higher reliability.

8. What communication interface does it use?
The module communicates via the CEX bus in ABB control systems.

9. What industries commonly use this module?
Industries include oil and gas, chemical processing, power generation, and manufacturing.

10. What are the main benefits of the SM810K01?
Its key benefits include safety certification, high reliability, redundancy support, and advanced diagnostics.
