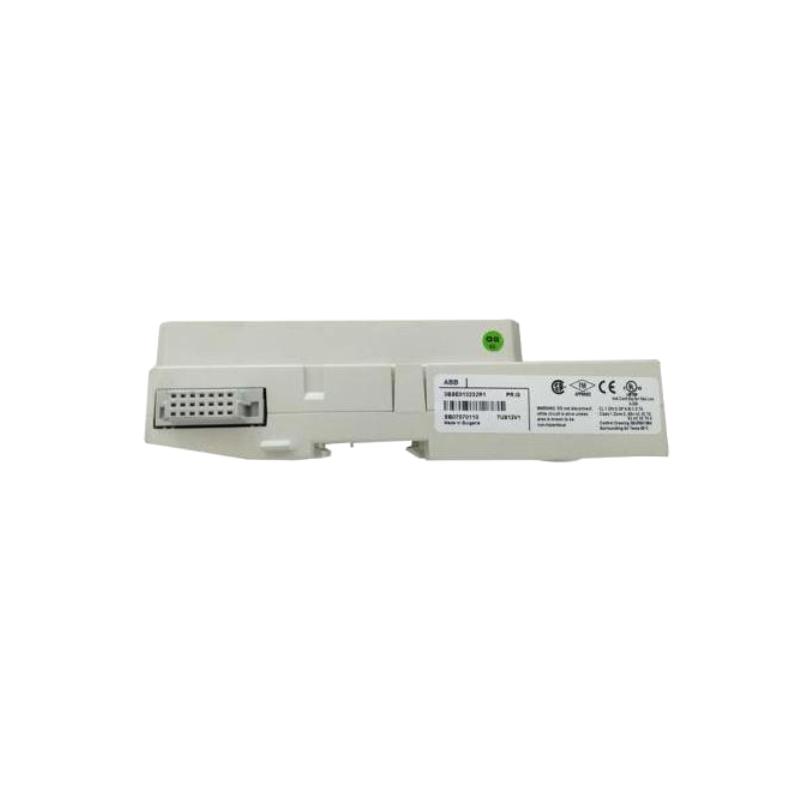

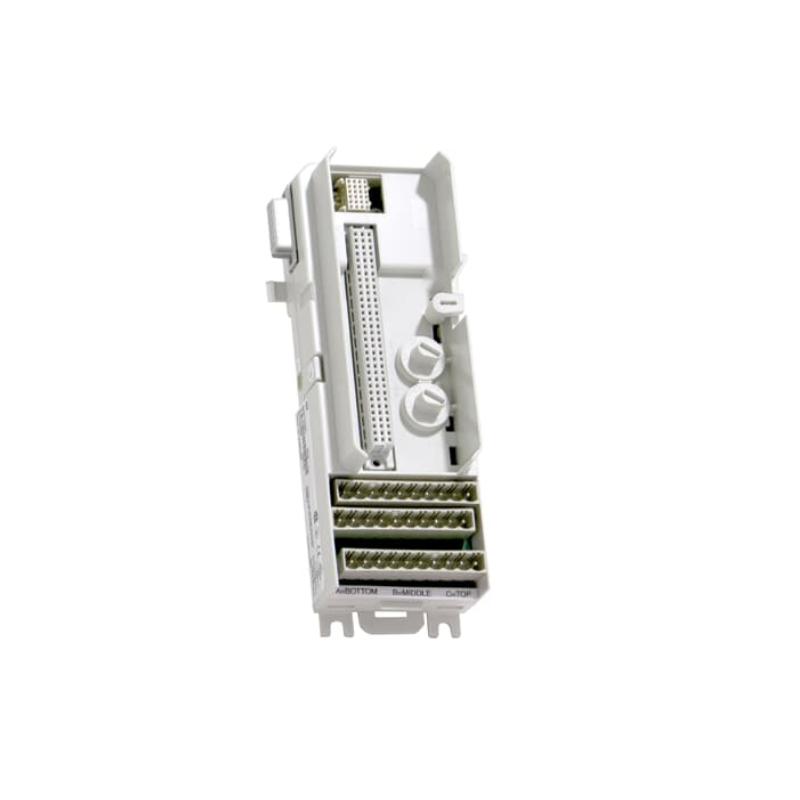

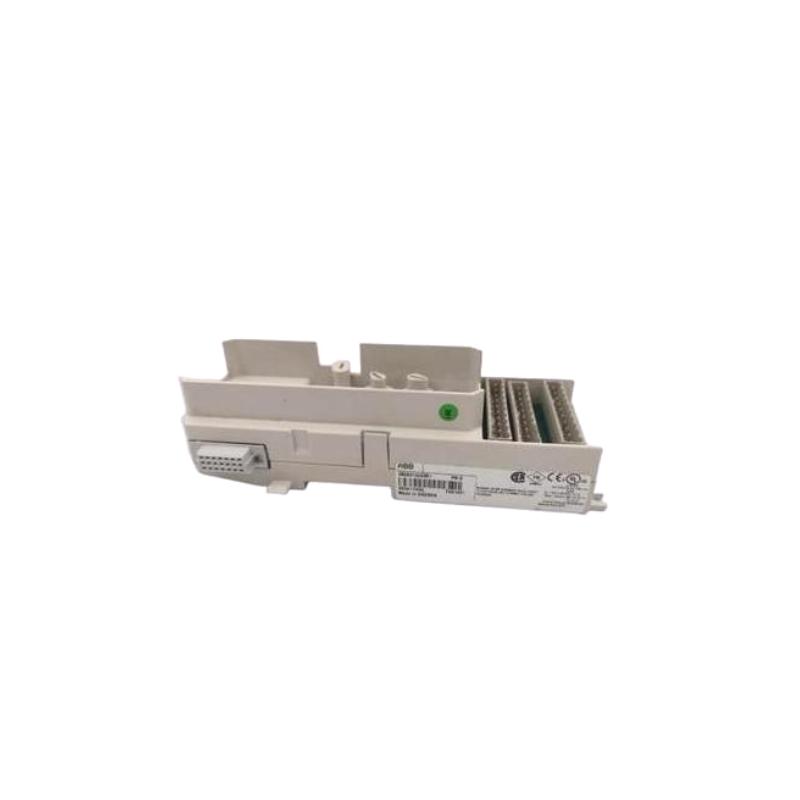

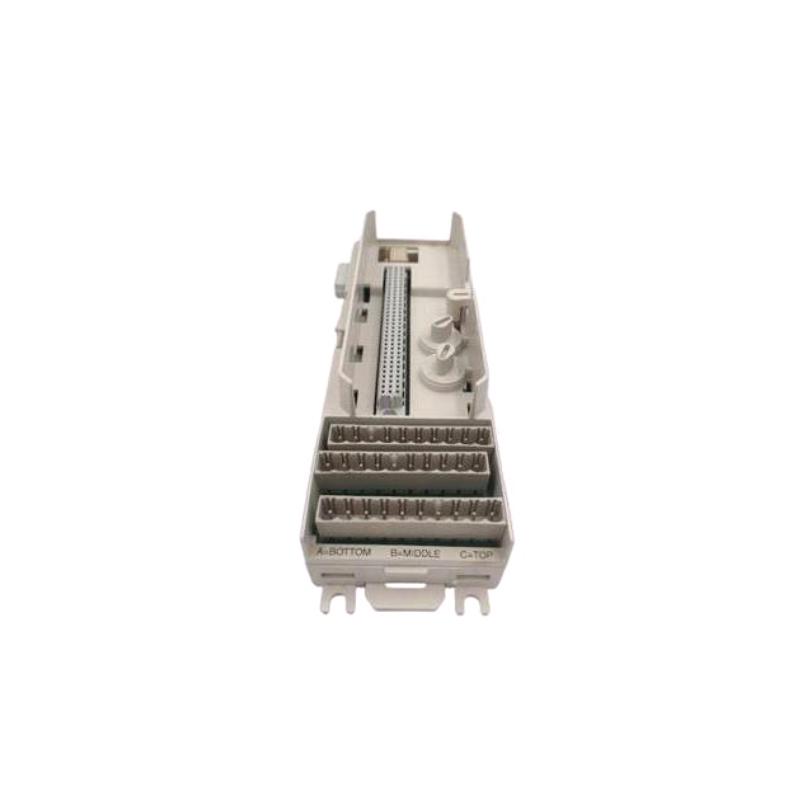

The ABB TU814V1 is a compact Module Termination Unit (MTU) designed for seamless integration within the ABB S800 I/O distributed control platform. It acts as the physical interface between field wiring and I/O modules, enabling reliable signal termination and efficient distribution of ModuleBus communication throughout the system.

This termination unit supports up to 16 I/O channels and provides two process voltage connections, making it suitable for a wide range of analog and digital I/O modules used in industrial automation environments. Its three-row snap-in connector layout simplifies field wiring while ensuring secure electrical connections inside control cabinets.

Engineered for demanding process control applications, the TU814V1 features mechanical keying that prevents incorrect module installation. This design improves system reliability and reduces configuration errors, making it an excellent choice for high-availability automation systems such as ABB 800xA and AC 800M architectures.

Technical Specifications

Parameter	Specification
Model	TU814V1
ABB Article Number	3BSE013233R1
Product Type	Compact Module Termination Unit (MTU)
System Compatibility	ABB S800 I/O
Signal Channels	Up to 16
Rated Voltage	50 V
Max Current per Channel	2 A
Connection Type	Crimp Snap-in Connector
Process Connections	30
Mounting	DIN rail (horizontal or vertical)
Protection Class	IP20
Dimensions (H × W × D)	170 × 58.5 × 64 mm
Weight	0.17 kg

The TU814V1 is a passive unit that connects field signals to I/O modules while also distributing part of the ModuleBus communication within the S800 I/O system.

Recommended Related Models

Model	Description
TU810V1	Compact MTU for S800 I/O signal termination
TU811V1	8-channel module termination unit
TU812V1	16-channel MTU with D-Sub connector interface
TU830V1	Extended termination unit for higher connectivity
TU838	High-density MTU for advanced S800 I/O configurations

Popular ABB Automation Modules

Model	Module Type
PM803F	Controller CPU Module
CI840A	Communication Interface Module
AI830A	Analog Input Module
SB822	Power Supply Module
PP865A	Operator Panel
PM583-ETH	PLC CPU Controller

Typical Industrial Applications

The ABB TU814V1 is widely used in distributed automation systems where reliable field wiring and structured module connectivity are essential.

Typical applications include:

Distributed Control Systems (DCS)
Oil & gas process automation
Power generation and energy management facilities
Chemical and petrochemical plants
Industrial manufacturing production lines
Water treatment and utility automation

Its compact design and high channel density make it ideal for space-constrained control cabinets requiring reliable I/O termination.

Key Advantages

High-Density I/O Connectivity
Supports up to 16 channels, enabling efficient signal management within automation cabinets.

Reliable Field Wiring Interface
Provides stable electrical connections between field devices and S800 I/O modules.

Integrated ModuleBus Distribution
Facilitates communication between modules within ABB distributed control architectures.

Flexible Installation
DIN-rail mounting supports both horizontal and vertical installation layouts.

Mechanical Keying Protection
Prevents incorrect module installation and improves system reliability.

Technical FAQs

1. What is the ABB TU814V1 used for?
It is a module termination unit that connects field wiring to S800 I/O modules and distributes ModuleBus communication.

2. How many channels does the TU814V1 support?
It supports up to 16 I/O channels.

3. What voltage rating does the MTU support?
The maximum rated voltage is 50 V.

4. What is the maximum current per channel?
Up to 2 A per channel.

5. Which automation systems use TU814V1?
Primarily ABB S800 I/O systems within 800xA or AC 800M control architectures.

6. What type of connectors are used?
Crimp snap-in connectors for field signals and process power.

7. How is the module installed?
It is mounted on a standard DIN rail and supports both horizontal and vertical installation.

8. What I/O modules are compatible with TU814V1?
Modules such as AI810, AI830, AO810, DI810, DI814, DO810, DO840, DP820, and DP840 can be used with this MTU.

9. Does the unit process signals itself?
No. The TU814V1 is a passive interface unit that only provides wiring and bus distribution.

10. Why choose ABB TU814V1 in industrial automation systems?
Because it offers compact installation, reliable signal termination, and seamless integration with ABB S800 distributed I/O architectures.
