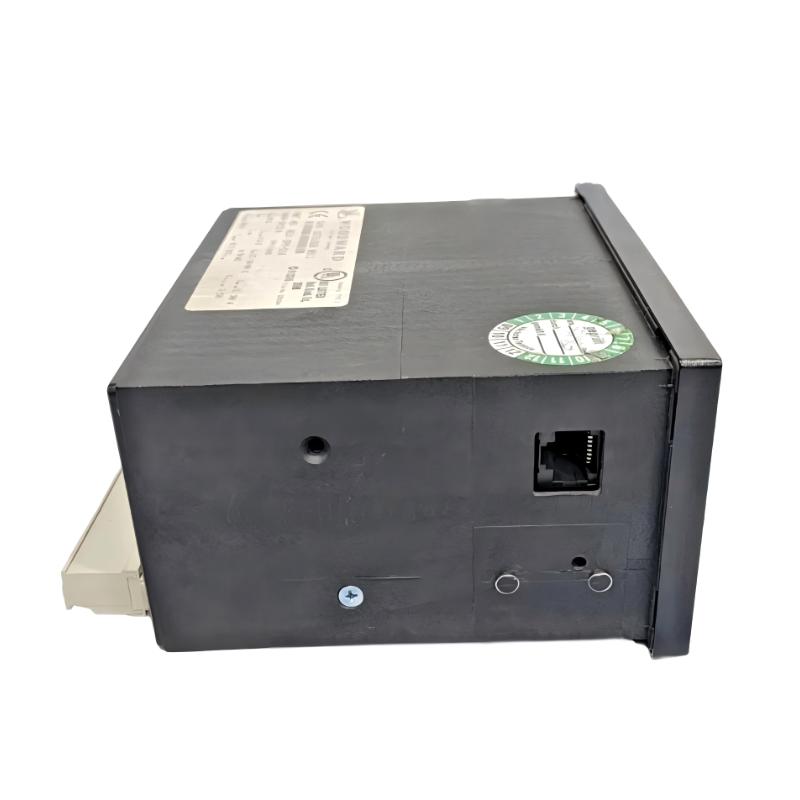

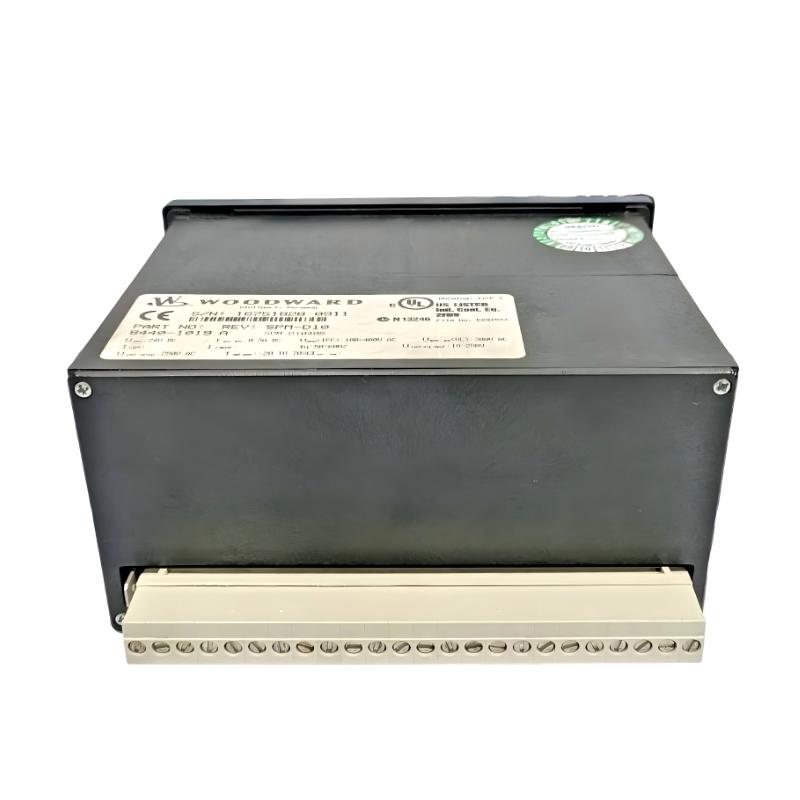

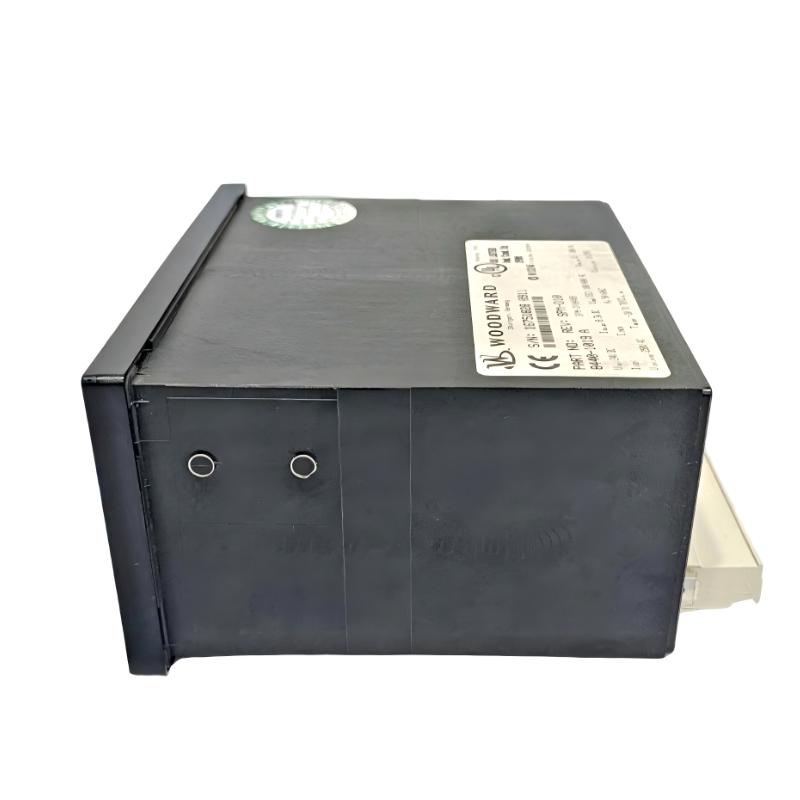

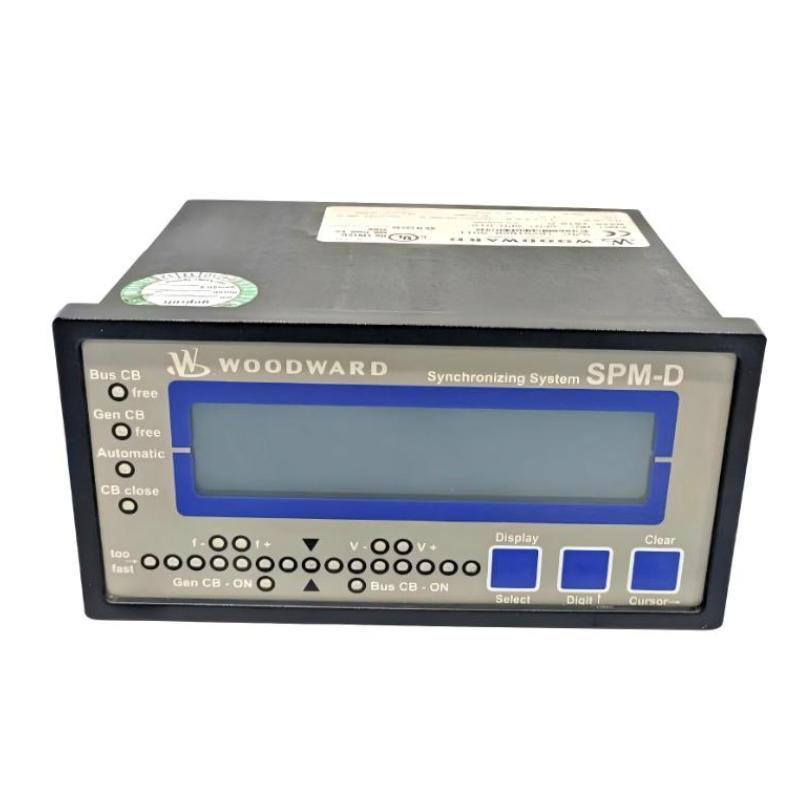

Woodward 8440-1019 SPM-D10 Synchronization System

Applications

• Precise synchronization of generators and turbines in power plants

• Load sharing and phase matching for multiple parallel generators

• Grid connection and industrial microgrid control

• Integration with Woodward control and monitoring systems

• Replacement or upgrade of legacy synchronization and power management systems

Advantages

• High-accuracy synchronization for stable grid connection

• Fast and reliable load-sharing between multiple generators

• Compact and robust design suitable for industrial control panels

• Seamless integration with Woodward digital and analog I/O modules

• Built-in diagnostics for simplified maintenance and troubleshooting

Technical FAQs

1. Q: What is the main function of the 8440-1019 SPM-D10?
   A: It synchronizes generators with each other and with the electrical grid for stable operation.

2. Q: Can it manage multiple generators simultaneously?
   A: Yes, it supports parallel operation and load sharing of multiple units.

3. Q: How does it interface with Woodward control systems?
   A: Through standard digital and analog I/O connections on the Woodward platform.

4. Q: Is it suitable for real-time grid management?
   A: Yes, it provides fast response for real-time synchronization and load control.

5. Q: Does the system include monitoring and diagnostics?
   A: Yes, it has built-in diagnostics to detect synchronization errors and signal issues.

6. Q: Can it operate in harsh industrial environments?
   A: Yes, it is designed for stable operation under vibration, temperature changes, and electrical noise.

7. Q: Is the module configurable on-site?
   A: Yes, configuration and tuning can be done using Woodward software tools.

8. Q: What type of signals does it process?
   A: It handles both analog and digital signals related to voltage, frequency, and phase.

9. Q: Can it operate in redundant setups?
   A: Yes, it can be integrated into redundant systems for critical power applications.

10. Q: Does it require routine maintenance?
    A: Minimal maintenance is needed due to its industrial-grade construction and diagnostics.
