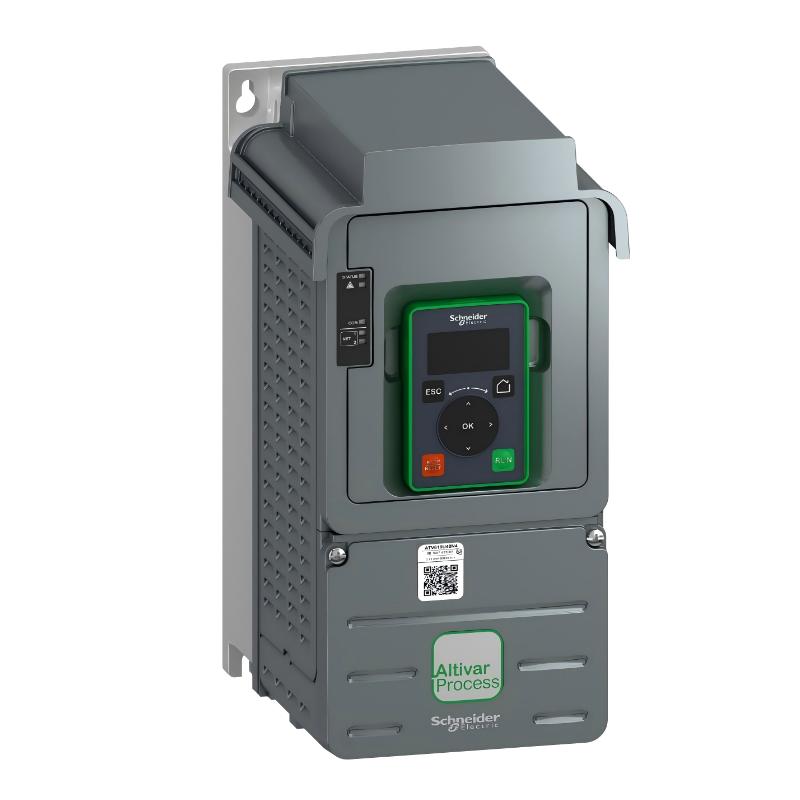

Schneider ATV610U40N4 Easy Altivar 610 Series 4kW Variable Frequency Drive for High-Efficiency Pump, Fan and Process Control Systems
Schneider ATV610U40N4 Easy Altivar 610 Series 4kW Variable Frequency Drive for High-Efficiency Pump, Fan and Process Control Systems
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV610U40N4 Product Origin:France Product Dimensions:297 × 145 × 203 mm Product Weight:4.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV610U40N4 is a robust and energy-efficient variable frequency drive from the Easy Altivar 610 series, specifically engineered for process automation applications such as pumps, fans, compressors, and fluid management systems.
Designed to deliver reliable performance in continuous-duty environments, this model combines simplicity, durability, and energy optimization. With factory preset parameters and intuitive commissioning, it enables rapid deployment while maintaining stable and efficient motor control—making it a preferred choice for industries focused on uptime and operational efficiency.
Technical Specifications
Parameter
Specification
Model
ATV610U40N4
Product Type
Variable Speed Drive (VFD)
Series
Easy Altivar 610
Rated Power
4.0 kW (5 HP)
Input Voltage
380–460 V AC (3-phase)
Rated Output Current
9.3 A (normal duty)
Output Frequency
0.1 – 500 Hz
Control Method
V/F, Optimized Torque Control
Communication
Modbus RTU (built-in)
Digital Inputs
6
Analog Inputs
3
Analog Outputs
2
Protection Rating
IP20
EMC Filter
Integrated (IEC/EN 61800-3 C3)
Cooling Method
Forced convection
Operating Temperature
-15°C to +45°C
Dimensions (H × W × D)
297 × 145 × 203 mm
Weight
Approx. 4.0 kg
Mounting Type
Cabinet / Wall Mount
Recommended Related Models
ATV610U30N4 – 3 kW version for medium-duty applications
ATV610U55N4 – 5.5 kW model for higher power requirements
ATV610D18N4 – 18.5 kW high-power process drive
ATV630U40N4 – Advanced process drive with enhanced features
ATV320U40N4C – Machine-oriented compact drive alternative
Popular Schneider Electric Models
Altivar 610 Process Drives
Altivar 630 Process Drives
Altivar 320 Machine Drives
Modicon M241 / M251 PLC
TeSys Motor Control Components
Applications
The ATV610U40N4 is purpose-built for process industries requiring stable and energy-efficient motor control:
Water supply and wastewater treatment systems
HVAC systems (fans, air handling units)
Pumping and fluid transfer applications
Industrial ventilation and compressors
Oil & gas auxiliary systems
Conveyor systems in process environments
Advantages
Process-Optimized Design: Tailored for pumps and fans with optimized torque control
Energy Efficiency: Reduces energy consumption in variable torque applications
Quick Commissioning: Plug-and-play setup with factory preset parameters
Integrated EMC Filter: Ensures compliance and minimizes interference
Reliable Continuous Operation: Designed for 24/7 industrial environments
Flexible Communication: Built-in Modbus for seamless system integration
Technical FAQs
1. What motor capacity does this drive support?
It supports motors up to 4 kW (5 HP) in normal duty operation.
2. What is the input voltage range?
380–460 V AC, three-phase supply.
3. What applications is it designed for?
Primarily pumps, fans, compressors, and conveyors.
4. What is the output frequency range?
0.1 Hz up to 500 Hz.
5. Does it support communication protocols?
Yes, Modbus RTU is built-in.
6. Is an EMC filter included?
Yes, an integrated EMC filter compliant with IEC standards is included.
7. What is the rated output current?
Approximately 9.3 A under normal duty conditions.
8. Can it operate continuously?
Yes, it is designed for continuous industrial operation.
9. What is the installation method?
It supports cabinet or wall mounting in a vertical position.
10. What is the difference between ATV610 and ATV320 series?
ATV610 is optimized for process applications (pumps/fans), while ATV320 is designed for machine automation.
