Introduction

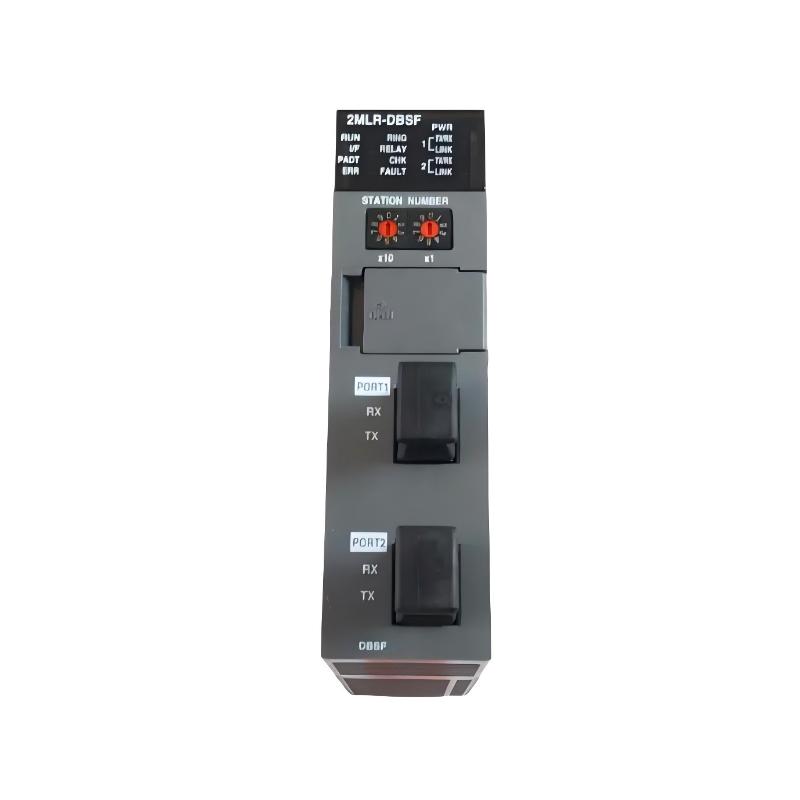

The Honeywell 2MLR-DBSF-CC Extended Driver Module is engineered to expand the output capabilities of Honeywell automation systems. Compact yet powerful, it allows operators to increase control capacity without major upgrades. With a modular design and lightweight construction, it ensures reliable, high-speed output management and simplifies both installation and ongoing maintenance.

Technical Specifications

Feature	Specification
Module Type	Extended Driver Module
Model	2MLR-DBSF-CC
Operating Temperature	-20°C to 60°C
Power Supply	24 VDC ±10%
Communication Protocol	Honeywell Extended Driver Standard
Connectivity	Screw terminals for outputs
MTBF	70,000 hours
Dimensions	150 mm × 100 mm × 50 mm
Weight	0.099 kg

Recommended Related Models

2MLR-CPUH/F-CC — Redundant CPU module with fiber-optic communication support
2MLR-AC23-CC — 220 V redundant power supply module for stable operation
2MLR-DC42-CC — 24 V DC redundant power supply module
2MLR-DBST-CC — TP/CAT5 expansion driver interface module
2MLR-DBSH-CC — Hybrid expansion driver supporting fiber and TP/CAT5 interfaces

Popular Related Models

2MLR-DBSFS-CC — Single-mode fiber expansion driver
2MLR-DBDHS-CC — Dual redundant expansion driver unit
2MLR-DBDF-CC — Dual fiber expansion driver
2MLR-DBDT-CC — Dual TP expansion driver module
2MLR-E12P-CC — Expansion base module with 12 slots

Applications

Expansion of digital and analog driver capacity in automation systems
Interface with Honeywell controllers for extended output management
Driving actuators, relays, and auxiliary devices in industrial processes
Integration in complex factory automation and distributed control systems
Remote monitoring and maintenance of extended driver outputs

Advantages

Extended Capacity: Adds additional outputs to existing Honeywell modules
Reliable Operation: Designed for continuous industrial use with minimal maintenance
Plug-and-Play Installation: Simple integration without extensive rewiring
Compact Footprint: Lightweight and space-efficient design
Enhanced Diagnostics: Built-in monitoring of driver status for proactive maintenance
Durable Construction: Long service life in standard industrial environments

Technical FAQs

What is the primary function of the 2MLR-DBSF-CC?
It extends the output capacity of compatible Honeywell modules, allowing more devices to be driven simultaneously.
Can it support both digital and analog outputs?
Yes, the module is designed to handle compatible digital and analog driver signals.
Is it compatible with legacy Honeywell systems?
Fully compatible with Honeywell systems that support the extended driver interface protocol.
What kind of loads can this module drive?
Standard industrial loads, including actuators, relays, and solenoids within rated specifications.
Does it provide diagnostic feedback?
Yes, LEDs and system monitoring software provide status and error reporting.
Can the module operate in high-temperature environments?
Yes, it supports typical industrial temperature ranges of -20°C to 60°C.
Does it require external power?
Yes, it operates on the standard 24 VDC input specified for Honeywell driver modules.
Is hot-swappable possible?
Replacement is possible with minimal system downtime, but following proper shutdown procedures is recommended.
Can it trigger multiple outputs at the same time?
Yes, within the current and voltage limits defined in the technical specifications.
Are firmware updates supported?
Yes, Honeywell provides firmware updates to maintain compatibility with evolving system protocols.
