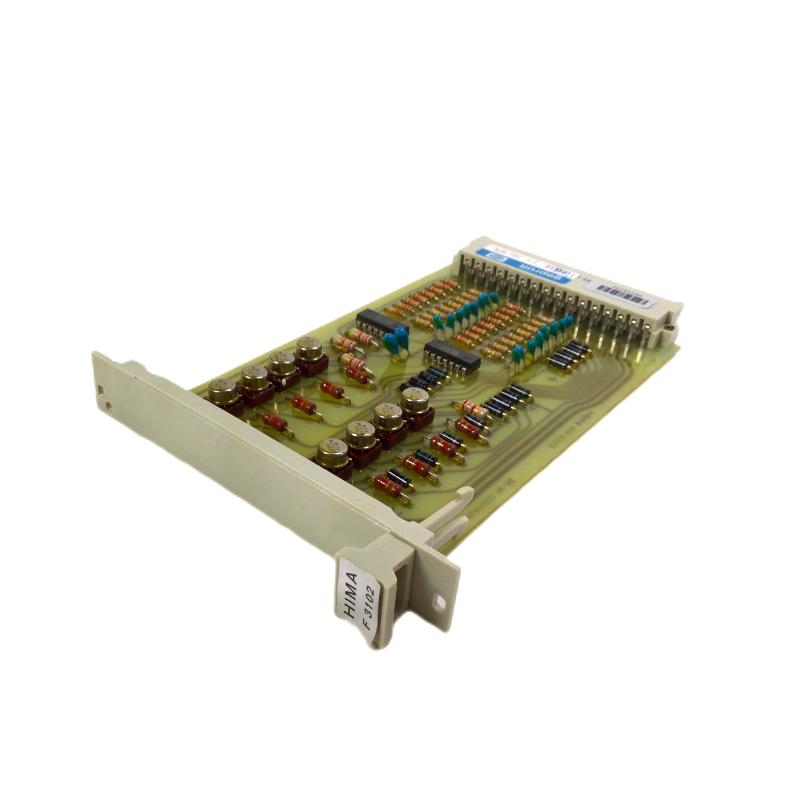

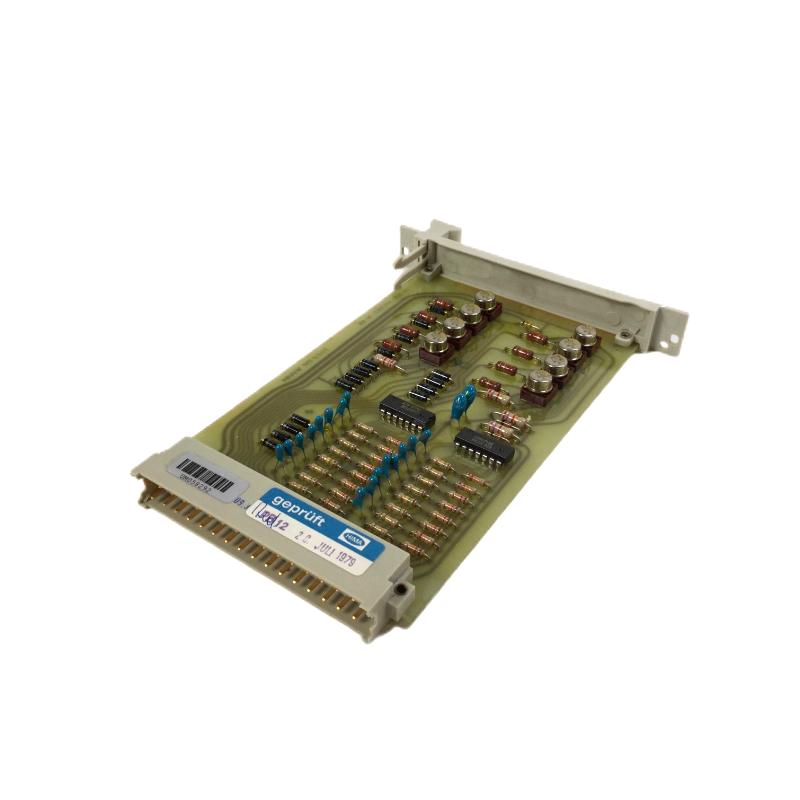

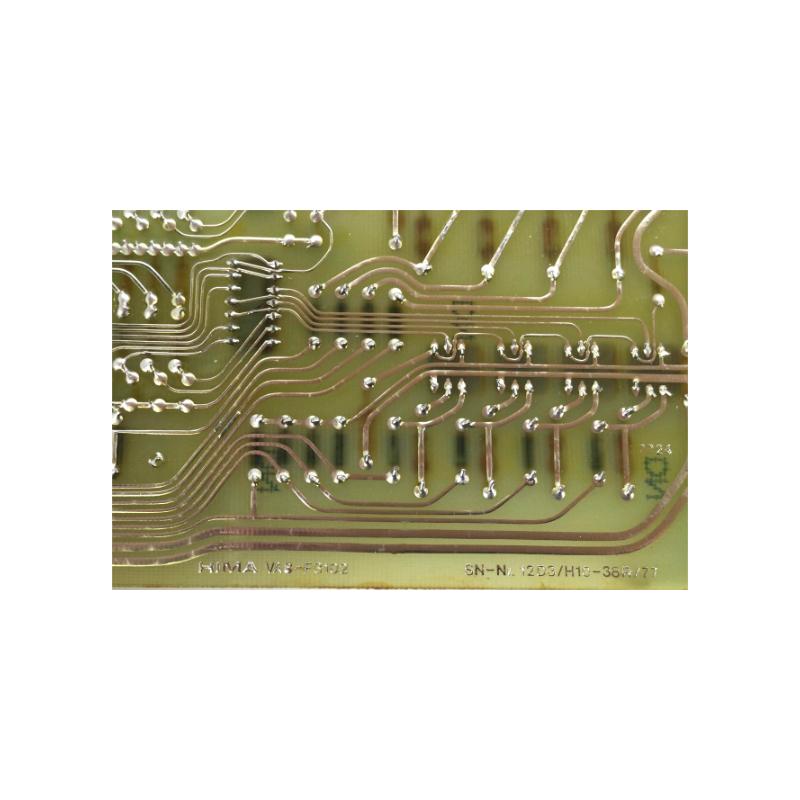

The HIMA F3102 is a compact safety‑related process control module developed by HIMA as part of its HIMatrix / HIMatic 8000 functional safety PLC lineup. Built for demanding industrial environments, this controller module serves as the core processing unit in safety automation applications, executing critical logic and interfacing with distributed I/O to ensure reliable, fail‑safe operation. Its modular design and robust communication capabilities make it suitable for applications requiring high availability and safety integrity.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | HIMA |
| Model | F3102 |
| Module Type | Safety‑Related Process Control / Controller Module |
| Applicable Systems | HIMA HIMatrix / HIMatic 8000 PLC systems |
| Safety Integrity | SIL‑rated (function and platform dependent) |
| Input Voltage | 24 V DC |
| Max Current | ~300 mA |
| Digital I/O | 20 inputs, 8 outputs (approx. capability) |
| Communication Interfaces | Dual Ethernet 10/100 Mbps, RS‑232/RS‑485 (typical) |
| Memory | Typically 128 MB RAM + 128 MB flash (varies by variant) |
| I/O Support | Up to 1024 I/O via expansion (fieldbus support) |
| Operating Temp. | ‑40 °C to +70 °C |
| Mounting | Rack / slot controller |
| Dimensions (approx.) | 203 mm × 127 mm × 92 mm (W×H×D) |
| Weight (approx.) | 0.20–0.30 kg |
| Certifications | Industrial safety standards (vendor documentation required) |
Recommended Related Models
To build a complete HIMA safety automation system, consider the following companion modules:
- HIMA F3224 – Safety‑certified analog input module
- HIMA F3311 – SIL digital input pack
- HIMA F3334 – SIL digital output module
- HIMA H81q Controller Base – Host chassis/controller for safety modules
These units collectively support robust safety logic execution, field signal interfacing, and redundant system architectures.
Popular Allen Bradley Models (For Reference)
Professionals familiar with Rockwell Automation may compare these analogous components:
- Allen‑Bradley 1756‑L81SE – Safety‑rated ControlLogix controller
- Allen‑Bradley 1756‑IB16S – Safety digital input module
- Allen‑Bradley 1756‑OB16S – Safety digital output module
- Allen‑Bradley 1756‑EN2T – Ethernet/IP communication interface
These modules provide equivalent roles within safety logic control in Rockwell environments.
