Brand:ABB PLC Item No.:YPG 109E Product Origin:Sweden (SE) Product Dimensions:182 x 160 x 45 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

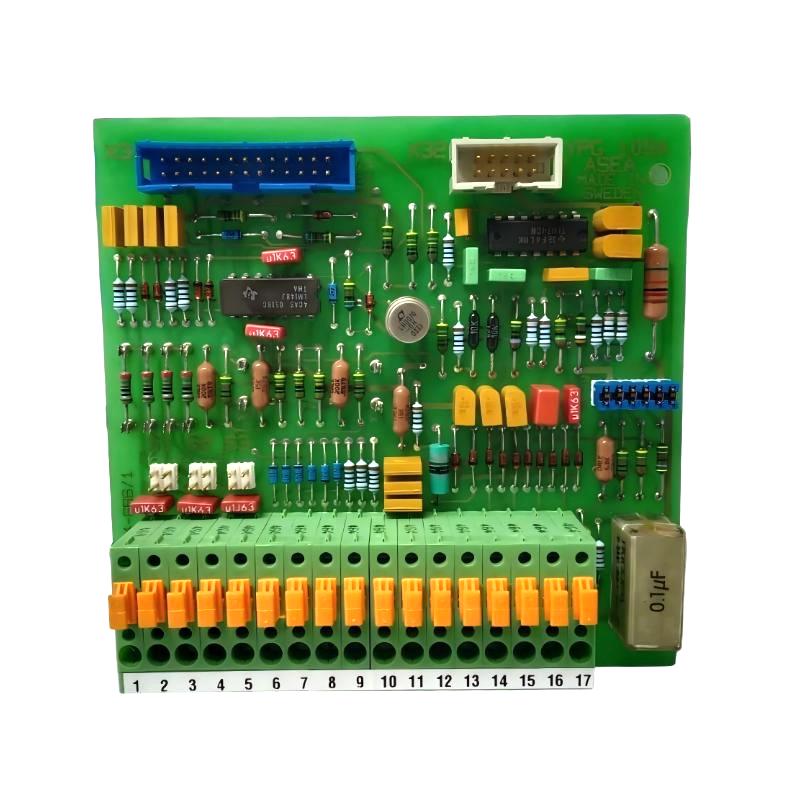

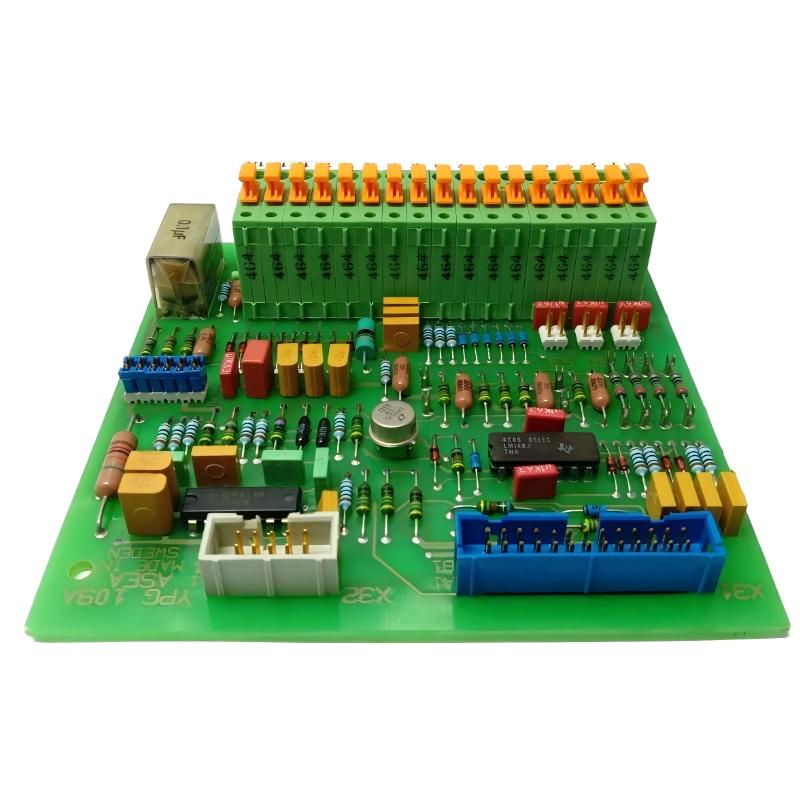

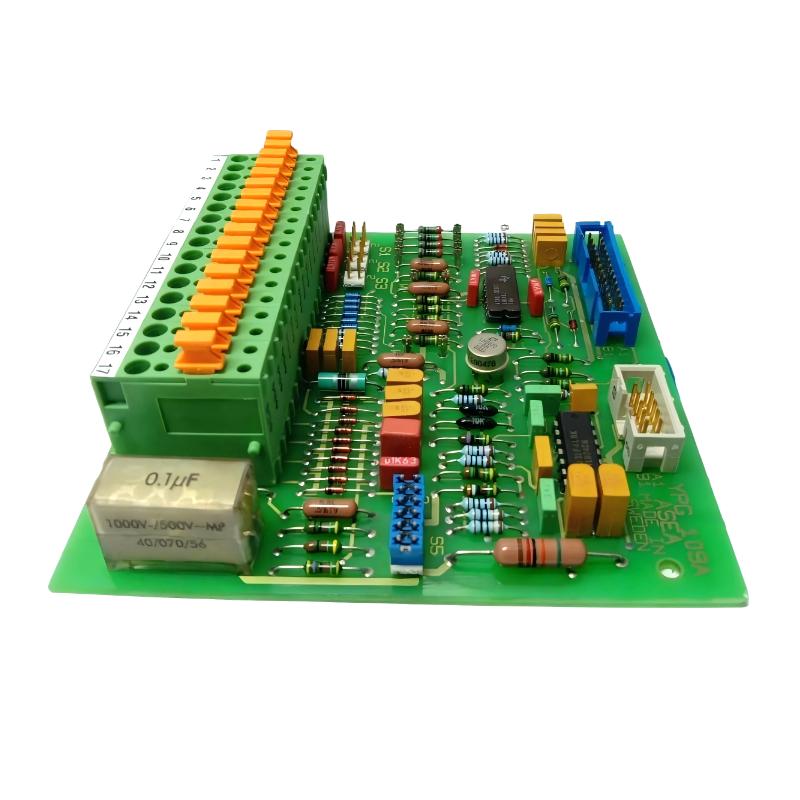

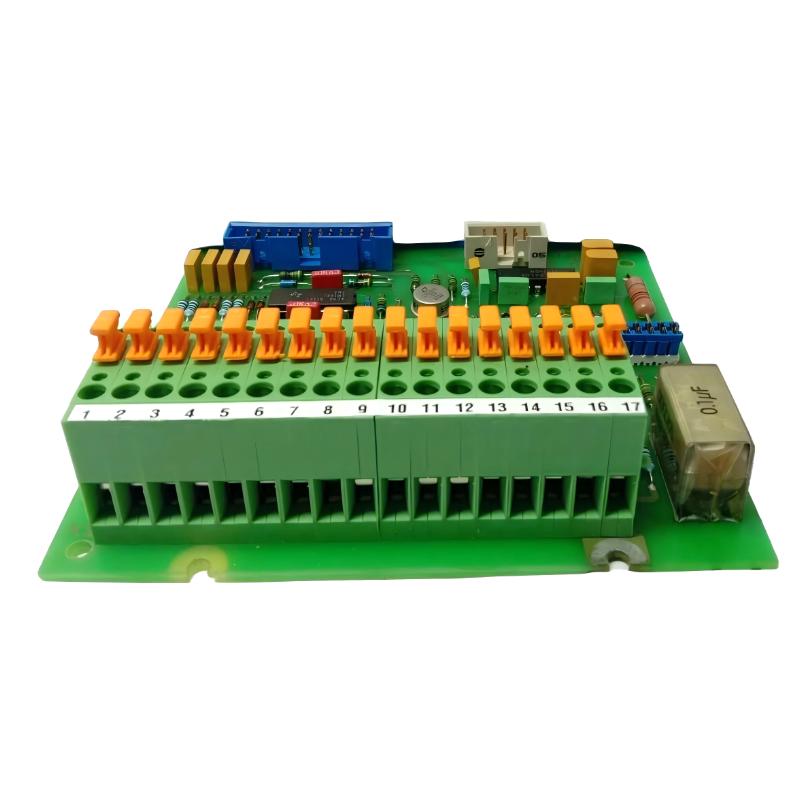

The ABB YPG 109E 3ASD273001B3 Analog Input Board provides high-accuracy analog signal acquisition for ABB automation systems. Designed for reliable integration with CPU and control modules, it ensures precise monitoring of industrial processes and stable performance for both new installations and retrofits.
Technical Specifications
Parameter
Specification
Model
ABB YPG 109E 3ASD273001B3
Type
Analog Input Board
Dimensions
182 × 160 × 45 mm
Weight
0.36 kg
Function
Acquisition and processing of analog signals
Protection
Electrical disturbances, overvoltage, signal interference
Operating Temperature
0°C to 55°C
Communication
ABB system interface
Mounting
Panel-mounted
Recommended Related Models
• ABB 35ZE94H GJR5146600R0101 CPU Processor Board
• ABB 70BK03b-ES Local Bus Interface Module
• ABB UA D142 A01 Power Board
• ABB SR91C790 1MRK002239-BBr02 Power Board
Popular Related Models
• ABB YPG 110E Analog Input Board
• ABB ADV151-E63/D5A00 Numeric Input Module
• ABB ADV551-P50/D5D00 Digital Output Module
• ABB 1MRK002134-ABR02 Binary Input/Output Module
Applications
• Industrial automation systems requiring accurate analog signal acquisition
• Integration with ABB CPU and control modules for precise process monitoring
• Control panels handling multiple analog input channels from sensors
• System retrofits or upgrades demanding reliable analog data processing
Key Advantages
• High-Accuracy Analog Input: Provides precise measurement and signal acquisition from connected sensors
• Seamless ABB Integration: Fully compatible with ABB PLCs, CPU boards, and I/O modules
• Robust Industrial Design: Engineered for stable operation in harsh industrial environments
• Enhanced System Reliability: Ensures accurate and consistent analog data for process control
• Flexible Installation: Compact, panel-mounted design for integration in various control setups
• Durable Construction: Built for long-term industrial use with reliable performance
Technical FAQs
1. What is the primary function of this analog input board?
It acquires and converts analog signals from sensors for processing in ABB control systems.
2. Can it operate in industrial environments?
Yes, it is designed for reliable operation under standard industrial conditions.
3. How is it integrated into the system?
It connects to ABB CPU boards and control modules to provide analog input data for process monitoring.
4. Does it require configuration?
Yes, initial setup may be needed to map channels and configure input ranges within the ABB control system.
5. Is it hot-swappable?
No, installation or replacement should be performed with the system powered down.
6. What types of signals is it compatible with?
It supports standard analog signals such as 4–20 mA, 0–10 V, or sensor-specific inputs.
7. Can it handle multiple input channels simultaneously?
Yes, it is designed to process multiple analog channels efficiently and accurately.
8. What maintenance is recommended?
Periodic inspection of connectors, wiring, and signal integrity is recommended.
9. What protection features are included?
It includes safeguards against electrical disturbances, overvoltage, and signal interference.
10. Can it be used for retrofits?
Yes, it is suitable for upgrading or replacing existing analog input boards in ABB systems.
