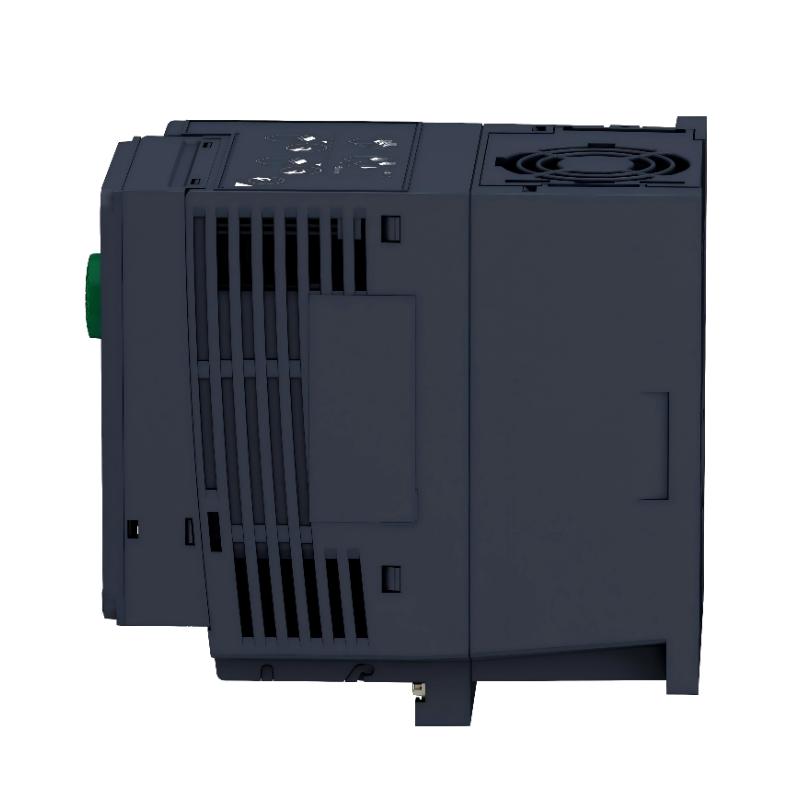

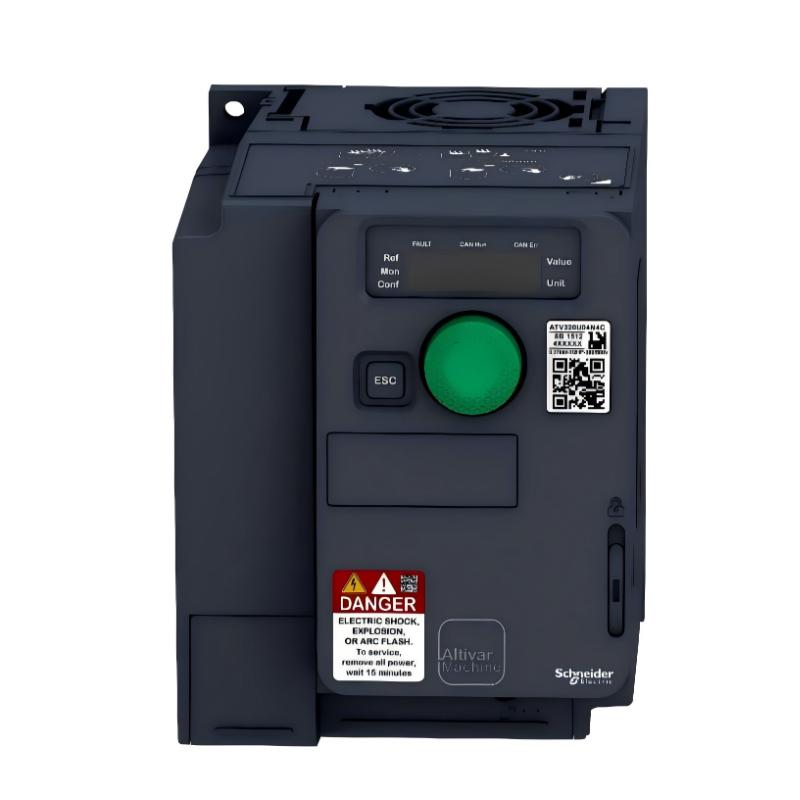

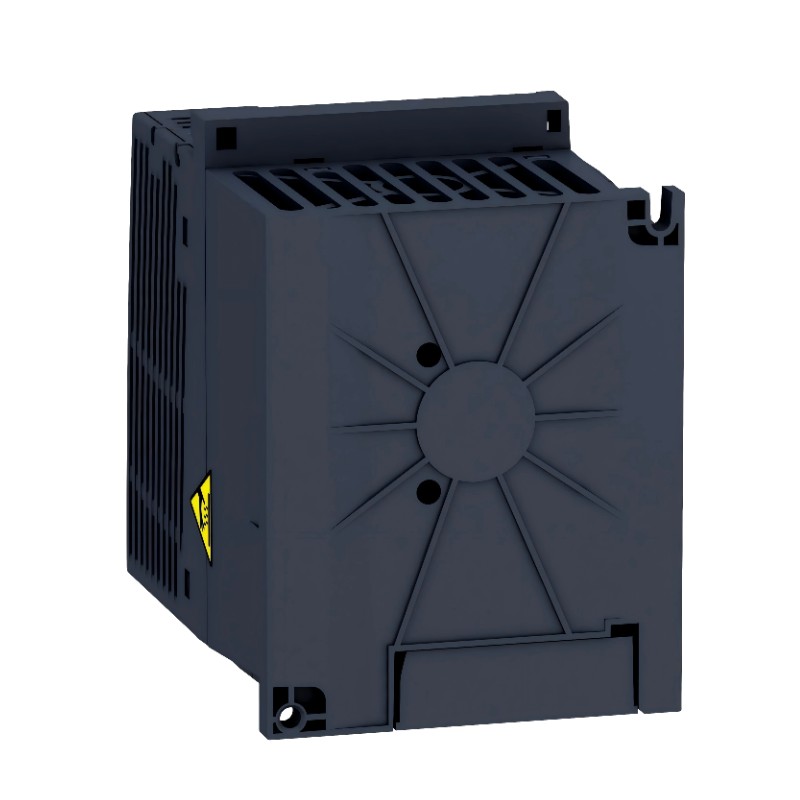

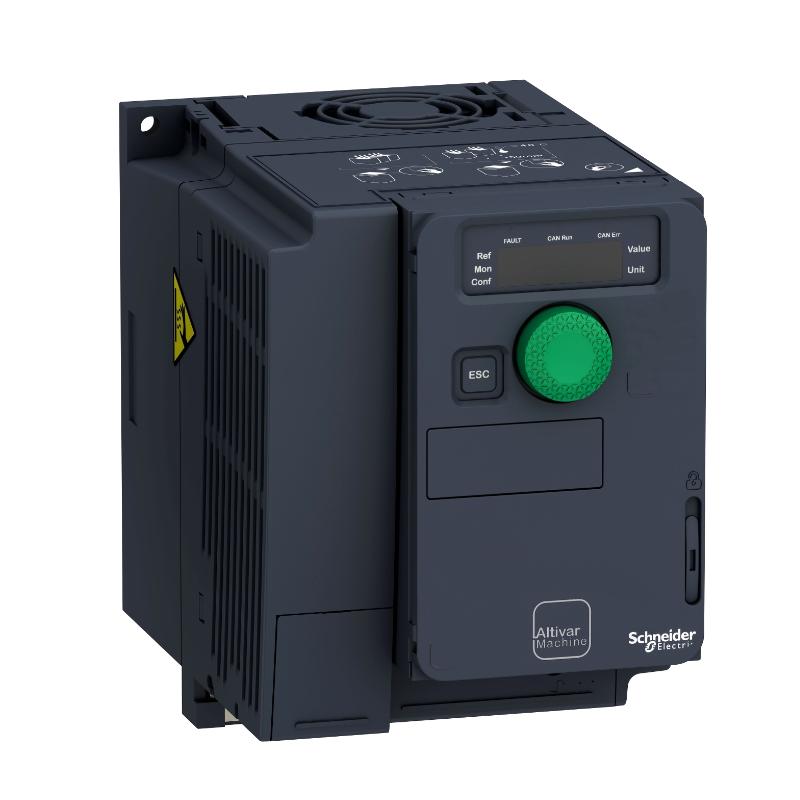

The Schneider ATV320U07N4C is a compact yet powerful variable speed drive from the Altivar Machine ATV320 series, engineered for precision control in space-constrained industrial environments. Designed specifically for complex machine applications, this model delivers reliable motor performance while maintaining a minimal footprint inside control cabinets.
Combining advanced vector control, integrated safety features, and flexible communication options, the ATV320U07N4C enables machine builders and engineers to achieve high efficiency, smooth operation, and seamless system integration across a wide range of automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV320U07N4C |
| Product Type | Variable Speed Drive (VFD) |
| Series | Altivar Machine ATV320 |
| Rated Power | 0.75 kW |
| Input Voltage | 380–500 V AC (3-phase) |
| Rated Output Current | 2.3 A |
| Output Frequency | Up to 599 Hz |
| Control Method | Sensorless Vector Control |
| Communication | Modbus, CANopen (expandable via option cards) |
| Digital Inputs | 7 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Discrete Outputs | 3 |
| Protection Rating | IP20 |
| EMC Filter | Integrated (Class C2) |
| Operating Temperature | Up to 60°C (with derating) |
| Dimensions (H × W × D) | 320 × 45 × 245 mm |
| Weight | 2.0 kg |
| Mounting Type | Compact / Panel Mount |
Recommended Related Models
- ATV320U04N4C – 0.4 kW version for lighter-duty systems
- ATV320U15N4C – 1.5 kW model for higher load requirements
- ATV320U22N4C – 2.2 kW compact drive for medium applications
- ATV320D07N4C – Chassis-type alternative with expanded capabilities
- ATV340U07N4 – High-end drive for dynamic motion control
