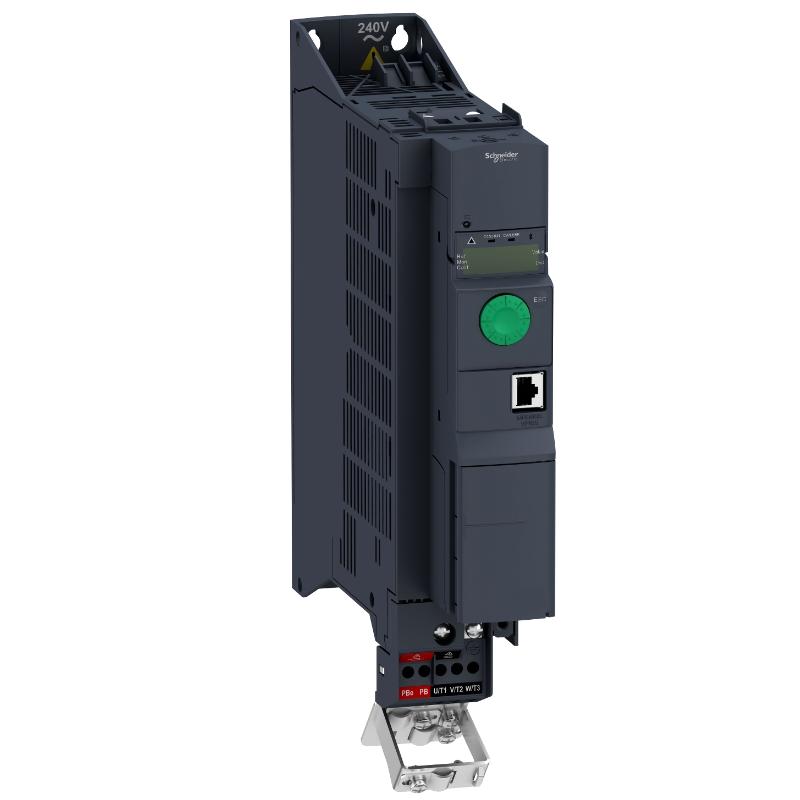

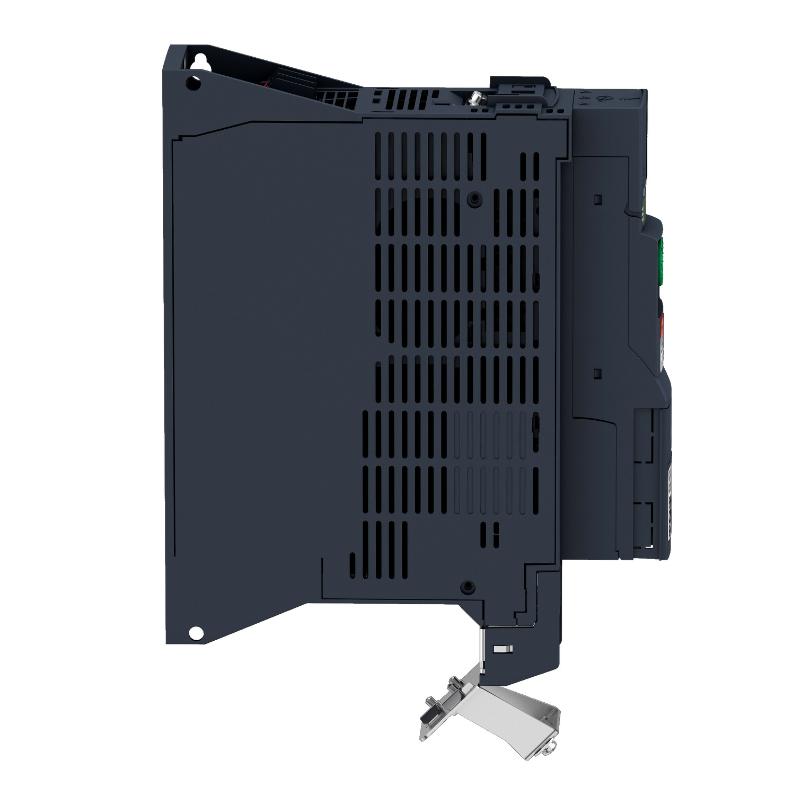

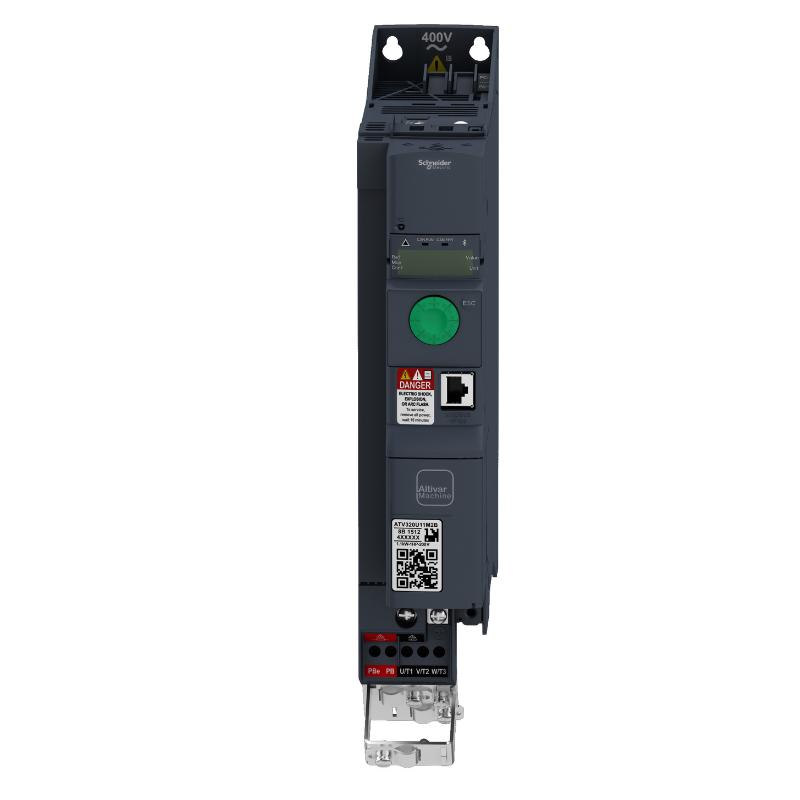

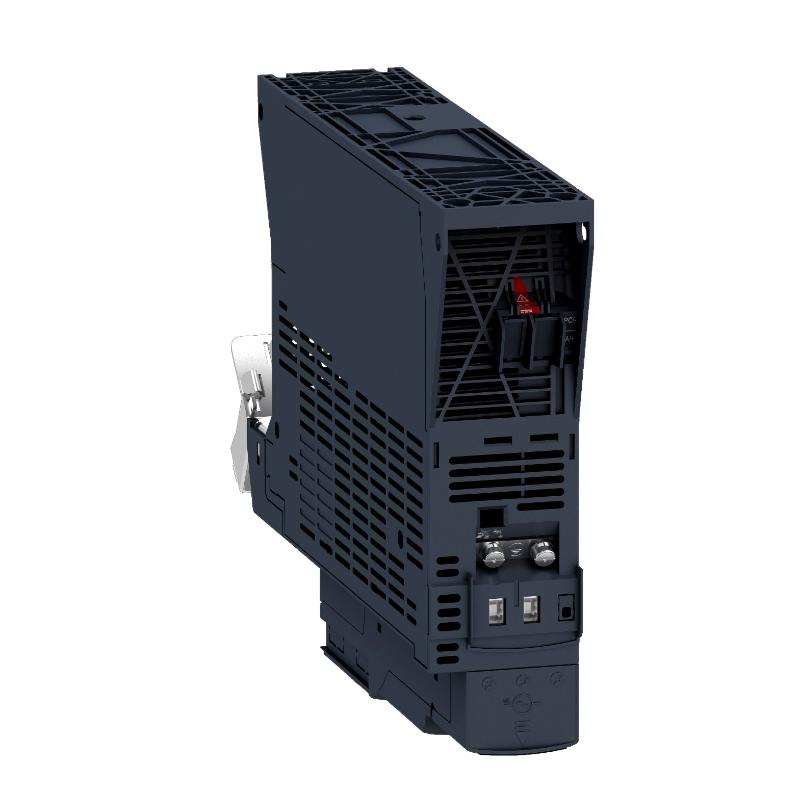

The Schneider ATV320U30N4B is a high-performance variable frequency drive from the Altivar Machine ATV320 series, specifically engineered for compact installations and demanding industrial automation environments. With its slim book-style design, this model is ideal for control cabinets where space optimization and performance are equally critical.
Designed for complex machines and OEM applications, the ATV320U30N4B delivers precise speed control, strong torque response, and excellent reliability. Its advanced motor control capabilities and flexible communication options make it a powerful solution for modern, connected industrial systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV320U30N4B |
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar Machine ATV320 |
| Rated Power | 3.0 kW |
| Input Voltage | 380–500 V AC (3-phase) |
| Rated Output Current | 7.1 A |
| Output Frequency | Up to 599 Hz |
| Control Method | Sensorless Vector Control |
| Communication | Modbus, CANopen (expandable to EtherNet/IP, Profinet, etc.) |
| Digital Inputs | 7 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Discrete Outputs | 3 |
| Protection Rating | IP20 |
| EMC Filter | Integrated Class C2 |
| Safety Function | Safe Torque Off (STO) |
| Operating Temperature | -10°C to +50°C (up to 60°C with derating) |
| Dimensions (H × W × D) | Approx. 325 × 60 × 245 mm |
| Weight | Approx. 2.8 kg |
| Mounting Type | Book-style / Cabinet Mount |
Recommended Related Models
- ATV320U22N4B – 2.2 kW version for medium-duty systems
- ATV320U40N4B – 4 kW model for higher load applications
- ATV320U30N4C – Compact version with enhanced I/O configuration
- ATV320D30N4C – Chassis-type drive for advanced integration
- ATV340U30N4 – High-performance drive for dynamic motion control
