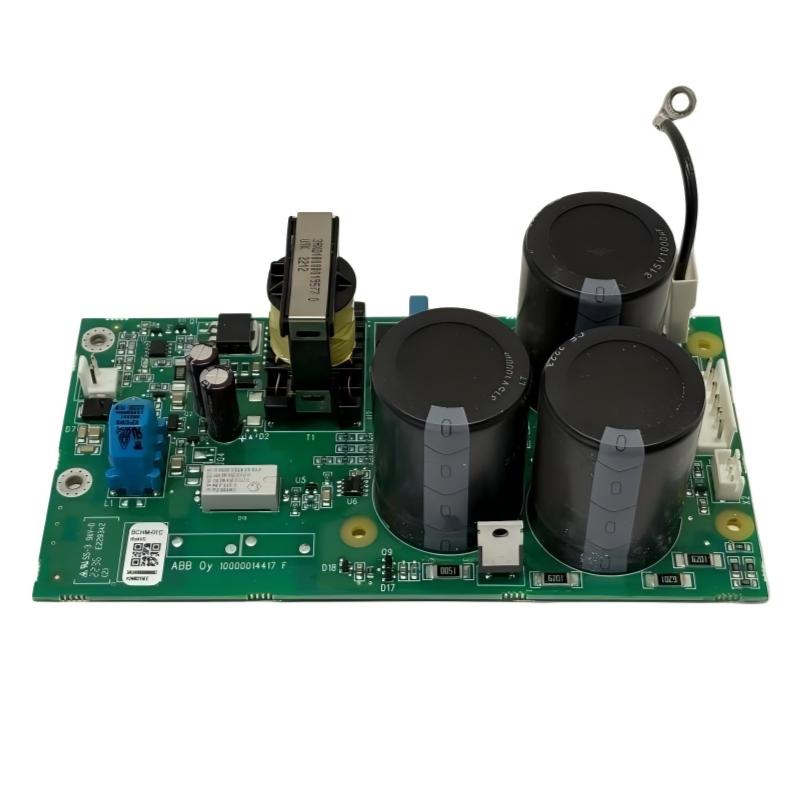

ABB BCHM-01C 3AUA0000088682 Charging Control Board
ABB BCHM-01C 3AUA0000088682 Charging Control Board
0.0
Points
Brand:ABB PLC Item No.:BCHM-01C Product Origin:Sweden (SE) Product Dimensions:135 x 70 x 102 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB BCHM-01C 3AUA0000088682 Charging Control Board is engineered to deliver controlled and reliable DC bus charging in industrial drive systems. By managing the energization sequence, it prevents harmful current surges and enhances overall system safety.
Built with precision and durability, this board is an essential component for maintaining stable operation and extending the service life of connected equipment. It is an ideal choice for industries demanding consistent and high-performance power control solutions.
Technical Specifications
Parameter
Specification
Product Model
BCHM-01C
Part Number
3AUA0000088682
Manufacturer
ABB
Function
DC Bus Charging Control
Compatibility
ABB Drive Systems
Mounting Type
Panel / Cabinet Mount
Dimensions
135 x 70 x 102 mm
Weight
0.3 kg
Operating Temperature
-10°C to +55°C
Storage Temperature
-25°C to +70°C
Recommended Related Models
Model
Product Name
ABB BCHM-04 3AUA0000223456
Charging Control Board
ABB BINT-05C 3AUA0000234567
Interface Control Board
ABB BSMG-01 3AUA0000245678
Power Supply Board
ABB BCPL-02 3AUA0000256789
Pre-Charge Control Module
Popular Related Models
Model
Product Name
ABB BINT-06C 3AUA0000267890
Communication Interface Board
ABB BCPS-03 3AUA0000278901
Power Supply Unit
ABB BAPD-01 3AUA0000289012
Drive Control Board
ABB BSMH-01C 3AUA0000290123
Signal Conditioning Board
Applications
• Variable frequency drive (VFD) systems with DC bus charging requirements.
• Industrial motor control cabinets and automation panels.
• Power conversion systems in heavy-duty industries such as steel and energy.
• ABB drive system upgrades and retrofit installations.
• Equipment requiring controlled startup and capacitor protection.
Key Advantages
• Soft charging capability effectively reduces inrush current during startup.
• Enhanced protection helps extend the lifespan of capacitors and power components.
• Rugged industrial design ensures reliable performance in demanding environments.
• Seamless compatibility with ABB systems enables easy integration.
• Maintenance-friendly structure reduces downtime and service effort.
• Stable operation guarantees consistent and predictable system behavior.
Technical FAQs
1. What is the primary function of the BCHM-01C board?
It controls the charging process of DC bus capacitors to prevent excessive inrush current.
2. Why is inrush current limitation important?
It protects sensitive components from electrical stress and potential failure.
3. Does the board require configuration before use?
No, it operates automatically as part of the system.
4. Can it be used outside ABB drive systems?
It is specifically designed for ABB platforms and may not be compatible elsewhere.
5. How can faults be identified?
Typical signs include abnormal startup, fault alarms, or inconsistent charging behavior.
6. Is it suitable for frequent power cycling?
Yes, it is built to handle repeated industrial start-stop operations.
7. What factors can affect its performance?
High temperature, dust, and inadequate ventilation can impact reliability.
8. How does it contribute to system reliability?
By ensuring controlled voltage rise, it minimizes stress on critical components.
9. What are common signs of failure?
Delayed startup, unstable charging, or repeated system faults.
10. Is regular maintenance required?
Periodic inspection is recommended to ensure optimal performance.
