Brand:ABB PLC Item No.:DSTX 170 Product Origin:Sweden (SE) Product Dimensions:370 x 60 x 260 mm Product Weight:0.335 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

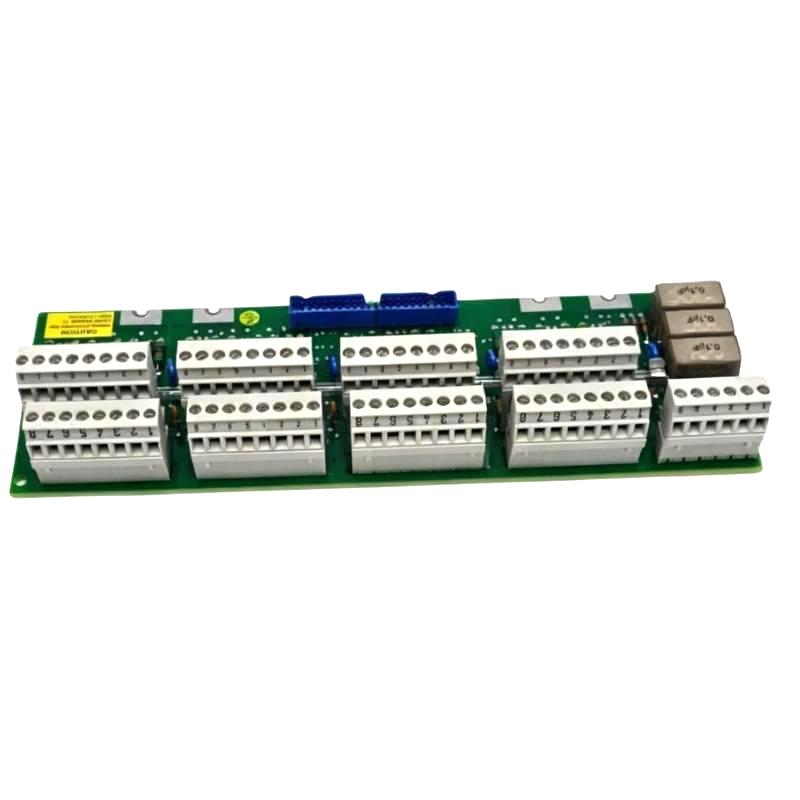

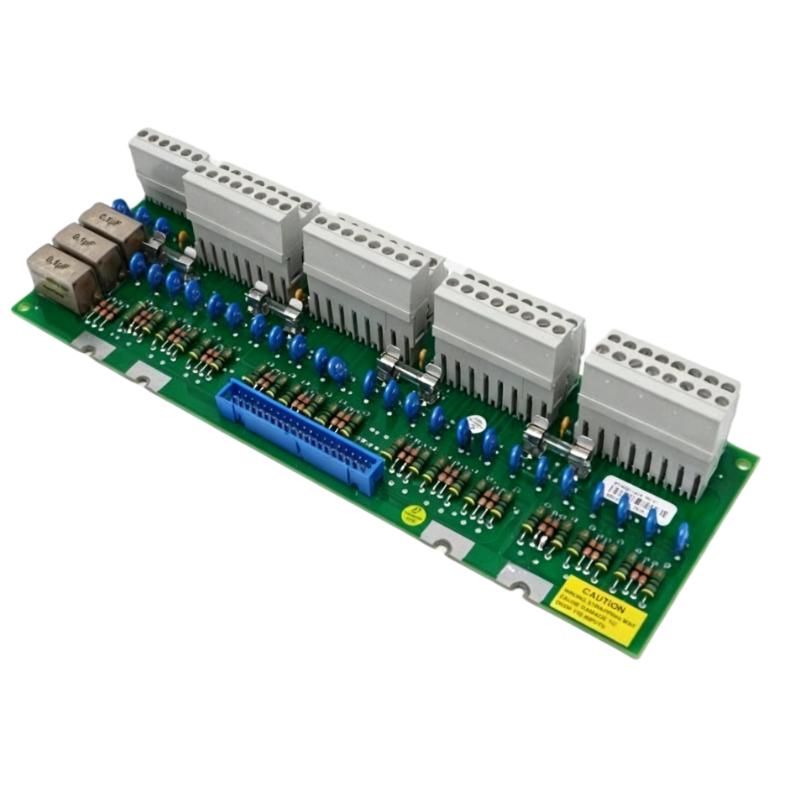

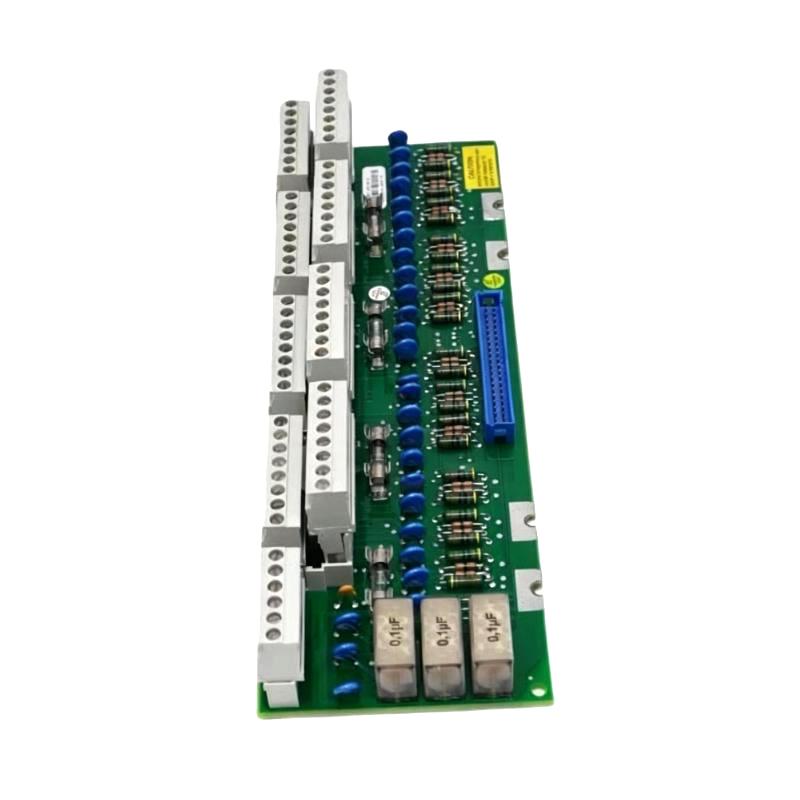

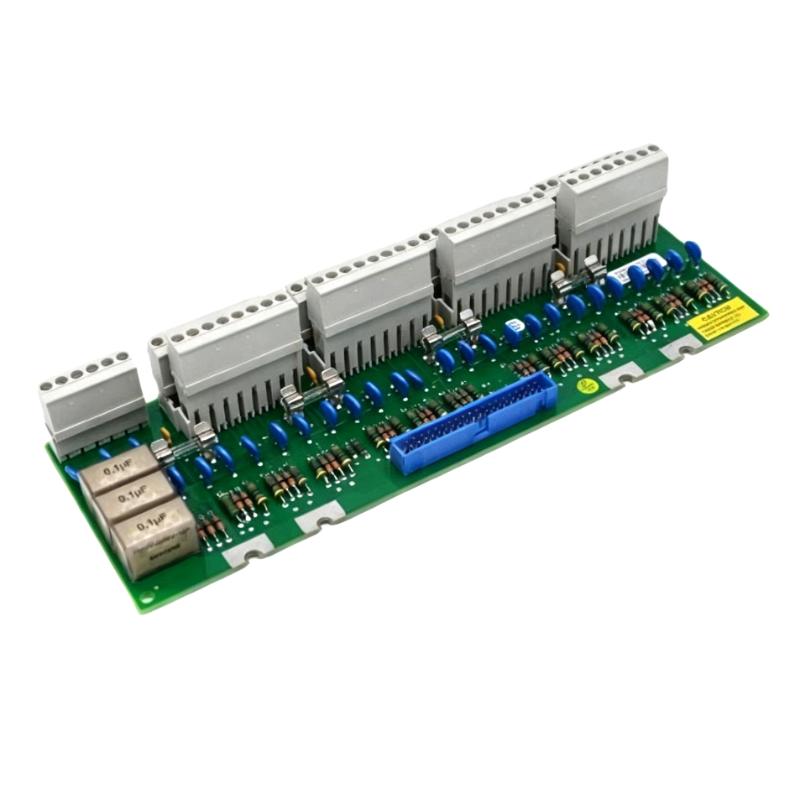

The ABB DSTX 170 57160001-ADK Connection Unit is a reliable and compact solution for interconnecting sensors, actuators, and control modules in ABB automation and control systems. Its robust construction and high-quality connectors provide secure and stable connections, supporting efficient and reliable industrial operations.
Designed for industrial automation, power distribution, and process control applications, the DSTX 170 simplifies system wiring, enhances reliability, and supports easy integration or replacement in existing ABB systems.
Technical Specifications
Parameter
Specification
Product Model
DSTX 170 57160001-ADK
Manufacturer
ABB
Function
Connection Unit
Dimensions
370 × 60 × 260 mm
Weight
0.335 kg
Mounting Type
Control Panel / System Enclosure
Operating Temperature
0°C to +60°C
Storage Temperature
-20°C to +70°C
Application
Industrial Automation & Signal Integration
Recommended Related Models
Model
Product Name
ABB DSTX 171 57160002-ADK
Connection Unit
ABB DSHM 110 5735095-A
Display Unit
ABB DSPB 120 57540001-T/3
Display Processor
ABB DSMD 122 57360001-KM
Floppy Disk Controller
Popular Related Models
Model
Product Name
ABB DSTX 170-A 57160001-ADK
Connection Unit
ABB DSTX 170-B 57160001-ADK
Connection Unit
ABB DSTX 170-C 57160001-ADK
Connection Unit
ABB DSTX 170-D 57160001-ADK
Connection Unit
Applications
• Serves as a central connection hub for ABB automation and control systems.
• Facilitates communication between sensors, actuators, and control modules.
• Used in industrial automation, power distribution, and process control environments.
• Supports system expansion and integration in complex ABB setups.
• Ideal for replacing or upgrading connection units in ABB equipment.
Key Advantages
• Compact and lightweight (0.335 kg) design for easy installation and integration.
• High-quality connectors ensure reliable electrical and signal connections.
• Robust industrial construction withstands vibration, temperature changes, and electrical interference.
• Simplifies system wiring and reduces installation complexity.
• Enhances system reliability by providing stable interconnections.
• Compatible with a wide range of ABB control and automation modules.
Technical FAQs
1. What is the primary function of the DSTX 170 connection unit?
It provides a central hub for connecting sensors, actuators, and control modules in ABB systems.
2. Which ABB systems is it compatible with?
It integrates with ABB automation, control, and distribution modules.
3. How is it installed?
It is mounted in control panels or system enclosures according to ABB installation guidelines.
4. Can it operate in harsh industrial environments?
Yes, it is built to tolerate vibration, temperature fluctuations, and electrical noise.
5. Does it support multiple signal types?
Yes, it handles power, analog, and digital signal connections reliably.
6. Is it suitable for retrofitting older ABB systems?
Yes, it can replace outdated or faulty connection units in compatible systems.
7. How does it enhance system reliability?
By providing secure and stable connections, it minimizes signal loss and electrical faults.
8. Can it simplify installation?
Yes, the compact design and organized layout reduce wiring complexity and installation time.
9. Is maintenance required?
Minimal maintenance is needed; periodic inspections of connectors are recommended.
10. How does it improve operational efficiency?
By ensuring stable and reliable connections, it reduces system downtime and supports smooth operation.
