Brand:ABB PLC Item No.:DSHM 130 Product Origin:Sweden (SE) Product Dimensions:220 x 200 x 70 mm Product Weight:0.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

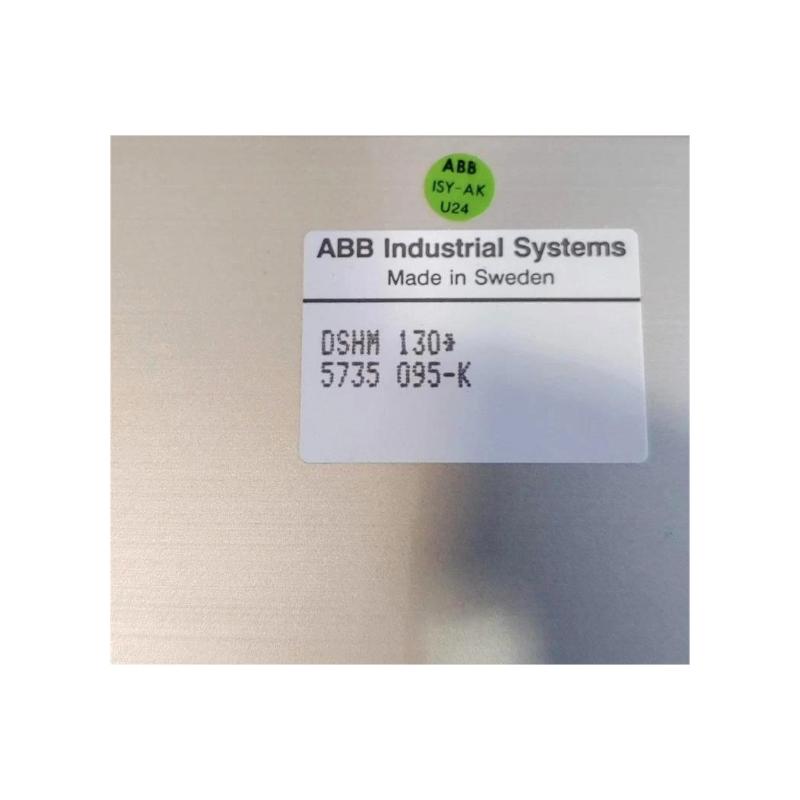

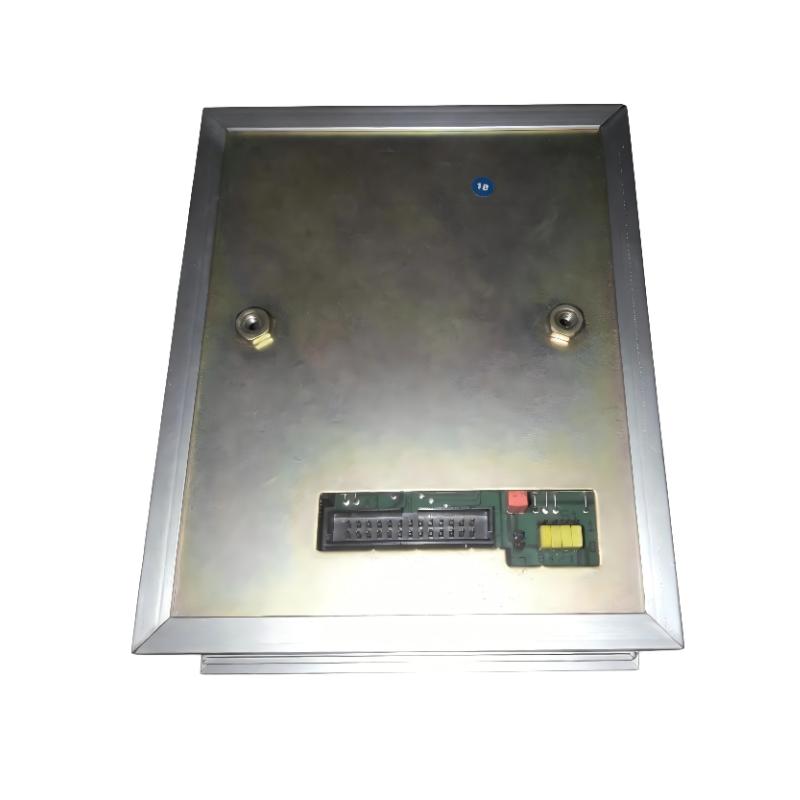

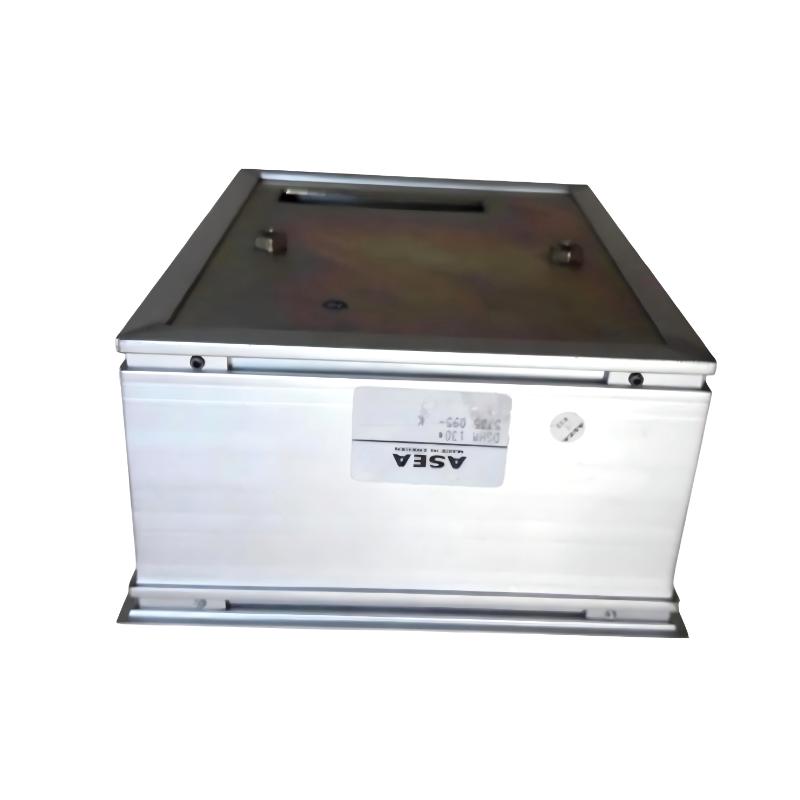

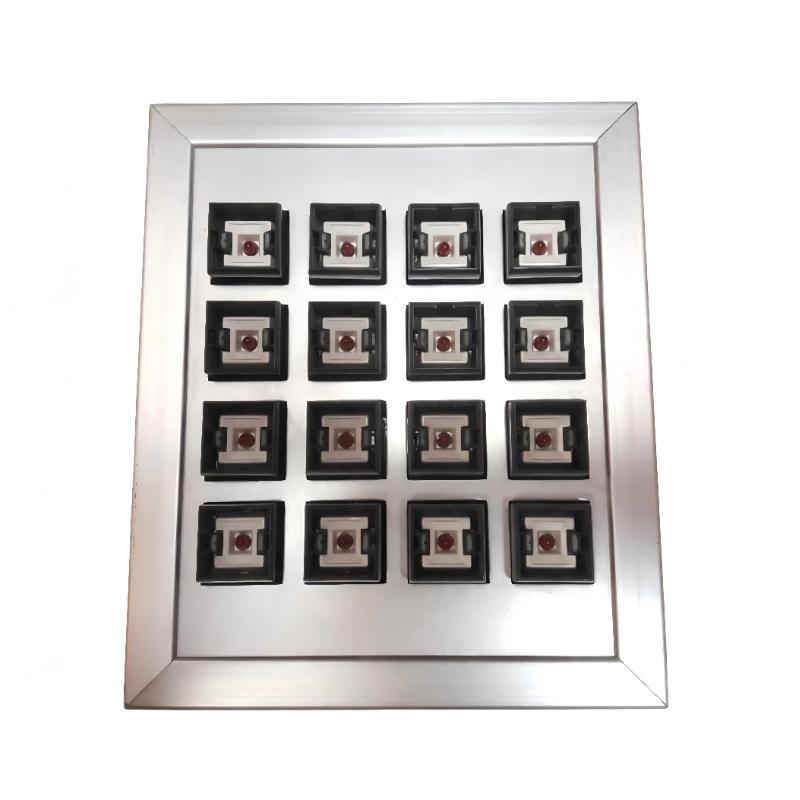

The ABB DSHM 130 5735095-K Function Keypad is an industrial operator interface device designed to provide fast and reliable access to control system functions. It is widely used in ABB Advant Master environments where efficient human-machine interaction is essential for safe and effective process control.
Built for demanding industrial control rooms, the keypad offers durable construction, responsive operation, and seamless integration with ABB automation systems. It supports operators in monitoring, controlling, and maintaining complex industrial processes with improved speed and accuracy.
Technical Specifications
Parameter
Specification
Product Type
Function Keypad
Model
DSHM 130 (5735095-K)
System Compatibility
ABB Advant Master / MasterPiece
Interface Type
Operator input keypad
Function Keys
Dedicated industrial function keys
Material
Industrial-grade durable housing
Installation
Panel-mounted
Operating Environment
Industrial control room
Dimensions
220 × 200 × 70 mm
Weight
0.9 kg
Recommended Related Models
Model
Product Name
DSHM 110
ABB DSHM 110 Display Unit
DSHM 120
ABB DSHM 120 Numeric Keyboard Unit
DSQC 352
ABB Robot Teach Pendant Controller
DSPB 120
ABB Display Processor Board
Popular Related Models
Model
Product Name
AI845
ABB AI845 Analog Input Module
AO845
ABB AO845 Analog Output Module
PM864
ABB PM864 Processor Module
CI854
ABB CI854 Communication Interface Module
Applications
• Operator interface for ABB Advant Master and MasterPiece control systems
• Industrial process control stations in oil & gas and petrochemical plants
• Human-machine interaction panels for power generation monitoring systems
• Control room operation terminals for distributed control systems (DCS)
• Factory automation environments requiring fast function access and navigation
• Maintenance and diagnostic access interface for industrial control systems
Key Advantages
• Dedicated function keypad designed for fast operator interaction
• Ergonomic layout optimized for continuous industrial operation
• High durability construction suitable for 24/7 control room environments
• Direct access to system functions improving operational efficiency
• Reliable performance in harsh industrial and electrical noise conditions
• Seamless integration with ABB Master and related HMI platforms
• Compact industrial design optimized for control panel installation
Technical FAQs
1. What is the main function of the DSHM 130 keypad?
It provides operator input for ABB industrial control and monitoring systems.
2. Which systems is it used with?
It is used in ABB Advant Master and MasterPiece systems.
3. Is it a display or input device?
It is primarily a function keypad (operator input device).
4. What is its main industrial role?
It allows operators to control and navigate process control systems efficiently.
5. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
6. Does it support programmable keys?
Yes, function keys are used for system-specific operations.
7. Can it operate in harsh environments?
Yes, it is built for industrial control rooms with electrical noise resistance.
8. Is it easy to install?
Yes, it is designed for panel integration in ABB operator stations.
9. What industries use this keypad?
Oil & gas, power generation, chemical processing, and manufacturing.
10. Does it require frequent maintenance?
No, it is designed for long-term stable operation.
