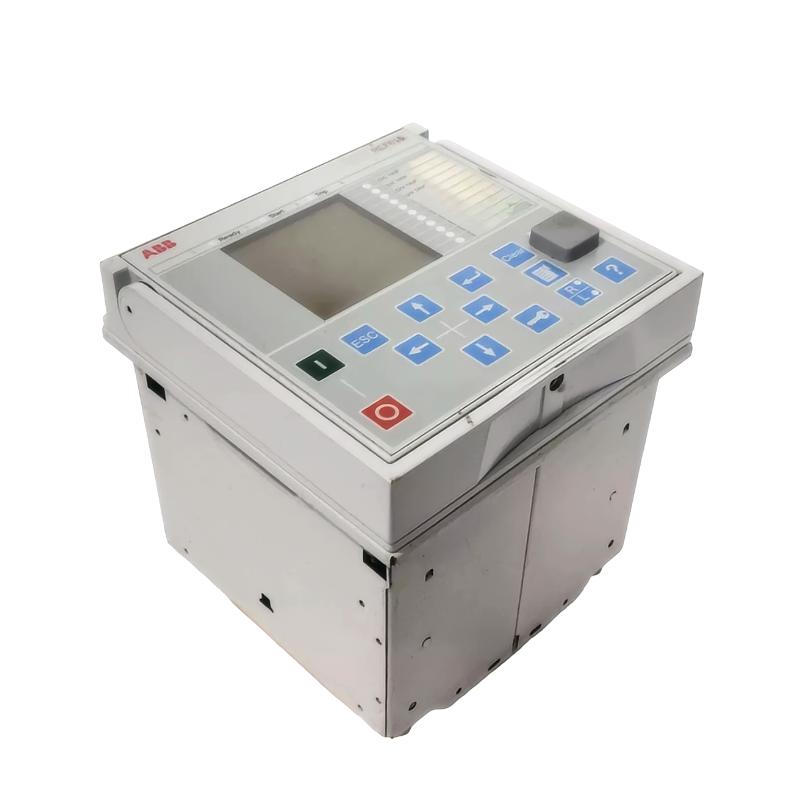

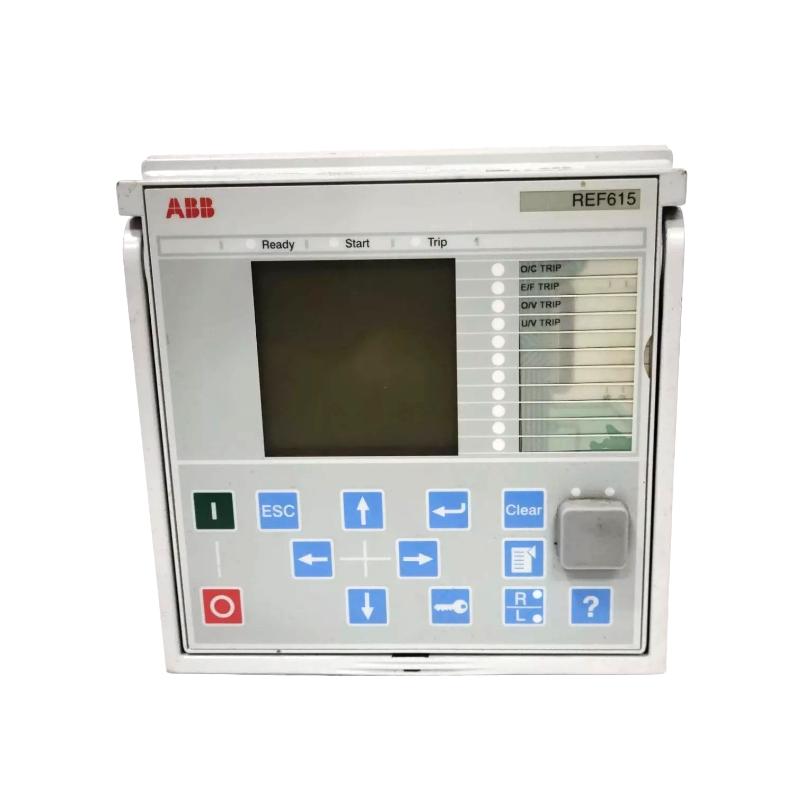

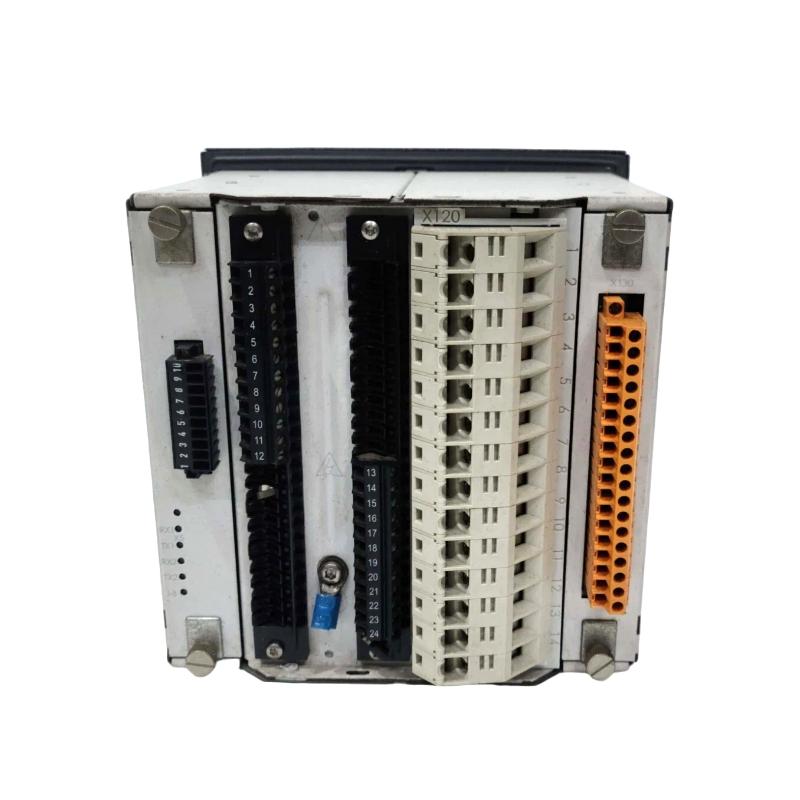

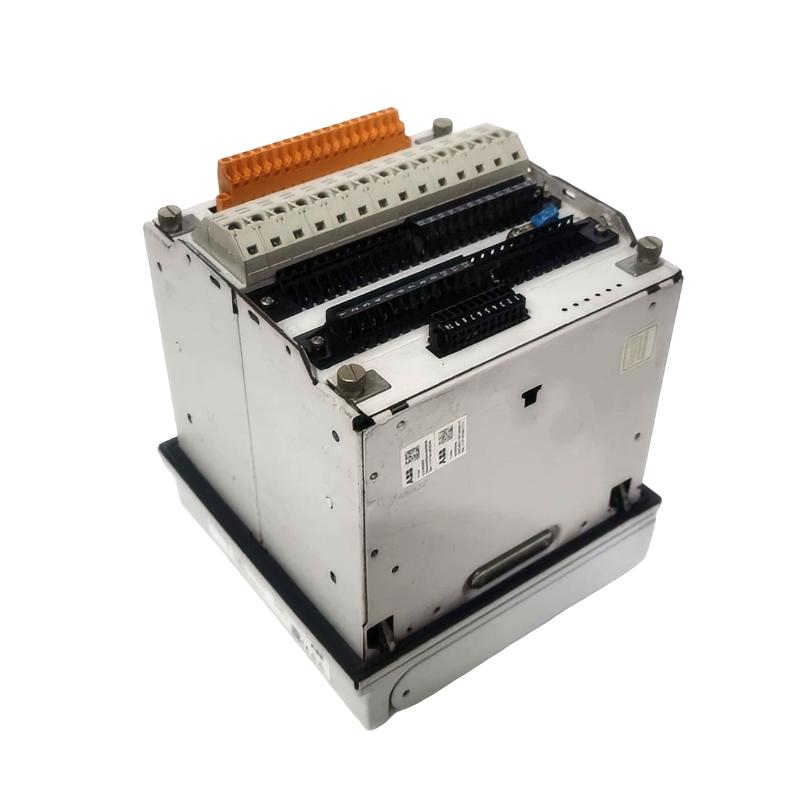

The ABB REF615E_1G is a configuration-specific variant of the ABB Relion® 615 series, designed for high-performance feeder protection, control, measurement, and monitoring in medium-voltage distribution networks.
As part of ABB’s advanced digital protection platform, the REF615E_1G delivers fast fault detection, precise selectivity, and strong interoperability with IEC 61850-based substation automation systems. It is widely used in utility substations and industrial power systems where reliability, continuity of service, and fast response to electrical faults are critical.
The “1G” ordering code typically indicates a customized hardware and communication configuration within the REF615E platform, optimized for specific application requirements and regional system integration standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | REF615E_1G |
| Series | Relion® 615 Series |
| Device Type | Feeder Protection & Control Relay |
| Function | Protection, control, measurement, supervision |
| Auxiliary Supply Voltage | 48–250 V DC / 100–240 V AC |
| Communication Protocols | IEC 61850, Modbus RTU, Modbus TCP, DNP3 |
| Configuration Tool | ABB PCM600 |
| Mounting Type | Panel flush mounting |
| Operating Temperature | -25°C to +70°C |
| Frequency | 50/60 Hz |
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 177 × 177 × 201 mm |
| Weight | Approx. 2.5 – 3.5 kg |
| Enclosure | Industrial-grade rugged housing |
| Installation Type | Flush-mounted panel device |
