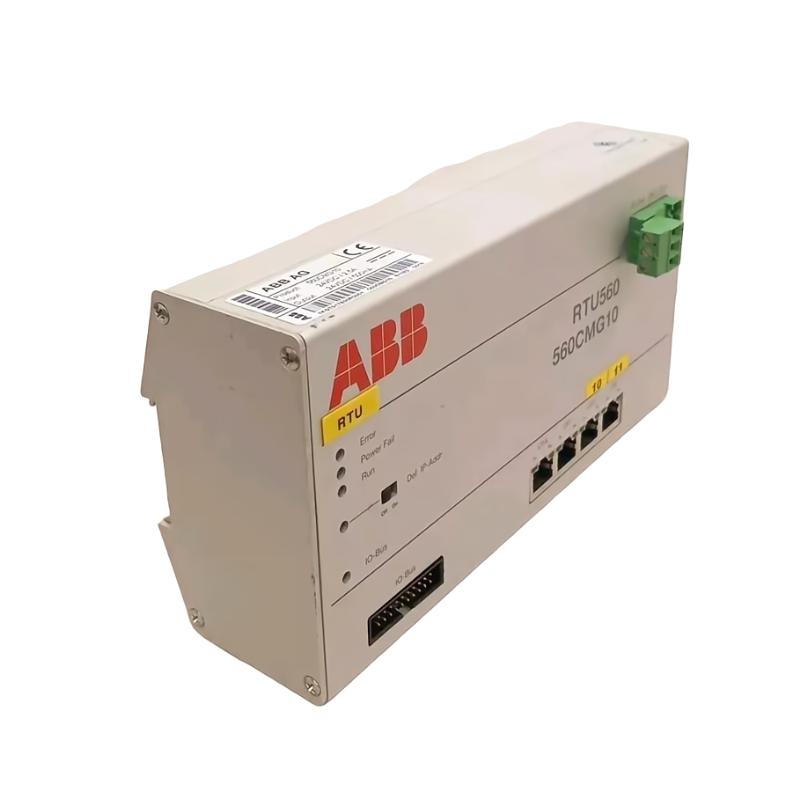

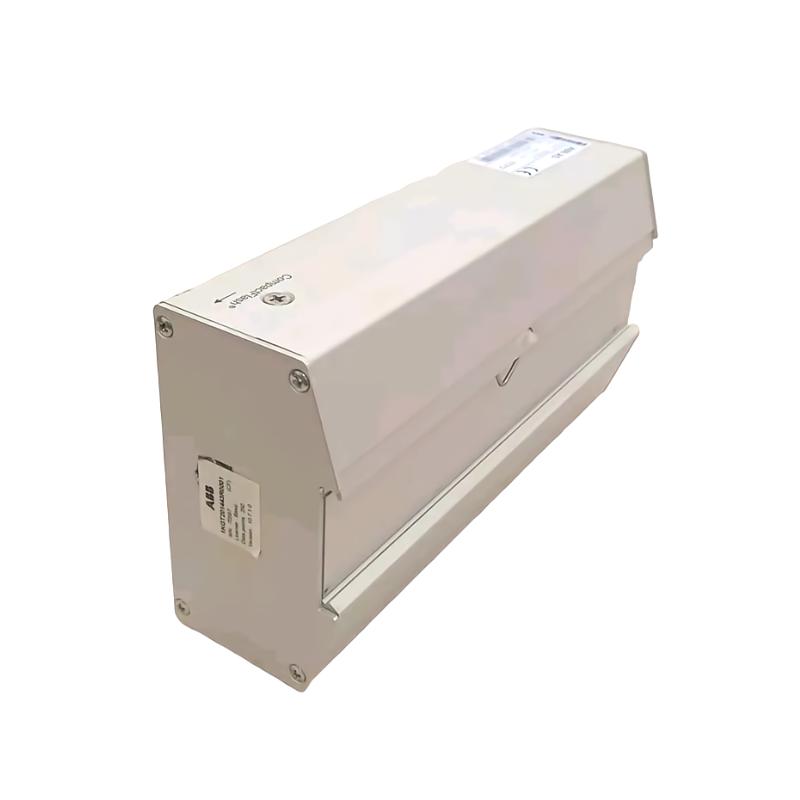

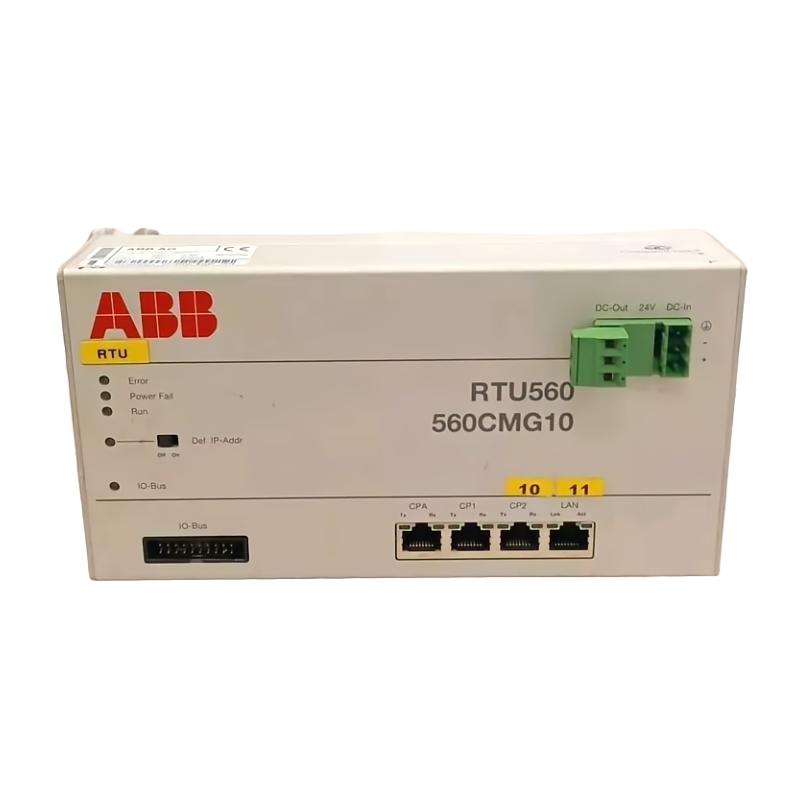

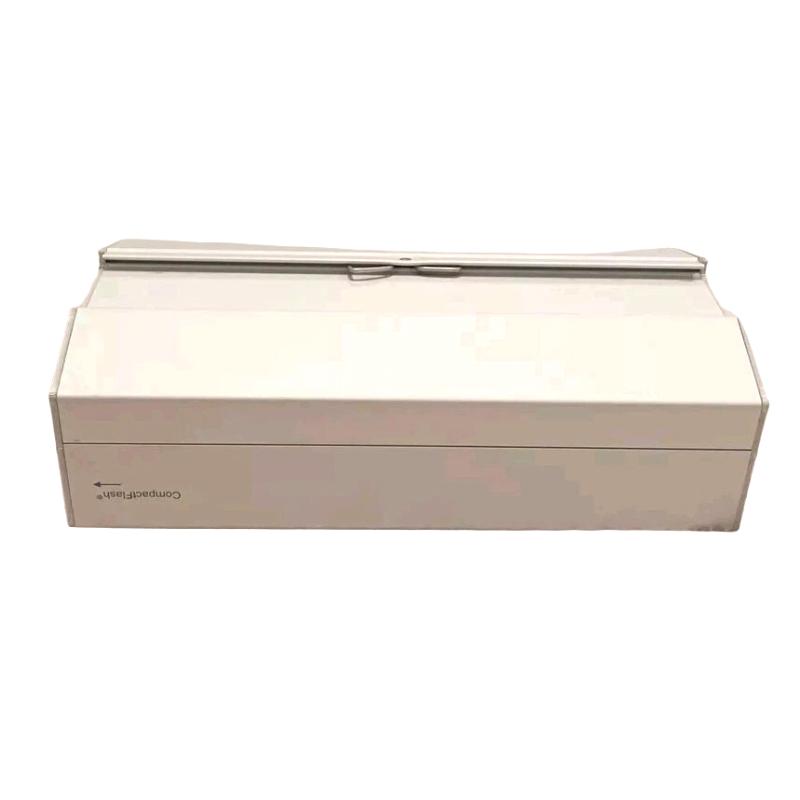

The ABB RTU560 560CMG10 is a core communication and control module within the ABB RTU560 remote terminal unit (RTU) platform, designed for substation automation, remote monitoring, and industrial data acquisition systems.
It acts as the central processing and communication hub of the RTU560 architecture, managing I/O modules, handling real-time process data, and ensuring reliable communication between field equipment and control centers. With support for multiple industrial protocols and robust hardware design, it is widely used in power grid automation, smart substations, and mission-critical infrastructure.
Engineered for high availability and harsh environments, the 560CMG10 ensures stable operation, deterministic communication, and seamless integration into SCADA and IEC-based control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 560CMG10 |
| Product Family | RTU560 Series |
| Device Type | Communication / Central Control Module |
| Function | I/O management, communication processing, system control |
| Processor | 32-bit MPU architecture |
| Memory | RAM + Flash (system dependent configuration) |
| Communication Interfaces | Ethernet, RS-232, RS-485 |
| Supported Protocols | IEC 60870-5-104, DNP3, TCP/IP-based protocols |
| Configuration Tool | RTUtil560 |
| Mounting Type | DIN rail / rack-mounted RTU housing |
| Operating Temperature | -40°C to +70°C |
| Power Supply | 24 V DC |
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions | Approx. 204 × 105 × 55 mm |
| Weight | Approx. 0.5–0.8 kg |
| Housing | Industrial metal enclosure |
| Installation | DIN rail / RTU cabinet integration |
