Introduction

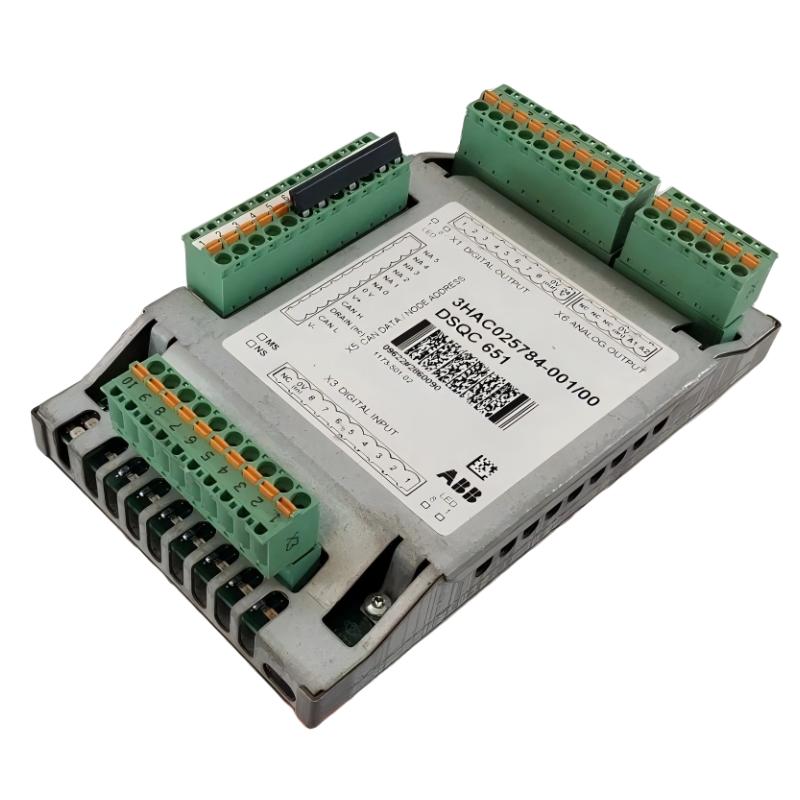

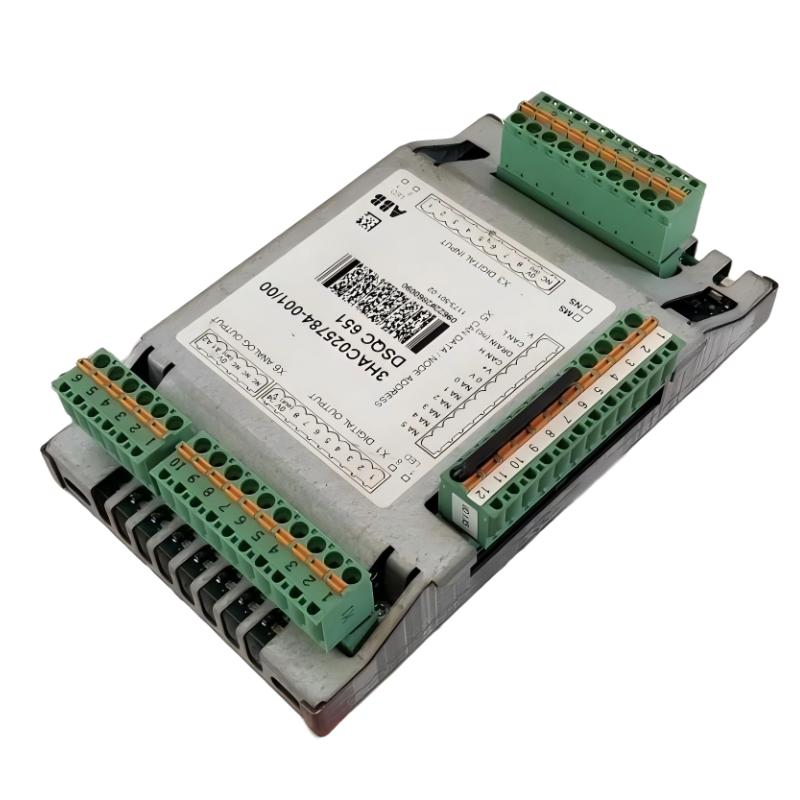

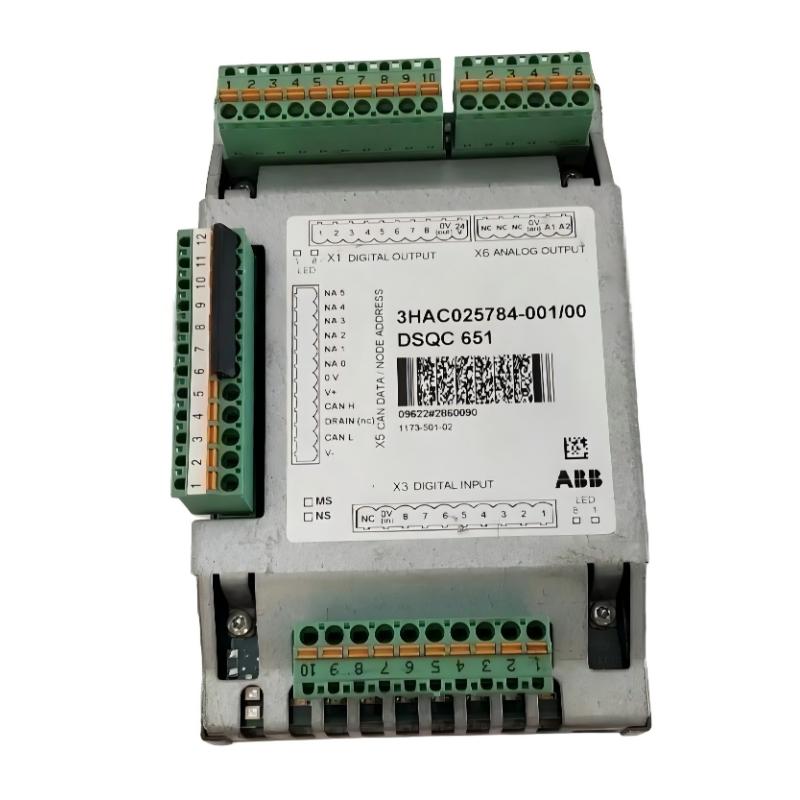

The ABB DSQC 651 3HAC025784-001/00 control cabinet I/O module is a high-performance interface solution designed to extend the connectivity of ABB robotic systems. It enables seamless communication between controllers and external devices, supporting both digital and analog signal processing.

Engineered for reliability and flexibility, this module is an essential component in modern automation systems, particularly in applications requiring scalable I/O architecture and consistent real-time performance.

Technical Specifications

Parameter	Specification
Product Type	Control Cabinet I/O Module
Manufacturer	ABB
Model	DSQC 651
Part Number	3HAC025784-001/00
Function	Digital & Analog I/O Expansion
Signal Type	Digital I/O + Analog Output
Operating Voltage	24V DC
System Integration	ABB IRC5 Robot Controllers

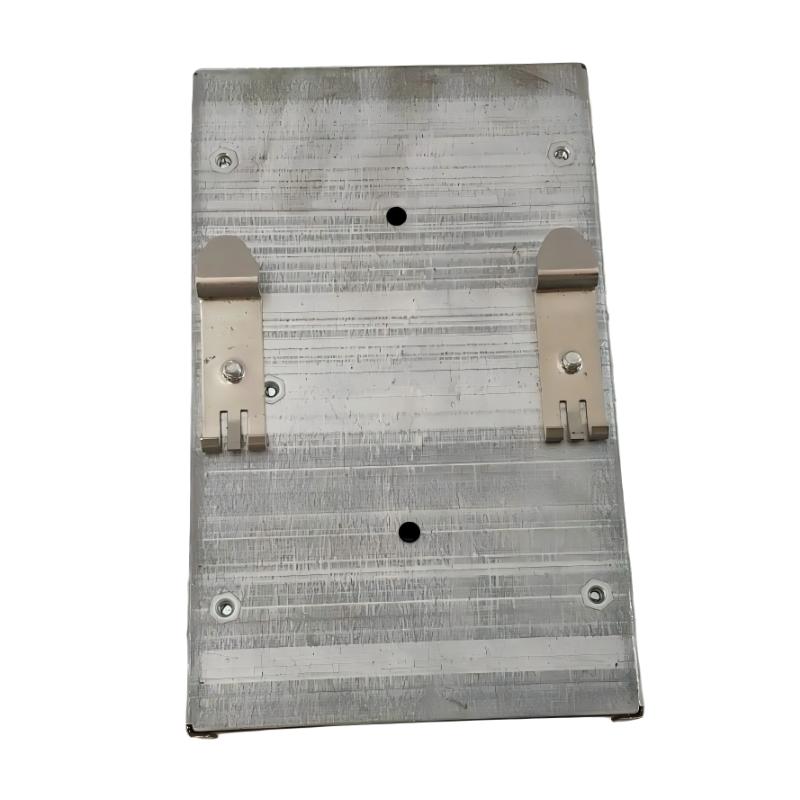

Mounting Type	Control Cabinet / DIN Rail
Dimensions (W × H × D)	120 mm × 25 mm × 95 mm
Weight	0.36 kg (0.79 lb)

Applications

The ABB DSQC 651 3HAC025784-001/00 control cabinet I/O module is a versatile interface unit designed for industrial robotic systems requiring efficient signal exchange and distributed I/O control. It is widely used in:

ABB IRC5 robot controllers for digital and analog I/O expansion
Automated production lines with real-time signal interaction
Industrial robotic cells requiring sensor and actuator connectivity
Process automation systems with distributed control architecture
Machine control environments demanding stable I/O communication

This module bridges the gap between field devices and controller logic, ensuring responsive and reliable automation performance.

Advantages

Integrated digital and analog I/O for flexible system expansion
High signal reliability with industrial-grade isolation design
Compact structure ideal for control cabinet installations
Plug-and-play compatibility with ABB IRC5 systems
Supports stable real-time communication in demanding environments

Technical FAQs

What is the primary function of this I/O module?
It expands digital and analog input/output capabilities in ABB robot systems.
Which systems is it designed for?
It is mainly used in ABB IRC5 robot controllers.
What types of signals does it support?
It supports digital inputs/outputs and analog output signals.
Are the digital channels isolated?
Yes, digital I/O channels are optically isolated for reliability.
Does it support analog outputs?
Yes, it provides analog output channels typically in 4–20 mA range.
Is it suitable for real-time control?
Yes, it is designed for real-time industrial automation tasks.
Does it require programming?
No complex programming is required; it integrates through system configuration.
Can it be used in distributed systems?
Yes, it is ideal for distributed I/O architectures.
What voltage does it operate on?
It typically operates on 24V DC industrial control power.
Can it be replaced without affecting the system?
Replacement requires system shutdown and verification after installation.
