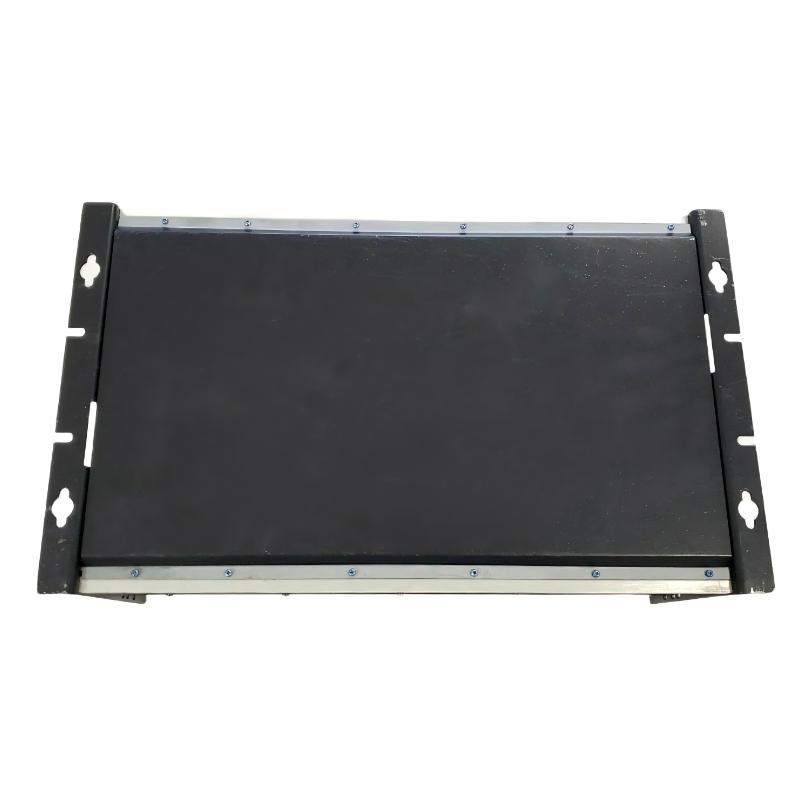

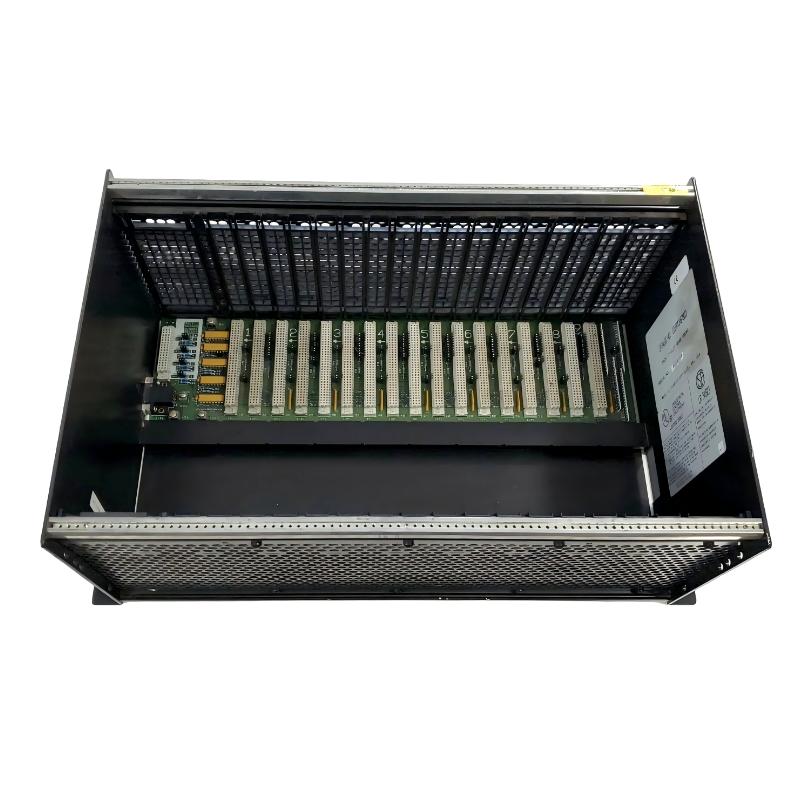

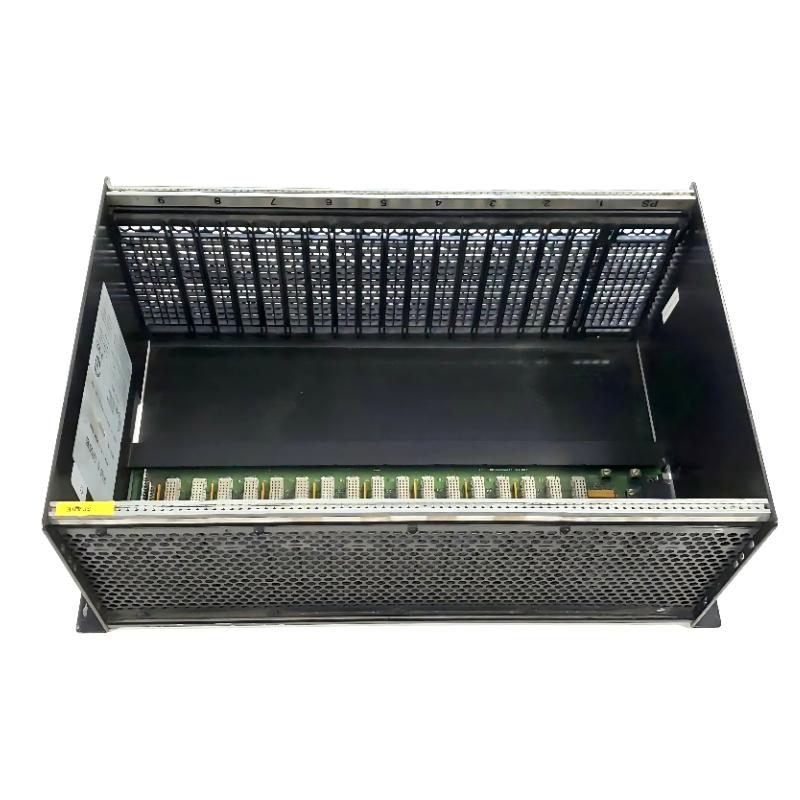

The GE IC697CHS782 is a 17-slot rear-mount VME integrator rack designed for the GE Fanuc Series 90-70 PLC system. It provides a flexible and high-density platform for integrating IC697 PLC modules and third-party VME boards, making it a powerful solution for complex industrial automation architectures.
Unlike standard racks, this model supports mixed module configurations and is widely used in advanced control systems, retrofit projects, and high I/O-density applications where expansion flexibility and system integration are essential.
Technical Specifications
The IC697CHS782 is designed for modular scalability and hybrid PLC/VME integration.
| Parameter | Specification |
|---|---|
| Model | IC697CHS782 |
| Product Type | VME Integrator PLC Rack |
| Series | GE Fanuc Series 90-70 |
| Slot Capacity | 17 single-width slots or 8 double-width modules ([turn0search0]) |
| Slot Spacing | 0.8 inch VME standard spacing ([turn0search0]) |
| Module Support | IC697 modules + 3rd-party VME modules ([turn0search8]) |
| Backplane | VME-compatible architecture |
| Power Supply | AC/DC plug-in or external supply supported |
| Current Capacity | Up to 20 A @ 5 V DC ([turn0search9]) |
| Cooling Method | Natural convection (optional fan kit available) |
| Installation | Rear panel mount |
| Grounding | Bottom rail shield grounding |
This rack is specifically engineered for high-density I/O and hybrid system expansion with strong electrical and mechanical stability.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ≈ 483 mm × 190 mm × 283 mm (19.0 × 7.5 × 11.15 in) ([turn0search0]) |
| Weight | ≈ 5.8 kg ([turn0search2]) |
The rack fits standard industrial control cabinets and is optimized for large-scale PLC system integration.
Recommended Related Models
For a complete GE Series 90-70 system, IC697CHS782 is commonly paired with:
- GE IC697CPU772 Central Processing Unit
- GE IC697CGR935 Hot Standby CPU Module
- GE IC697PWR711 Power Supply Module
- GE IC697BEM711 Bus Receiver Module
- GE IC697RCM711 Redundancy Communication Module
- GE IC697MDL Series I/O Modules
These components enable scalable, redundant, and high-performance industrial automation systems.
