Schneider BMXXCAUSBH045 Connecting Cable

PLC Programming Applications and Extended Modicon M340 Communication Connection Solutions

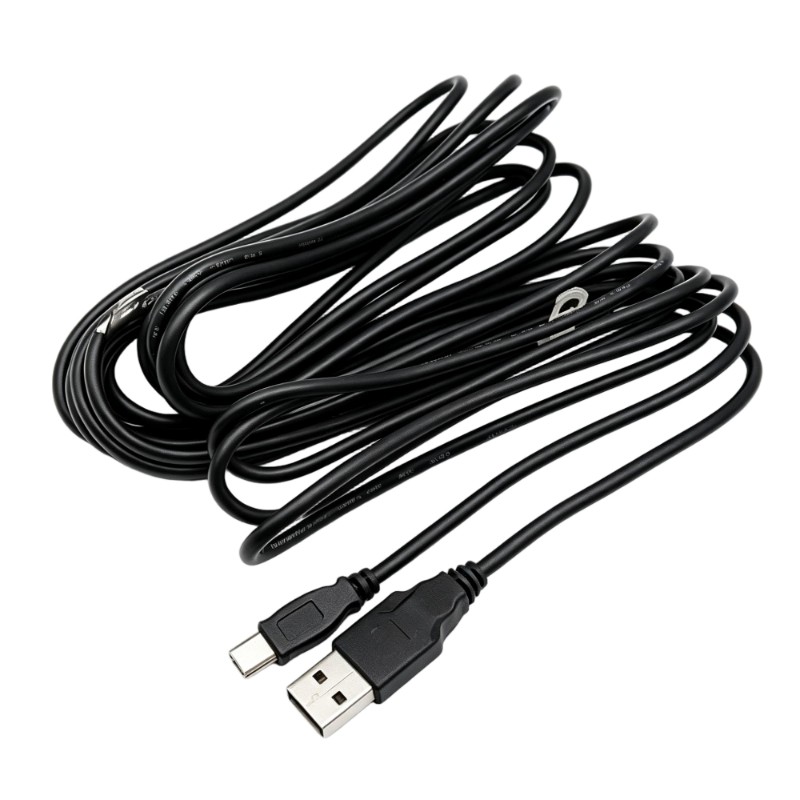

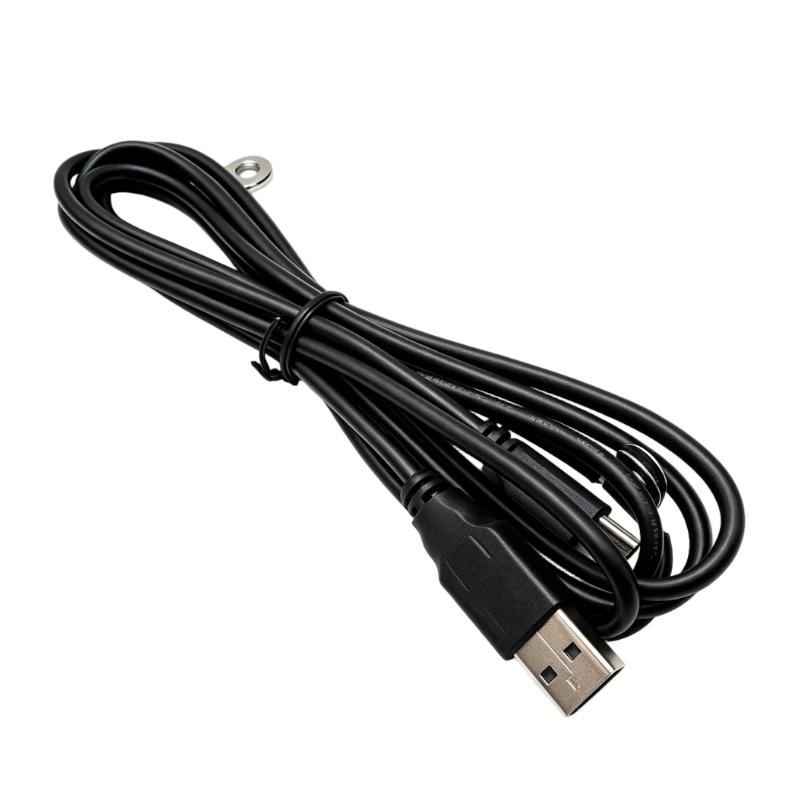

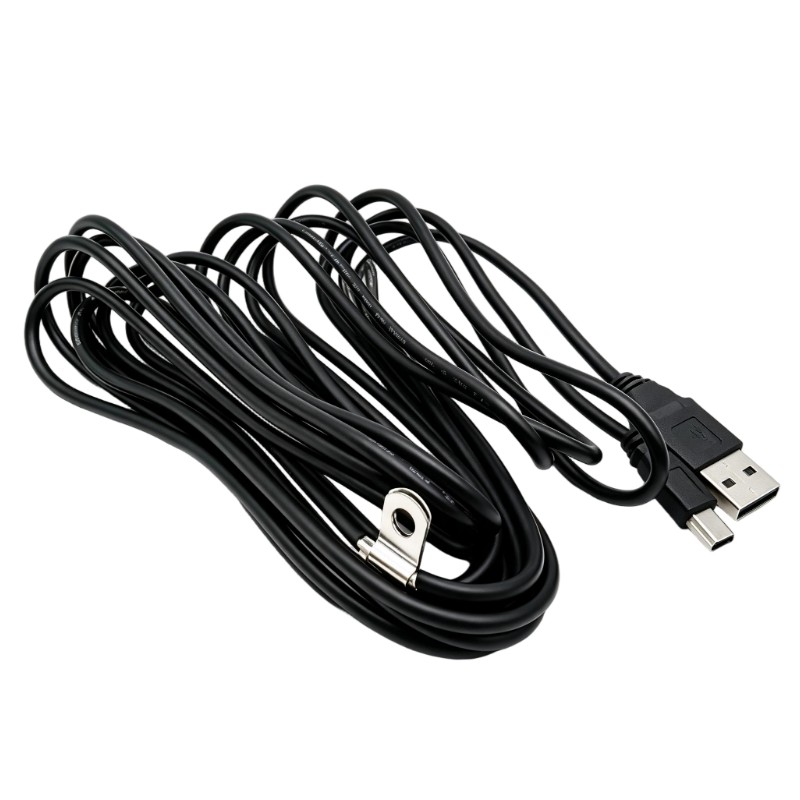

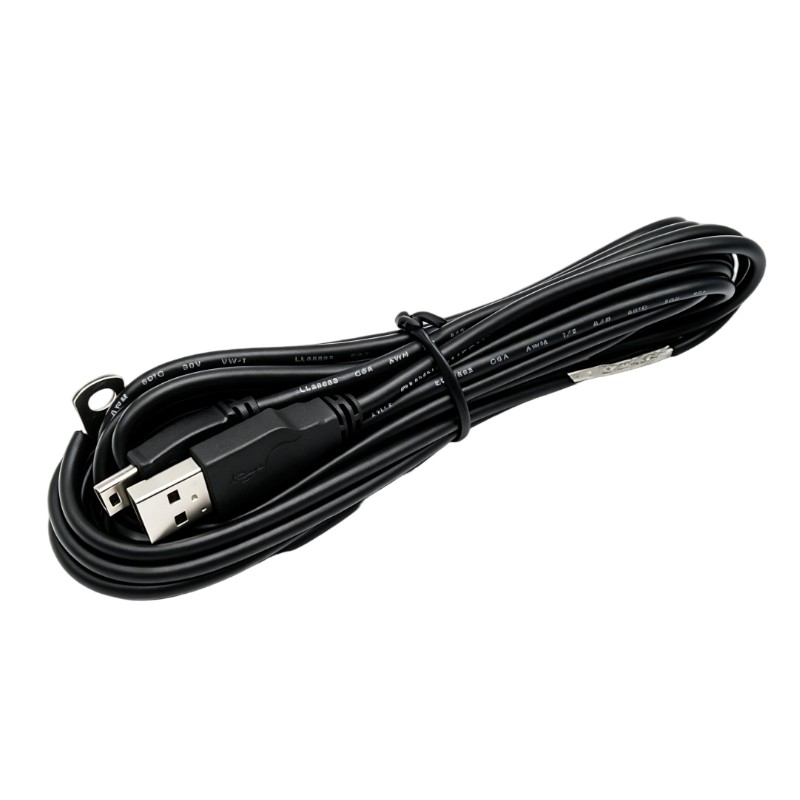

The Schneider BMXXCAUSBH045 Connecting Cable is a professional Modicon M340 USB PC Terminal Connecting Cable designed for PLC programming, system commissioning, application transfer, and industrial automation maintenance. As an essential communication accessory for Schneider Electric control platforms, this cable provides a reliable connection between engineering computers and compatible Modicon M340 processors.

With a 4.5-meter cable length, the BMXXCAUSBH045 offers additional installation flexibility compared with shorter programming cables, making it suitable for control cabinets where the PLC and engineering workstation are positioned at different distances. The cable is designed with a USB Type-A connector for PC connection and a Mini USB Type-B connector for the M340 processor interface, providing a convenient method for PLC configuration and diagnostics.

The BMXXCAUSBH045 belongs to the Schneider Electric Modicon M340 connection accessory family and is widely used by automation engineers during machine commissioning, PLC software updates, troubleshooting activities, and long-term system maintenance. Its standardized connector design helps simplify engineering operations while improving connection reliability.

Typical application areas include:

• Modicon M340 PLC programming systems
• Industrial automation commissioning projects
• Factory machine control maintenance
• PLC application backup and restoration
• Engineering workstation connections
• Automation equipment upgrades
• Controller diagnostics and monitoring
• Industrial production line servicing

The BMXXCAUSBH045 provides a practical communication solution for engineers who require stable PLC access in large control panels and complex automation environments.

Enhanced PLC Communication Flexibility and Engineering Advantages

Extended Connection Distance for Industrial Cabinets

The 4.5-meter cable length provides greater flexibility when connecting programming computers to PLC processors installed inside large control cabinets or equipment structures. This helps technicians perform commissioning tasks without rearranging hardware layouts.

Dedicated Modicon M340 Compatibility

Designed specifically for the Modicon M340 automation platform, the BMXXCAUSBH045 ensures reliable communication between compatible processors and engineering terminals.

Efficient PLC Programming and Configuration

The cable supports essential engineering operations including PLC application downloading, monitoring, parameter configuration, and troubleshooting, improving overall maintenance efficiency.

Reliable USB Communication Interface

Using a standardized USB Type-A and Mini USB Type-B connection structure, the BMXXCAUSBH045 simplifies the connection process between PCs and industrial controllers.

Improved Commissioning Efficiency

During machine startup and system integration, engineers can quickly establish communication with PLC processors, reducing setup time and improving project delivery efficiency.

Stable Data Transmission Performance

The cable provides dependable communication during PLC programming activities, helping maintain consistent data exchange between engineering software and controller hardware.

Lightweight Industrial Connection Design

With a compact structure and low weight, the BMXXCAUSBH045 is easy to handle during installation, maintenance, and field service operations.

Long-Term Automation Support

The cable is a valuable spare accessory for automation teams managing Modicon M340 systems, supporting future modifications, diagnostics, and system expansion.

Technical FAQs – Schneider BMXXCAUSBH045 Connecting Cable

1. What is the main purpose of the Schneider BMXXCAUSBH045?
The BMXXCAUSBH045 is used to connect a PC terminal with a Modicon M340 processor for programming, configuration, and diagnostic operations.

2. Which PLC systems are compatible with this cable?
The cable is designed for Schneider Electric Modicon M340 automation platforms and compatible processor communication ports.

3. What connectors are included on the BMXXCAUSBH045?
The cable includes one USB Type-A connector for the PC side and one Mini USB connector for the M340 processor side.

4. Why can the PLC fail to communicate with the programming computer?
Possible causes include incorrect communication settings, missing drivers, damaged connectors, or an incorrect processor connection.

5. How can communication problems be diagnosed?
Check the USB connection status, verify PLC communication parameters, confirm software settings, and inspect cable condition.

6. Can the BMXXCAUSBH045 be used for PLC program downloading?
Yes. It supports engineering operations such as application transfer, PLC monitoring, and configuration updates.

7. What causes unstable communication during programming?
Common causes include loose connectors, electromagnetic interference, computer power management issues, or damaged cable shielding.

8. Does this cable require separate configuration?
No. The cable does not require parameter setup, but the PLC software environment must be correctly configured.

9. What should be checked if the PLC is detected but data transfer fails?
Verify processor status, communication drivers, software configuration, and USB connection quality.

10. How should the BMXXCAUSBH045 be maintained?
Maintenance includes checking connectors, avoiding excessive bending, protecting the cable from physical damage, and keeping connection points clean.
