Brand:ABB PLC Item No.:TK503 Product Origin:Sweden (SE) Product Dimensions:Cable Length: 3 meters Product Weight:Shipping weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

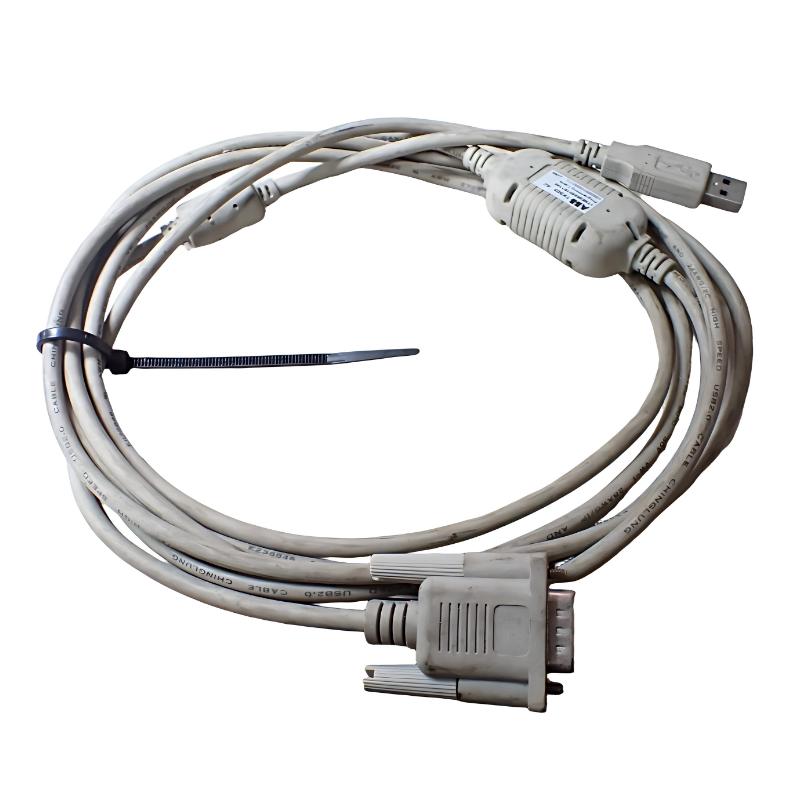

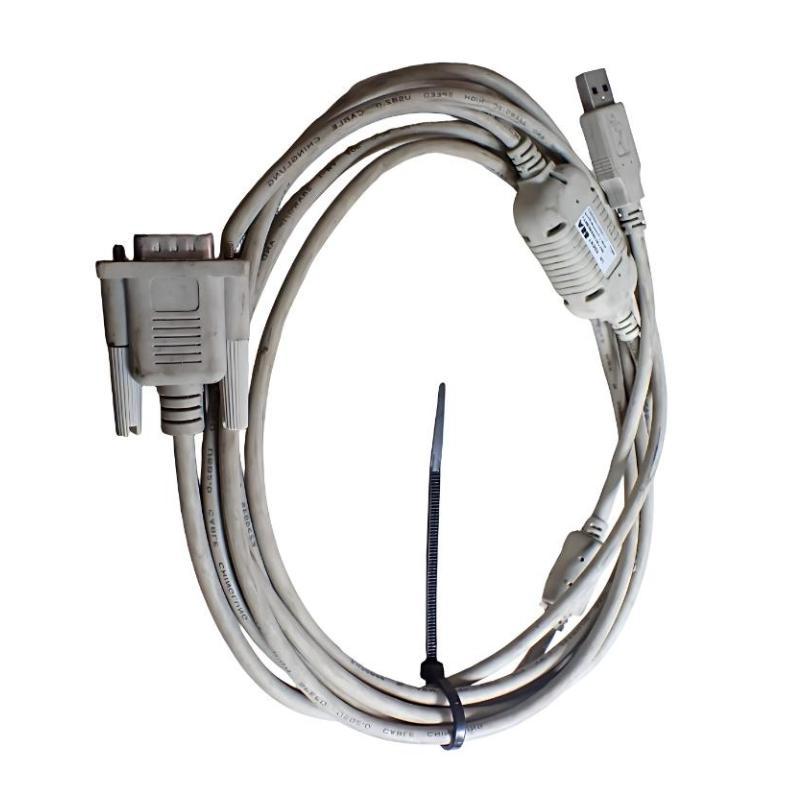

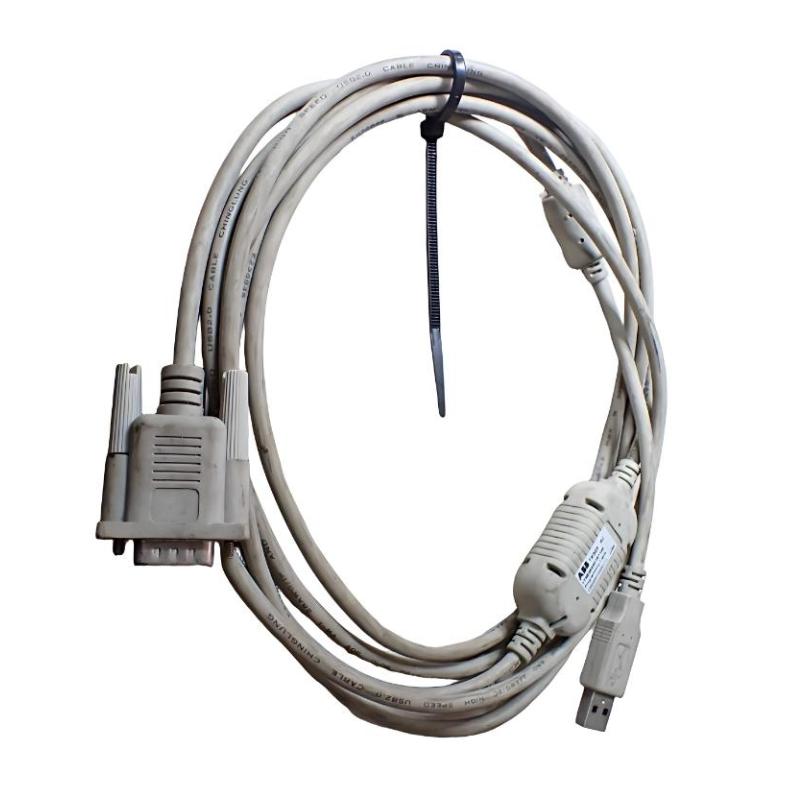

The TK503 1TNE968901R1100 is part of ABB’s programming accessory lineup for AC500 PLC systems. It serves as a dedicated communication interface cable that allows engineers to connect programming tools directly to the controller for configuration, diagnostics, and maintenance.
By ensuring stable and interference-resistant communication, the cable plays an essential role in reducing commissioning time and improving system reliability. It is widely used in industrial automation environments where fast and secure PLC access is required.
Technical Specifications
Parameter
Specification
Product Type
Programming Line Cable
Model
TK503 1TNE968901R1100
System Compatibility
ABB AC500 PLC Series
Function
PLC programming and communication
Interface Type
USB to serial (RS communication)
Cable Length
3 meters
Signal Protection
Industrial shielding against EMI
Application
PLC configuration and diagnostics
Operating Environment
Industrial automation systems
Weight
3 kg (shipping weight)
Recommended Related Models
Model
Product Name
ABB TK501
ABB AC500 Programming Cable Standard Version
ABB TK502
ABB PLC Communication Cable for AC500
ABB PM554-TP
ABB AC500 CPU Module
ABB CM574-RS
ABB Communication Module RS485
Popular Related Models
Model
Product Name
ABB AC500-EC
ABB AC500 Eco PLC Controller
ABB PM573-ETH
ABB AC500 Ethernet CPU Module
ABB CM579-PN
ABB PROFINET Communication Module
ABB I/O S500
ABB S500 Remote I/O Module
Typical Industrial Applications
• PLC programming and configuration for ABB AC500 automation systems
• Industrial commissioning and controller parameter setup in manufacturing plants
• Maintenance and diagnostics of PLC-based control systems
• Data communication between engineering workstation and automation hardware
• Factory automation systems requiring stable programming connectivity
Key Engineering Advantages
• Stable USB-to-serial communication ensures reliable PLC programming connection
• Industrial-grade shielding reduces electromagnetic interference in control cabinets
• Plug-and-play design simplifies commissioning and maintenance work
• Compatible with ABB AC500 PLC platform for seamless integration
• Durable construction supports repeated industrial use in harsh environments
• Optimized 3-meter length provides flexibility in cabinet and field installations
Technical FAQs
1. What is the main function of the TK503 cable?
It is used to connect a PC to ABB AC500 PLC systems for programming and configuration.
2. What communication interface does it support?
It typically supports USB to serial (RS485/RS232 depending on configuration) communication.
3. Which PLC systems is it compatible with?
It is designed for ABB AC500 series PLC platforms.
4. Is it suitable for industrial environments?
Yes, it is built with shielding and insulation suitable for industrial automation settings.
5. Can it be used for real-time control?
It is mainly used for programming and configuration, not direct process control.
6. Does it require external power?
No, it is powered through the connected PLC or PC interface.
7. What is its cable length?
The standard length is 3 meters.
8. Is it plug-and-play?
Yes, it is designed for quick connection without complex setup.
9. Does it support long-distance communication?
It is optimized for short-range programming communication within control cabinets.
10. What ensures its reliability?
Industrial-grade shielding and ABB-certified design ensure stable and secure data transmission.
