Brand:ABB PLC Item No.:TK854V030 Product Origin:Sweden (SE) Product Dimensions:Cable Length: 3 meters Product Weight:0.263 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

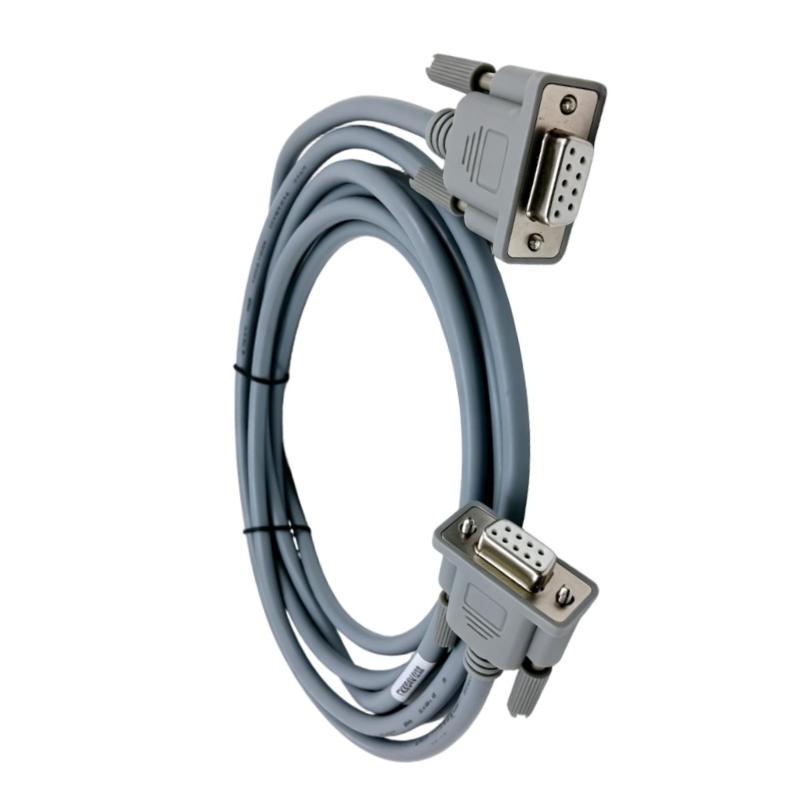

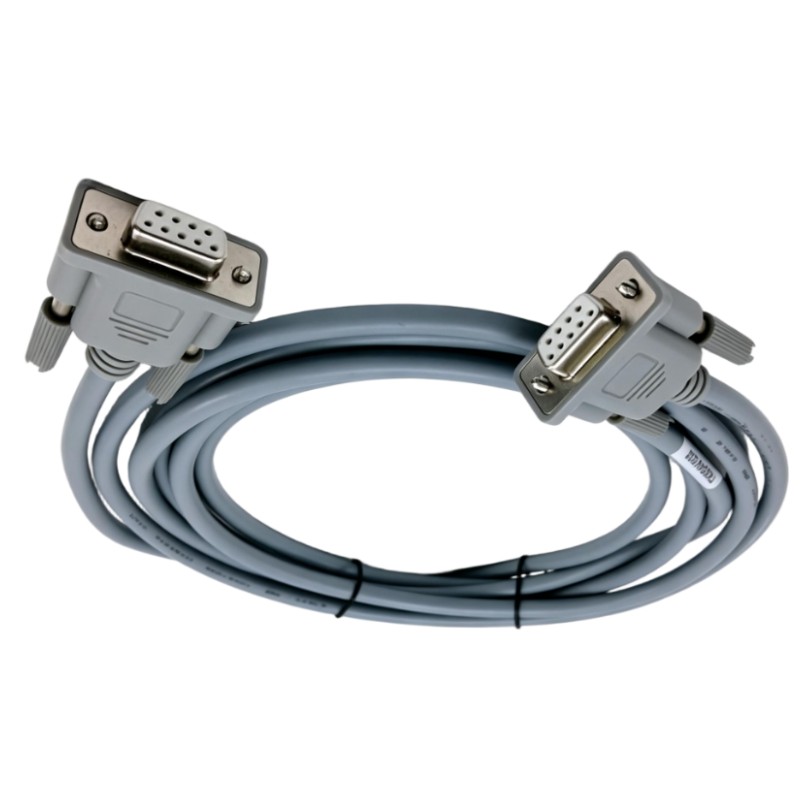

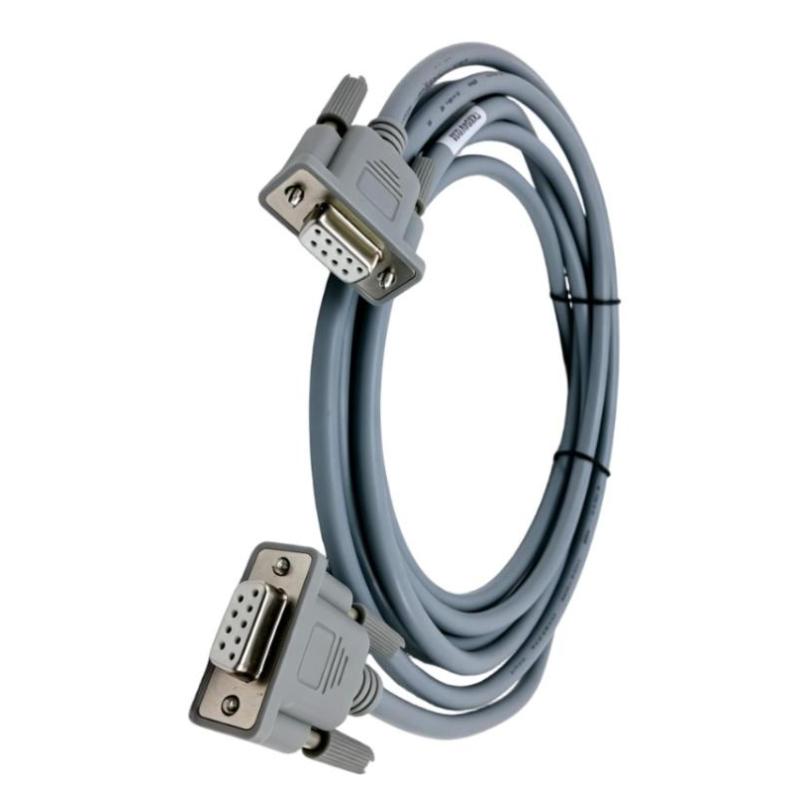

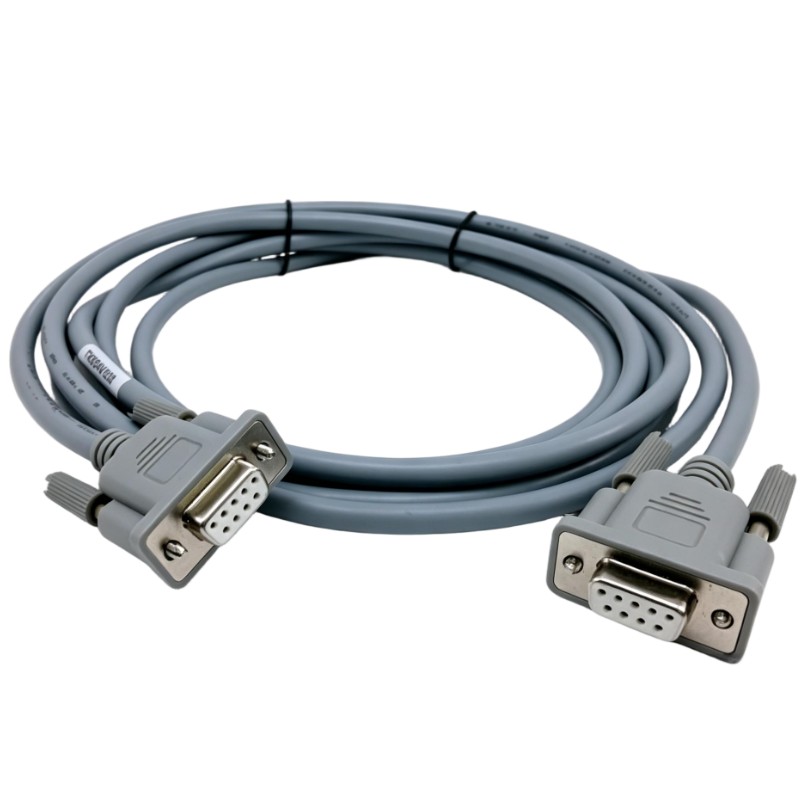

The TK854V030 3BSE042251R1 is part of ABB’s programming accessory range for Panel 800 systems. It enables direct communication between engineering software and operator panels, supporting configuration, firmware operations, and system diagnostics.
Designed for industrial automation environments, it ensures stable data transmission and minimizes communication errors caused by electrical noise. This makes it an essential tool for efficient commissioning and maintenance of ABB HMI-based control systems.
Technical Specifications
Parameter
Specification
Product Type
Programming Cable
Model
TK854V030 3BSE042251R1
System Compatibility
ABB Panel 800
Communication Protocol
RS232
Function
Programming, configuration, diagnostics
Cable Length
3 meters
Connector Type
Pre-assembled industrial connectors
Shielding
EMI-resistant industrial shielding
Application
HMI/PLC system setup and maintenance
Weight
0.263 kg
Recommended Related Models
Model
Product Name
ABB TK801V003
ABB Panel 800 Programming Cable RS232
ABB TK821F 3BDM000150R1
ABB Communication Cable for AC 800F
ABB CB810 3BSE042255R1
ABB USB to Ethernet Adapter
ABB TK212A 3BSC630197R1
ABB Tool Cable RJ45 to D-Sub
Popular Related Models
Model
Product Name
ABB Panel 800
ABB HMI Operator Panel Series
ABB AC 800M
ABB Industrial Controller Platform
ABB PM866
ABB AC 800M CPU Module
ABB CI854
ABB Communication Interface Module
Typical Industrial Applications
• Programming and configuration of ABB Panel 800 HMI systems
• Commissioning of industrial automation and control systems
• Maintenance and diagnostics of PLC/HMI communication interfaces
• Data transfer between engineering workstation and control panel
• Industrial process automation system setup and troubleshooting
Key Engineering Advantages
• RS232 communication ensures stable and widely compatible programming connectivity
• Shielded industrial design reduces electromagnetic interference in control cabinets
• Pre-assembled connectors enable fast plug-and-play installation
• Optimized 3-meter length supports flexible cabinet and workstation setup
• ABB-certified design ensures reliable integration with Panel 800 systems
• Durable construction suitable for repeated industrial use
Technical FAQs
1. What is the main function of the TK854V030 cable?
It is used to connect a PC to ABB Panel 800 systems for programming and configuration.
2. What communication standard does it use?
It uses RS232 serial communication protocol.
3. Which systems is it compatible with?
It is designed for ABB Panel 800 operator panels.
4. Is it suitable for industrial environments?
Yes, it is shielded to reduce EMI in industrial control cabinets.
5. What is the cable length?
The cable length is 3 meters.
6. Does it require external power?
No, it operates as a passive communication cable.
7. Is it plug-and-play?
Yes, it is pre-assembled for direct connection.
8. Can it be used for real-time control?
It is mainly used for programming and configuration, not direct control.
9. Is it interchangeable with generic RS232 cables?
Not recommended, as it is specifically designed for ABB systems.
10. What ensures its reliability?
Industrial-grade shielding and ABB system compatibility ensure stable communication.
