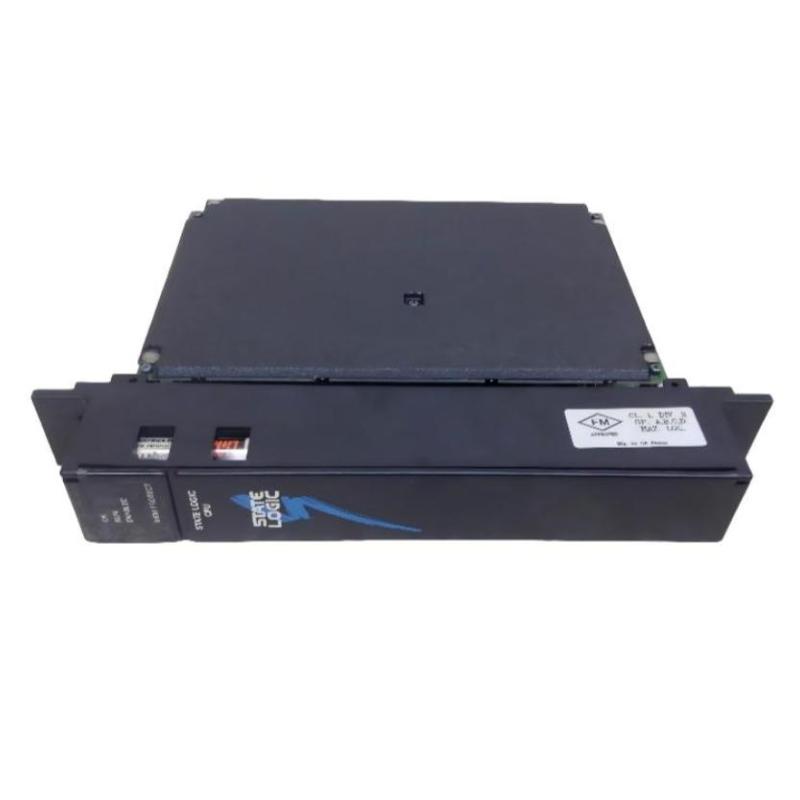

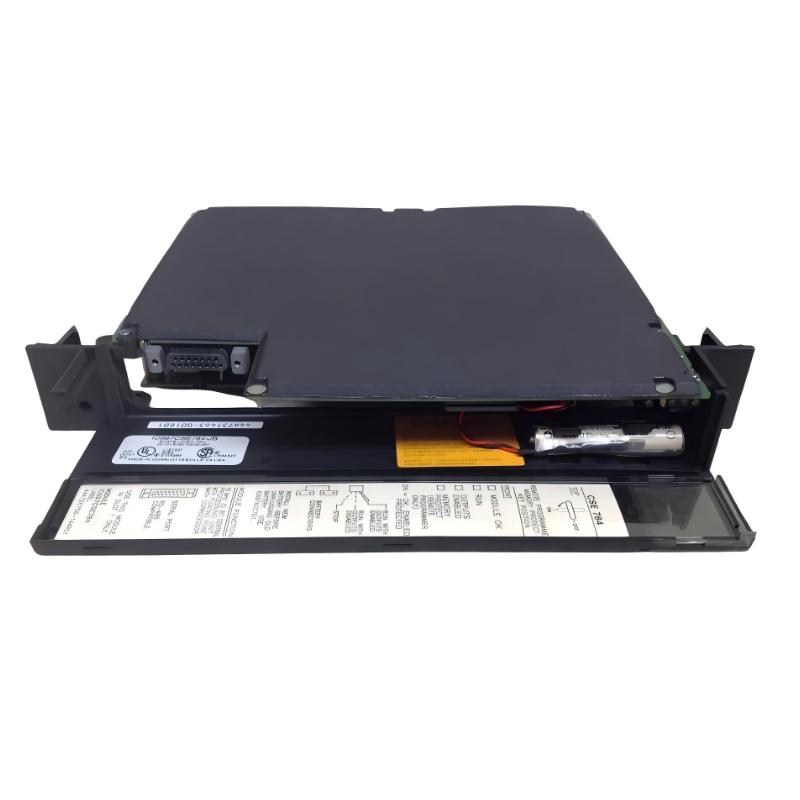

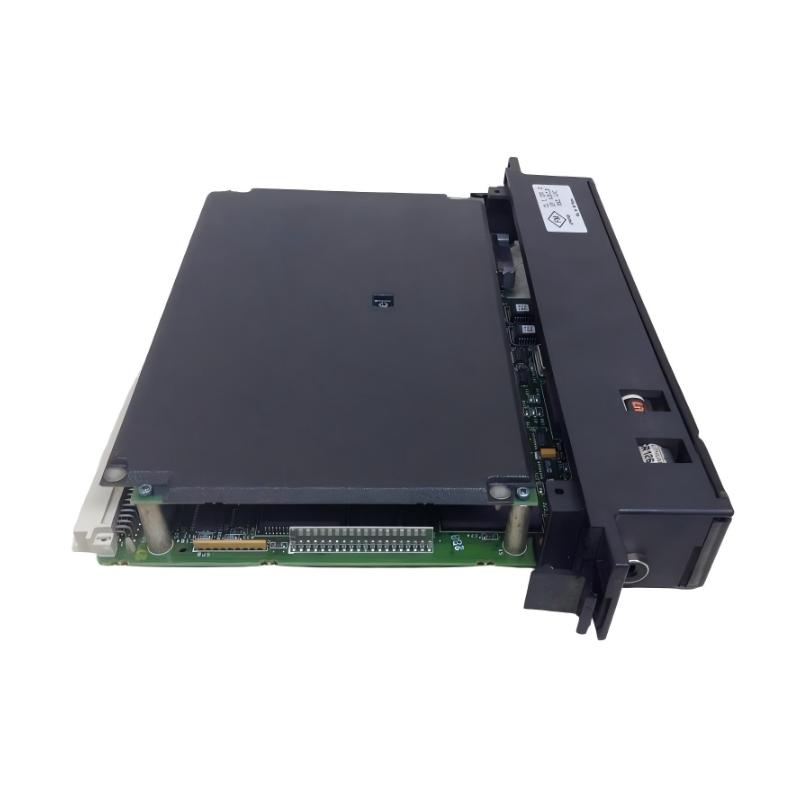

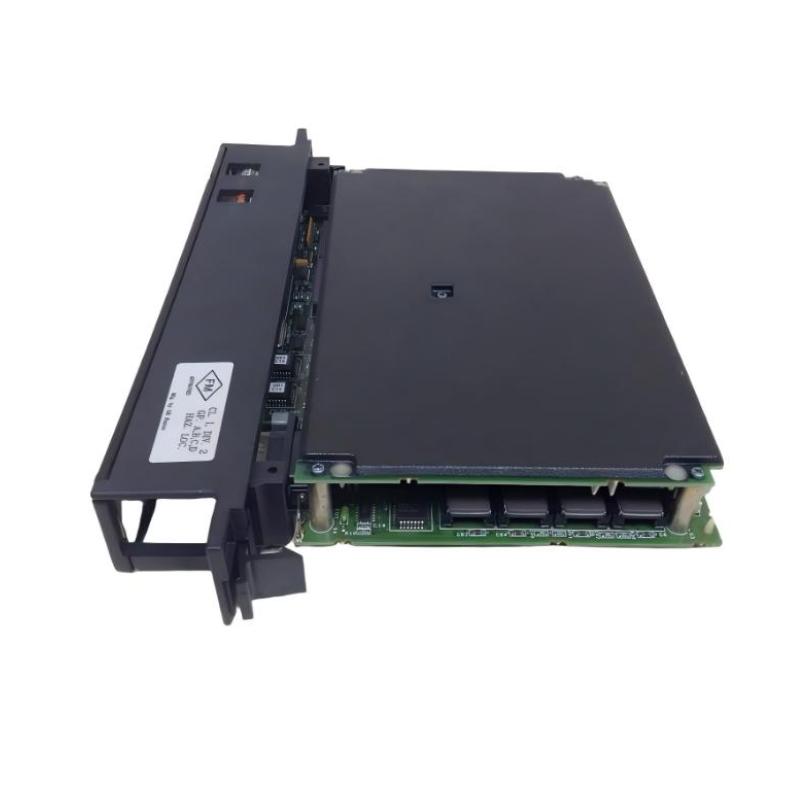

The GE IC697CSE784 is a floating-point State Logic CPU module designed for the GE Fanuc Series 90-70 PLC system. It is engineered for complex industrial automation, advanced sequencing control, and large-scale I/O applications, offering flexible programming and reliable real-time performance.
Unlike standard CPUs, the IC697CSE784 supports State Logic programming, making it especially suitable for state-machine control, event-driven processes, and complex logic sequencing in industrial environments.
Technical Specifications
The IC697CSE784 provides stable processing performance with flexible programming capability.
| Parameter | Specification |
|---|---|
| Model | IC697CSE784 |
| Product Type | PLC CPU Module |
| Series | GE Fanuc Series 90-70 |
| Processor | Intel 80386DX |
| Clock Speed | 16 MHz |
| Architecture | 32-bit floating-point CPU |
| Memory | 512 KB battery-backed RAM |
| I/O Capacity | Up to 12,000 discrete I/O points |
| Analog Capacity | Up to 8,000 analog I/O points |
| Execution Speed | ~0.4 µs per Boolean instruction |
| Communication | Backplane communication (VME C.1) |
| Programming | State Logic / Ladder Logic / C |
| Power Requirement | 5 V DC backplane |
| Slot Requirement | Single-slot rack module |
This CPU is designed for advanced control logic execution with high I/O capacity and flexible programming environments.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ≈ 263 mm × 58 mm × 28 mm |
| Weight | ≈ 0.5 kg |
Its standard single-slot design ensures compatibility with GE Series 90-70 racks such as CHS750, CHS790, and CHS791.
Recommended Related Models
IC697CSE784 is commonly used with:
- GE IC697CHS790 PLC Rack
- GE IC697PWR711 Power Supply Module
- GE IC697BEM713 Bus Transmitter Module
- GE IC697BEM731 Genius Bus Controller
- GE IC697CMM741 / CMM742 Ethernet Modules
- GE IC697RCM711 Redundancy Communication Module
These modules form a complete and scalable GE 90-70 automation system architecture.
Popular GE Series 90-70 CPU Modules
- IC697CPU771 – Entry-level CPU
- IC697CPU772 – High-performance floating-point CPU
- IC697CPU780 – Redundant hot standby CPU
- IC697CPU788 – Safety/TMR CPU
- IC697CSE784 – State Logic CPU
These CPUs are selected based on performance, programming type, redundancy, and application requirements.
