Brand:GE Fanuc PLC Item No.:GE IC697MDL241 Product Origin: USA Product Dimensions:101.6 mm × 152.4 mm × 76.2 mm Product Weight:0.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

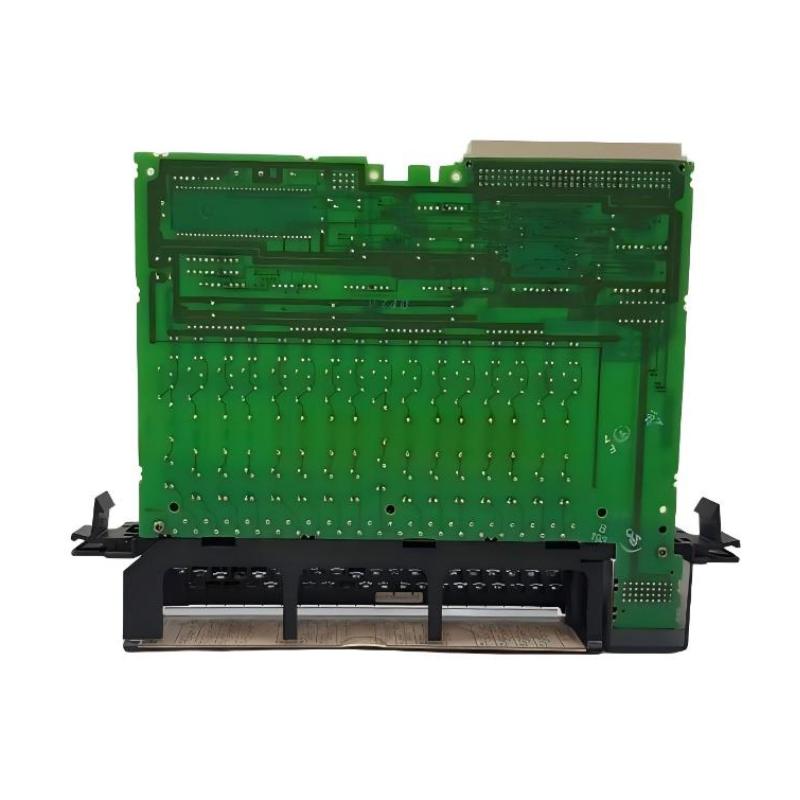

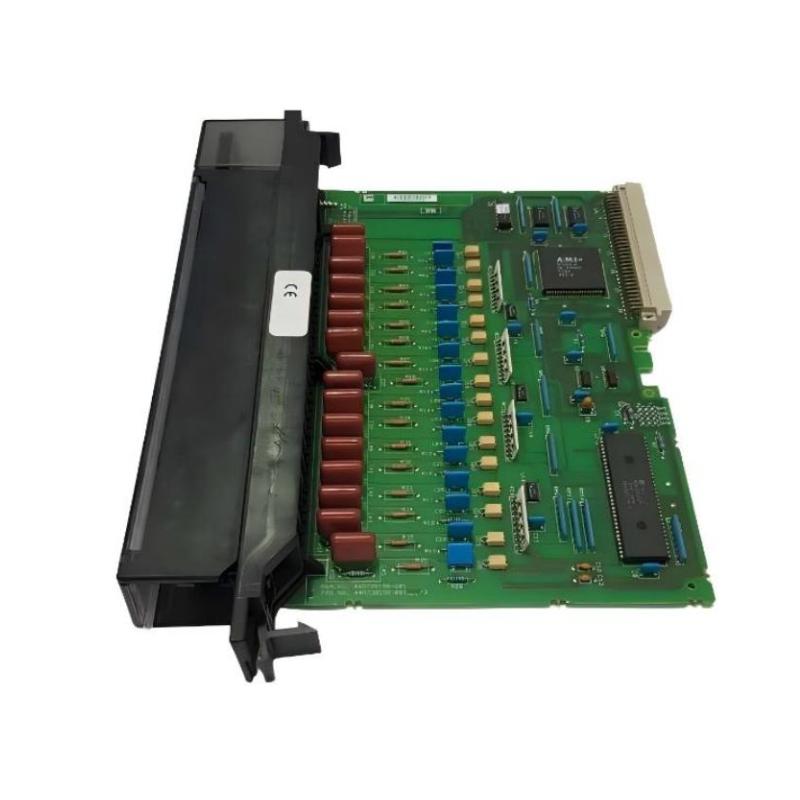

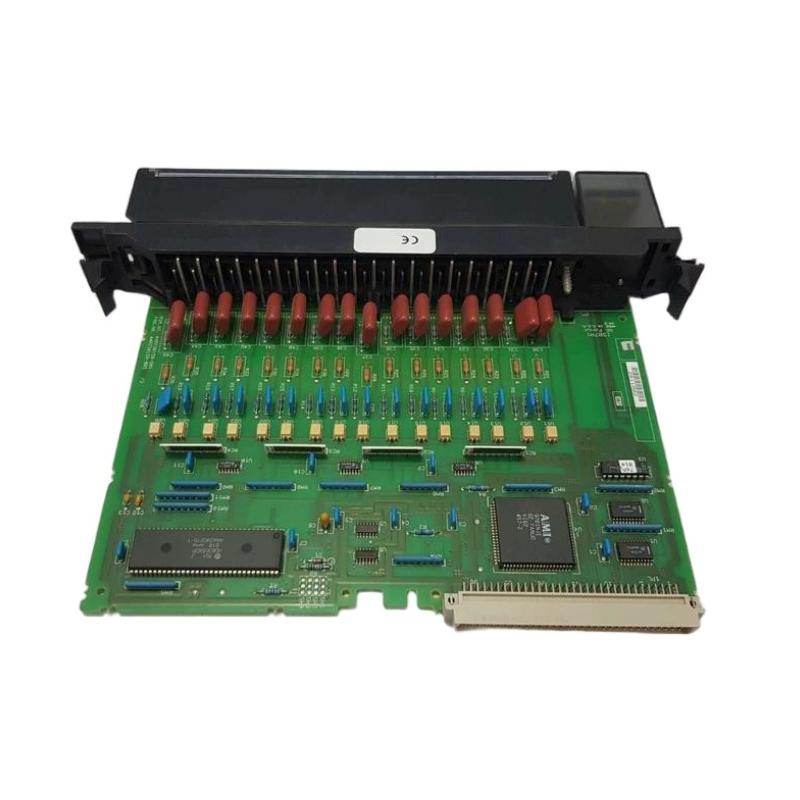

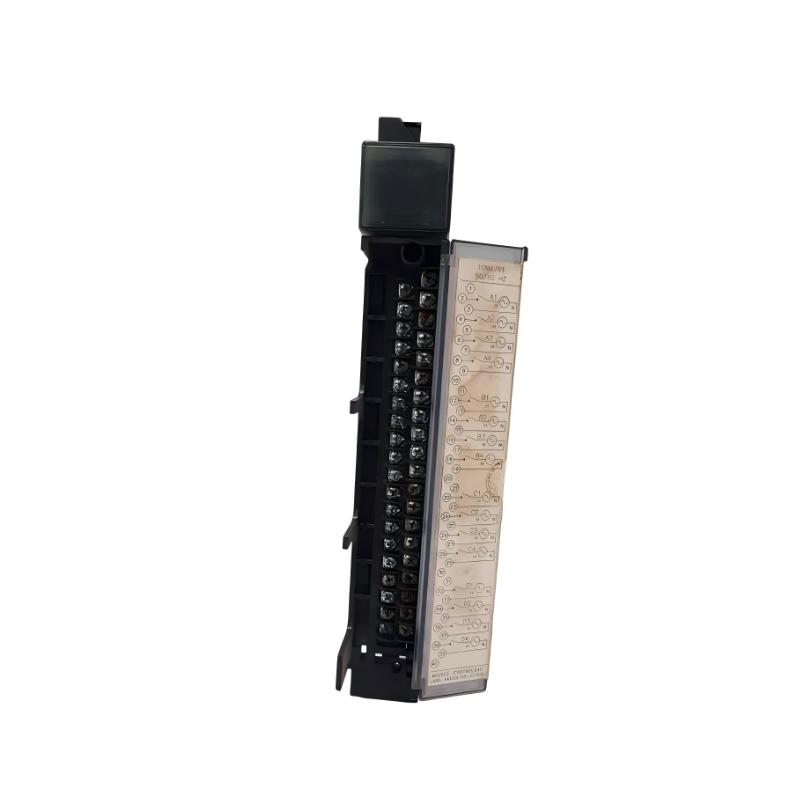

The GE IC697MDL241 is a discrete digital input module for the GE Fanuc Series 90-70 PLC system. It is designed to receive field ON/OFF signals from industrial devices such as switches, pushbuttons, limit switches, and proximity sensors, and convert them into logic signals for the PLC CPU.
This module is widely used in industrial automation systems requiring reliable AC signal acquisition and strong electrical isolation, especially in harsh electrical environments.
Technical Specifications
The IC697MDL241 is a 16-point isolated AC input module (240 VAC class).
Parameter
Specification
Model
IC697MDL241
Product Type
Discrete Input Module
Series
GE Fanuc Series 90-70
Input Type
AC Digital Input
Number of Inputs
16 isolated points
Rated Voltage
240 VAC (60 Hz)
Input Range
160–264 VAC
Input Current
~10–15 mA per point
Input Filter Delay
~20 ms
Isolation
1500 VAC (input to backplane)
Backplane Current
~0.25 A @ 5 VDC
Wiring
Removable terminal block
Status Indicators
LED per input channel
Slot Requirement
Single-slot module
The module supports industrial-grade noise immunity and high-voltage AC field signal compatibility.
Physical Dimensions & Weight
Parameter
Value
Dimensions (L × W × H)
≈ 101.6 mm × 152.4 mm × 76.2 mm
Weight
≈ 0.9 kg
Applications
This module is commonly used in:
Industrial automation systems
Power generation auxiliary control
Manufacturing production lines
Water and wastewater treatment systems
Conveyor and material handling systems
Heavy machinery control panels
Process monitoring systems
Advantages
Reliable 240 VAC industrial input handling
Strong electrical isolation for protection and stability
LED diagnostics for fast troubleshooting
Compatible with wide range of AC field devices
Stable operation in harsh industrial environments
Simple integration into GE 90-70 PLC systems
Proven long-term industrial reliability
Technical FAQs
1. What is IC697MDL241 used for?
It is used to read AC digital signals from field devices into a PLC system.
2. How many inputs does it have?
16 isolated input channels.
3. What voltage does it support?
240 VAC (160–264 VAC range).
4. Is it AC or DC input module?
It is an AC input module.
5. What is the input delay?
Approximately 20 ms filter delay.
6. Does it support isolation?
Yes, up to 1500 VAC isolation between inputs and backplane.
7. What industries use it?
Manufacturing, power plants, water treatment, and heavy industry.
8. Is it still used today?
Yes, mainly in legacy GE 90-70 industrial systems and maintenance projects.
