Brand:ABB PLC Item No.:5SHX1060H0001 Product Origin:Sweden (SE) Product Dimensions:190 x 140 x 38 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

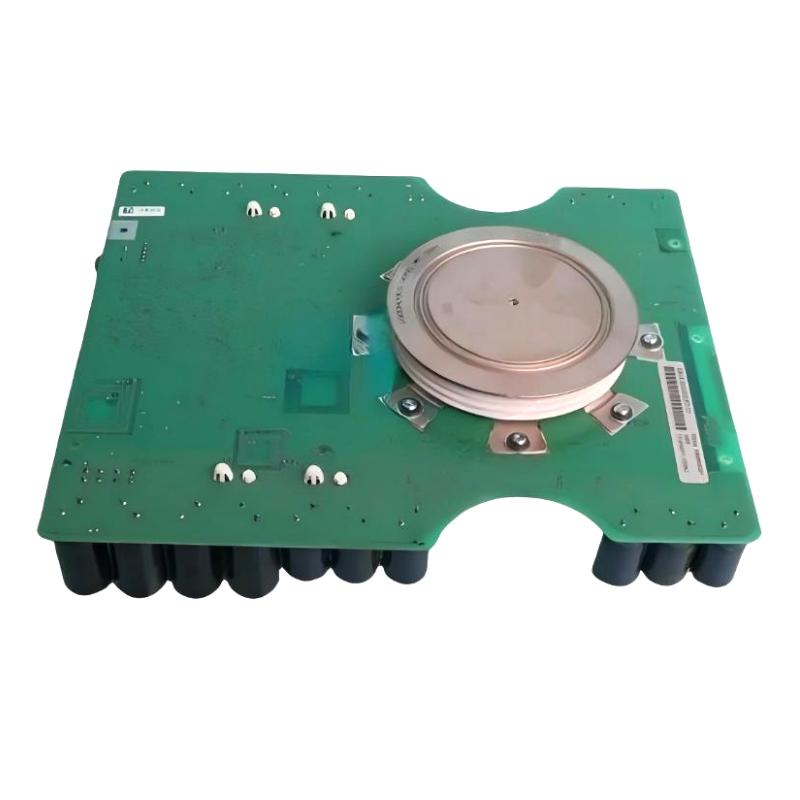

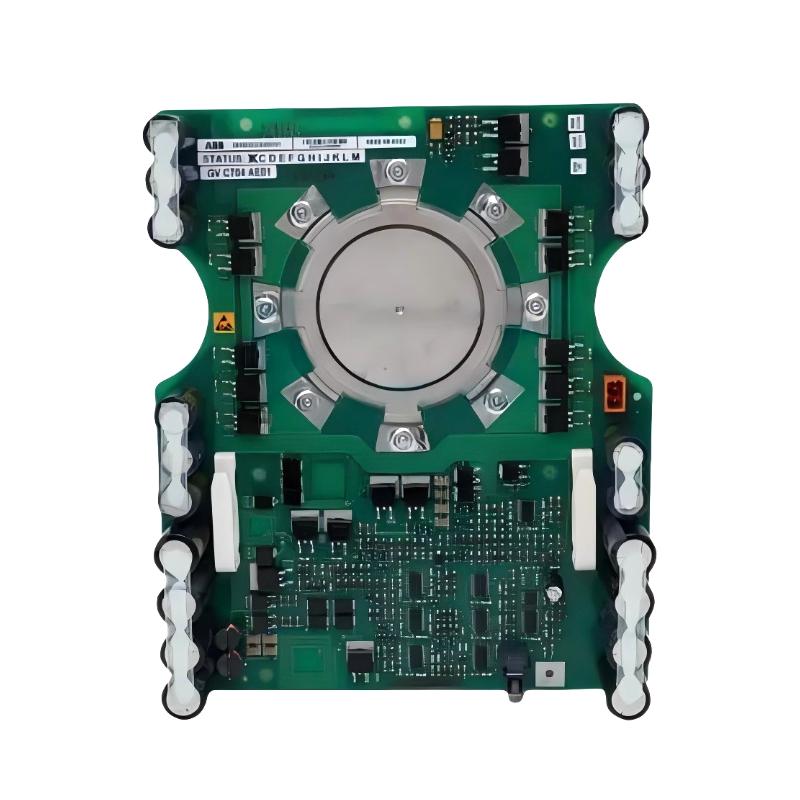

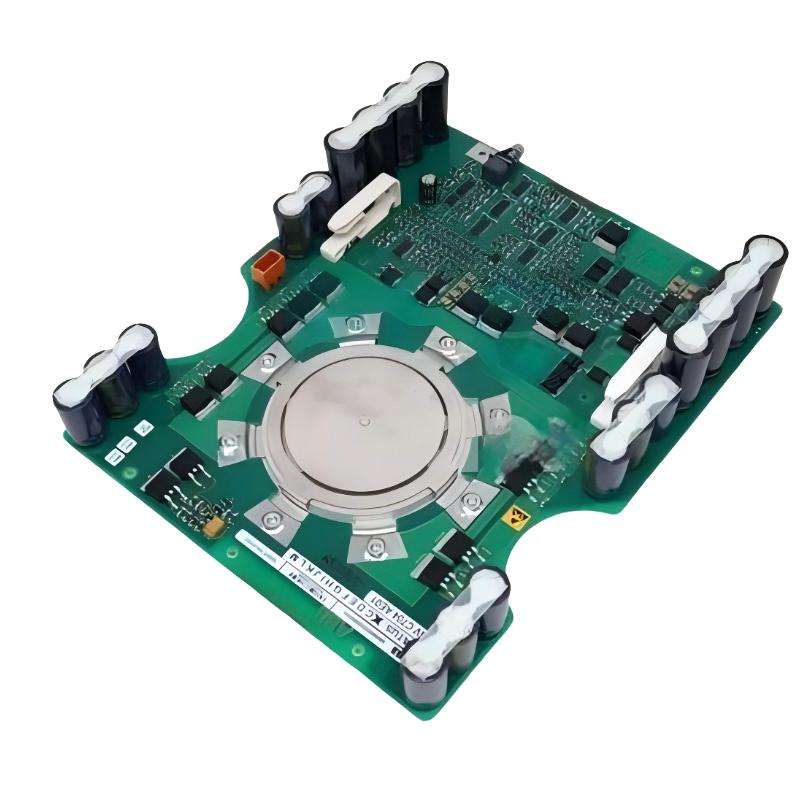

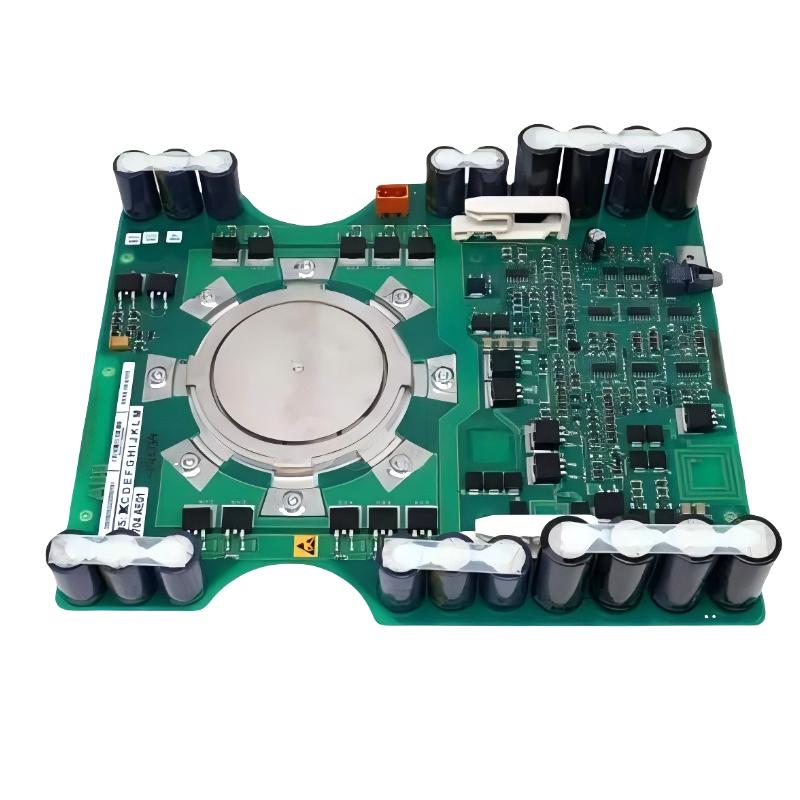

The ABB 5SHX1060H0001 3BHL000392P0101 IGCT Module is a high-performance power semiconductor device designed for demanding industrial energy conversion systems. It enables efficient switching of large electrical currents while maintaining high reliability and low energy losses.
Technical Specifications
Parameter
Details
Model
5SHX1060H0001 / 3BHL000392P0101
Device Type
IGCT Power Module
Function
High-power switching and conversion
Dimensions
190 × 140 × 38 mm
Weight
1.2 kg
Rated Voltage
High-voltage class (MV applications)
Application
MV drives, HVDC, industrial converters
Cooling Method
Liquid / forced air (system dependent)
Installation Type
Press-pack power module
Recommended Companion Models
Model
Product Name
ABB ACS6000 Drive System
Medium Voltage Drive Platform
ABB Gate Unit 5SHY Series
IGCT Gate Driver Unit
ABB 3BHB003230R0101
Power Control Module
ABB 800xA System Controller
Industrial Control Platform
Frequently Selected Alternatives
Model
Product Name
ABB 5SHX1445H0001
IGCT Module Higher Current Variant
ABB 5SHX1060H0002
IGCT Module Alternative Version
ABB 5SGX Series
High-Power Switching Modules
ABB 3BHL000393P0101
Higher Power IGCT Module
Applications
• Used in high-power industrial drive systems for efficient switching and control of large electrical loads.
• Applied in medium-voltage drive systems (MV drives), HVDC transmission, and power conversion equipment.
• Commonly used in heavy industries such as steel, mining, cement, and marine propulsion systems.
• Supports renewable energy systems including wind power converters and grid integration equipment.
• Integrated into ABB power electronics platforms for precise and stable energy control.
Key Advantages
• High-current and high-voltage handling capability for demanding industrial applications.
• Low conduction losses improve overall system energy efficiency.
• Fast switching performance ensures stable and precise power control.
• Robust press-pack structure supports high reliability under extreme conditions.
• Designed for long service life in continuous heavy-duty operation.
Technical FAQs
1. What is the main function of this IGCT module?
It controls and switches high-power electrical energy in industrial drive and converter systems.
2. What does IGCT mean?
IGCT stands for Integrated Gate-Commutated Thyristor, a high-power semiconductor switching device.
3. Where is it typically used?
It is used in medium-voltage drives, HVDC systems, and large industrial motor control applications.
4. Is it suitable for continuous operation?
Yes, it is designed for 24/7 operation in heavy industrial environments.
5. What industries use this module?
Steel, mining, cement, power generation, and renewable energy industries.
6. Does it require cooling systems?
Yes, it is typically used with liquid or forced-air cooling systems depending on installation design.
7. Is it part of a drive system?
Yes, it is a core power switching component in ABB drive and converter systems.
8. Can it handle high fault conditions?
Yes, it is engineered for high robustness under electrical stress and overload conditions.
9. Is it used in modern systems?
Yes, it is still widely used in ABB high-power drive platforms.
10. Does it require special installation?
Yes, installation must follow ABB engineering standards due to high-power operation.
