Introduction

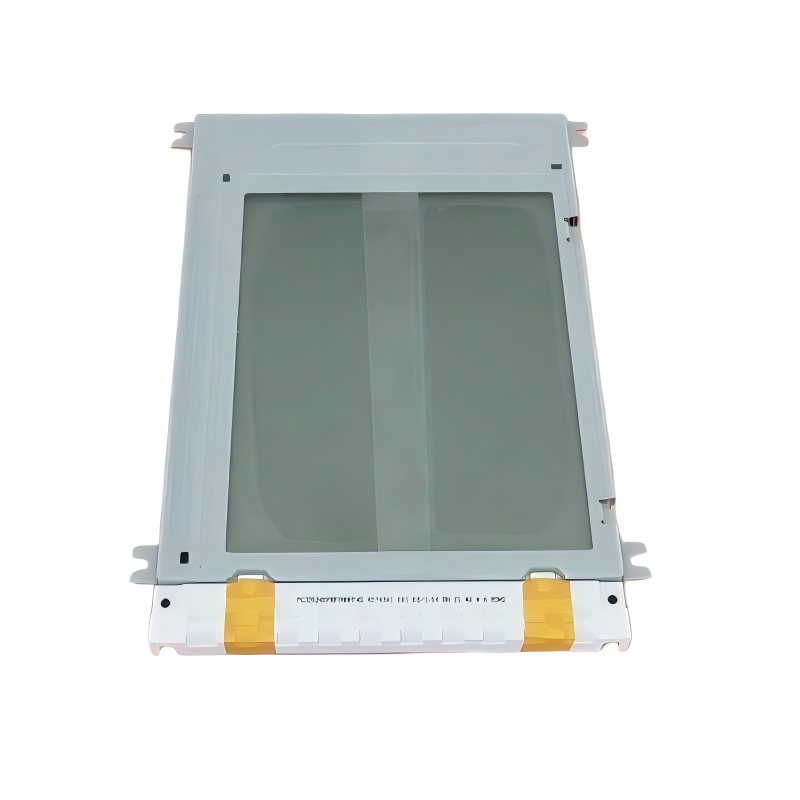

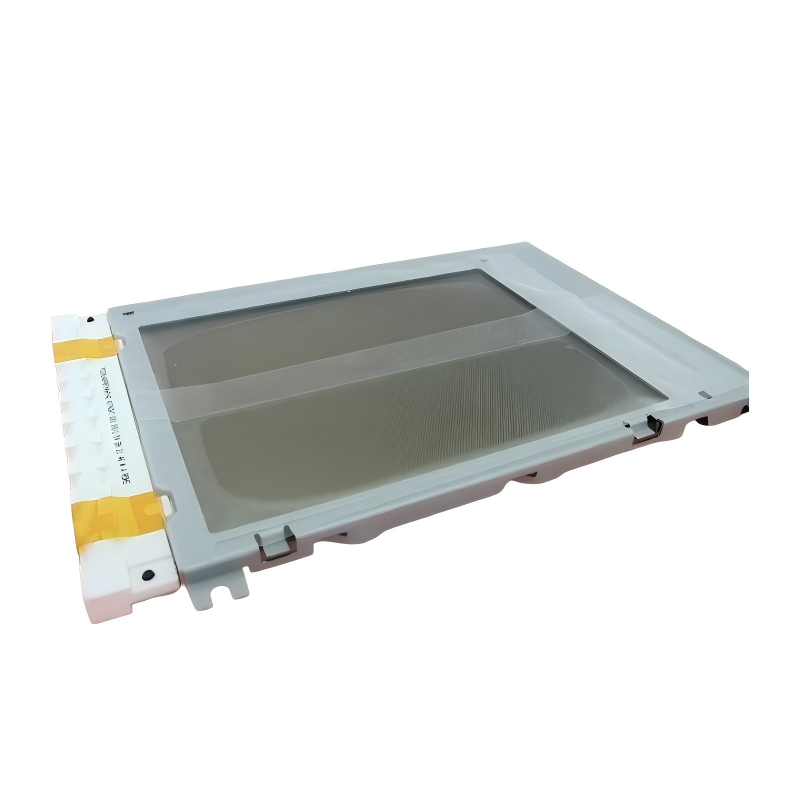

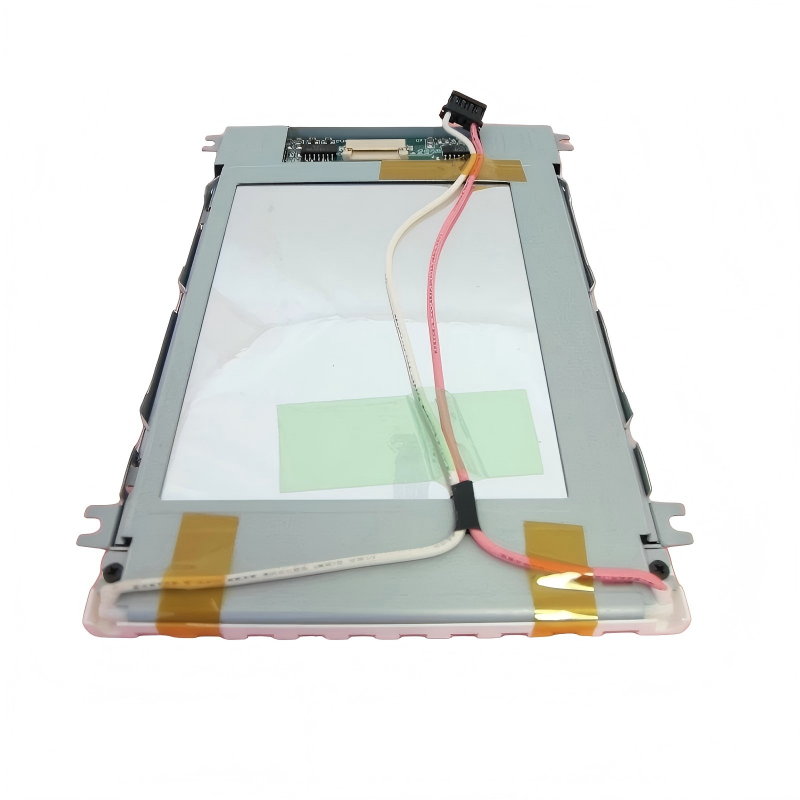

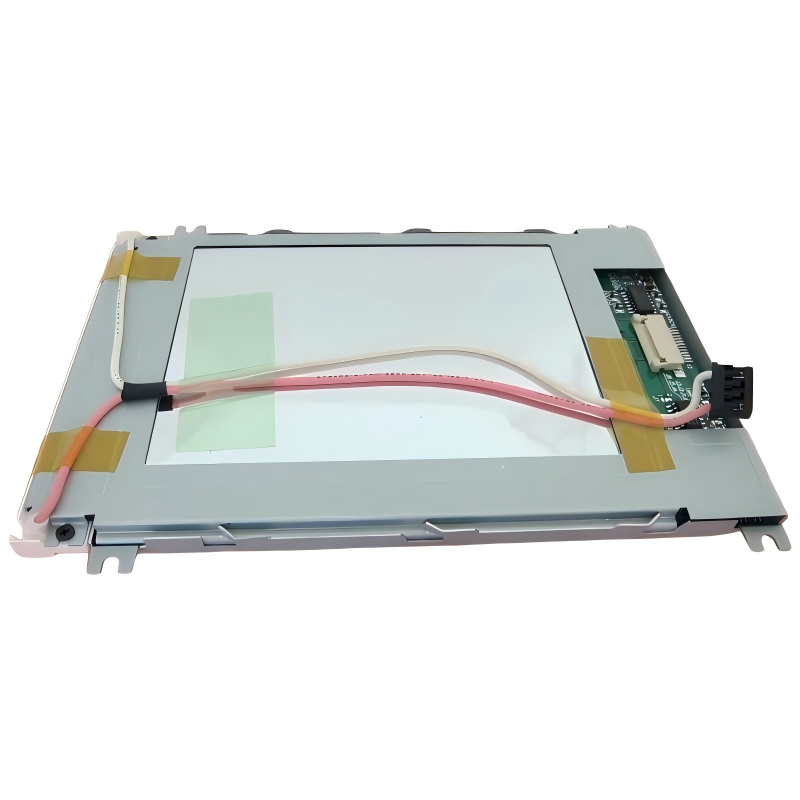

The ABB 3HNP04014-1 LCD Module with Backlight is a versatile and reliable solution for displaying real-time data and system parameters in industrial automation and control applications. With its energy-efficient design, durable construction, and high-quality display, this module ensures that operators can easily monitor critical system status and make informed decisions. Its compact form factor and easy integration make it a perfect choice for a wide range of applications, from simple machinery displays to complex control systems in industries such as manufacturing, robotics, and packaging.

Technical Specifications

Feature	Specification
Type	LCD Module With Backlight
Model	3HNP04014-1
Dimensions	148 mm x 8 mm x 107 mm
Weight	0.16 kg (0.35 lb)
Display Type	LCD with Backlight
Power Consumption	Low power consumption
Operating Temperature Range	-20°C to 60°C
Applications	Control Panels, HMIs, Robotics, Automation
Interface	Compatible with various industrial control systems
Durability	Industrial-grade construction for harsh environments
Customization	Display content is customizable based on application needs

Applications

The ABB 3HNP04014-1 LCD Module with Backlight is designed to provide clear, visible display outputs for various industrial and automation applications. It is commonly used in control panels, human-machine interfaces (HMIs), machinery displays, and other electronic systems that require real-time data presentation. This module is ideal for industries such as manufacturing, robotics, and energy management, where operators need to monitor critical system data, process parameters, and equipment status at a glance. The backlit LCD ensures readability even in low-light environments, making it perfect for both indoor and outdoor applications.

Advantages

Clear and Bright Display: The backlit LCD module ensures clear visibility of the display in all lighting conditions, including low-light environments.
Compact Design: With dimensions of 148 x 8 x 107 mm and a weight of just 0.16 kg (0.35 lb), this module is compact and lightweight, making it easy to integrate into existing systems without taking up much space.
Energy Efficient: The LCD module is designed to provide excellent display performance while consuming minimal power, ensuring long-lasting operation with lower energy costs.
High Reliability: Built to meet industrial standards, this module offers high reliability and durability, ensuring consistent performance even in demanding environments.
Versatility: It is compatible with a wide range of control systems, machinery, and industrial equipment, providing flexible integration for various automation and control tasks.
Easy Integration: The module is designed for straightforward installation, with flexible input/output interfaces that simplify integration into existing systems.
Enhanced User Experience: With its clear text and graphical displays, the module improves the overall user experience, enabling operators to easily monitor system parameters and status.
Wide Temperature Range: The LCD module operates effectively across a broad temperature range, ensuring functionality in varying environmental conditions.
Long Lifespan: The module is designed to have a long operational life, even in industrial environments, reducing maintenance and replacement costs.
Cost-Effective Solution: The ABB LCD Module with backlight offers a cost-effective solution for adding high-quality displays to your automation systems without compromising on performance or reliability.

Technical FAQs

What is the primary function of the ABB 3HNP04014-1 LCD Module With Backlight?
The primary function of the LCD module is to display critical data, system parameters, and status information for industrial automation systems. It provides a clear and readable output, even in low-light conditions.
Where can this LCD module be used?
This module can be used in a variety of applications including control panels, human-machine interfaces (HMIs), robotics, automation systems, and any other industrial or commercial setting that requires real-time data display.
How does the backlight enhance the functionality of the LCD module?
The backlight improves the readability of the display, ensuring that the information is visible even in low-light or dark environments, which is crucial in industrial settings where lighting conditions can vary.
What kind of data can be displayed using the ABB 3HNP04014-1 LCD Module?
This LCD module can display various types of data, including text, numerical values, and graphical elements, providing clear feedback for operators and users about system performance and status.
What is the weight of the ABB 3HNP04014-1 LCD Module?
The module weighs 0.16 kg (0.35 lb), making it a lightweight solution that can be easily integrated into systems without taking up much space or adding significant weight.
How does the ABB LCD Module perform in high-demand environments?
The module is designed to be reliable and durable, capable of performing consistently in industrial environments, even under harsh conditions such as vibration, temperature fluctuations, and exposure to dust.
Is the ABB 3HNP04014-1 LCD Module compatible with other automation equipment?
Yes, the module is designed to be versatile and compatible with various control systems, machinery, and other equipment commonly found in industrial automation setups.
What is the expected lifespan of the ABB 3HNP04014-1 LCD Module?
The LCD module is built to provide long-lasting performance with minimal maintenance. With proper usage, it can operate effectively for several years, typically 5 to 10 years, depending on the operating environment.
Can the display be customized?
Yes, depending on the control system and programming interface, the display content can be customized to show different types of data, graphics, or system messages.
What is the operating temperature range for the ABB LCD Module?
The module operates effectively within a wide temperature range, typically between -20°C and 60°C, making it suitable for both indoor and outdoor applications in varying environmental conditions.
