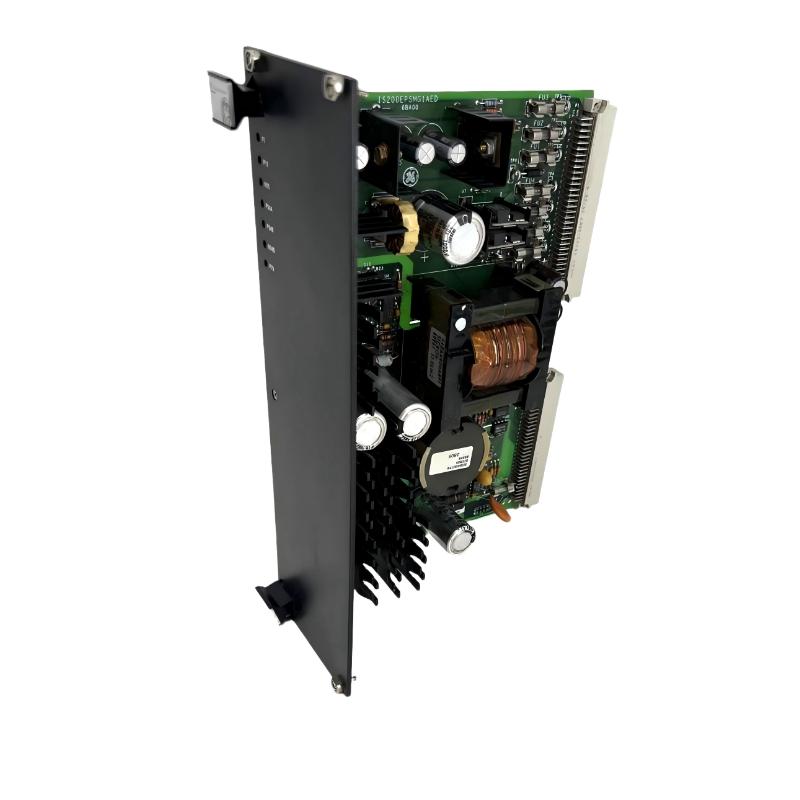

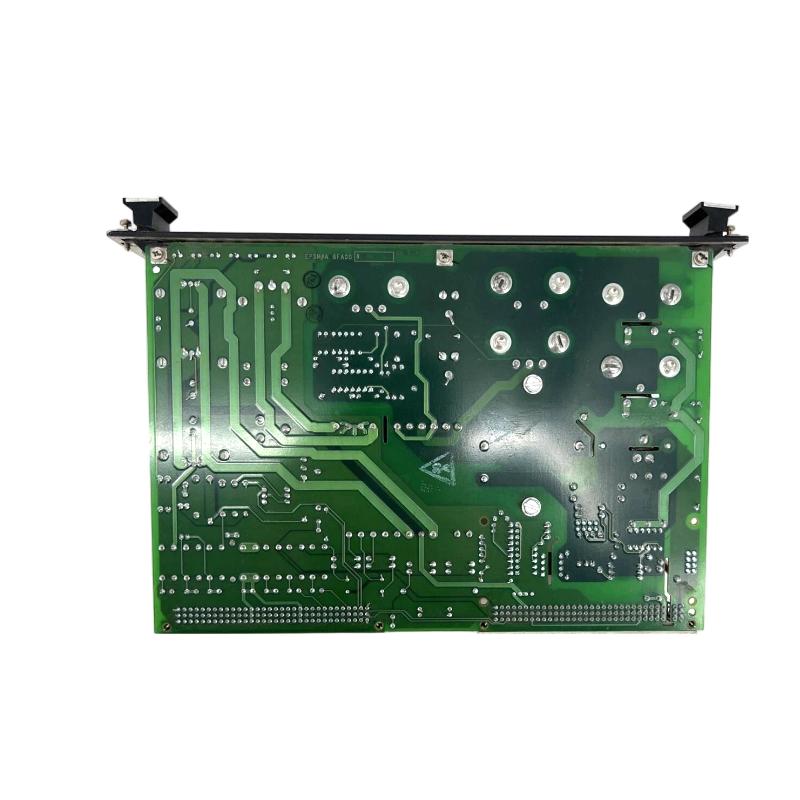

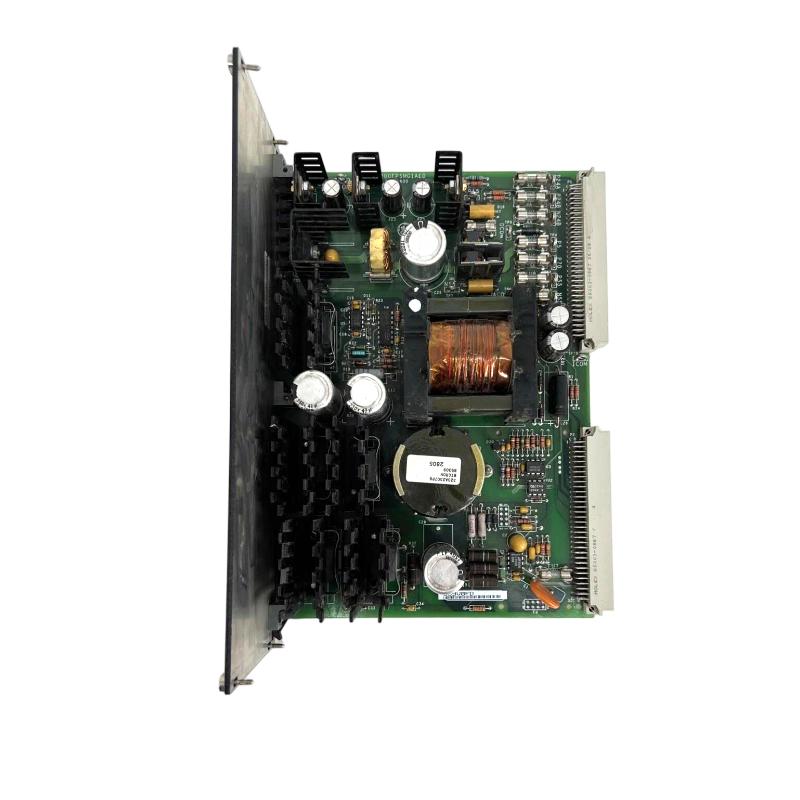

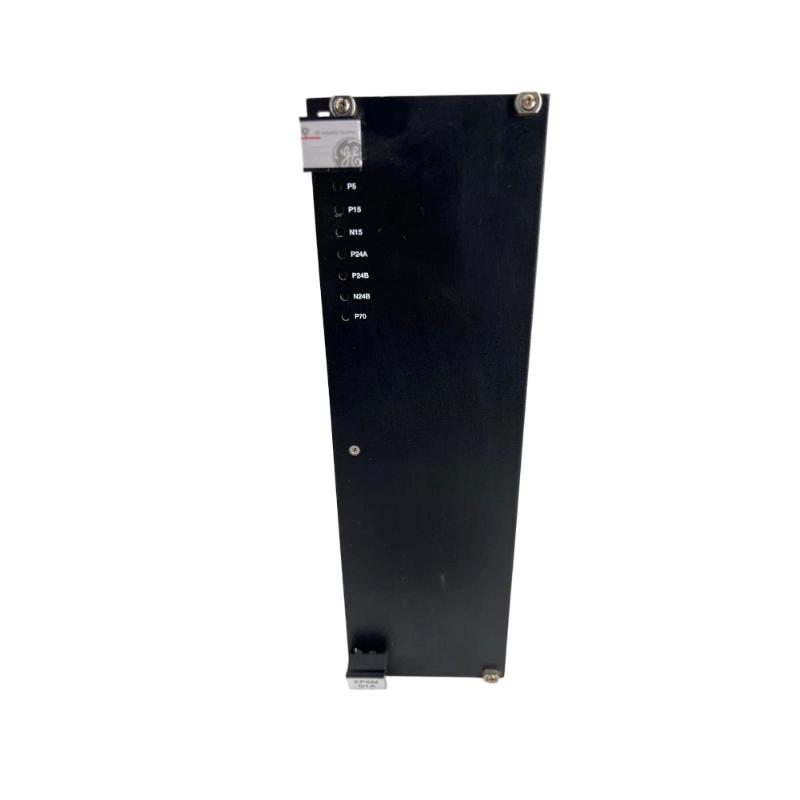

The GE IS200EPSMG1AED is an Exciter Power Supply Module (EPSM) used in the GE EX2100 excitation control system, which is commonly integrated with Mark VI turbine control platforms.
Its main role is to convert high-voltage DC power into multiple regulated low-voltage supplies required by excitation controllers, protection circuits, and turbine control electronics.
In simpler terms, it is the power backbone of the excitation system, supplying stable and isolated voltages to multiple control sections.
Technical Specifications
The IS200EPSMG1AED is a multi-output industrial power conversion module designed for high-reliability operation.
| Parameter | Specification |
|---|---|
| Module Type | Exciter Power Supply Module (EPSM) |
| Series | GE EX2100 / Mark VI compatible |
| Function | Converts DC input into regulated system voltages |
| Input Voltage | ~125 VDC from power distribution module |
| Output Voltages | +5 VDC, ±15 VDC, +24 VDC, +70 VDC (isolated), etc. |
| Additional Outputs | AC and auxiliary excitation-related supplies |
| Power Architecture | Buck regulator + push-pull inverter |
| Isolation | High-voltage isolation transformer design |
| Cooling | Passive industrial cooling (rack-mounted airflow) |
| Protection | Fuse-based + internal fault protection |
| Redundancy | Supports multi-module redundant excitation systems |
| Mounting | EPBP backplane installation |
| Operating Temp | 0°C to 60°C (typical industrial range) |
Physical Characteristics
| Item | Value |
|---|---|
| Approx. Dimensions | ~17.8 cm × 33 cm |
| Weight | ~0.8 – 1.2 kg |
System Role
The IS200EPSMG1AED is a critical power supply layer inside excitation systems:
- Converts incoming 125 VDC into multiple regulated rails
- Powers excitation controller boards (M1, M2, C)
- Supplies control system backplane voltages
- Provides isolated power for protection and relay circuits
- Supports turbine generator excitation stability
It is not a control processor, but a mission-critical power conversion module.
