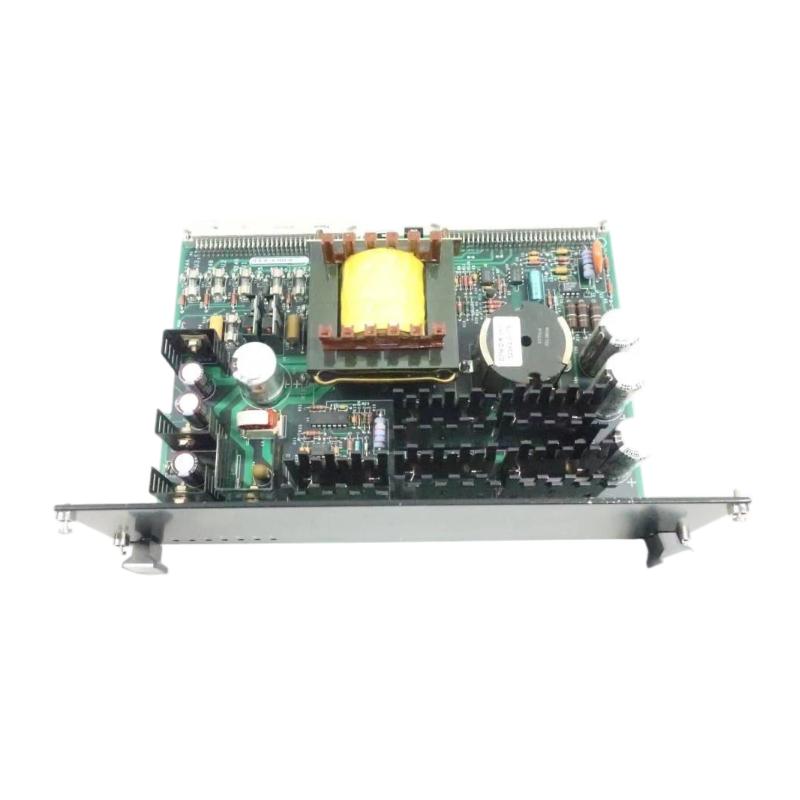

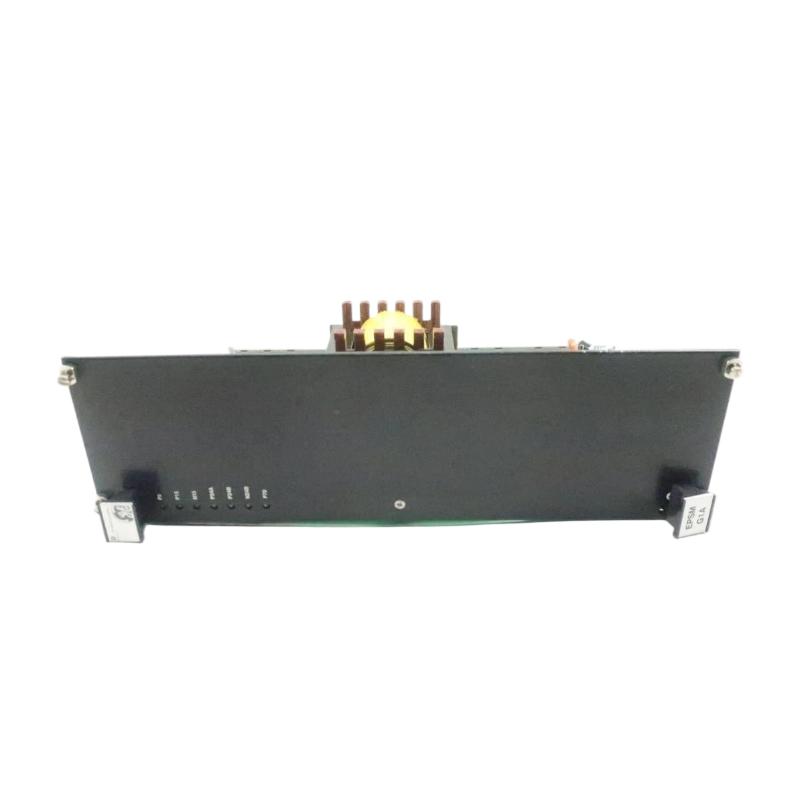

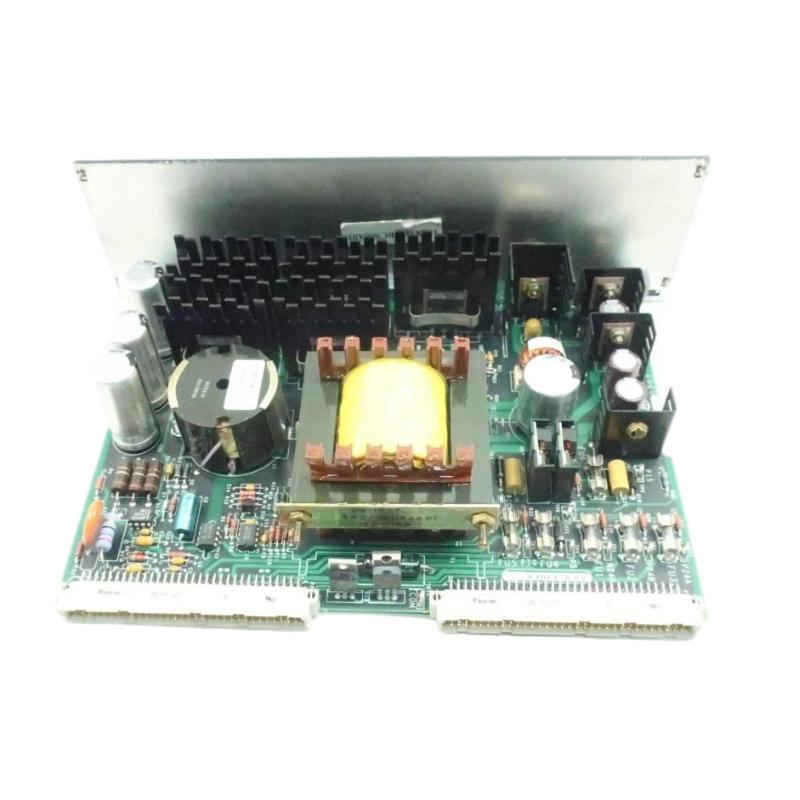

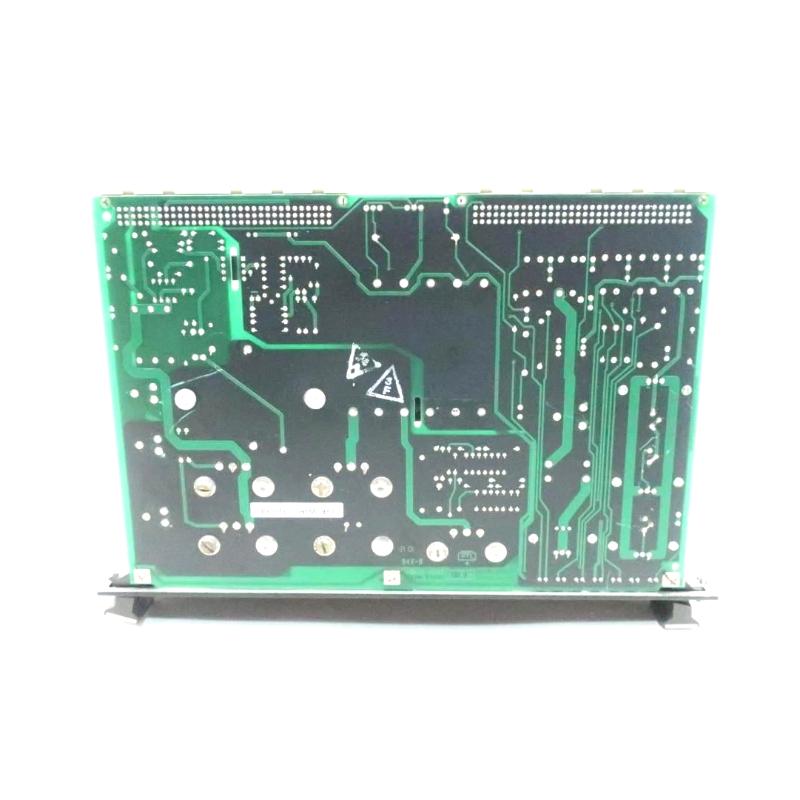

The GE IS200EPSMG1AEC is an Exciter Power Supply Module (EPSM) used in the GE EX2100 excitation system, commonly integrated with Mark VI turbine control platforms.
It is designed to convert a 125 VDC supply into multiple regulated, isolated low-voltage outputs required by excitation controllers, protection circuits, and auxiliary turbine control electronics. In a turbine system, this module acts as a central power distribution and regulation unit for excitation control.
Technical Specifications
The IS200EPSMG1AEC is a high-reliability industrial power conversion module.
| Parameter | Specification |
|---|---|
| Module Type | Exciter Power Supply Module (EPSM) |
| Series | GE EX2100 / Mark VI compatible |
| Function | Multi-output regulated DC power supply |
| Input Voltage | 125 VDC (from EPDM / PDM system) |
| Output Voltages | +5 VDC, ±15 VDC, +24 VDC, +70 VDC (isolated contact supply) |
| Architecture | Buck regulator + push-pull inverter topology |
| Isolation | High-voltage transformer isolation between input/output |
| Regulation Accuracy | ~±0.1% to ±1% depending on system configuration |
| Operating Temp | approx. -20°C to +60°C |
| Mounting | EPBP backplane rack module |
| Protection | Overvoltage, overcurrent, fault isolation |
Physical Characteristics
| Item | Value |
|---|---|
| Dimensions | ~16 × 16 × 12 cm |
| Weight | ~0.8 – 1.1 kg |
System Role
The IS200EPSMG1AEC is a core power distribution module inside excitation systems:
- Converts high-voltage DC into stable control voltages
- Supplies power to EX2100 controllers (M1, M2, C)
- Feeds excitation regulators and protection modules
- Provides isolated contact-wetting voltage (+70 VDC)
- Stabilizes generator excitation system operation
It is not a control processor, but a critical power infrastructure module ensuring stable turbine and generator operation.
