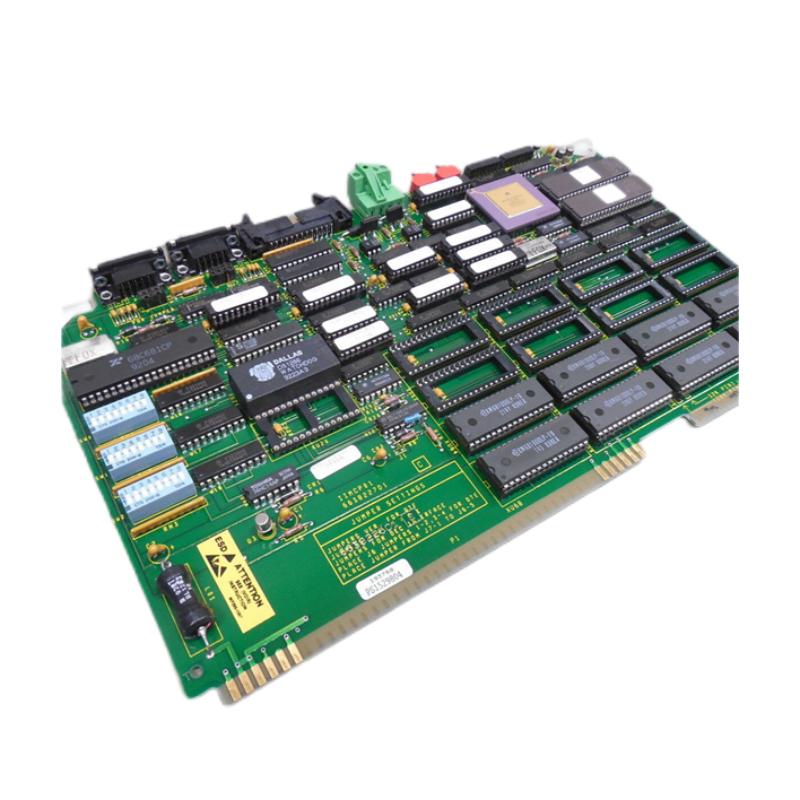

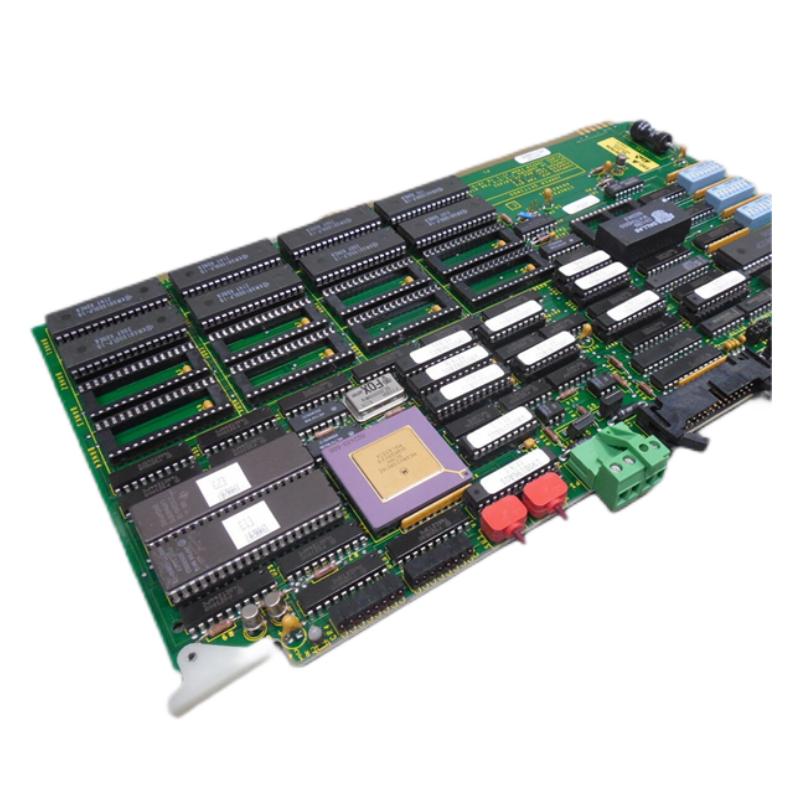

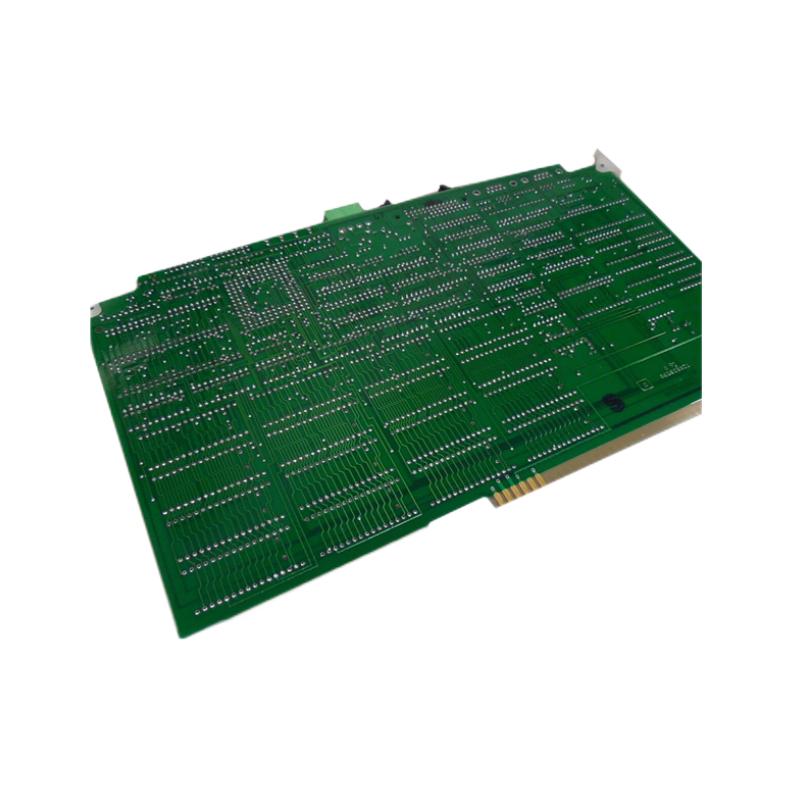

Name: ABB Bailey IIMCP01 6638227D1 Multi-Bus Communication Processor Card
Brand: ABB Bailey
SKU: 8973
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The ABB Bailey IIMCP01 6638227D1 Multi-Bus Communication Processor Card is an essential component for ensuring seamless and efficient communication in multi-bus industrial control systems. By supporting multiple communication protocols, this card allows different devices, systems, and control units to communicate effectively, even if they use different standards. This capability is critical for industries where diverse systems need to work together to achieve optimal operational efficiency.

The IIMCP01 simplifies system integration and ensures high-speed, reliable communication, making it the perfect solution for applications in process control, industrial equipment monitoring, and remote system management. Its compact design and support for redundancy and failover also make it a robust choice for mission-critical environments, ensuring that your control systems remain functional at all times.

Technical Specifications

Feature	Details
Communication Protocols	Modbus, Profibus, and other industrial protocols
Input Voltage	24 V DC
Operating Temperature	-20°C to 60°C
Dimensions (L x W x H)	160 mm x 120 mm x 45 mm
Weight	1.2 kg (2.65 lb)
Mounting Type	Rack Mountable, DIN Rail Compatible
Redundancy Features	Yes, supports communication failover
Data Transfer Speed	High-speed communication for large data traffic

Applications

The ABB Bailey IIMCP01 6638227D1 Multi-Bus Communication Processor Card is a key component in enhancing communication capabilities within ABB’s control systems. It is designed to bridge various communication protocols, providing seamless integration in complex industrial environments. Typical applications include:

Distributed Control Systems (DCS): Facilitates reliable communication between field devices and control systems, ensuring smooth data transfer and system coordination.
Process Automation: Ideal for industries like chemicals, oil & gas, and power generation, where different communication protocols need to be integrated into a single, unified system.
Industrial Equipment Monitoring: Enables multi-protocol communication between different industrial machinery and control systems for efficient operation.
Energy Management Systems: Provides a robust connection between energy monitoring devices and central control systems, ensuring real-time data exchange for energy optimization.
Remote Monitoring and Control: Supports remote diagnostics and control by enabling communication across different bus systems and protocols, ensuring operators can monitor systems from any location.

Advantages

Multi-Protocol Support: Supports multiple communication protocols such as Modbus, Profibus, and more, allowing for integration with a wide range of industrial equipment.
Enhanced Flexibility: The card provides flexible network communication options, making it easier to manage complex multi-bus systems with diverse communication needs.
High-Speed Data Transfer: Facilitates rapid data transmission between field devices and central control units, improving operational efficiency.
Scalable Solution: Easily integrates into larger systems, allowing for future scalability without requiring significant infrastructure changes.
Improved System Reliability: Ensures high uptime by providing redundancy and failover capabilities, making it a reliable component in mission-critical operations.
Compact Design: The card’s compact form factor allows for easy integration into existing control systems without requiring significant space.

Technical FAQs

What communication protocols are supported by the IIMCP01?
The IIMCP01 supports a variety of communication protocols, including Modbus, Profibus, and other common industrial communication standards.
How does the IIMCP01 improve system communication?
It acts as a bridge between multiple communication buses, allowing for seamless data exchange across different protocols, enhancing overall system interoperability.
Can the IIMCP01 handle high data traffic?
Yes, the IIMCP01 is designed for high-speed data transfer, ensuring smooth communication even in systems with heavy data traffic.
Is the IIMCP01 compatible with older ABB systems?
Yes, it is backward-compatible with earlier ABB systems, providing a cost-effective solution for system upgrades without replacing the entire infrastructure.
How many devices can be connected through the IIMCP01?
The IIMCP01 can support a large number of connected devices, depending on the configuration and communication protocol used. It is designed to scale with system needs.
Can the IIMCP01 be used in remote monitoring applications?
Yes, the card supports remote communication, making it ideal for systems that require monitoring and control from a remote location.
What are the power requirements for the IIMCP01?
The IIMCP01 operates within standard industrial voltage ranges, typically requiring 24V DC power input.
Does the IIMCP01 include failover or redundancy features?
Yes, it is designed with redundancy features, ensuring high availability and fault tolerance in critical communication systems.
How is the IIMCP01 installed?
The card is easy to install and can be integrated into existing control systems with minimal downtime. It is typically mounted on a rack or DIN rail, depending on the system setup.
What is the expected lifespan of the IIMCP01?
With proper maintenance and use within specified operational conditions, the IIMCP01 is built to last for many years, providing reliable service in industrial environments.
