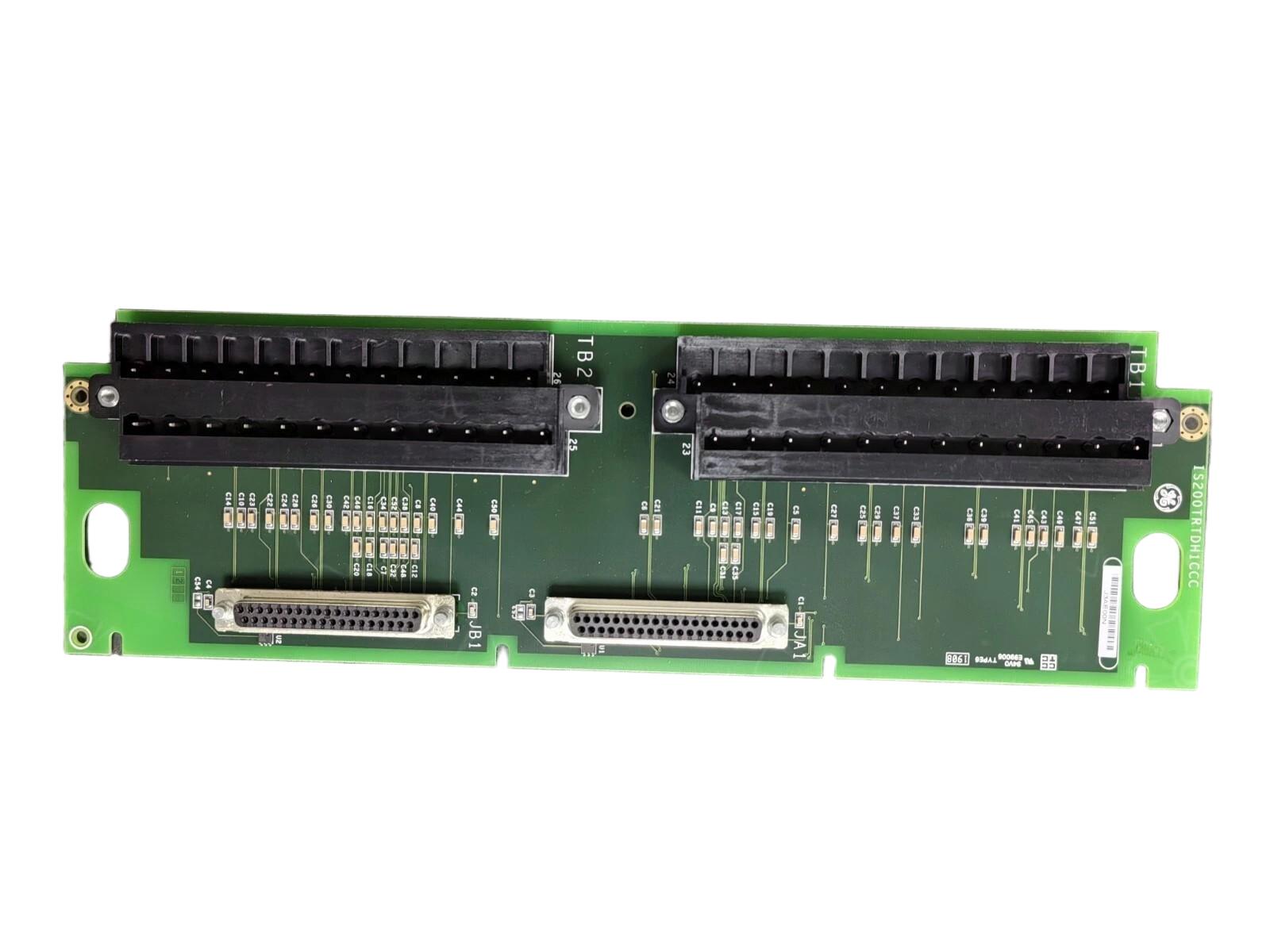

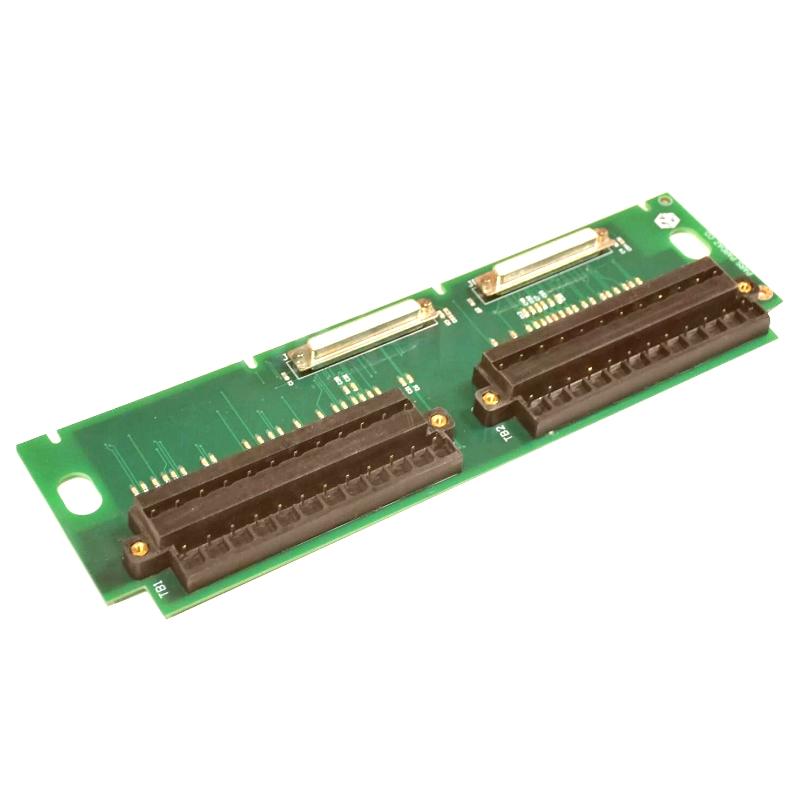

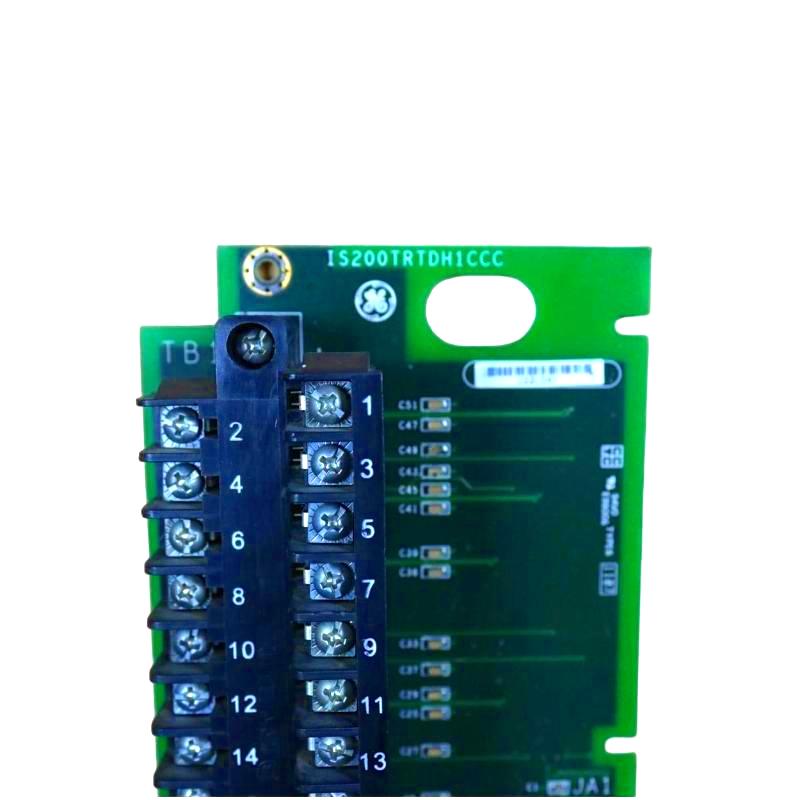

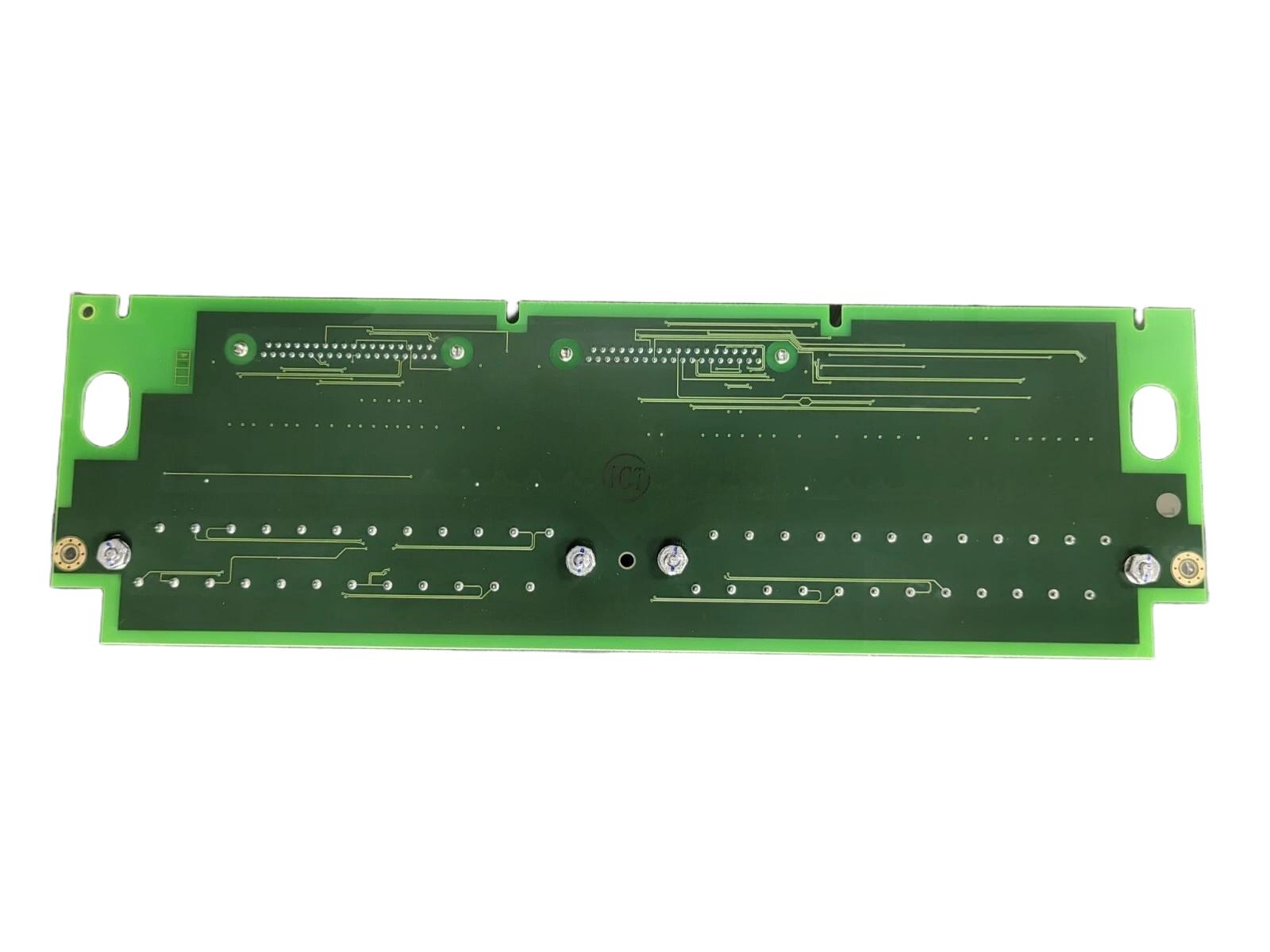

The GE IS200TRTDH1CCC is a Resistance Temperature Detector (RTD) terminal board used in GE Mark VI Speedtronic turbine control systems. It is designed to interface multiple RTD sensors with the control architecture, enabling accurate temperature monitoring of critical turbine components such as bearings, exhaust sections, and compressor stages.
This module plays a key role in ensuring thermal safety and efficiency by converting low-level resistance signals from RTDs into stable, noise-filtered inputs for turbine control processors.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200TRTDH1CCC |
| Series | Mark VI Speedtronic |
| Module Type | RTD Input Terminal Board |
| Function | Temperature sensing interface |
| Input Channels | 16 three-wire RTD inputs |
| Supported RTD Types | Platinum (10Ω, 100Ω, 200Ω), Copper, Nickel |
| Input Signal Range | 0.3532 – 4.054 V |
| Maximum Lead Resistance | 15 Ω (two-way cable resistance) |
| Terminal Blocks | 2 removable barrier terminal blocks |
| Connector Interface | 3 × 37-pin female connectors |
| Signal Conditioning | Noise suppression & limit checking |
| System Compatibility | Mark VI / Mark VIe VRTD interface |
| Operating Temperature | -30°C to +65°C |
| Dimensions | ~160 × 160 × 120 mm |
| Weight | ~0.22 – 0.8 kg (variant dependent) |
The board supports high-density RTD input configurations, making it suitable for large-scale turbine temperature monitoring systems.
System Role & Functional Behavior
The IS200TRTDH1CCC acts as the temperature sensing front-end interface in GE turbine control systems:
- Collects resistance signals from multiple RTD sensors
- Supports three-wire RTD configurations for improved accuracy
- Converts resistance changes into measurable voltage signals
- Applies noise suppression and fault detection at the hardware level
- Sends processed signals to VRTD/VAIC control modules
This ensures stable thermal monitoring even in high-noise industrial environments such as turbine housings and power plant enclosures.
Recommended Related Modules
To complete a Mark VI temperature monitoring architecture, this board is commonly paired with:
- IS200VRTDH1A RTD Processor Module
- IS200VAICH1C Analog Input Module
- IS200TBAIH1C Analog I/O Terminal Board
- IS215UCVEM06A Control Processor Module
These modules collectively manage sensing, signal processing, and control decision-making.
Common GE Mark VI System Modules
In similar turbine systems, engineers also use:
- IS200TVIBH2B Vibration Monitoring Board
- IS200TSVOH1B Servo Control Board
- IS200TRLYH1B Relay Output Module
- IS200TTURH1B Turbine Protection Board
- IS220PDIOH1A Distributed I/O Pack
Each supports different layers of turbine monitoring and control.
