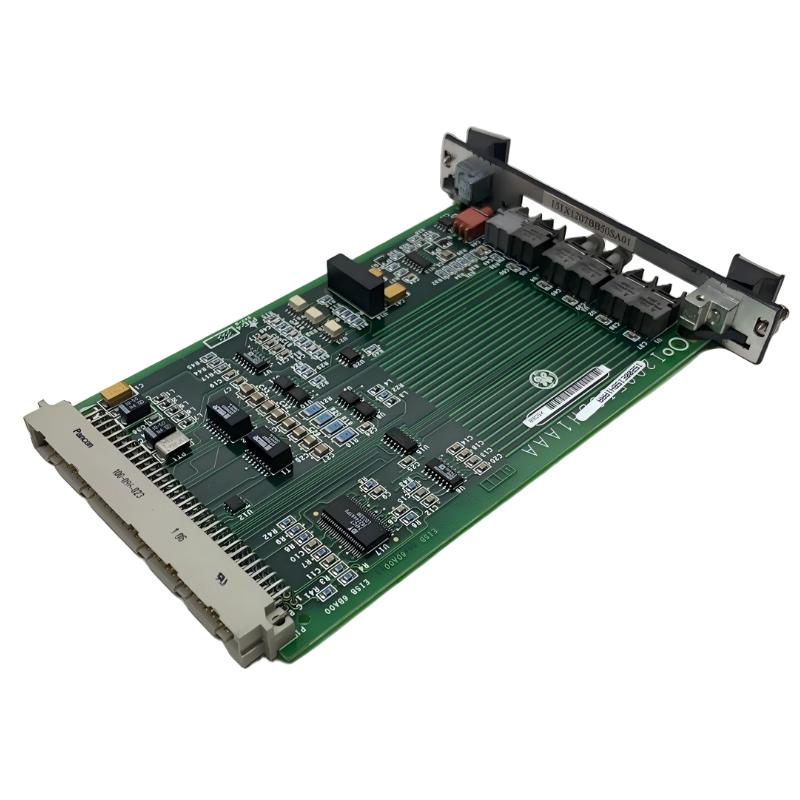

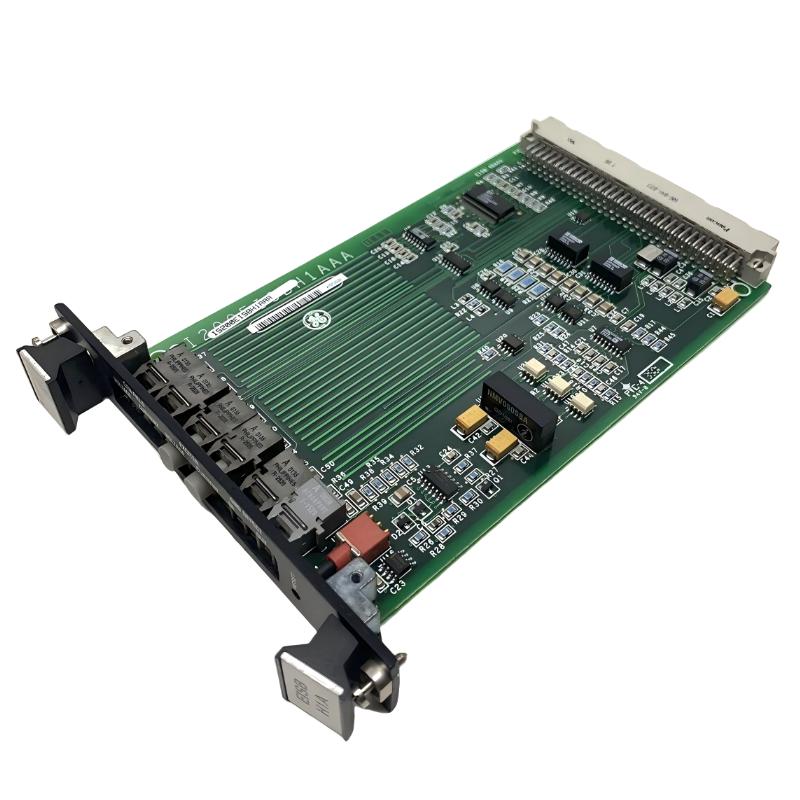

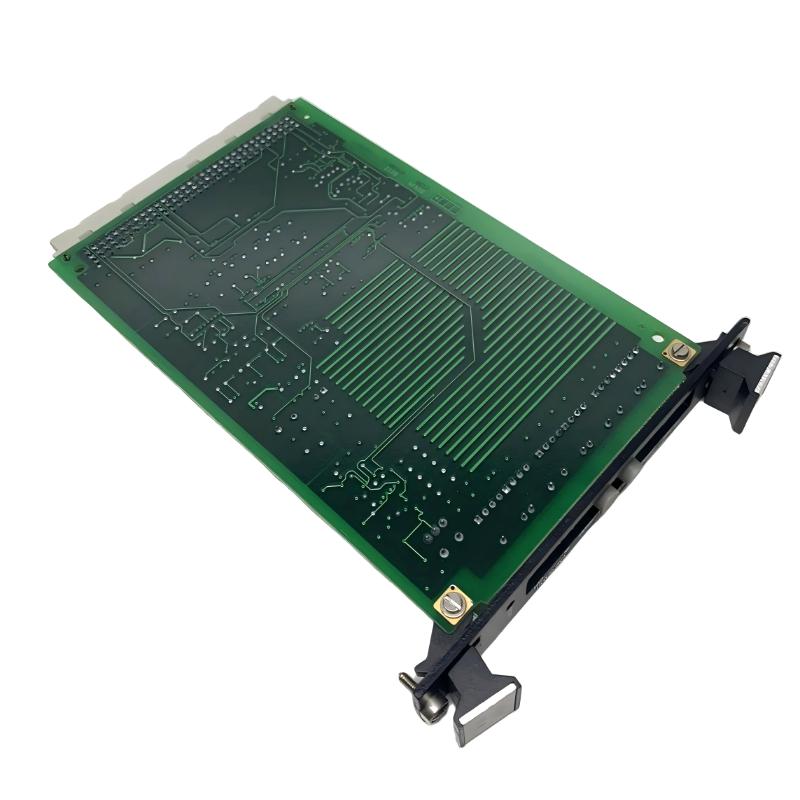

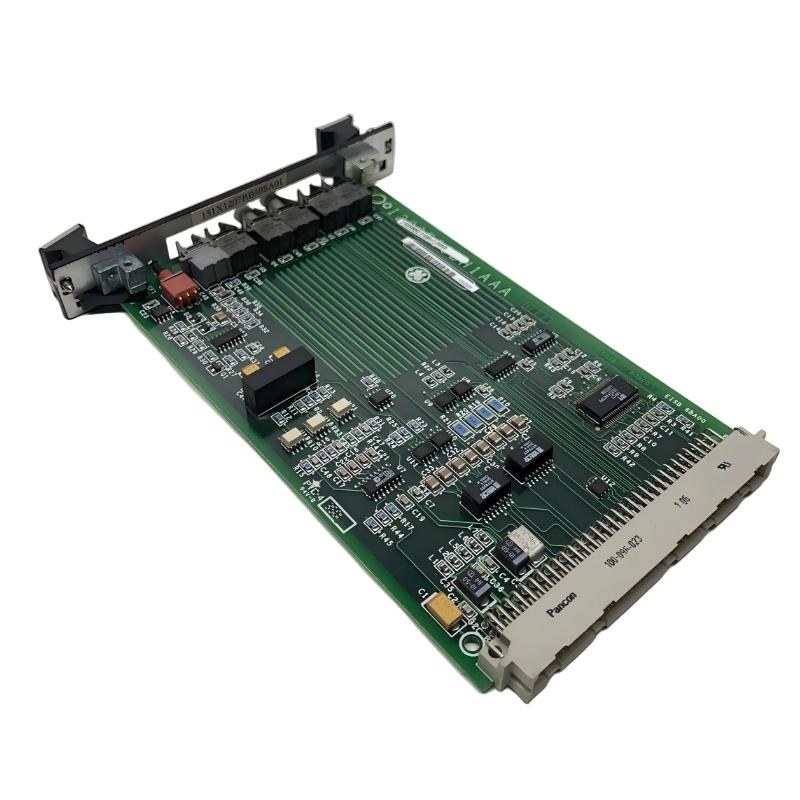

The GE IS200EISBH1AAA is an Exciter ISBus communication board used in GE EX2100 excitation systems within Mark VI turbine control architectures. It functions as a high-reliability data exchange interface between multiple controllers (M1, M2, and C) and DSPX processing modules, enabling synchronized control of generator excitation and field regulation.
Designed for high-speed, noise-immune communication, this module relies on fiber-optic transmission to ensure stable signal integrity in electrically harsh turbine environments. It plays a foundational role in coordinating excitation system data flow and maintaining generator stability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200EISBH1AAA |
| Series | EX2100 / Mark VI Excitation System |
| Module Type | Exciter ISBus Communication Board |
| Function | Fiber-optic communication interface |
| Primary Role | Controller-to-controller data exchange |
| Controller Interface | M1 / M2 / C / DSPX |
| Communication Type | ISBus + fiber-optic links |
| Analog I/O Support | 12 channels (4–20 mA interface handling) |
| Output Range | 0–20 mA analog output capability |
| Power Supply | 24 VDC system supply |
| Operating Temperature | -30°C to +65°C |
| Signal Isolation | High immunity fiber-optic isolation |
| Board Format | 3U single-slot PCB |
| Weight | ~0.4–0.5 kg |
| Dimensions | ~160 × 120 × 30 mm |
The module is designed for EX2100 excitation systems, where reliable communication between control layers is essential for generator stability and grid synchronization.
System Role & Functional Behavior
The IS200EISBH1AAA acts as the communication hub inside the excitation control system:
- Transfers fiber-optic feedback signals to DSPX controllers
- Enables ISBus communication between multiple turbine control units
- Coordinates data exchange between M1, M2, and C control layers
- Interfaces with generator field measurement circuits (EDCF modules)
- Supports system diagnostics and redundancy communication paths
By isolating control communication through fiber optics, it significantly reduces electromagnetic interference risks in turbine environments.
Recommended Related Modules
To build a complete GE excitation control system, this board is commonly paired with:
- IS200DSPXH1A Excitation Processor Module
- IS200EDCF Field Current/Voltage Interface Board
- IS200EXAM Excitation Control Assembly Module
- IS200VGEN Generator Interface Modules
- IS215UCVEM06A Control Processor Module
These components together form a synchronized excitation and control ecosystem.
Common GE Excitation System Modules
Frequently associated modules include:
- IS200EXHSG Exciter Control Boards
- IS200EGDM Ground Detection Module
- IS200EACM Analog Control Module
- IS200VAICH1C Analog Input Board
- IS200TRLYH1B Relay Output Module
Each supports different layers of excitation control, monitoring, and protection.
