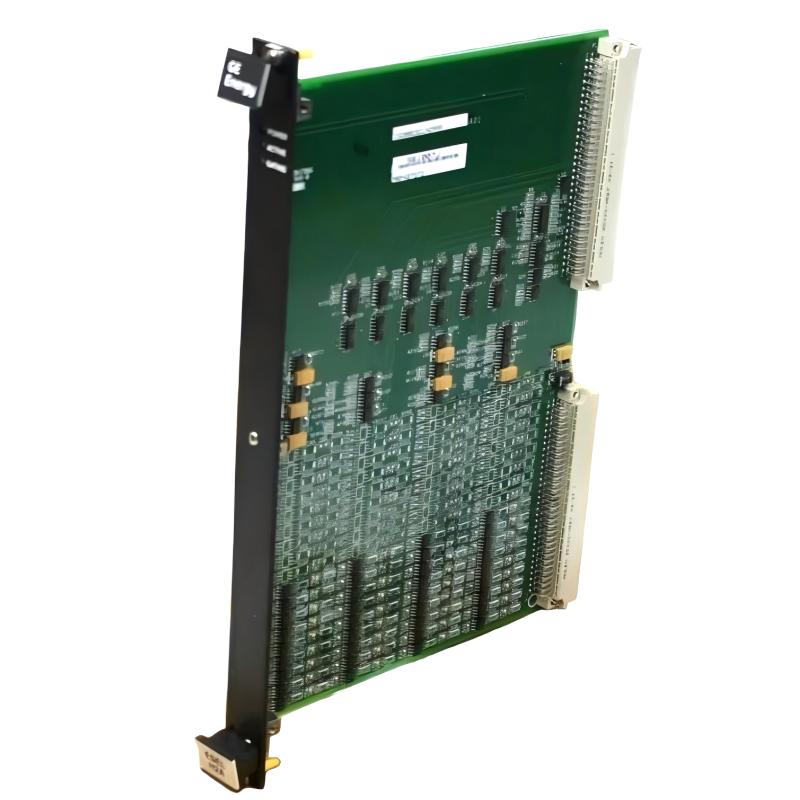

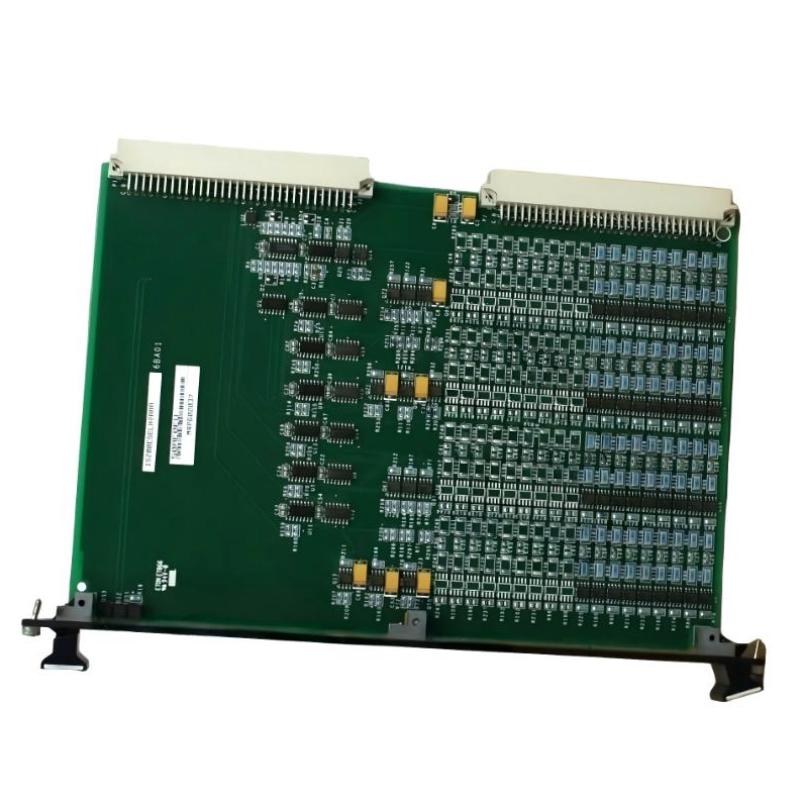

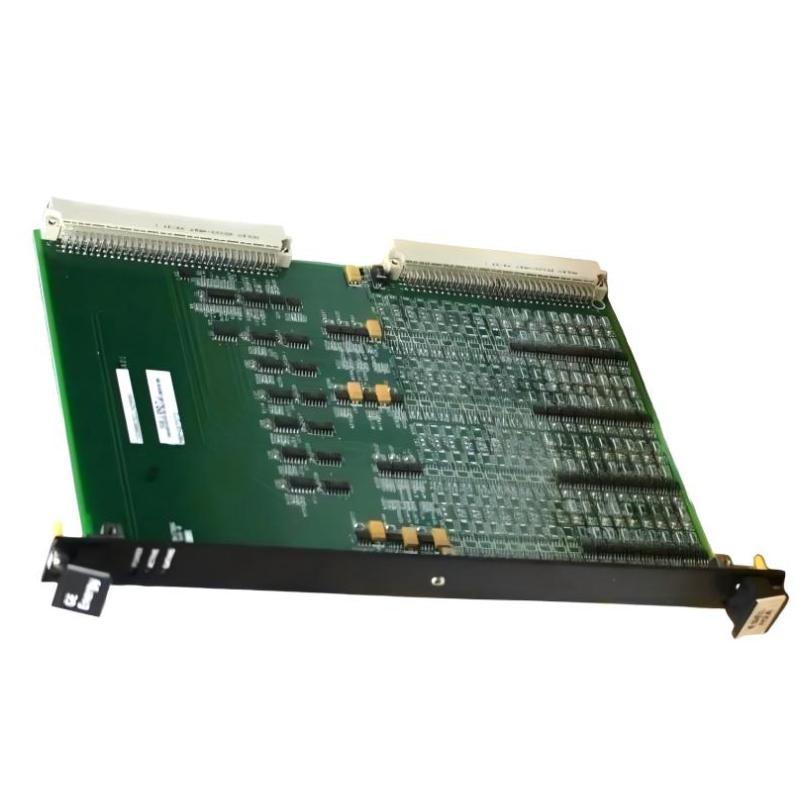

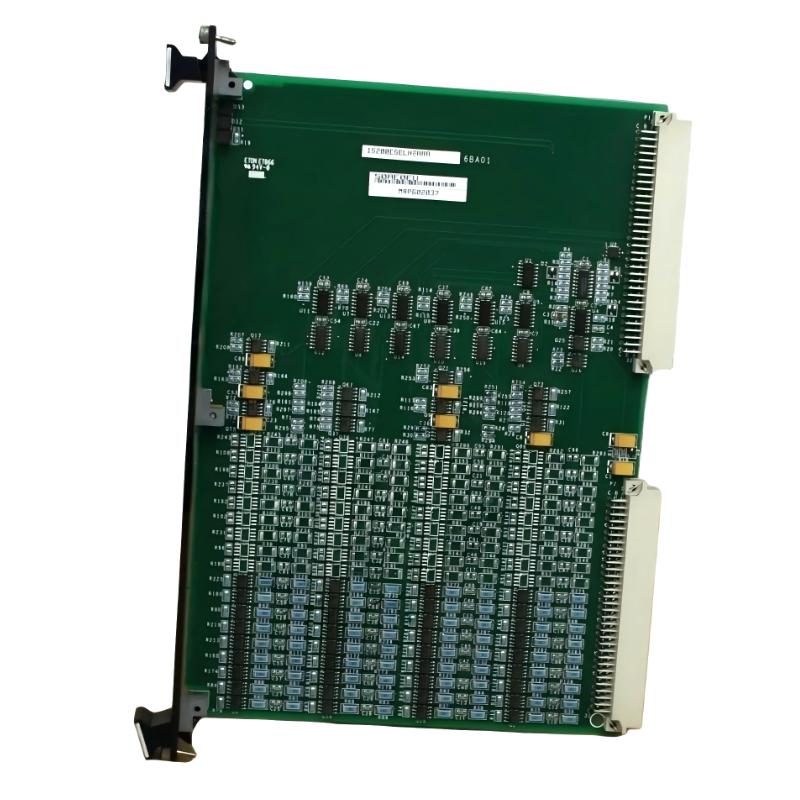

The GE IS200ESELH2AAA is an Exciter Selector (ESEL) board used in GE EX2100 excitation control systems within turbine generator applications. Its main function is to receive logic-level gate pulse signals from the EMIO main I/O board and distribute them to EGPA gate pulse amplifier boards, ensuring precise and synchronized control of excitation firing signals.
In high-reliability power generation environments, this module plays a crucial role in maintaining stable generator excitation by guaranteeing accurate pulse routing and redundancy support between control channels.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200ESELH2AAA |
| Series | EX2100 Excitation System |
| Module Type | Exciter Selector Board (ESEL) |
| Function | Gate pulse signal distribution |
| Input Signals | 6 logic-level gate pulse signals (from EMIO) |
| Output Channels | Up to 6 EGPA drive outputs |
| System Compatibility | EX2100 / EX2100e excitation systems |
| Redundancy Support | Simplex or dual-redundant configuration |
| Communication Interface | Backplane (rack-mounted system integration) |
| PCB Protection | Conformal coating |
| Operating Temperature | -30°C to +65°C |
| Mounting Type | VME-based control rack slot |
| Dimensions | ~11.5 × 6.5 × 5 cm (approx.) |
| Weight | ~0.35 – 1.0 kg (variant dependent) |
The board is designed to ensure precise pulse routing from control logic to power conversion stages, making it essential for stable excitation control.
System Role & Functional Behavior
The IS200ESELH2AAA operates as a critical signal routing and selection layer inside the excitation architecture:
- Receives six logic-level gate pulse signals from the EMIO board
- Selects and routes active excitation pulses to EGPA amplifier boards
- Ensures correct timing coordination of firing signals
- Supports redundant control switching between M1 and M2 controllers
- Maintains excitation stability during load changes or controller transfer
In redundant systems, multiple ESEL boards may operate in parallel, with the active unit selected by the system controller to ensure uninterrupted excitation control.
Recommended Related Modules
For a complete GE EX2100 excitation system configuration, IS200ESELH2AAA is typically used with:
- IS200EMIOH1A Main I/O Control Board
- IS200EGPA Gate Pulse Amplifier Board
- IS200DSPX Excitation Processor Module
- IS200EPDM Power Distribution Module
- IS200EXTB Terminal Interface Board
Together, these modules form a full excitation signal chain from processing to power stage actuation.
Common GE Excitation System Modules
Frequently associated components include:
- IS200EISBH1AAA ISBus Communication Board
- IS200EACM Analog Control Module
- IS200EDCF Field Interface Board
- IS200VAICH1C Analog Input Module
- IS200TRLYH1B Relay Output Module
Each contributes to excitation control, monitoring, or signal distribution.
