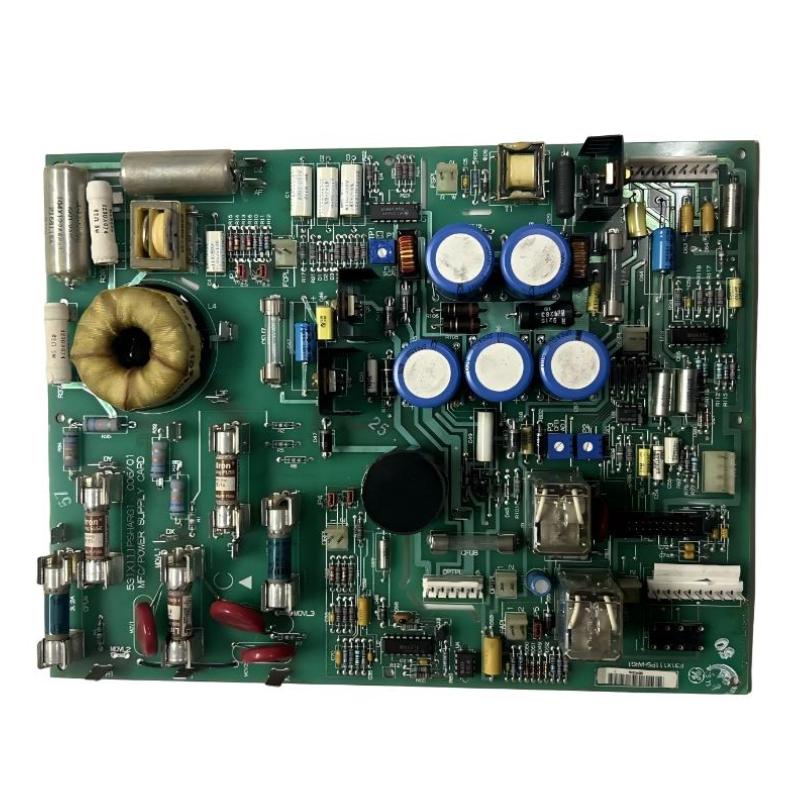

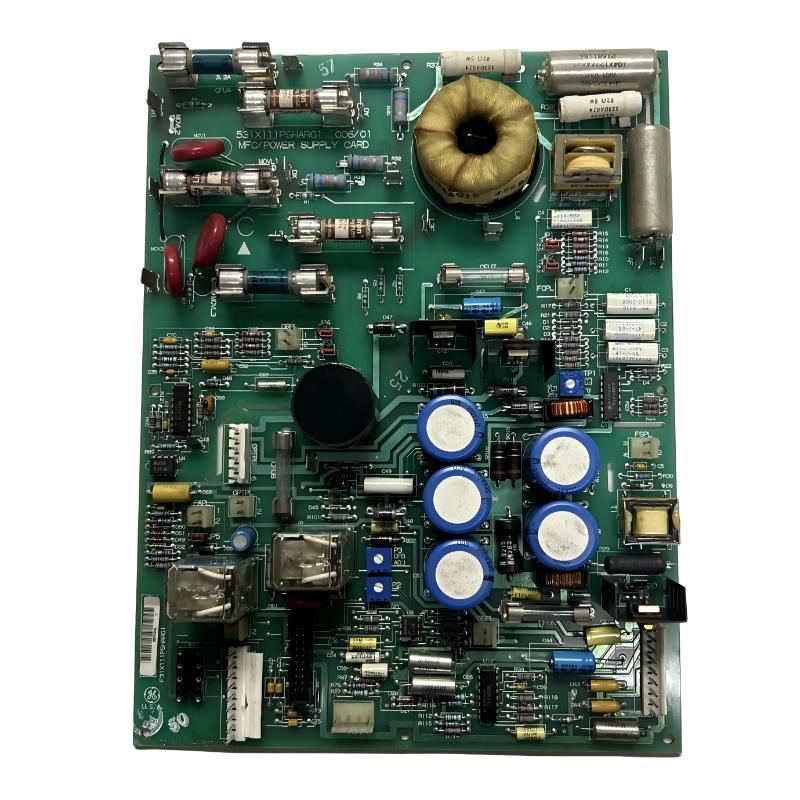

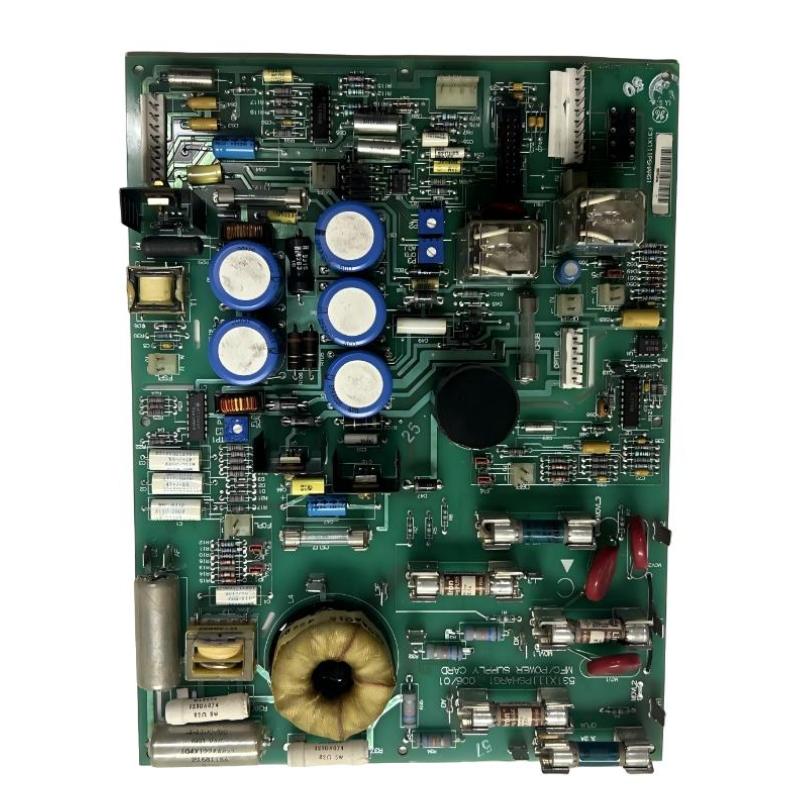

The GE 531X111PSHARG1 is a Motor Control and Power Supply Card used in GE 531X series drive systems, commonly found in industrial motor control and legacy turbine drive applications. It is designed to generate and regulate multiple DC power rails required by drive electronics, while also supporting motor field excitation and internal control logic power distribution.
This module is a critical foundation component in GE drive architecture, ensuring stable voltage delivery, protected circuit operation, and reliable motor field control under continuous industrial load conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | 531X111PSHARG1 |
| Series | 531X Drive / Motor Control System |
| Module Type | MCF / Power Supply Card |
| Function | Multi-output DC power generation & regulation |
| Output Voltages | 5 VDC, 15 VDC, 24 VDC |
| Motor Field Support | Integrated pulse transformer for field circuit |
| Protection Components | Fuses, MOVs, relays, capacitors |
| Control Elements | Onboard relays (RUN / FAULT logic) |
| Signal Conditioning | Filtering, voltage regulation circuits |
| System Role | Drive power and excitation support |
| Mounting | Rack-mounted PCB assembly |
| Operating Temperature | 0°C to 60°C |
| Dimensions | ~16 × 16 × 12 cm |
| Weight | ~0.8 kg |
The board is widely used in GE drive systems where stable multi-voltage power distribution and motor field excitation control are required.
System Role & Functional Behavior
The 531X111PSHARG1 operates as the central power conditioning unit inside GE drive systems:
- Generates regulated DC power rails (5V, 15V, 24V) for control electronics
- Supplies energy to motor field excitation circuits via pulse transformer
- Uses onboard fuses and relays for protection and switching control
- Stabilizes voltage under varying industrial load conditions
- Supports safe startup, shutdown, and fault response behavior
- Acts as a key power backbone for drive and control subsystems
In practice, it ensures that all downstream control and power electronics receive clean, stable, and protected voltage supply.
