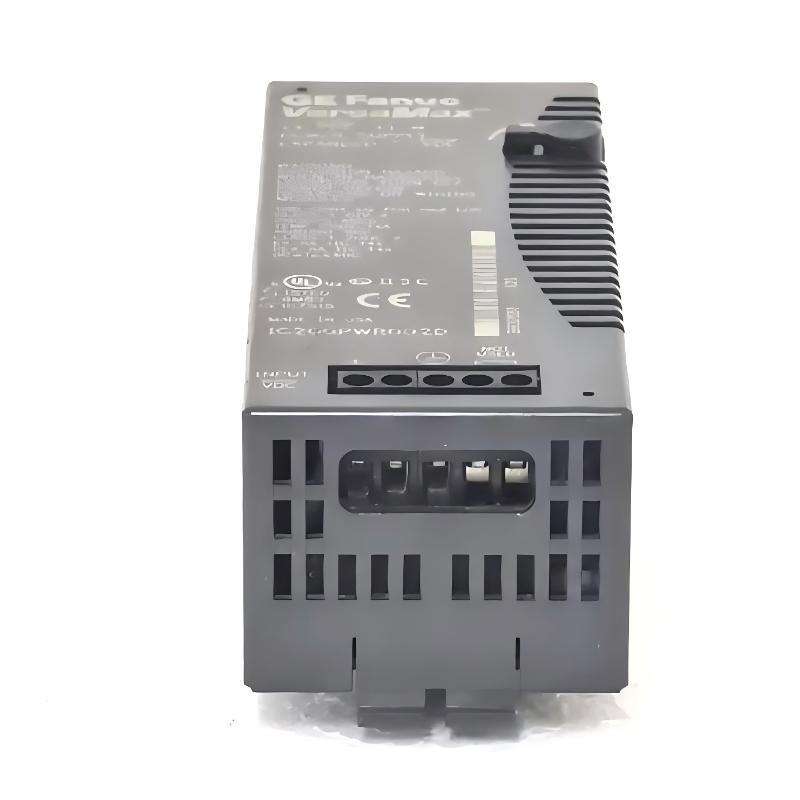

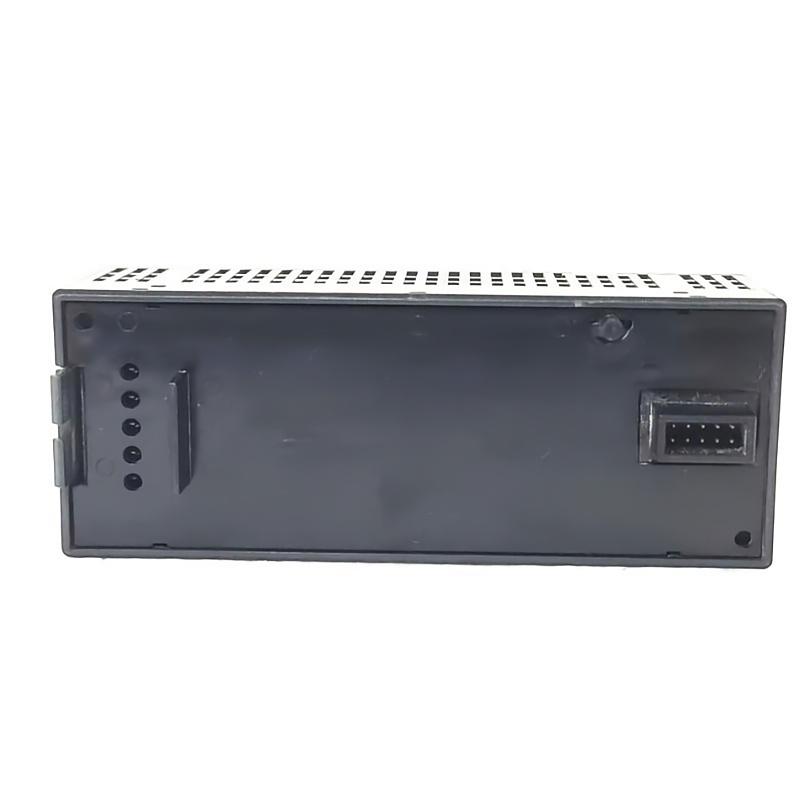

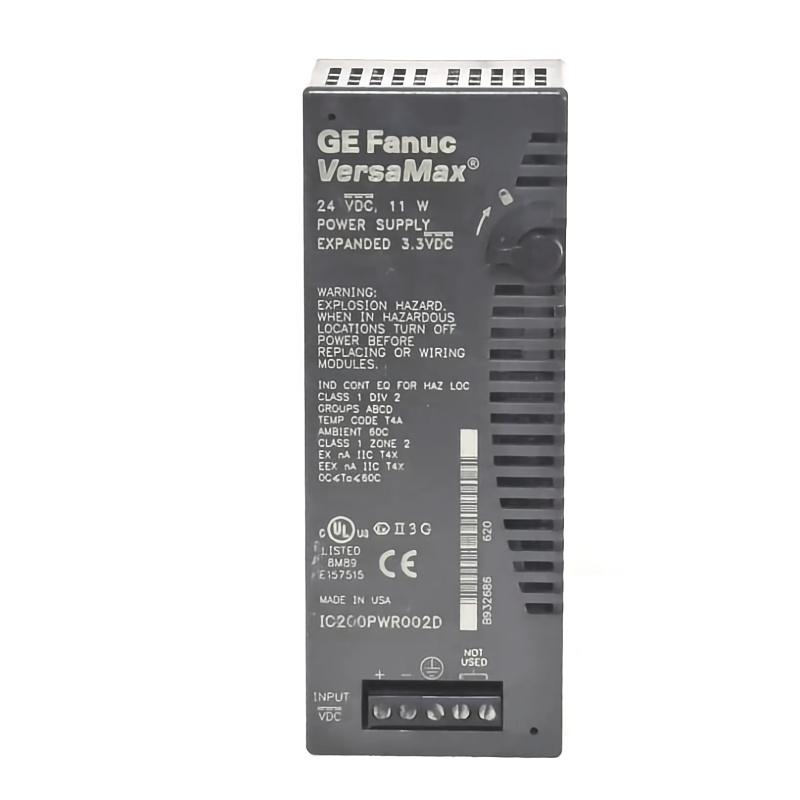

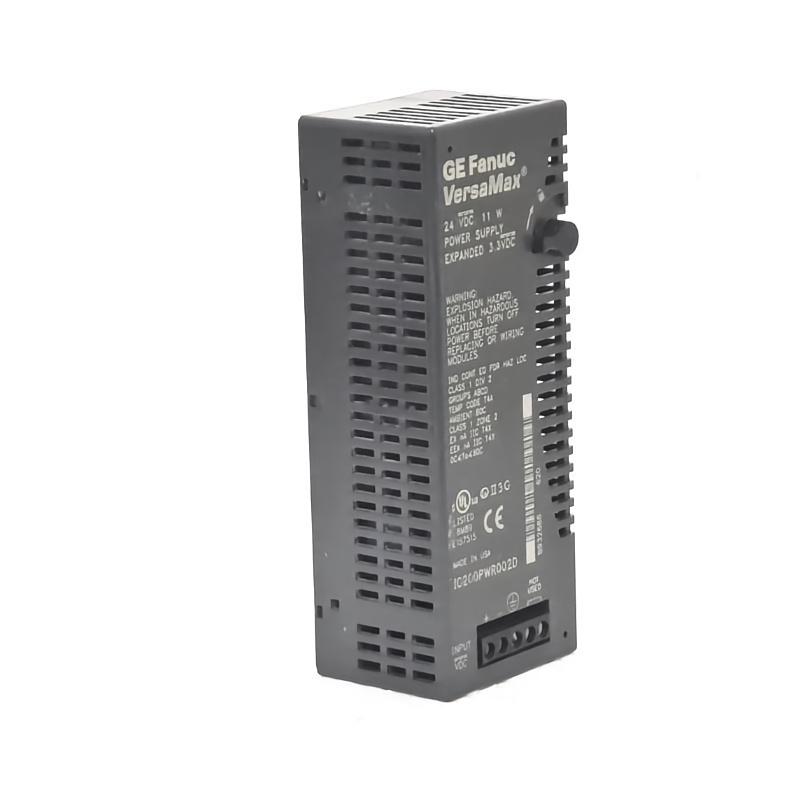

The GE IC200PWR002 is an expanded power supply module from the GE VersaMax I/O system (now under Emerson Automation). It provides regulated low-voltage DC power for CPU, NIU, and I/O backplane devices, ensuring stable operation of distributed control architectures in industrial automation systems.
It can function either as a primary power source for a VersaMax station or as a supplementary booster supply, making it a flexible and widely used power module in modular PLC installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Model | IC200PWR002 |
| Series | VersaMax I/O System |
| Module Type | Expanded Power Supply Module |
| Input Voltage | 18–30 VDC (24 VDC nominal) |
| Input Power | ~11 W |
| Output Voltages | 5 VDC, 3.3 VDC |
| Total Output Current | 1.5 A max |
| 5V Output Current | Up to 1.5 A (shared limit applies) |
| 3.3V Output Current | Up to 1.0 A |
| Protection Features | Short-circuit, overload, reverse polarity |
| Hold-up Time | ~10 ms |
| Inrush Current | 20–25 A (short duration) |
| Backplane Role | Powers CPU, NIU, and I/O modules |
| Isolation | Non-isolated output |
| Operating Temperature | -20°C to +60°C (typical industrial range) |
| Dimensions | ~49 × 133 × 39 mm |
| Weight | ~0.2–2.0 kg (variant dependent) |
System Role & Functional Behavior
The IC200PWR002 acts as the low-voltage energy foundation of a VersaMax control station:
- Supplies regulated 5V and 3.3V DC to backplane electronics
- Powers CPUs, network interface units, and I/O modules
- Functions as either main or booster (auxiliary) power source
- Maintains stable operation during load fluctuations
- Includes protection against overload, short circuit, and reverse polarity
- Supports modular expansion without redesigning the power architecture
In real-world systems, it is often the first component ensuring that the entire PLC rack can operate reliably.
Recommended Related Models
To complete a GE VersaMax control system, IC200PWR002 is commonly paired with:
- IC200CHS002 I/O Carrier Base
- IC200GBI001 Genius Bus Interface Unit
- IC200MDL640 Digital Input Module
- IC200MDL740 Digital Output Module
- IC200ALG230 Analog Input Module
- IC200CPU05 VersaMax CPU Module
Together, these modules build a full distributed control and automation platform.
Common GE VersaMax System Modules
Frequently used alongside this power module:
- IC200CHS series terminal bases
- IC200PWR001 / PWR102 power variants
- VersaMax expansion racks
- GE Genius I/O communication modules
- PACSystems CPU families (RX3i integration layers)
Each contributes to scalable industrial automation architectures.
