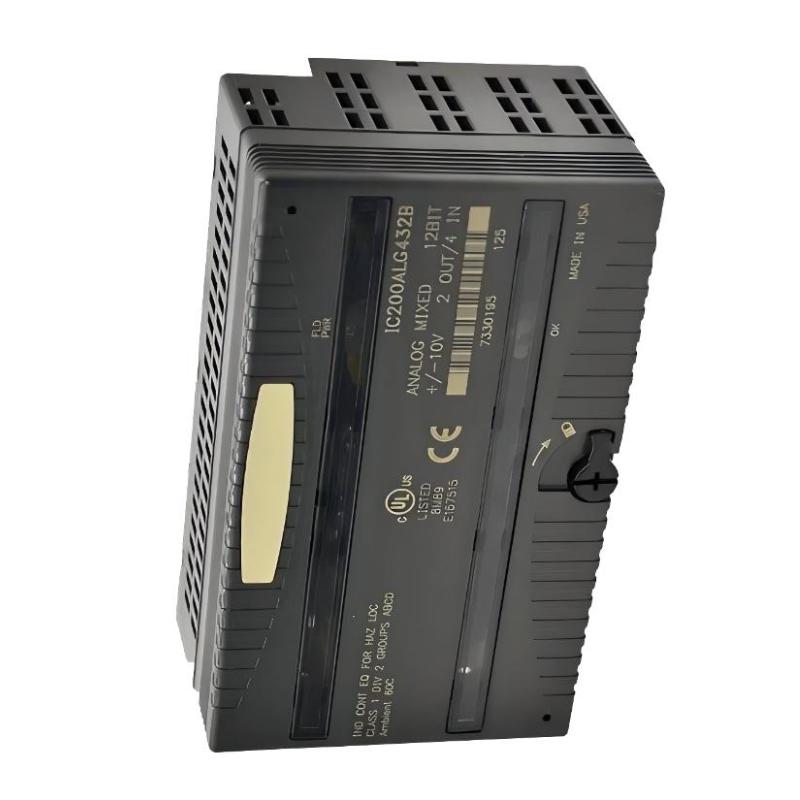

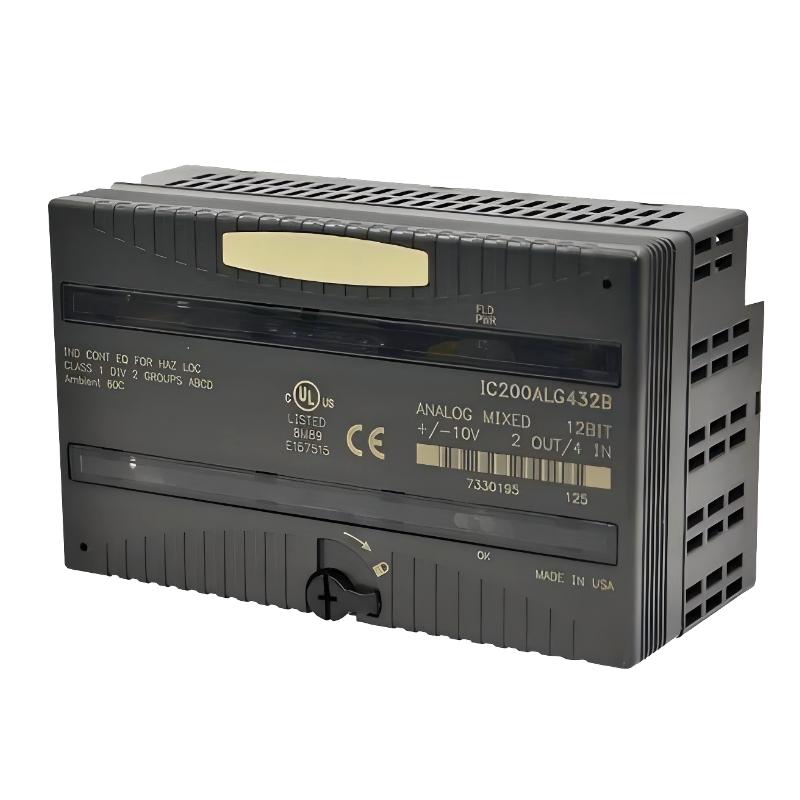

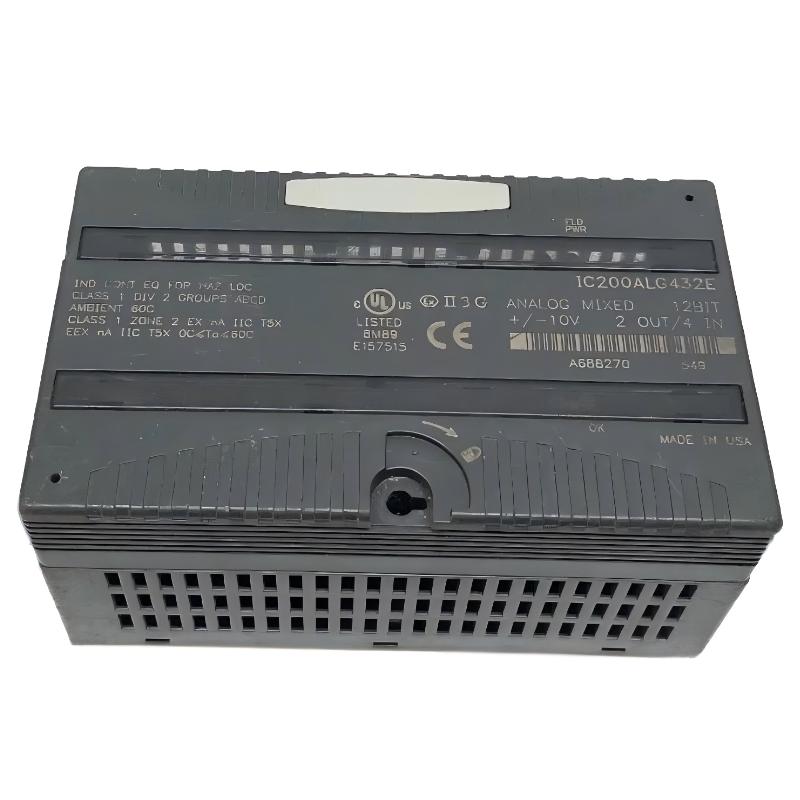

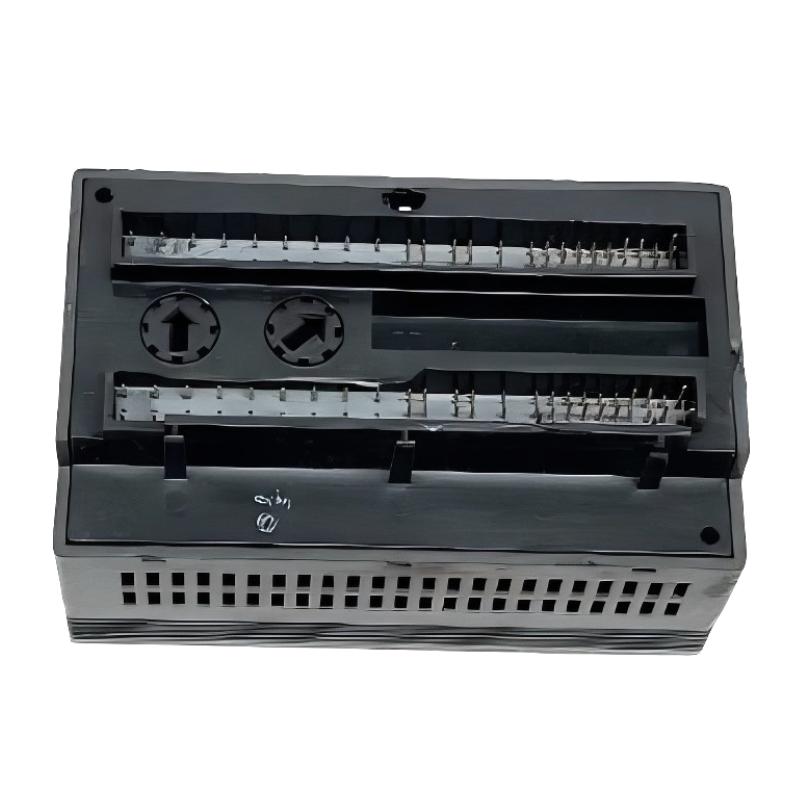

The GE IC200ALG432 is a VersaMax analog mixed I/O module designed to provide both analog input acquisition and analog output control within a single compact unit. With 4 input channels and 2 output channels, it enables precise real-time process control in distributed industrial automation systems where space efficiency and signal accuracy are critical.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (Emerson legacy) |
| Model | IC200ALG432 |
| Series | VersaMax I/O System |
| Module Type | Analog Mixed I/O Module |
| Analog Inputs | 4 channels |
| Analog Outputs | 2 channels |
| Input / Output Range | ±10 VDC |
| Resolution | 12-bit |
| Update Rate | ~0.4 ms |
| Response Time | ~5 ms |
| External Power Requirement | 24 VDC |
| Backplane Current | ~160 mA |
| Isolation | Up to 1500 VAC field-to-logic |
| Diagnostics | Field power loss, fault detection |
| LED Indicators | Power, status, field diagnostics |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 133 × 51 × 118 mm |
| Weight | 0.17 – 0.30 kg |
The compact vertical housing allows dense installation inside VersaMax racks while maintaining strong electrical isolation and thermal stability.
System Role & Functional Behavior
The IC200ALG432 operates as a dual-purpose analog control interface module:
- Converts analog sensor signals into PLC-readable data
- Outputs analog control signals to field actuators
- Supports real-time closed-loop process regulation
- Enables precise adjustment of industrial equipment
- Provides diagnostic feedback for field wiring conditions
- Ensures stable performance under continuous industrial load
Its integrated design reduces system complexity while improving control efficiency.
