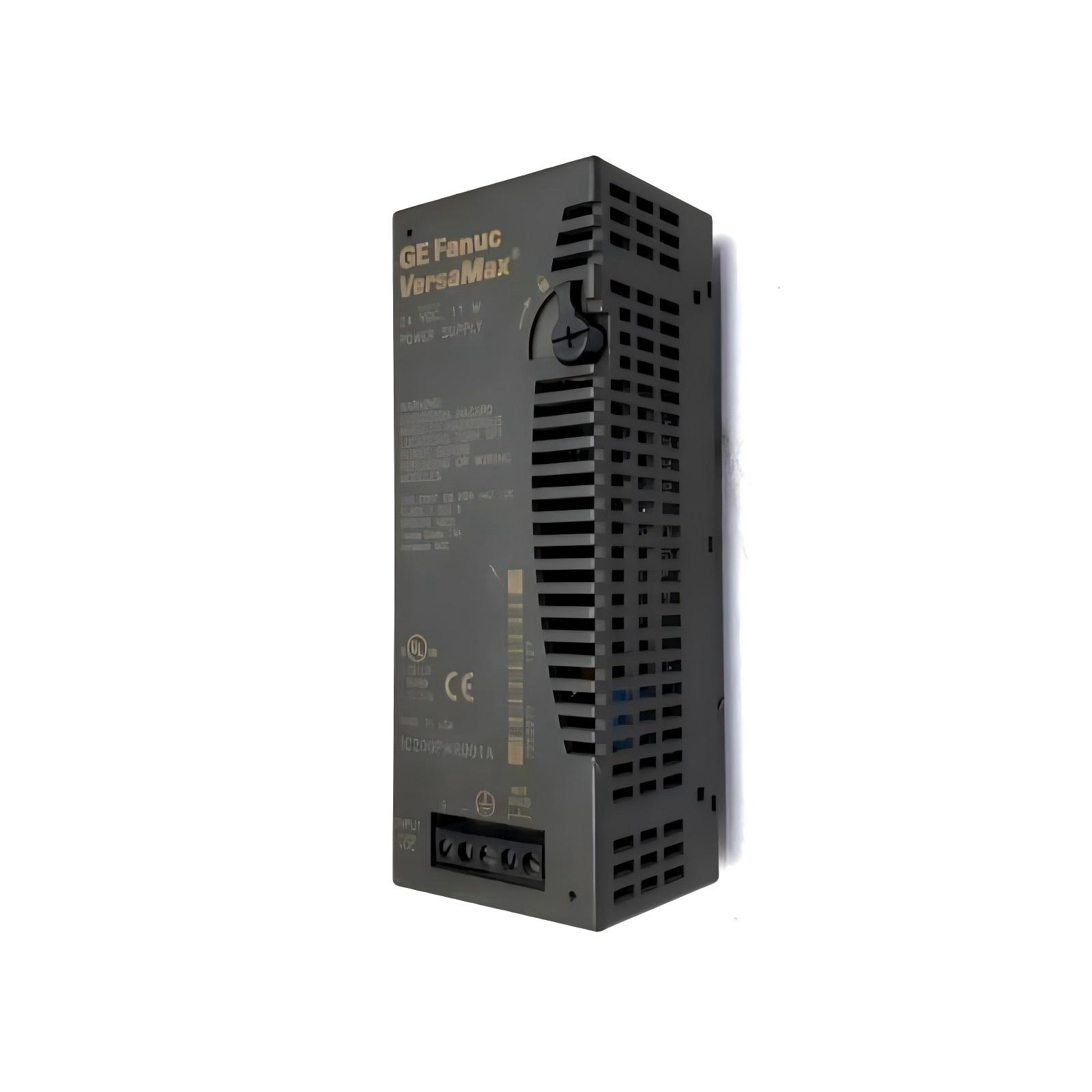

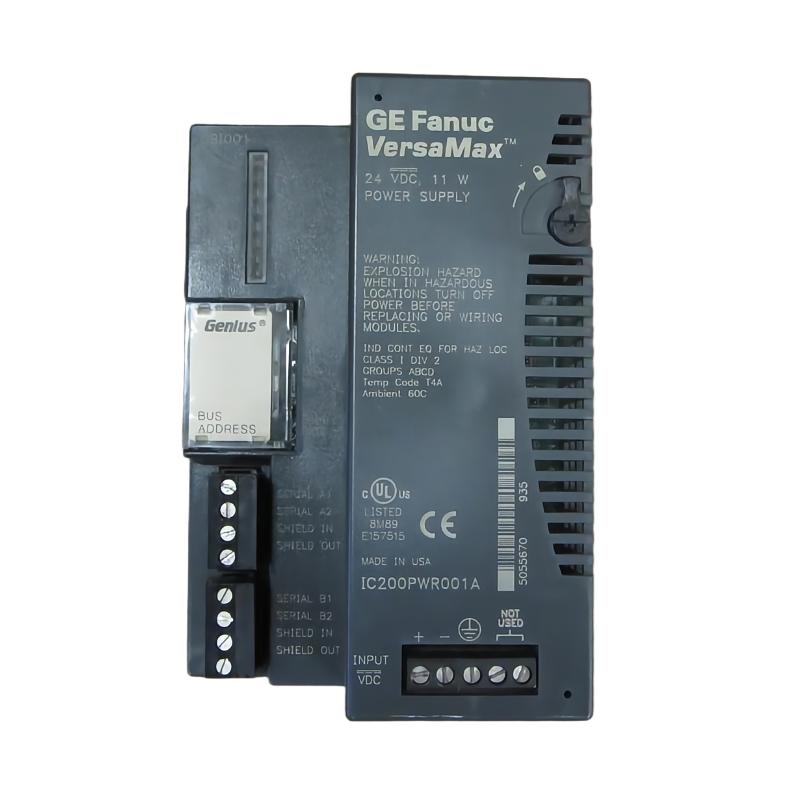

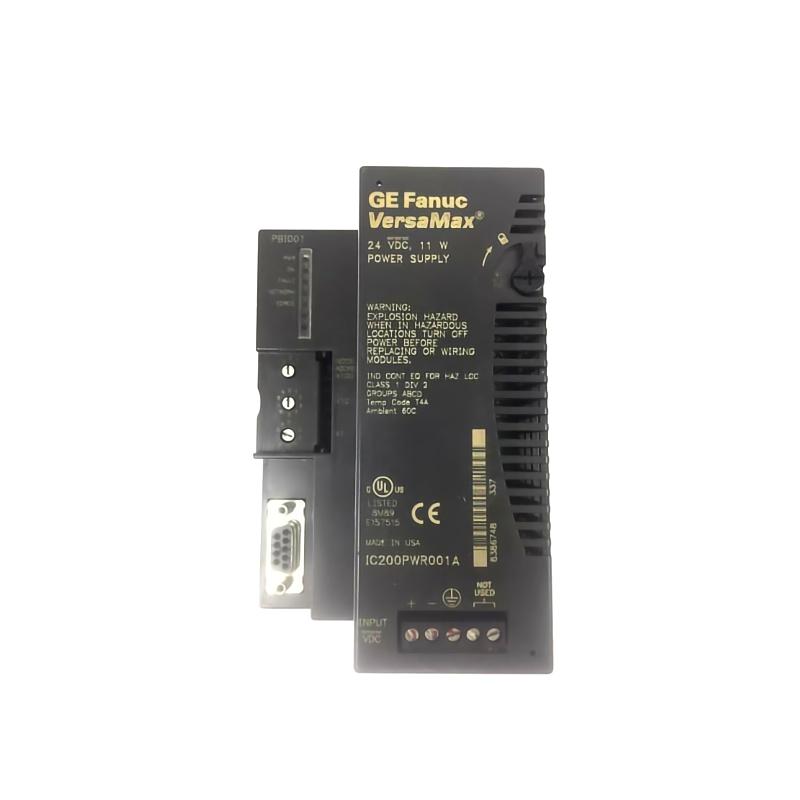

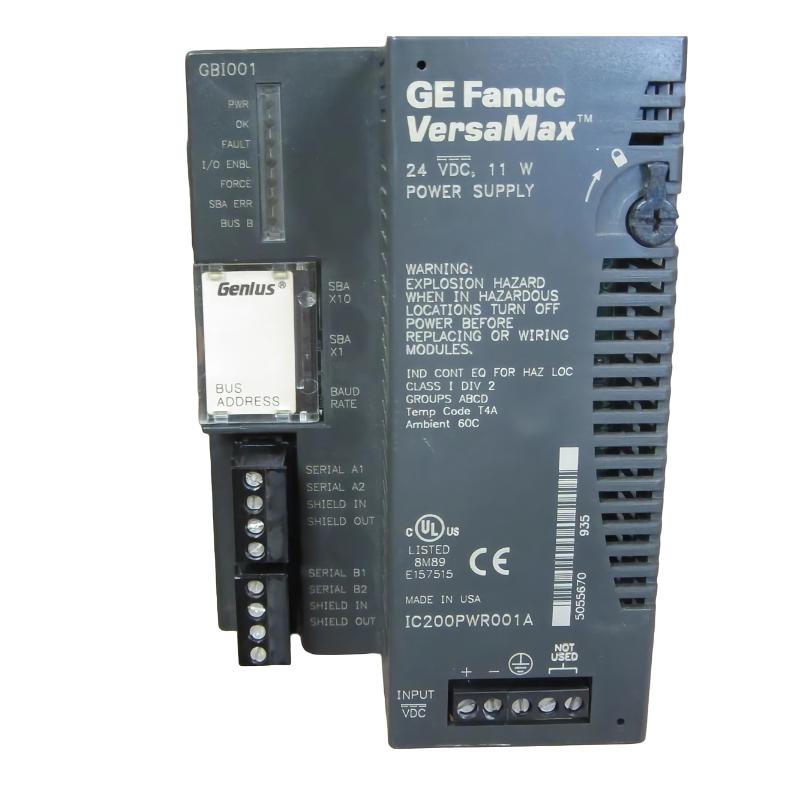

The GE IC200PWR001 is a VersaMax expanded power supply module designed to provide stable backplane power for CPU, NIU, and I/O modules in GE Fanuc PLC architectures. It converts 24 VDC input into regulated low-voltage outputs, ensuring reliable operation of distributed automation systems in industrial environments.
This module is commonly used as either a primary station power supply or a booster auxiliary supply, depending on system load requirements.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (Emerson Automation legacy) |
| Model | IC200PWR001 |
| Series | VersaMax I/O System |
| Module Type | DC Power Supply Module |
| Input Voltage | 18–30 VDC (24 VDC nominal) |
| Input Power | ~11 W |
| Output Voltages | 5 VDC, 3.3 VDC |
| Total Output Current | 1.5 A max |
| 5V Output Current | Up to 1.5 A (shared limit) |
| 3.3V Output Current | Up to 0.25 A |
| Hold-up Time | ~10 ms |
| Inrush Current | 20–25 A |
| Protection | Short-circuit, overload, reverse polarity |
| Mounting | DIN rail / VersaMax carrier mounted |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 133 × 39 × 110 mm |
| Weight | ~0.11 – 0.2 kg |
Its ultra-compact profile allows it to integrate directly into VersaMax racks without consuming excessive cabinet space.
System Role & Functional Behavior
The IC200PWR001 operates as the core logic power distributor within a VersaMax station:
- Supplies regulated 5VDC and 3.3VDC to PLC backplane
- Powers CPU, NIU, and I/O modules
- Supports main or auxiliary power configurations
- Maintains stable operation under load fluctuations
- Provides protection against electrical faults and wiring errors
- Ensures continuous PLC operation in industrial environments
It is a foundational component that keeps the entire control system energized and stable.
Recommended Related Models
To complete a GE VersaMax system, IC200PWR001 is commonly paired with:
- IC200CPU05 PLC CPU Module
- IC200GBI001 Genius Bus Interface Unit
- IC200CHS002 I/O Carrier Base
- IC200MDL640 Digital Input Module
- IC200MDL740 Digital Output Module
- IC200ALG430/432 Analog Modules
Popular VersaMax Power Modules
- IC200PWR002 (expanded 3.3V higher capacity version)
- IC200PWR101 (AC power supply variant)
- IC200PWR201 (12VDC version)
- RX3i PACSystems power supply modules
- VersaMax booster power carriers
