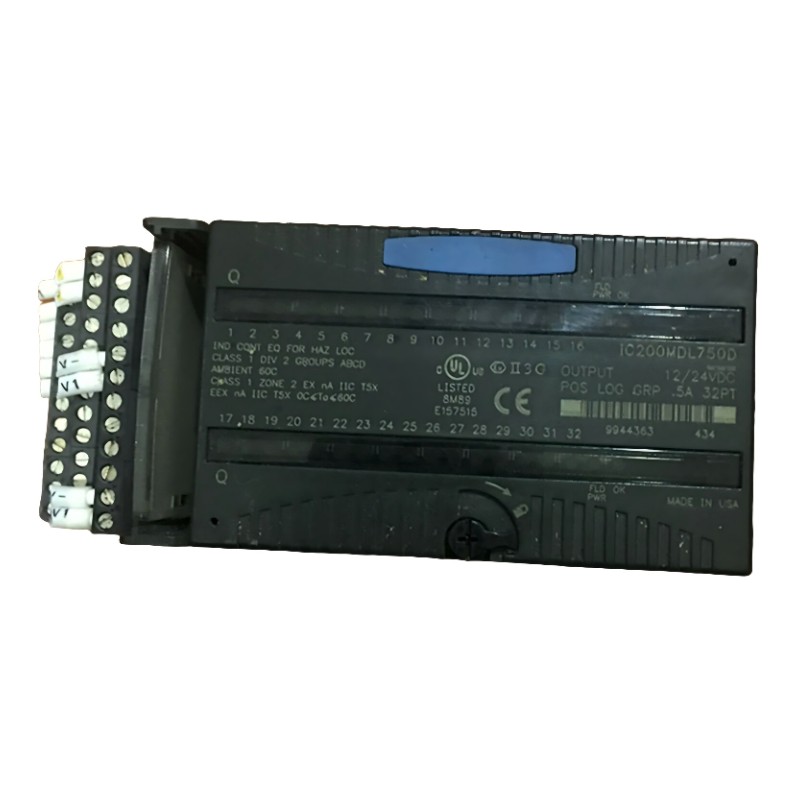

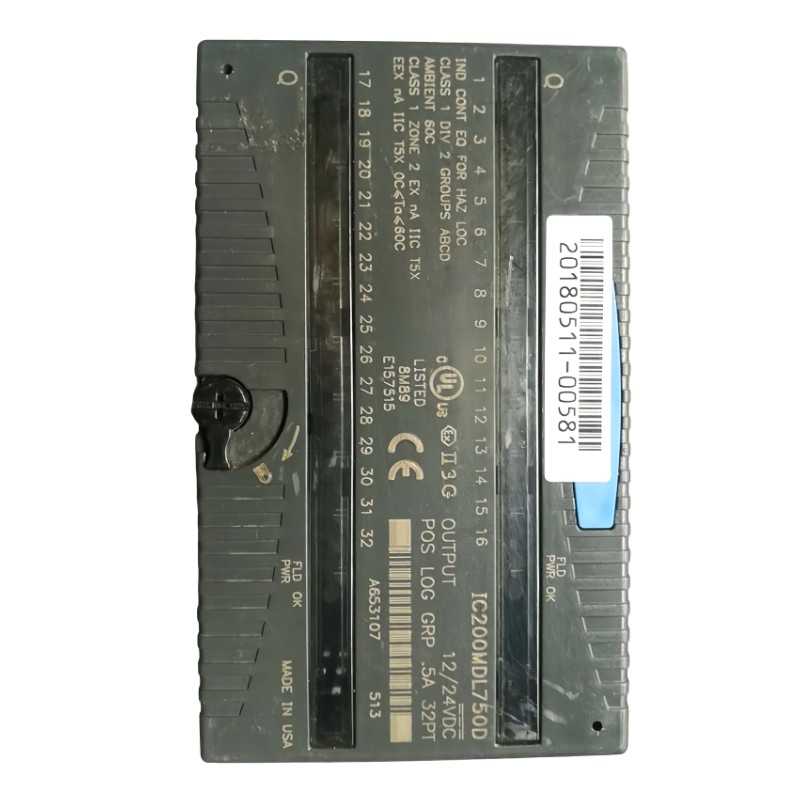

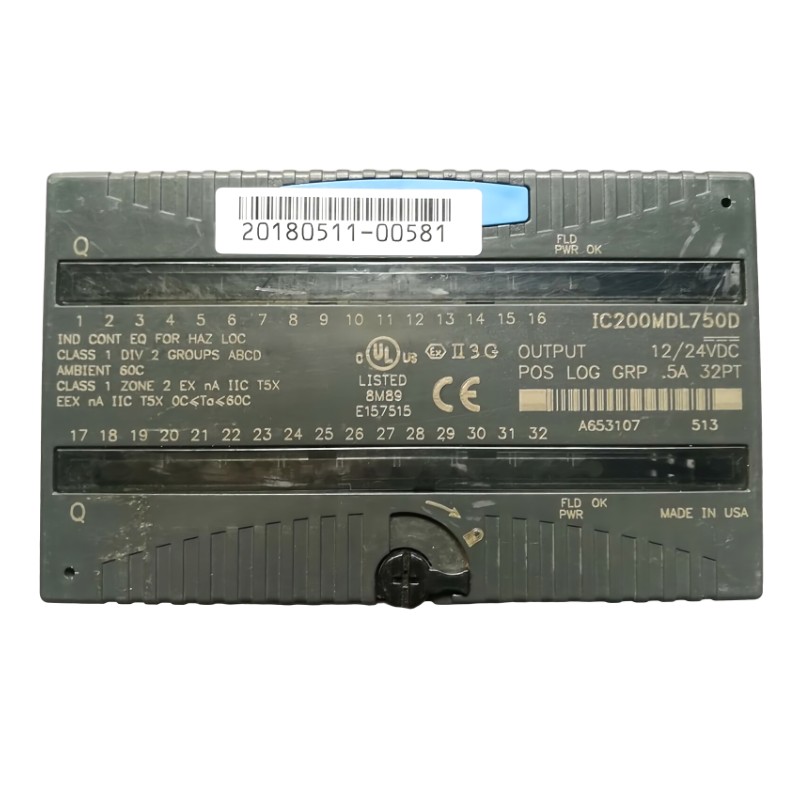

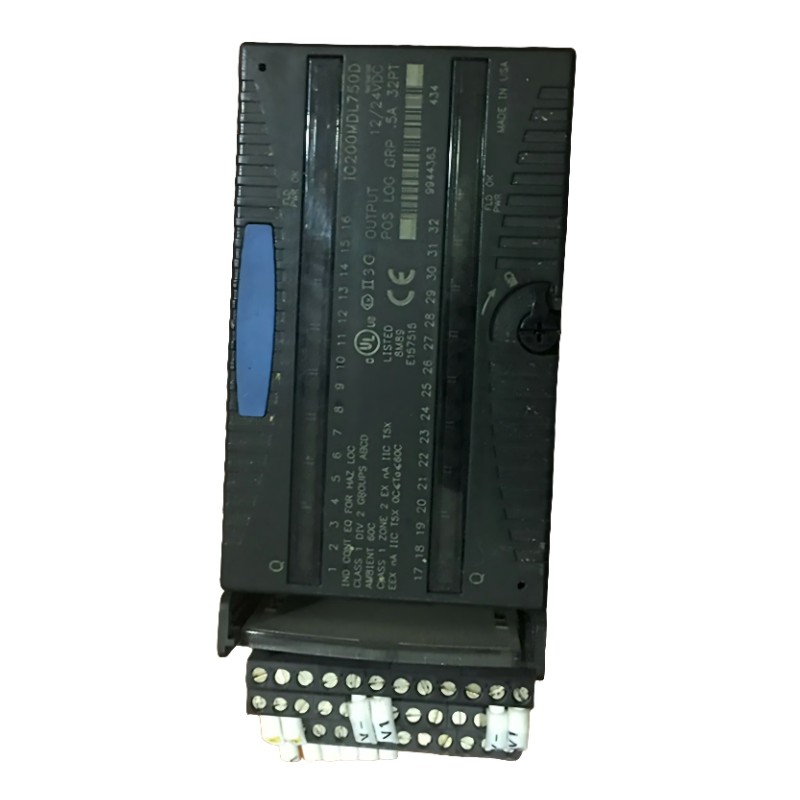

The GE IC200MDL750 is a VersaMax digital output module designed for high-speed, high-density switching control in industrial automation systems. It provides 32 discrete output points arranged in two isolated groups, enabling efficient control of actuators, relays, solenoids, and signaling devices in compact PLC architectures.
This module is widely used in manufacturing and process automation where fast switching, stable 24VDC control, and high channel density are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (Emerson Automation legacy) |
| Model | IC200MDL750 |
| Series | VersaMax I/O System |
| Module Type | Discrete Output Module |
| Output Channels | 32 points (2 groups × 16) |
| Output Type | Positive logic / sourcing transistor |
| Output Voltage | 10.2–30 VDC (24 VDC nominal) |
| Output Current | 0.5 A per point |
| Group Current Limit | Up to 4 A per group |
| Response Time | ON: ~0.2 ms / OFF: ~1.0 ms |
| Backplane Current | ~90 mA |
| Isolation | Group-level isolation |
| LED Indicators | Per-channel + status LED |
| Protection | Short-circuit & overload limited protection |
| Mounting | VersaMax carrier / DIN rail |
| Operating Temperature | 0°C to 60°C |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 110 × 66.8 × 50 mm |
| Weight | ~0.14 – 0.3 kg |
Its compact footprint makes it ideal for dense control cabinets where space optimization is critical.
System Role & Functional Behavior
The IC200MDL750 functions as a high-speed digital output interface between PLC logic and field devices:
- Converts PLC commands into 24VDC output signals
- Drives external loads such as relays, solenoids, and indicator lamps
- Supports fast switching for time-sensitive control applications
- Groups outputs for simplified wiring and protection management
- Provides LED-based real-time channel status monitoring
- Ensures stable operation in industrial environments with electrical noise
It is a core execution module in distributed automation systems.
Recommended Related Models
For a complete VersaMax system, IC200MDL750 is typically paired with:
- IC200CPU05 PLC CPU Module
- IC200PWR001 / IC200PWR002 Power Supply Modules
- IC200MDL640 Digital Input Module
- IC200ALG series Analog Modules (e.g., IC200ALG432)
- IC200GBI001 Genius Bus Interface Unit
Popular GE VersaMax Output Modules
- IC200MDL740 Relay Output Module
- IC200MDL750 (high-density transistor output)
- IC200MDL930 mixed I/O modules
- RX3i IC694 series output modules
- Genius distributed output blocks
