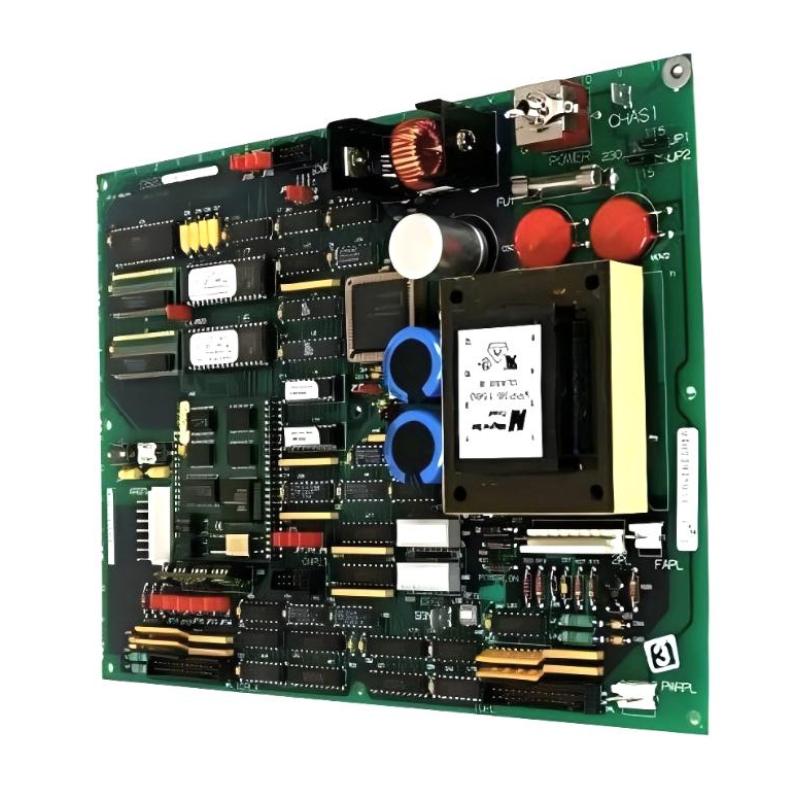

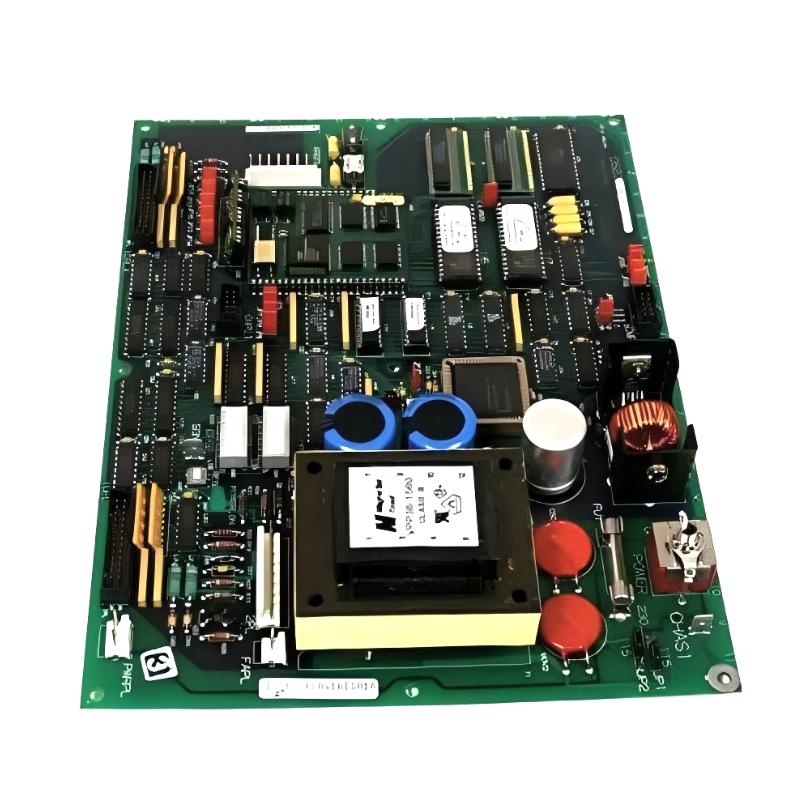

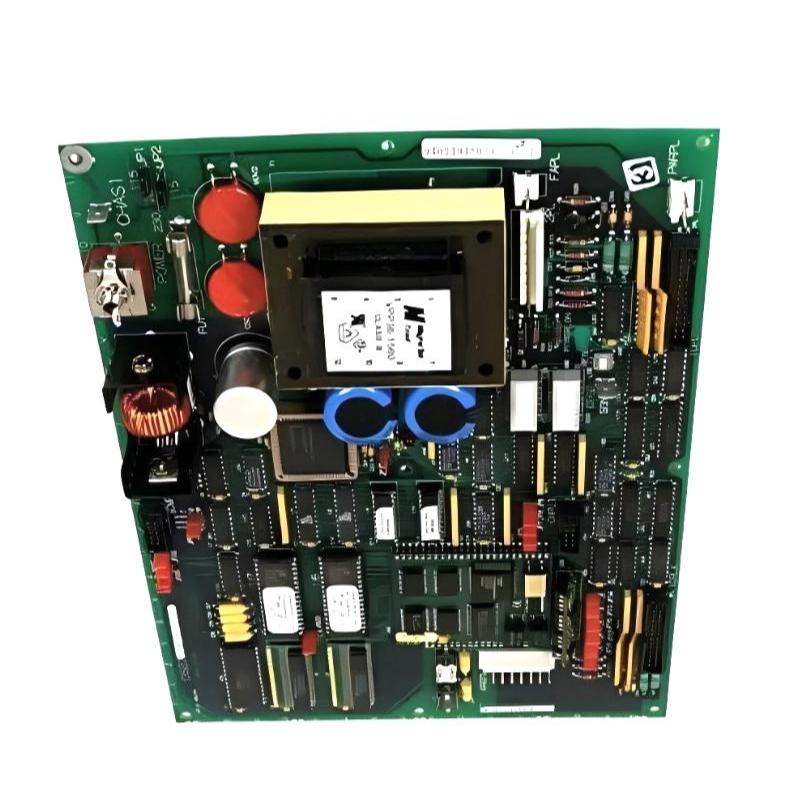

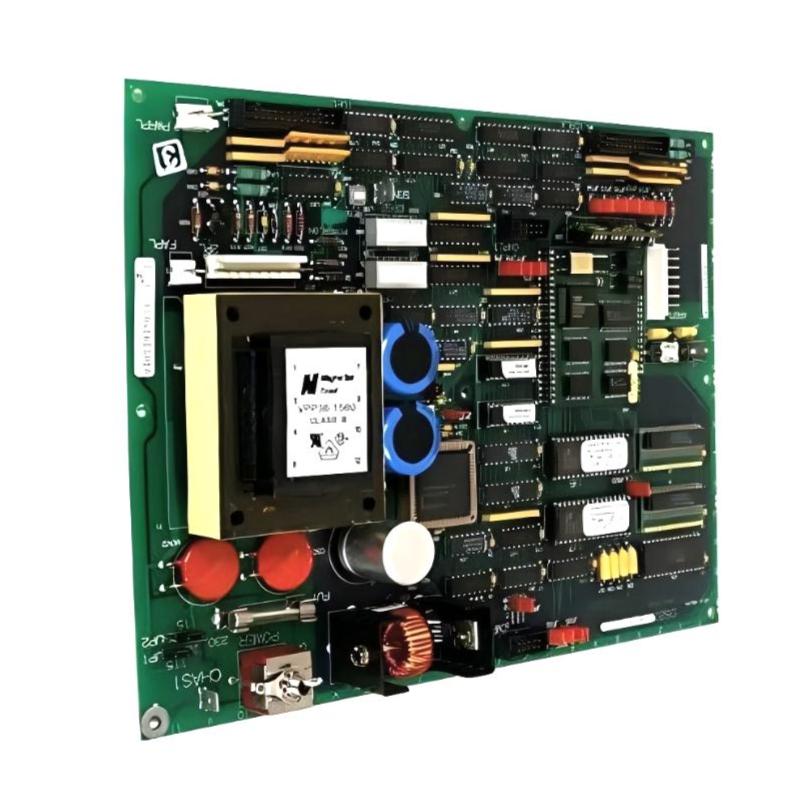

The GE DS200UPLAG1BDA is a Power Supply and Interface Board designed for GE Mark V Speedtronic turbine control systems. It plays a critical role in distributing regulated power and supporting interface communication between core control boards and auxiliary system components.
Built for long-term reliability, this board ensures consistent voltage regulation and signal integrity across the control system, making it essential for maintaining stable turbine operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200UPLAG1BDA |
| Series | Mark V Speedtronic |
| Module Type | Power Supply / Interface Board |
| Function | Power regulation & signal interface |
| Input Voltage | System-dependent (Mark V internal supply) |
| Output Function | Regulated DC distribution |
| Interface Role | Supports communication between control boards |
| PCB Type | Industrial multi-layer printed circuit board |
| Protection Features | Voltage regulation, filtering, surge protection |
| Connectors | Multiple ribbon cable and pin connectors |
| Mounting | Rack-mounted board assembly |
| Operating Temperature | 0°C to +60°C |
| Environmental Rating | Industrial-grade |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 300 × 200 × 45 mm |
| Weight | ~1.8 – 2.5 kg |
The large-format PCB design supports multiple connectors and power distribution circuits while maintaining durability in turbine control environments.
System Role & Functional Behavior
The DS200UPLAG1BDA functions as a power distribution and interface coordination board:
- Supplies regulated voltage to Mark V control modules
- Stabilizes power signals to prevent fluctuations
- Acts as an interface bridge between system boards
- Supports signal routing and system communication pathways
- Protects downstream components from electrical disturbances
- Ensures reliable operation of turbine control subsystems
It is a key supporting module that maintains system stability and communication integrity.
