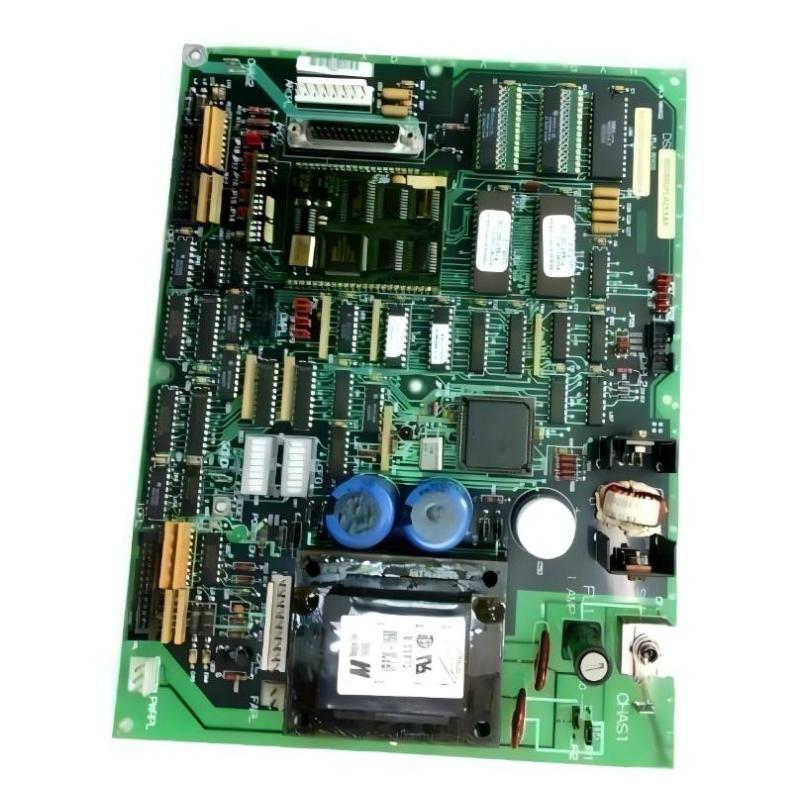

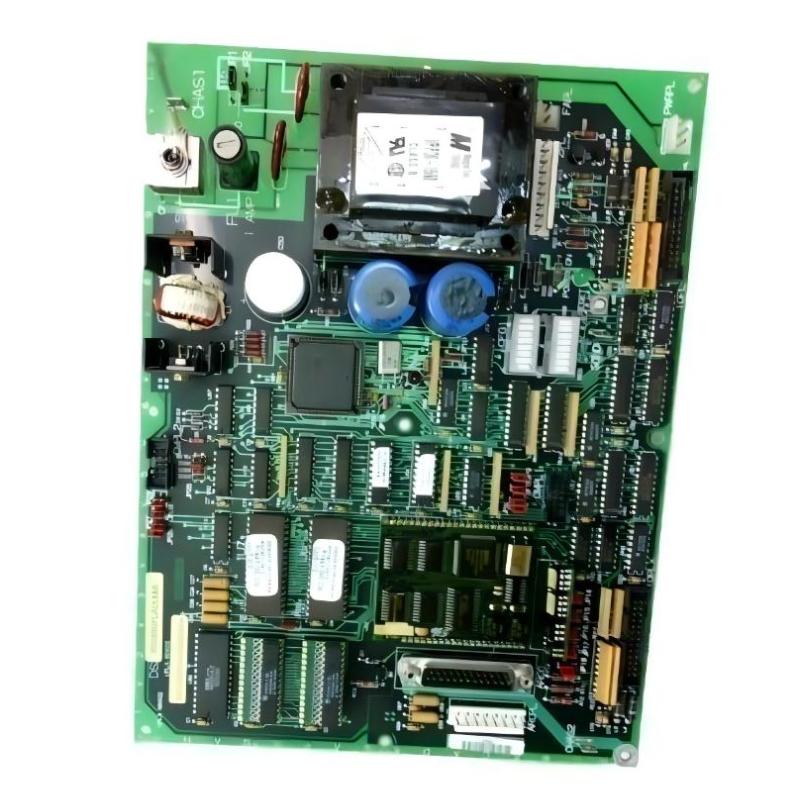

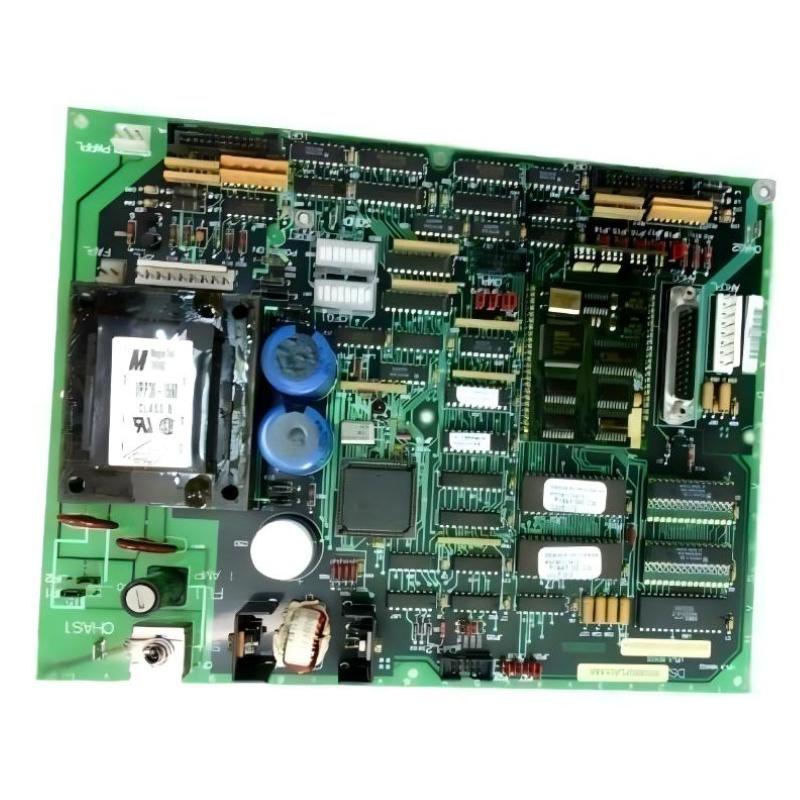

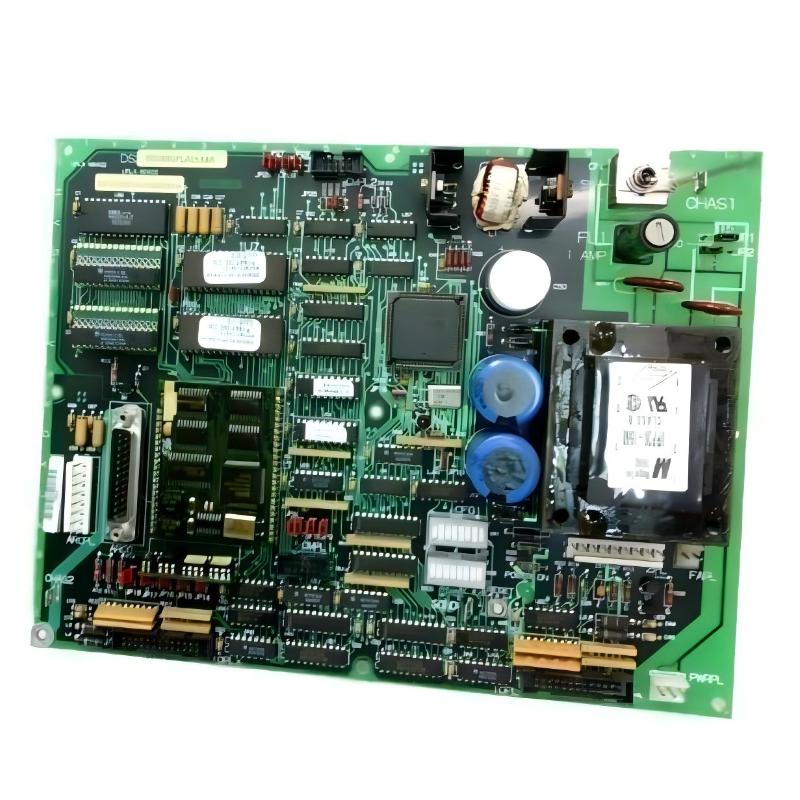

The GE DS200UPLAG1BEA is a Power Supply and Interface Board developed for the GE Mark V Speedtronic system, delivering dependable voltage regulation and signal routing within turbine control cabinets. As an evolution within the UPLA board family, this model enhances operational stability by ensuring clean power delivery and consistent communication between control layers.
Designed for continuous-duty environments, it supports mission-critical turbine operations where power integrity and signal reliability directly impact system performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200UPLAG1BEA |
| Series | Mark V Speedtronic |
| Module Type | Power Supply / Interface Board |
| Primary Function | Power distribution & signal interface |
| Input Source | Mark V internal power bus |
| Output | Regulated DC outputs for control circuits |
| PCB Construction | Multi-layer industrial-grade PCB |
| Filtering | EMI/RFI suppression circuitry |
| Protection Features | Surge protection, voltage stabilization |
| Connector Types | Ribbon connectors, multi-pin headers |
| Installation | Rack-mounted within Mark V cabinet |
| Operating Temperature | 0°C to +60°C |
| Reliability Class | Industrial continuous operation |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 305 × 205 × 50 mm |
| Weight | ~2.0 – 2.6 kg |
The board’s reinforced structure supports high-density circuitry and multiple connection interfaces while maintaining mechanical stability in vibration-prone environments.
System Role & Functional Behavior
The DS200UPLAG1BEA operates as a centralized power conditioning and interface distribution module:
- Distributes stable DC power across Mark V control boards
- Filters electrical noise to protect sensitive control circuits
- Facilitates interconnection between processor, I/O, and communication boards
- Maintains voltage consistency under fluctuating load conditions
- Supports reliable signal transmission across the control system
- Enhances overall system uptime by reducing electrical disturbances
It acts as the electrical backbone that keeps the Mark V control ecosystem stable and synchronized.
