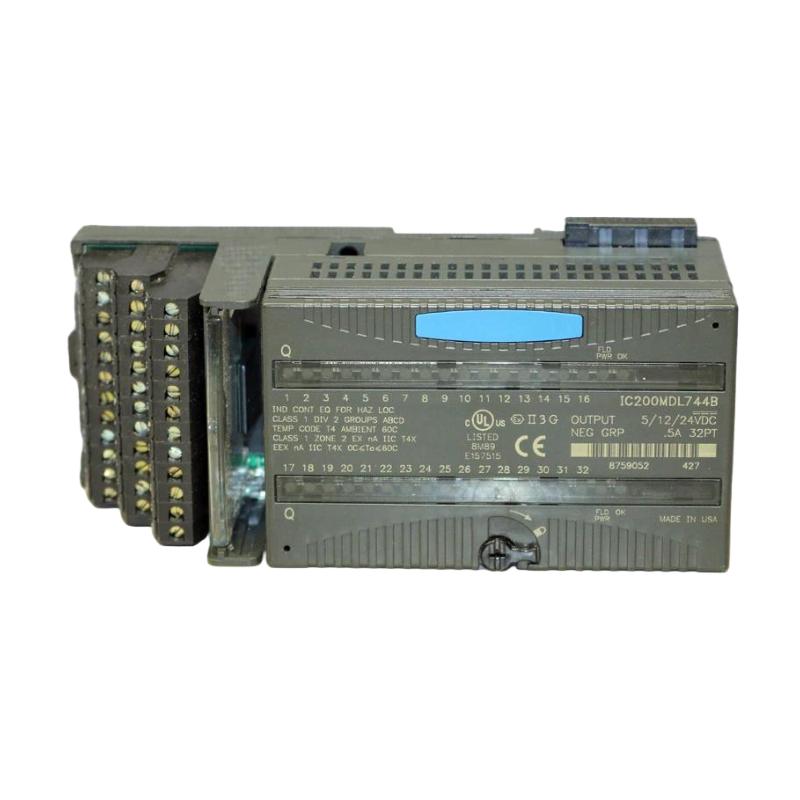

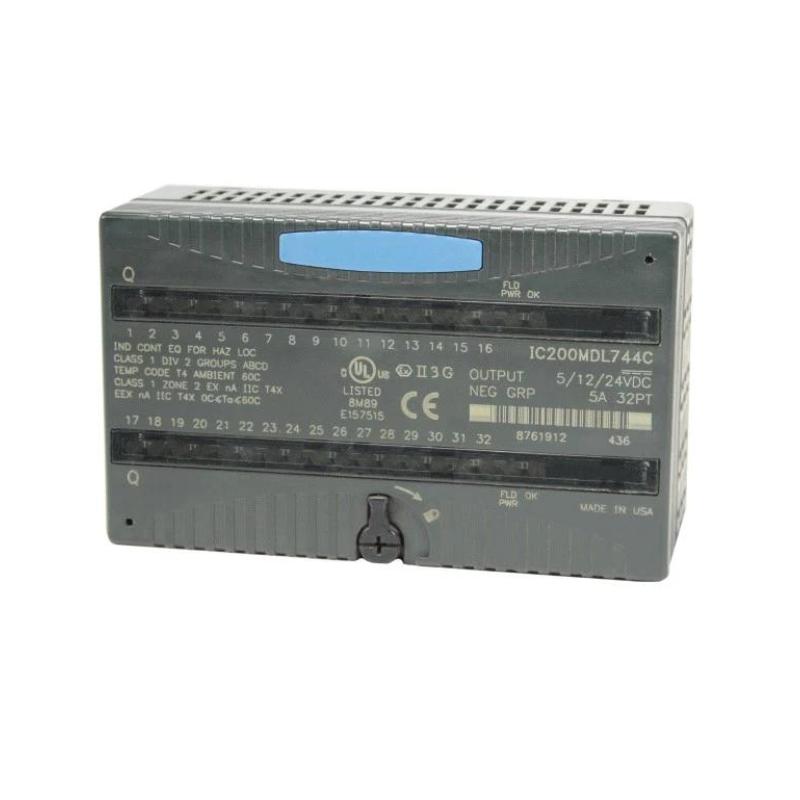

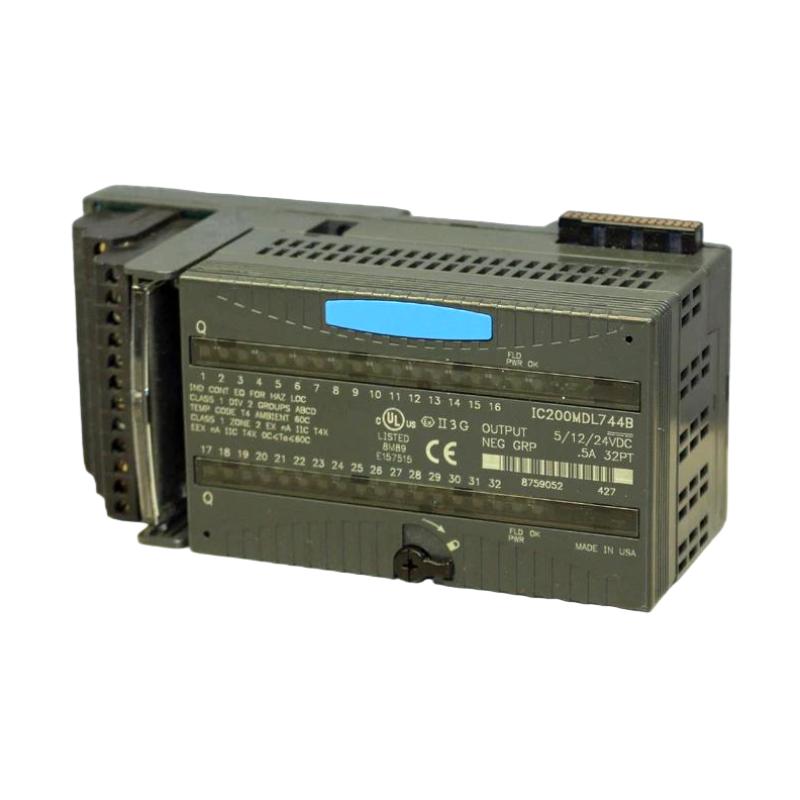

The GE IC200MDL744 is a high-density VersaMax discrete output module engineered for flexible DC control in modern industrial automation systems. Featuring 32 sinking (negative logic) outputs, it is designed to efficiently switch loads on the return side of the power supply, making it ideal for applications requiring stable and scalable DC output control.
With support for multiple voltage modes (5V, 12V, and 24VDC), this module delivers exceptional adaptability across diverse field devices. Its fast response, compact structure, and reliable operation make it a preferred choice for engineers building high-performance distributed I/O systems.
Technical Specifications
The IC200MDL744 combines high channel density with multi-voltage compatibility, ensuring consistent performance in complex automation environments.
| Parameter | Specification |
|---|---|
| Module Type | Discrete Output Module |
| Series | GE VersaMax |
| Output Points | 32 (2 groups of 16) |
| Output Type | Sinking (Negative Logic) |
| Output Voltage | 5VDC (TTL) / 12–24VDC |
| Voltage Range | 4.75–5.25 VDC (TTL) / 10.2–30 VDC |
| Output Current | 0.5 A per point |
| Inrush Current | Up to 2.0 A |
| Response Time | ON: 0.2 ms / OFF: 1 ms |
| Backplane Current | 140 mA @ 5V |
| Isolation | 250 VAC continuous / 1500 VAC (group-to-group) |
| Channel Isolation | Not supported |
| Protection | No internal fuse (external suppression recommended) |
| Indicators | Per-point LED + OK + FLD PWR LED |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~110 × 66.8 × 50 mm |
| Weight | ~0.25 kg |
Recommended Related Models
To build a complete and scalable VersaMax system, the following modules are frequently used together:
- IC200MDL741 – 24VDC sourcing output module
- IC200MDL742 – 32-point sourcing output module
- IC200MDL640 – 24VDC input module
- IC200CPU005 – VersaMax CPU module
- IC200PWR001 – power supply module
Common Industrial Alternatives
For similar automation requirements, engineers often compare:
- GE IC200MDL743 (16-point output module)
- GE IC200MDL750 (high-density input module)
- Allen-Bradley 1756-OB32 (ControlLogix output module)
- Allen-Bradley 1769-OB32 (CompactLogix output module)
