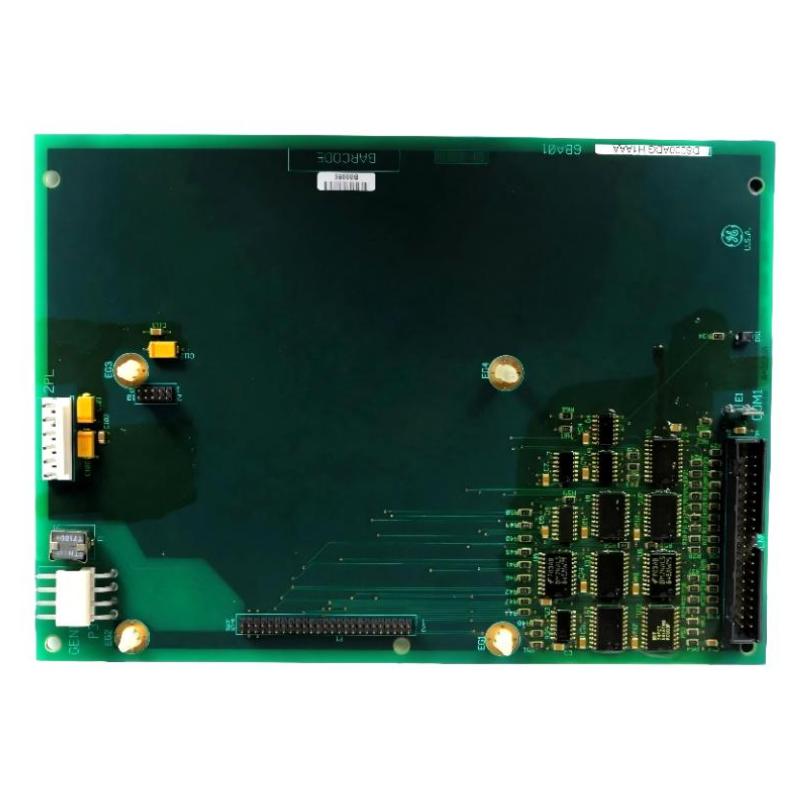

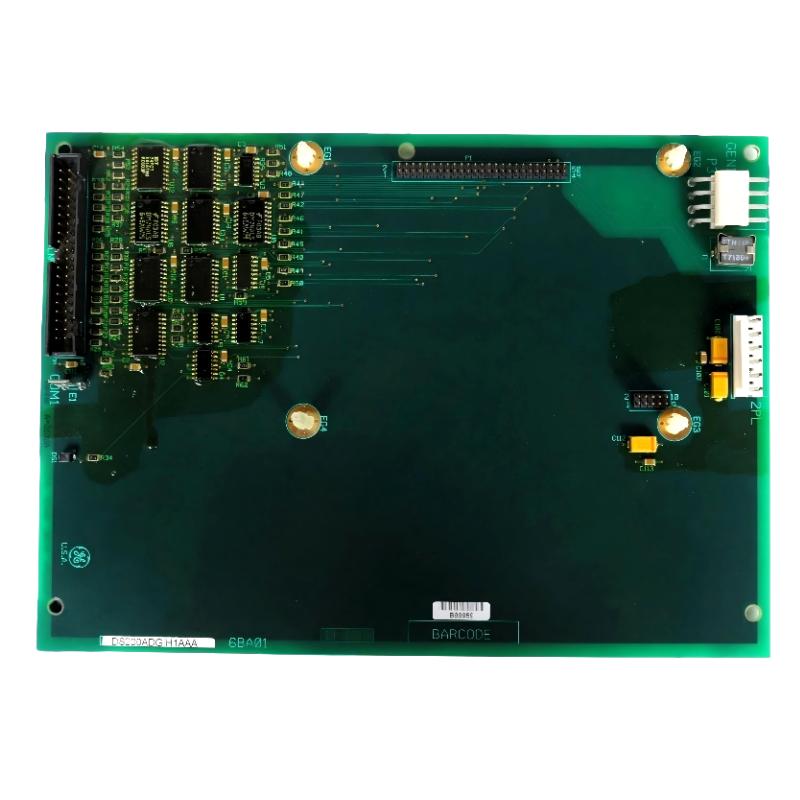

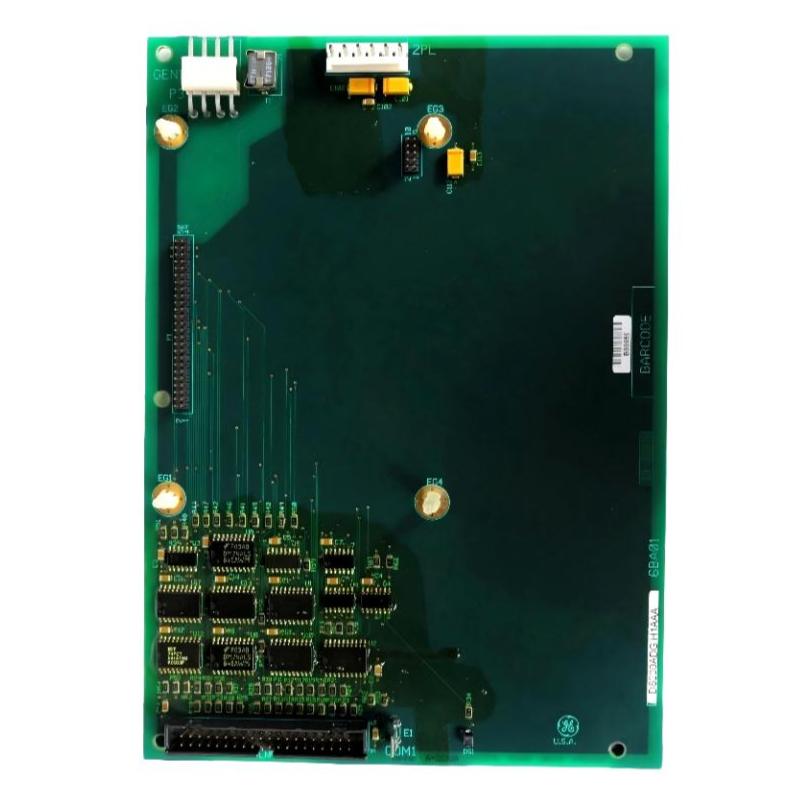

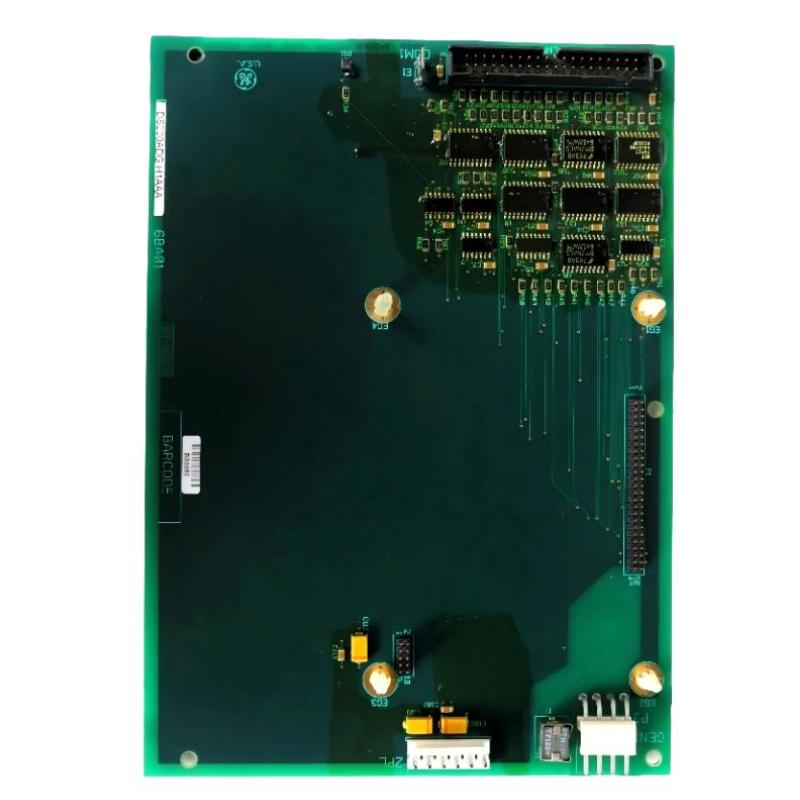

The GE DS200ADG1H1AAA is an Analog Signal Conditioning Board used in GE Mark V Speedtronic control systems. It is designed to process, condition, and route analog signals between field instrumentation and the main control system, ensuring accurate measurement and stable signal transmission in turbine and industrial automation applications.
This module is critical in environments where signal accuracy, noise suppression, and control stability directly impact turbine performance and system safety.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200ADG1H1AAA |
| Series | Mark V Speedtronic |
| Module Type | Analog Signal Conditioning Board |
| Function | Analog signal processing & conditioning |
| Signal Types | 4–20 mA / voltage analog signals |
| Input Role | Field instrumentation signal acquisition |
| Output Role | Conditioned signals to control system |
| Signal Processing | Filtering, scaling, isolation |
| PCB Type | Industrial multi-layer control board |
| Noise Protection | EMI/RFI filtering circuitry |
| Connectors | Multi-pin headers and ribbon interfaces |
| Diagnostics | Signal integrity monitoring |
| Mounting | Rack-mounted within Mark V cabinet |
| Operating Temperature | 0°C to +60°C |
| Environmental Rating | Industrial / turbine control grade |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 300 × 200 × 45 mm |
| Weight | ~1.7 – 2.3 kg |
The reinforced board design ensures stable operation under continuous vibration and high electrical noise conditions commonly found in turbine environments.
System Role & Functional Behavior
The DS200ADG1H1AAA functions as a high-precision analog signal conditioning interface:
- Receives raw analog signals from field sensors and transmitters
- Filters and conditions signals to remove electrical noise
- Scales input signals into usable control system formats
- Provides isolation between field devices and control electronics
- Ensures stable and accurate analog data for turbine control logic
- Supports continuous real-time signal monitoring
It acts as a signal integrity gateway between physical process measurements and digital control systems.
