The GE DS200PCCAG8ACB is a Power Connect Card used in GE Mark V Speedtronic turbine control and drive systems. It functions as a key interface between the drive control circuitry and the SCR power bridge, enabling controlled power transfer, signal routing, and system-level coordination in industrial turbine applications.
This module is engineered for stable high-power operation, precise signal interfacing, and robust electrical protection, making it a core component in legacy GE drive architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200PCCAG8ACB |
| Series | Mark V Speedtronic / DC Drive System |
| Module Type | Power Connect Card (PCCA) |
| Function | Drive-to-SCR power interface |
| System Role | Power coupling & signal transmission |
| Drive Compatibility | GE DC2000 / Mark V drive systems |
| Power Interface | SCR bridge connection |
| Protection Features | Voltage limiting, snubber circuits |
| Circuit Components | Capacitors, resistors, diodes, ICs |
| Connectors | Multi-pin industrial connectors |
| Configuration Group | Group 8 (PCCA family variant) |
| Revision Level | A / C / B revision set |
| Mounting | Drive cabinet rack-mounted |
| Operating Temperature | 0°C to +60°C |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 330 × 200 × 100 mm |
| Weight | ~2.0 kg |

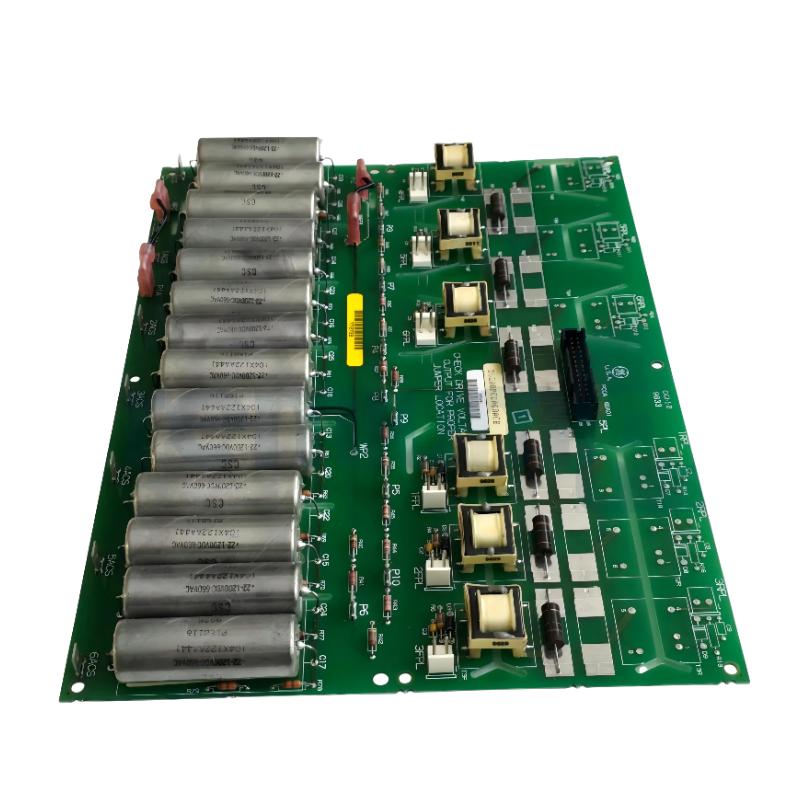

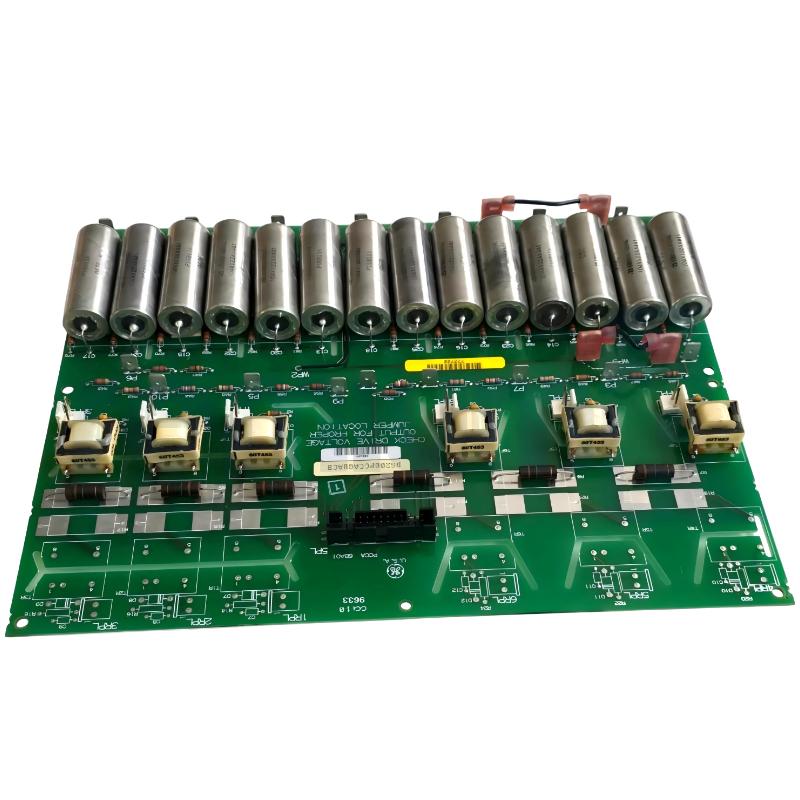

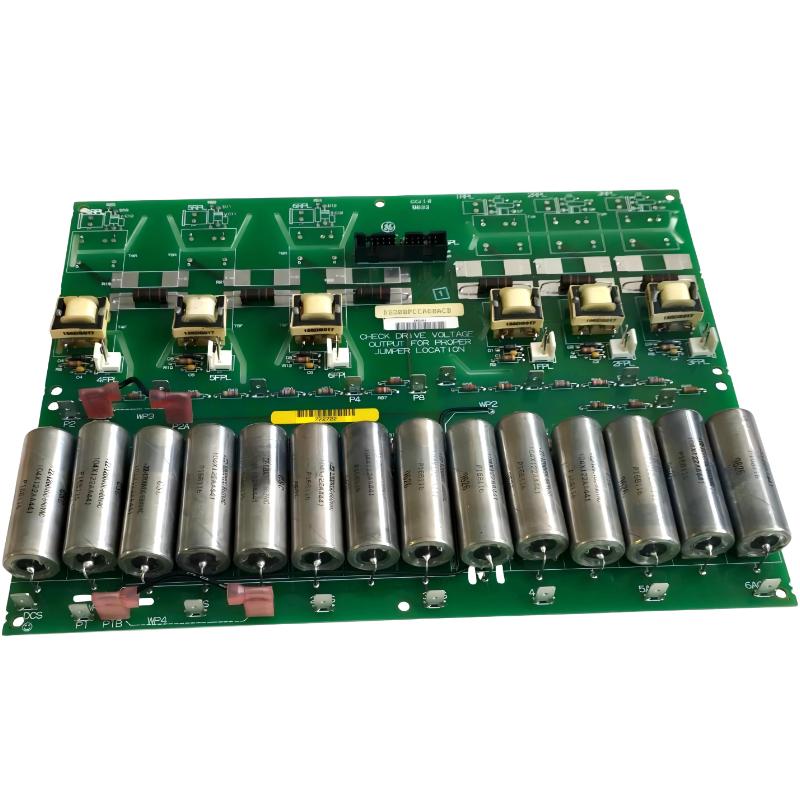

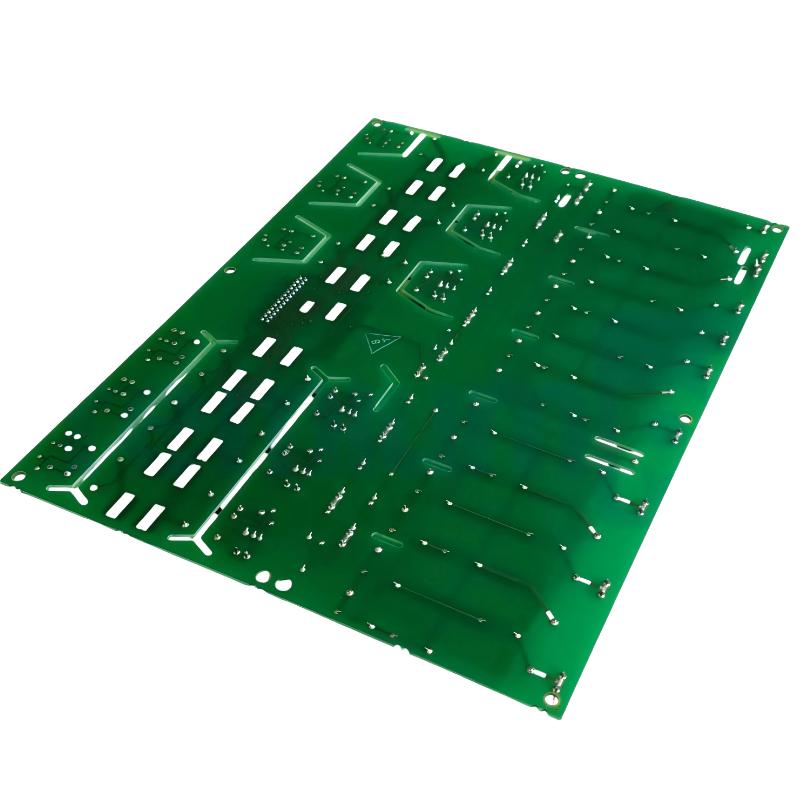

The board uses a large industrial PCB layout designed to support high-current signal routing and SCR interface stability under continuous-duty operation.
System Role & Functional Behavior
The DS200PCCAG8ACB operates as a critical power interface layer within GE drive systems:
- Connects drive control electronics to SCR power bridge assemblies
- Transfers controlled DC power within turbine drive architecture
- Provides voltage suppression and stabilization via onboard components
- Routes signals between power supply board and drive subsystems
- Ensures safe switching and power conversion stability
- Supports system-level reliability in high-power environments
It acts as the electrical bridge between control logic and high-power conversion stages.
