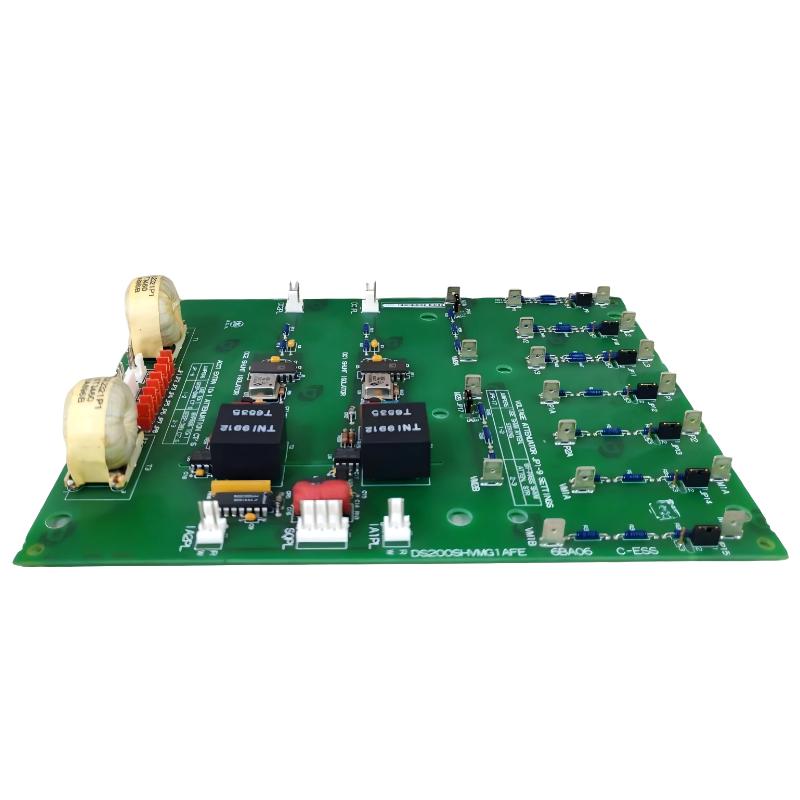

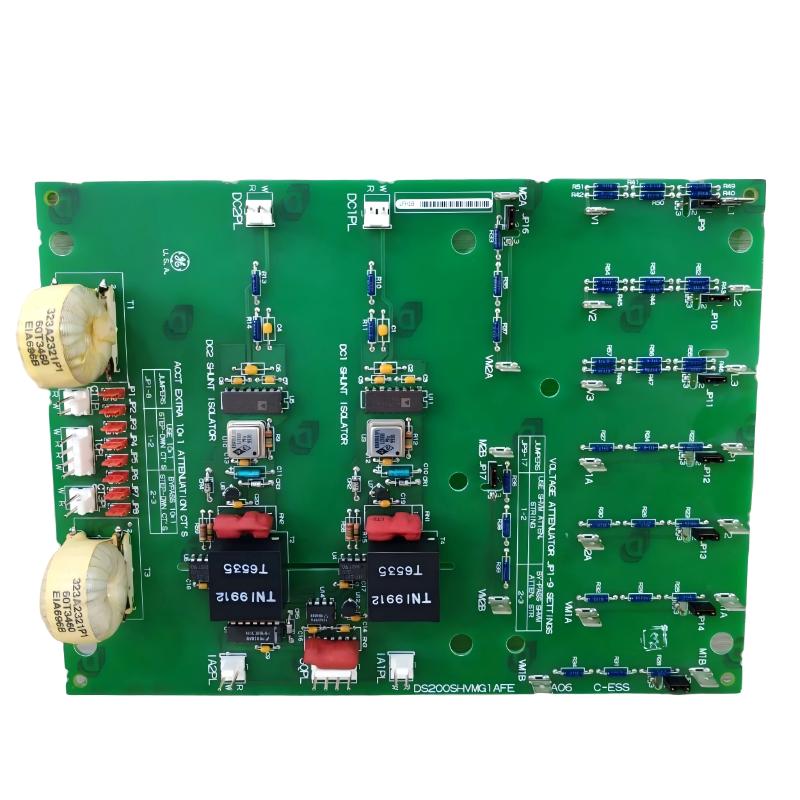

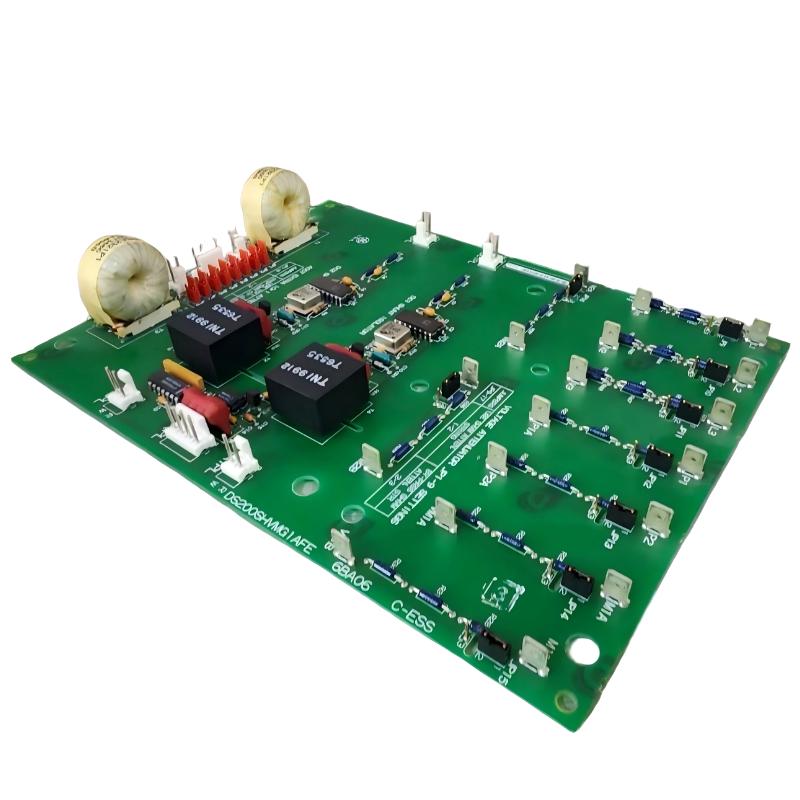

The GE DS200SHVMG1AFE is an SCR High Voltage M-Frame Interface Board used in GE Mark V Speedtronic turbine control and excitation systems. It is designed to interface between the SCR power bridge and control power boards, converting and conditioning high-voltage and shunt signals for accurate system monitoring and control.
This module is widely regarded as a core signal conversion and protection interface, ensuring stable operation between power electronics and turbine control logic.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200SHVMG1AFE |
| Series | Mark V Speedtronic / EX2000 Compatible |
| Module Type | SCR High Voltage Interface Board |
| Function | Signal conversion & power interface |
| System Role | SCR bridge ↔ control system interface |
| Input Signal Range | -500 mV to +500 mV (shunt signals) |
| Output Signal Range | 0 to 500 kHz differential frequency |
| Current Transformer Ratio | 10:1 attenuation (jumper selectable) |
| Communication Role | Transfers signals to DCFB / SDCI / PCCA |
| Protection Features | Voltage attenuation, isolation circuits |
| Connectors | Multiple industrial plug connectors |
| Configuration | 17 onboard jumpers |
| PCB Type | Industrial multilayer coated board |
| Mounting | Drive cabinet / rack-mounted |
| Operating Temperature | -30°C to +65°C (industrial grade) |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 160 × 178 × 120 mm |
| Weight | ~0.8 – 2.0 kg |

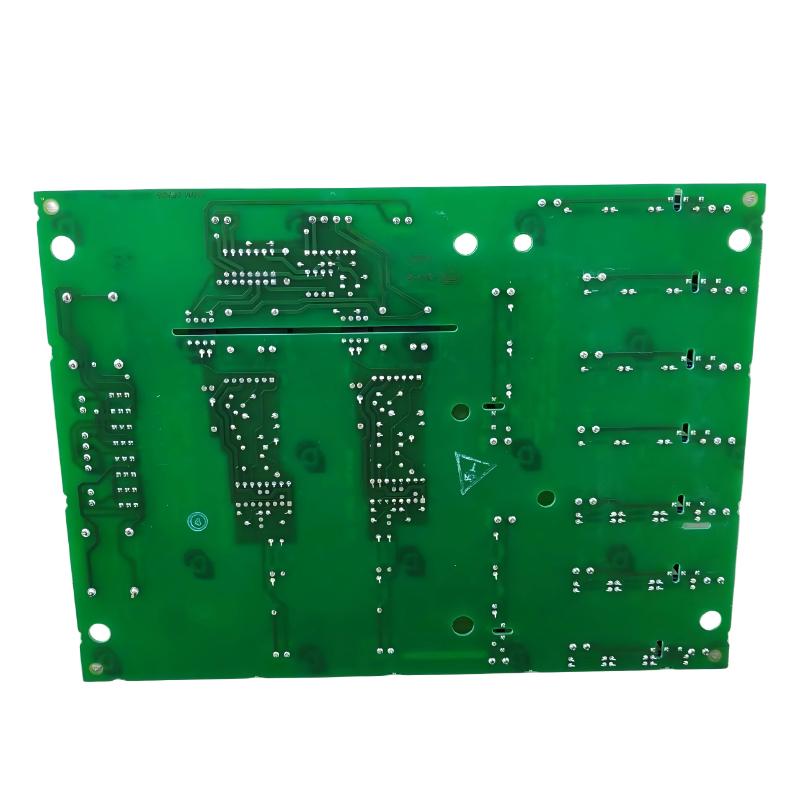

The compact yet dense PCB layout supports high-voltage isolation, signal conversion circuits, and multiple connector interfaces for turbine drive integration.
System Role & Functional Behavior
The DS200SHVMG1AFE acts as a high-voltage signal processing and interface hub:
- Converts shunt signals (-500 mV to +500 mV) into digital frequency outputs
- Provides isolation between SCR bridge and control electronics
- Interfaces with power supply boards (DCFB / SDCI) and PCCA cards
- Supports AC current attenuation via 10:1 CT configuration
- Enables configurable signal scaling using onboard jumpers
- Ensures safe transmission of high-voltage measurement signals
It functions as a critical translation layer between power conversion hardware and turbine control logic.
