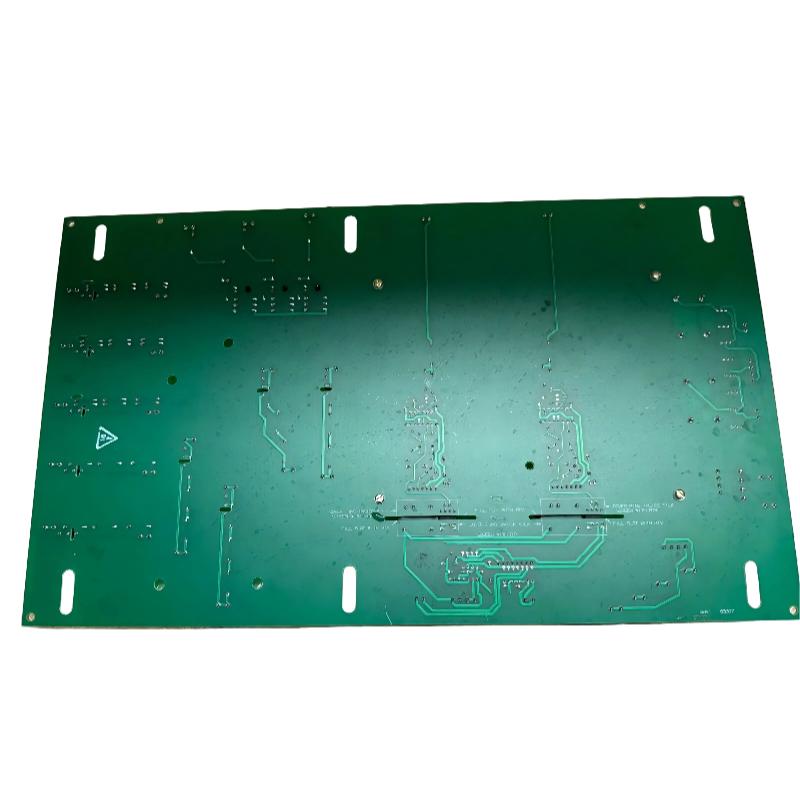

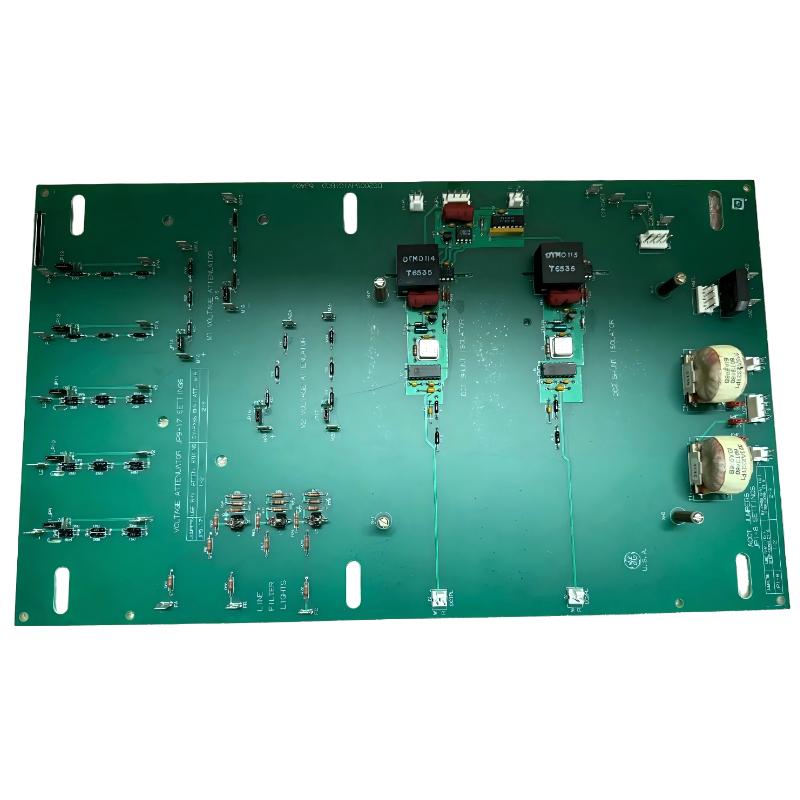

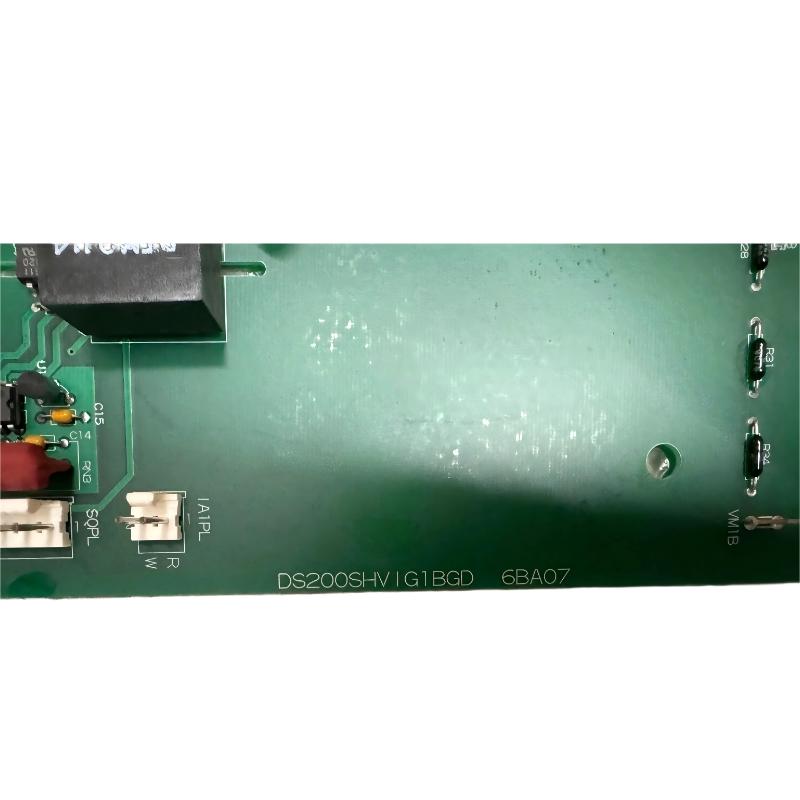

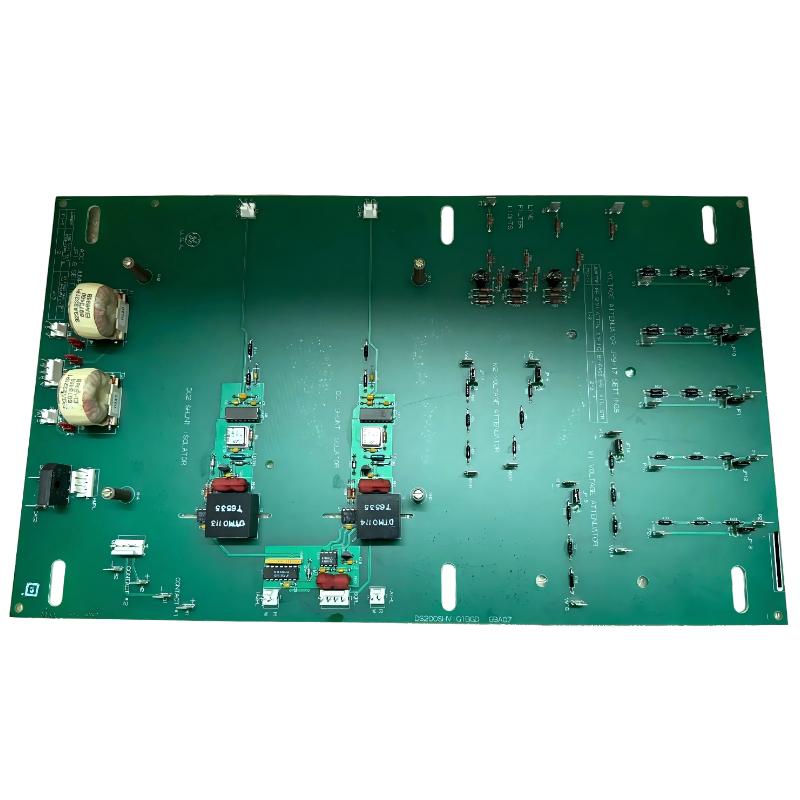

The GE DS200SHVIG1BGD is a SCR High Voltage Interface Board used in GE Mark V Speedtronic turbine control systems. It is designed to interface between the SCR bridge and key system components such as the Power Connect Card (PCCA), instrumentation boards, and power supply modules.
This model is a refined revision within the SHVI family, offering improved signal stability, configurable attenuation, and robust high-voltage isolation, making it suitable for demanding turbine and industrial drive environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200SHVIG1BGD |
| Series | Mark V Speedtronic / SHVI Family |
| Module Type | SCR High Voltage Interface Board |
| Function | Signal conversion & SCR bridge interface |
| Input Signal Range | -500 mV to +500 mV (shunt signals) |
| Output Signal Range | 0–500 kHz differential frequency |
| System Interface | PCCA / DCFB / SDCI compatible |
| Attenuation Control | 17 configurable jumpers |
| Current Transformer Ratio | 10:1 selectable attenuation |
| Signal Processing | Voltage-to-frequency conversion |
| Protection Features | Isolation, filtering, voltage limitation |
| Diagnostics | LED fuse/status indicators |
| Connector Type | Industrial pin & ribbon connectors |
| PCB Coating | Industrial protective coating |
| Mounting | Rack-mounted in drive cabinet |
| Operating Temperature | 0°C to +60°C |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ~431 × 253 × 38 mm |
| Weight | ~0.5–2.0 kg (varies by revision) |
The elongated industrial PCB design supports high-voltage isolation zones, dense signal routing, and multi-interface connectivity.
System Role & Functional Behavior
The DS200SHVIG1BGD acts as a high-voltage signal translation and protection interface:
- Converts SCR shunt signals (-500 mV to +500 mV) into frequency signals (0–500 kHz)
- Interfaces SCR bridge with PCCA and power supply boards
- Provides electrical isolation between high-power and control circuits
- Supports configurable attenuation via 17 jumpers
- Enables accurate monitoring of SCR-based power conversion
- Assists fault detection via onboard LED indicators
It functions as a critical data bridge between high-energy power electronics and turbine control logic.
