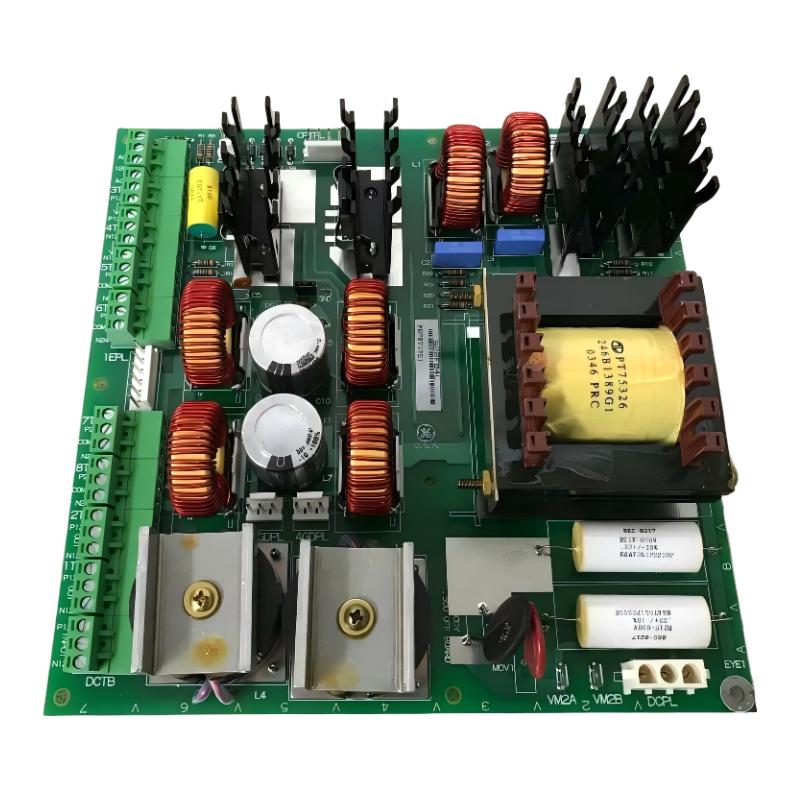

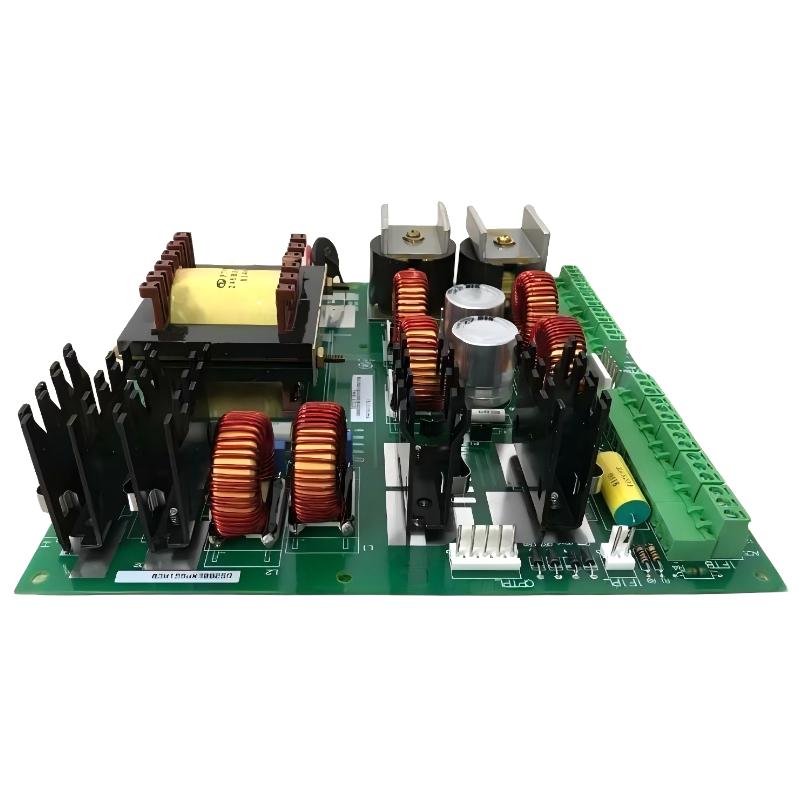

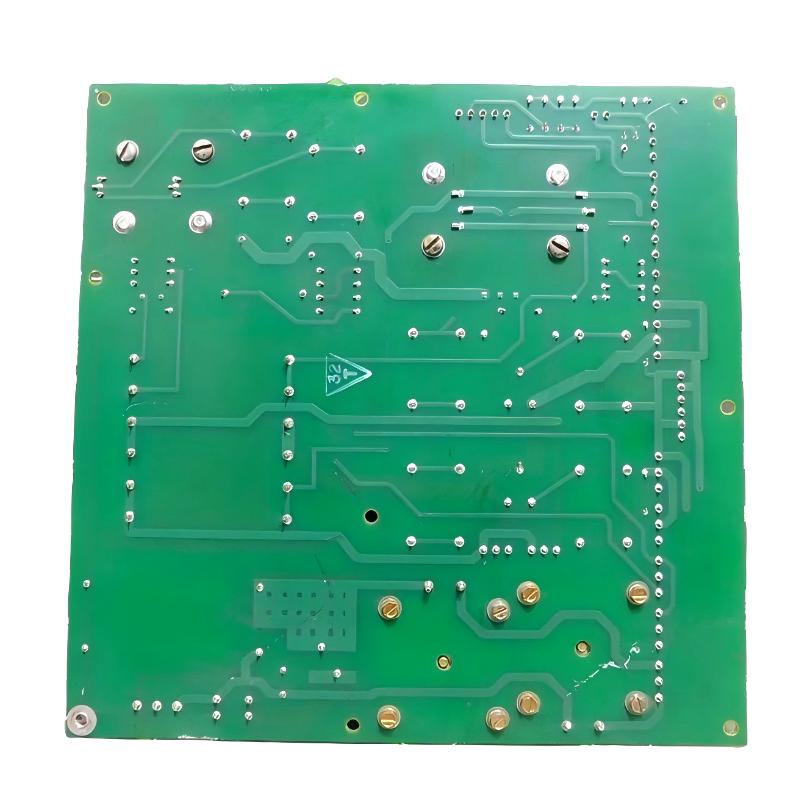

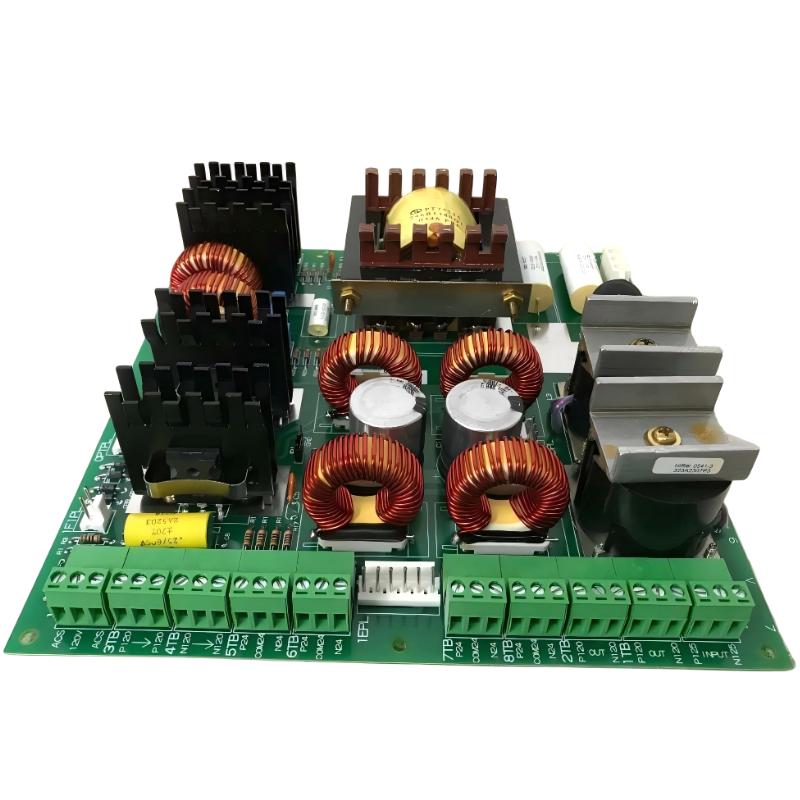

The GE DS200EXPSG1ACB is a Bulk Power Supply Board used in GE Mark V Speedtronic turbine control systems. It provides regulated DC power to critical control modules such as processors, I/O boards, and communication interfaces, ensuring stable system operation in high-demand industrial environments.
As a core power backbone component, it is designed to maintain continuous, noise-resistant, and tightly regulated power delivery, which is essential for turbine reliability and safety.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200EXPSG1ACB |
| Series | Mark V Speedtronic |
| Module Type | Bulk Power Supply Board |
| Function | DC power generation & distribution |
| Input Voltage | 100–240 VAC (wide-range industrial input) |
| Output Voltage | 5 VDC / 24 VDC regulated rails |
| Output Power | Up to ~150 W capacity |
| Protection Functions | Overvoltage, overcurrent, short-circuit |
| Redundancy Support | Yes (1+1 hot redundancy capable system design) |
| Monitoring | Voltage, current, temperature diagnostics |
| Indicators | LED status indicator + fault indication |
| Communication | Backplane system monitoring |
| PCB Design | Industrial multi-layer board |
| Mounting | Rack-mounted in Mark V cabinet |
| Operating Temperature | 0°C to +60°C |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 160 × 140 × 80 mm |
| Weight | ~0.35–1.9 kg (varies by revision) |
The compact modular design allows dense installation inside Mark V I/O racks while maintaining efficient heat dissipation and service accessibility.
System Role & Functional Behavior
The DS200EXPSG1ACB operates as the central power distribution hub in Mark V systems:
- Converts AC input into stable DC power rails
- Supplies power to CPU, I/O, and communication modules
- Maintains voltage stability under load fluctuations
- Supports redundancy for uninterrupted turbine operation
- Monitors internal power health in real time
- Protects downstream electronics from electrical faults
It is essentially the energy foundation of the Mark V control architecture.
