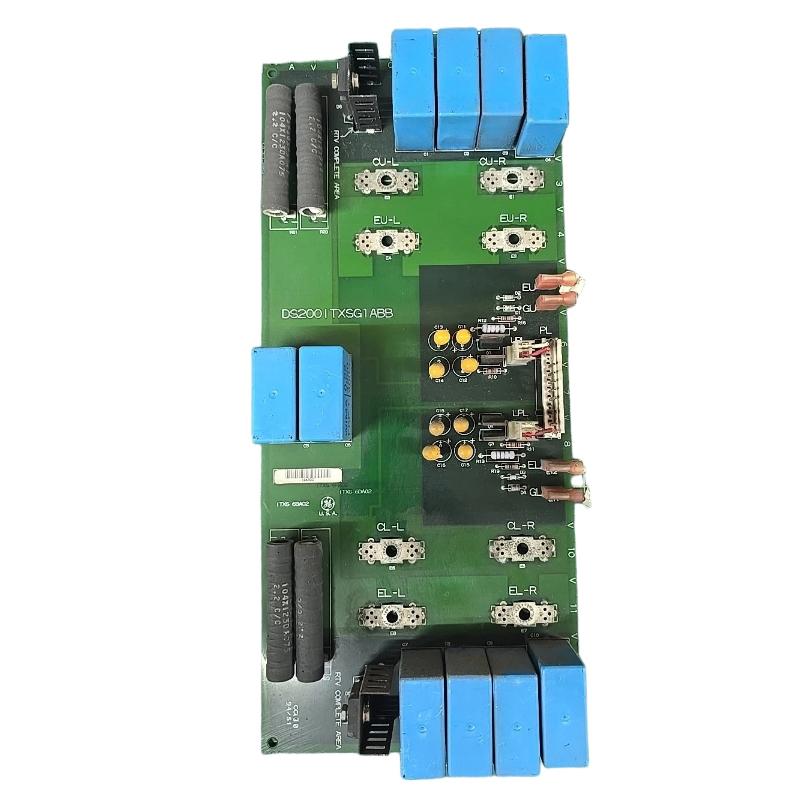

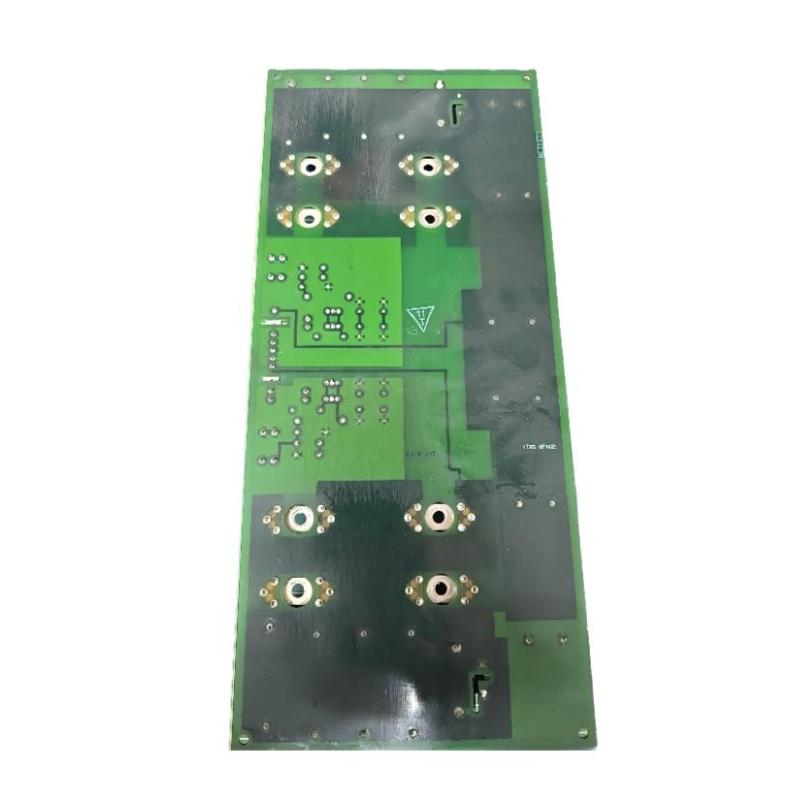

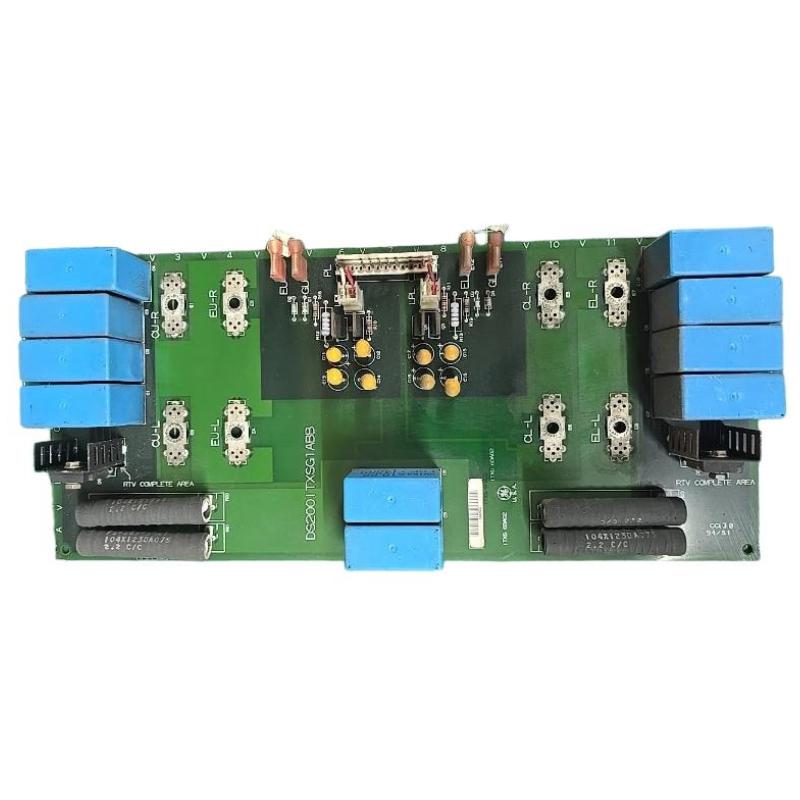

The GE DS200ITXSG1ABB is an Inverter Snubber Board used in GE Mark V Speedtronic turbine control and industrial drive systems. It is designed to reduce switching stress on power electronic components by suppressing voltage transients generated during inverter and IGBT switching operations.
This module is widely applied in GE drive architectures where high-frequency switching stability, power device protection, and thermal stress reduction are critical for long-term reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200ITXSG1ABB |
| Series | Mark V Speedtronic |
| Module Type | Inverter Snubber Board |
| Function | Switching transient suppression |
| System Role | IGBT / inverter protection interface |
| Primary Purpose | dv/dt and voltage spike reduction |
| Circuit Elements | Capacitors, resistors, diodes |
| Power Stage Interface | IGBT inverter / drive modules |
| Board Configuration | Revision A / B / B |
| PCB Type | Industrial-grade multilayer board |
| Connectors | Multi-pin industrial connectors |
| Protection Function | Snubber energy absorption network |
| Mounting | Drive cabinet / rack-mounted |
| Operating Temperature | 0°C to +60°C |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 330 × 200 × 100 mm |
| Weight | ~0.8 – 2.0 kg |

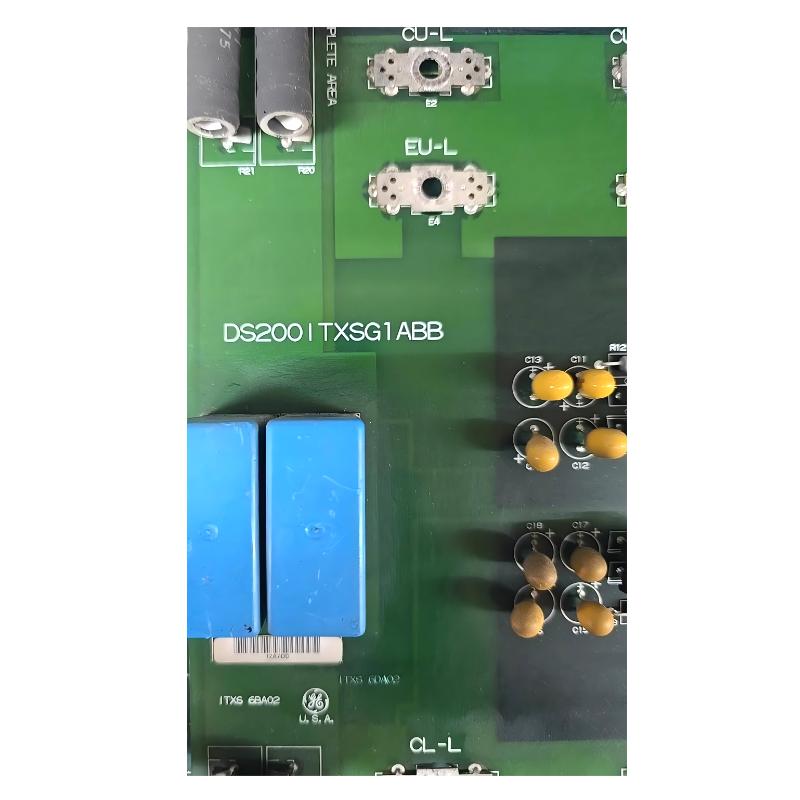

The board uses a rugged industrial layout designed to withstand high thermal loads and repetitive switching stress in turbine drive environments.
System Role & Functional Behavior
The DS200ITXSG1ABB functions as a switching energy control and protection layer:
- Absorbs voltage spikes generated during inverter switching
- Reduces dv/dt stress on IGBT and power semiconductor modules
- Stabilizes inverter output behavior under dynamic load conditions
- Improves reliability of turbine drive power conversion systems
- Supports safe high-frequency switching operation
- Enhances long-term durability of power electronics
It effectively acts as a buffer between fast switching energy and sensitive power components.
