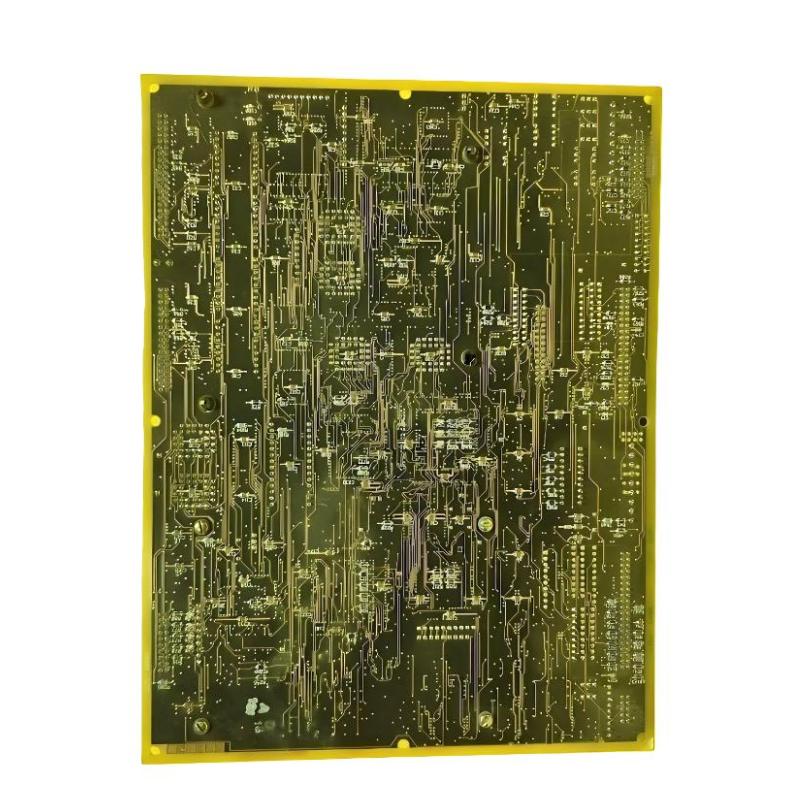

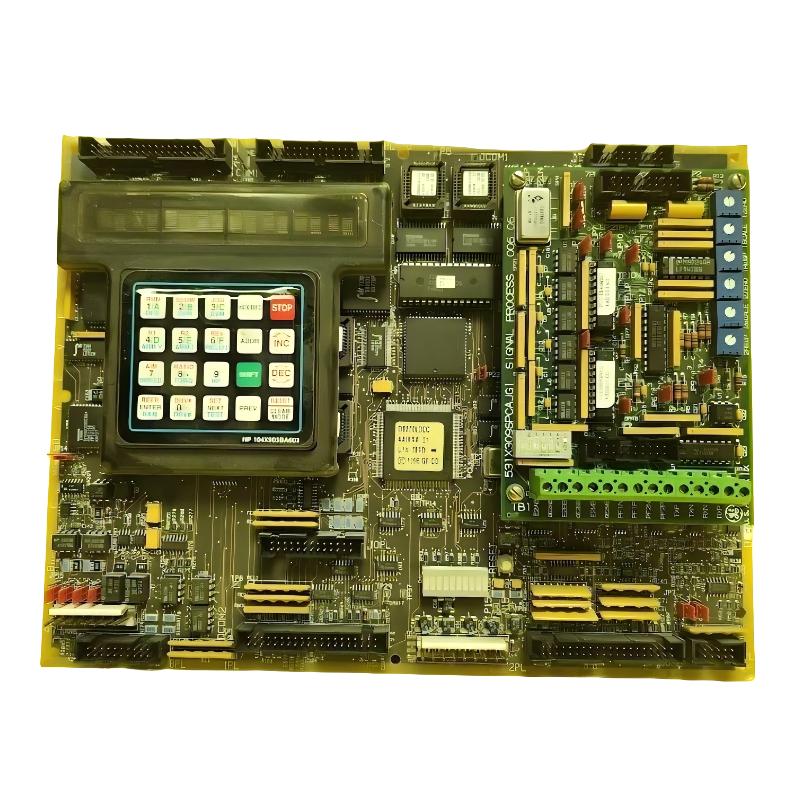

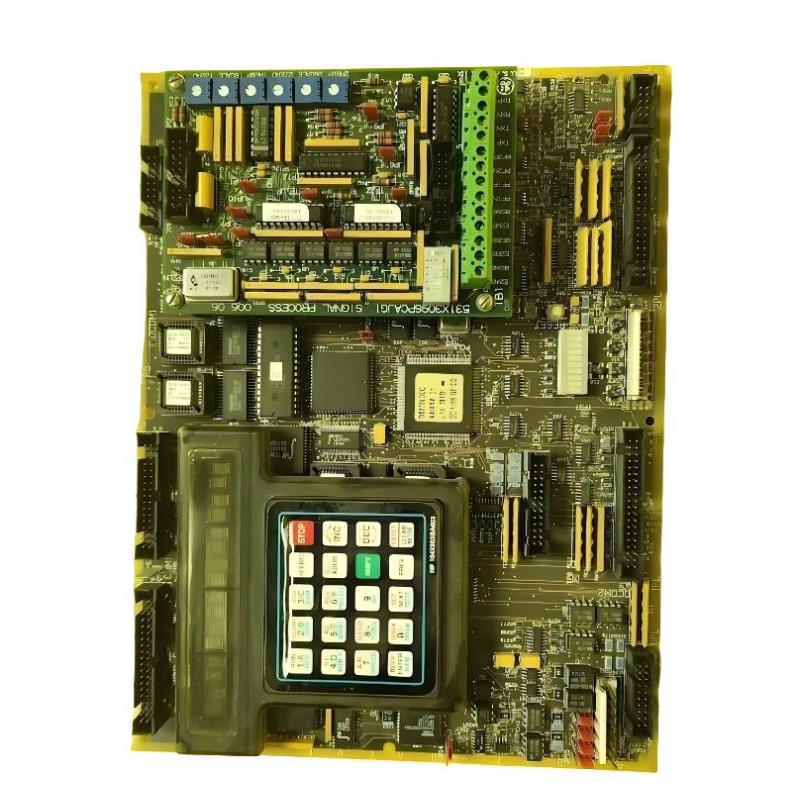

The GE DS200LDCCH1AGA is a Drive Control and LAN Communications Board used in GE Mark V Speedtronic turbine control and industrial drive systems. It functions as the central processing and communication hub, managing motor control, drive logic, I/O processing, and network communication within GE excitation and DC drive platforms.
This module is often described as the “brain” of the Mark V drive system, combining control processing and multi-network communication in a single high-reliability PCB.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200LDCCH1AGA |
| Series | Mark V Speedtronic |
| Module Type | Drive Control + LAN Communication Board |
| Function | Motor control, I/O processing, LAN comms |
| System Role | Central drive logic & communication unit |
| Compatible Systems | EX2000 / DC2000 drive & excitation systems |
| Processor Architecture | Multi-processor design (4 CPUs) |
| Communication Networks | DLAN+, Genius, C-bus, CPL (multi-bus support) |
| Operator Interface | Built-in keypad & diagnostic interface |
| Memory Storage | Flash PROM + EEPROM configuration memory |
| Reset Function | Hardware reset button |
| Diagnostics | Full system fault & status monitoring |
| Jumpers | ~14 configurable jumpers |
| Mounting | Drive cabinet / rack-mounted |
| Operating Temperature | 0°C to +60°C |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ~278 × 155 × 40 mm |
| Weight | ~0.9 kg – 1.0 kg (approx.) |
The compact but densely integrated PCB design supports multi-layer routing for processor communication, I/O handling, and industrial network interfaces.
System Role & Functional Behavior
The DS200LDCCH1AGA acts as the core intelligence layer of the Mark V drive system:
- Processes motor control algorithms and drive logic
- Handles analog and digital I/O conversions
- Manages multiple industrial communication protocols
- Coordinates encoder, timer, and peripheral control devices
- Provides system reset and diagnostics functions
- Supports real-time multi-motor coordination in automation systems
Its multi-processor architecture ensures parallel execution of control, communication, and monitoring tasks.
