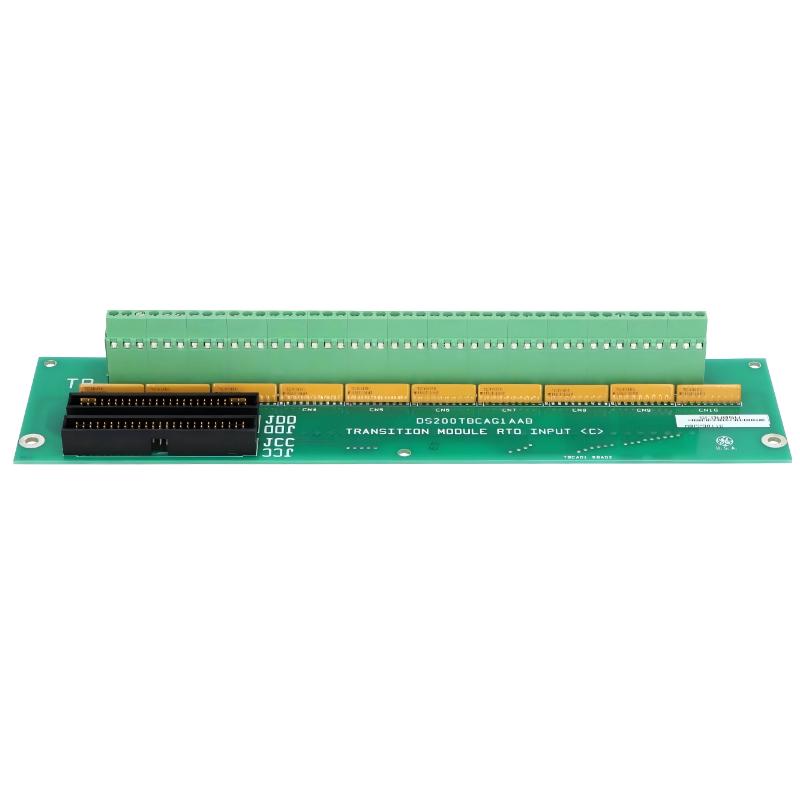

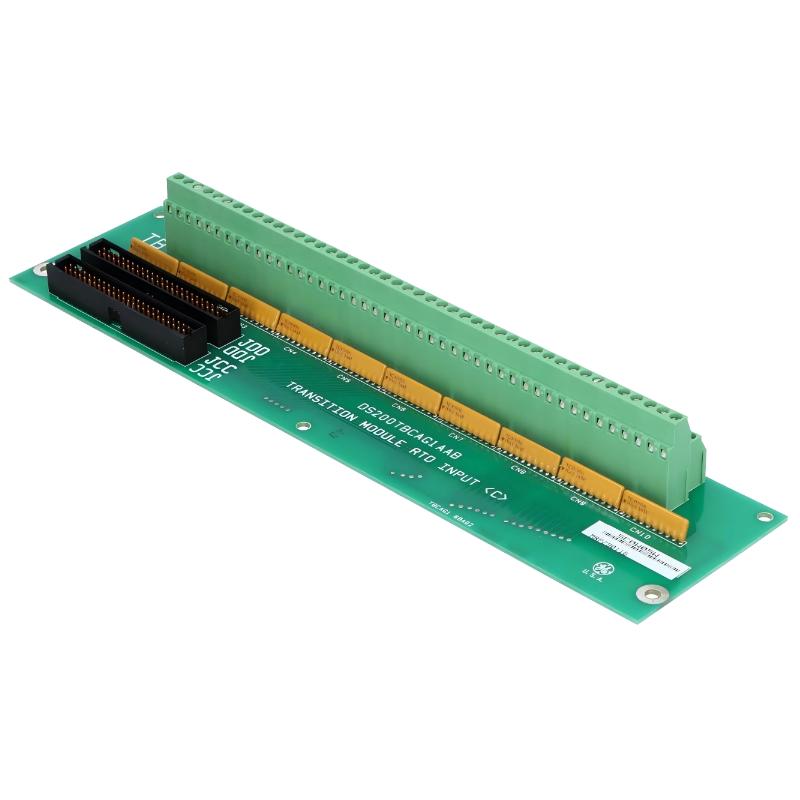

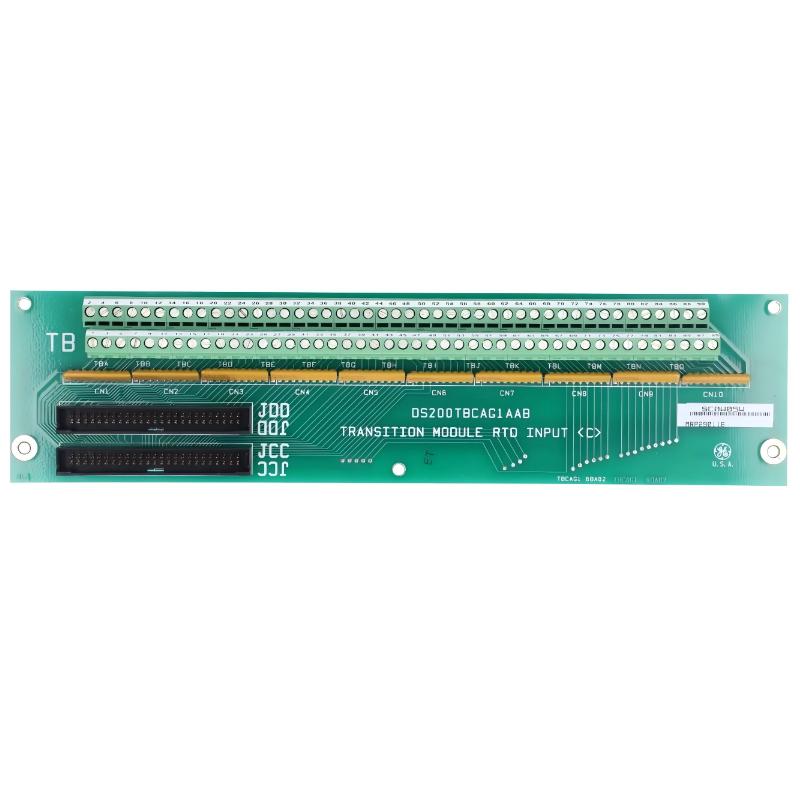

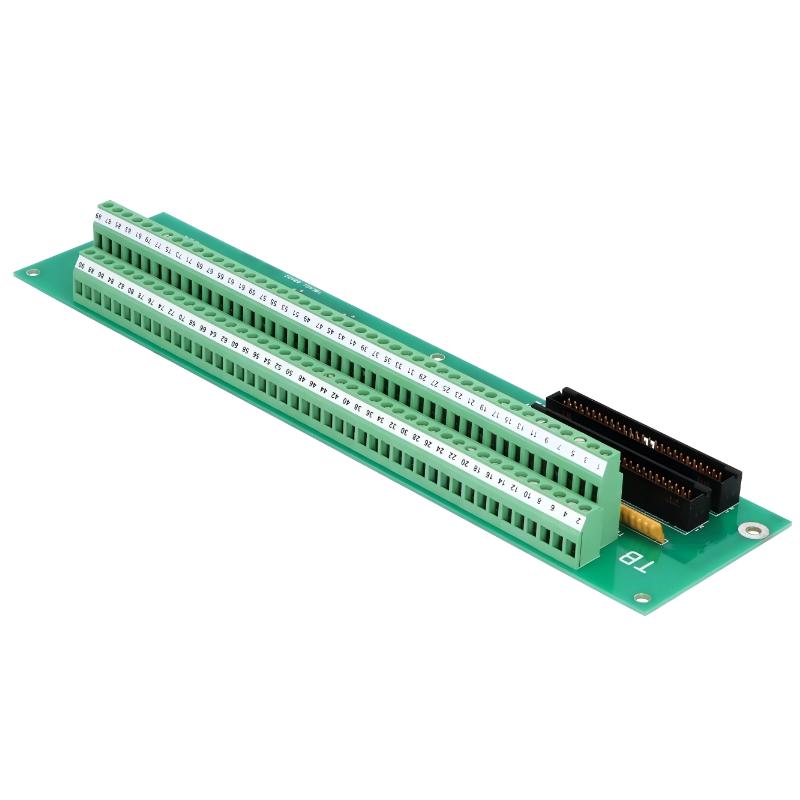

The GE DS200TBCAG1AAB is a high-density Analog I/O Terminal Board designed for the GE Mark V Speedtronic turbine control system. It serves as a central signal termination and routing interface, connecting field instruments—such as temperature, pressure, and vibration sensors—to the turbine control logic.
Engineered for industrial-grade reliability, this module is widely deployed in power generation, oil & gas, and heavy process industries where stable analog signal acquisition and clean electrical separation are essential for safe and continuous operation.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200TBCAG1AAB |
| Series | Mark V Speedtronic |
| Product Type | Analog I/O Terminal Board |
| Function | Signal termination & analog I/O routing |
| Terminal Capacity | 2 blocks × 90 signal terminals |
| Connector Interfaces | 2 × 50-pin high-density connectors |
| Signal Types | Analog inputs/outputs (pressure, temp, vibration, etc.) |
| System Compatibility | GE Mark V turbine control platform |
| PCB Revision | A / A / B (functional/artwork revisions) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 160 × 160 × 120 mm |
| Weight | approx. 0.8 kg |
| Mounting Type | Rack-mounted industrial PCB board |
Its compact but high-capacity architecture enables efficient wiring management inside turbine control cabinets while maintaining signal integrity under harsh electrical conditions.
Recommended Related Models
- GE DS200TBCAG1A Analog I/O Board (base version)
- GE DS200TBQDG1ACC RST Extension Board
- GE DS200QTBAG1ADC Terminal Board
- GE DS200QTBAG1ACB RST Interface Board
- GE DS200RTBAG3AHC Relay Terminal Board
These modules are commonly combined to build a complete Mark V signal acquisition and control ecosystem.
