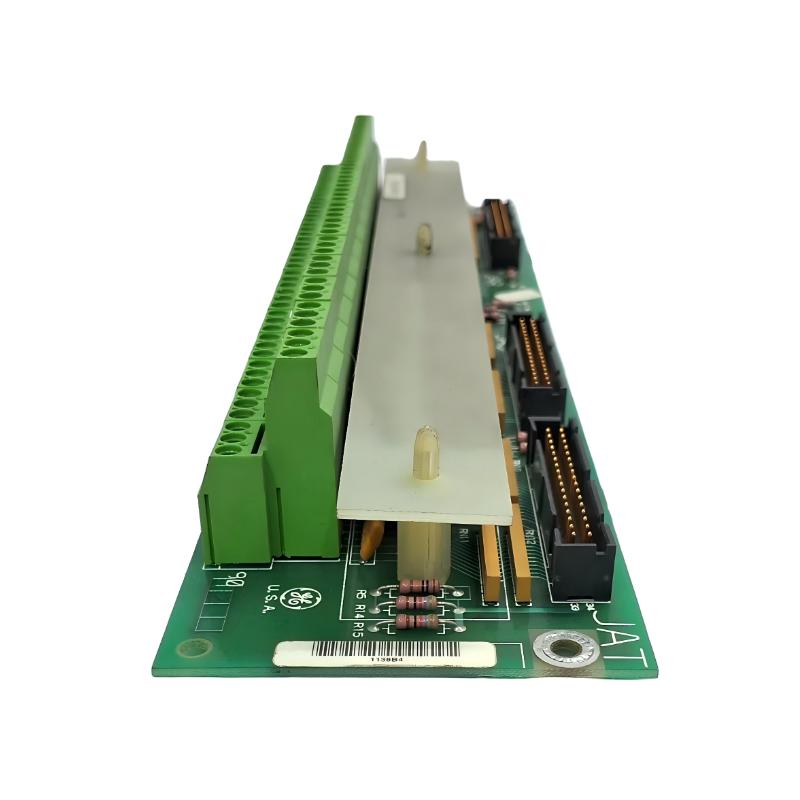

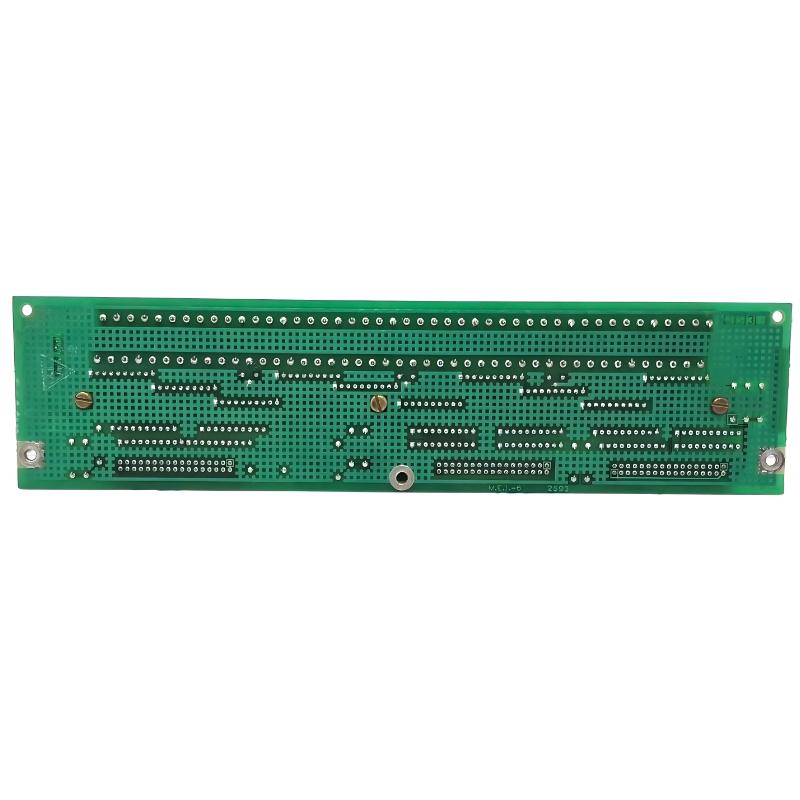

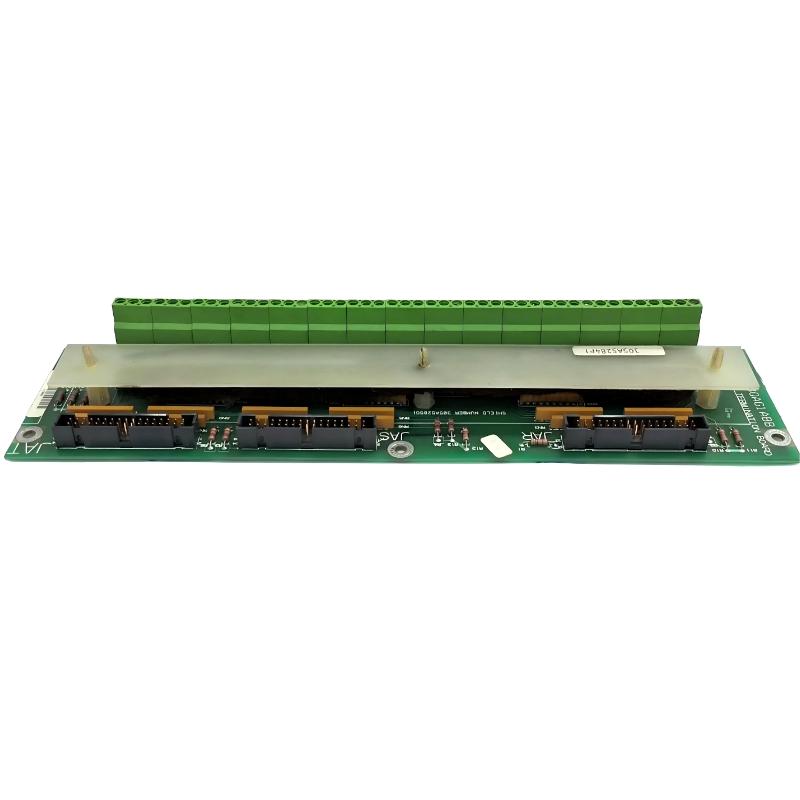

The GE DS200TBQAG1ABB is a high-density RST (Relay Signal Terminal) and thermocouple termination board designed for the GE Mark V Speedtronic turbine control system. It serves as a central signal hub, handling large volumes of thermocouple and control wiring between field instrumentation and turbine control processors.
Built for mission-critical energy systems, this module is widely used in gas, steam, and wind turbine control applications where precise temperature monitoring and stable signal routing are essential for safe and efficient operation.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200TBQAG1ABB |
| Series | Mark V Speedtronic |
| Product Type | Thermocouple / Analog Terminal Board |
| Function | Signal termination & thermocouple input routing |
| Terminal Blocks | 2 × 90-pin blocks (TB1 / TB2) |
| Signal Capacity | Up to 180 signal lines |
| Connectors | 3 × 20-pin connectors |
| Signal Type | Thermocouple + analog monitoring signals |
| Application System | GE Mark V turbine control |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 330 × 200 mm |
| Weight | approx. 0.75–2.0 kg (varies by revision) |
| Mounting Type | Rack-mounted industrial PCB |
This high-capacity layout allows dense thermocouple wiring while maintaining electrical stability and clean signal separation in turbine environments.
Recommended Related Models
- GE DS200TBQAG1A (base thermocouple board)
- GE DS200TBCAG1AAB Analog I/O Terminal Board
- GE DS200TBQDG1ACC RST Extension Board
- GE DS200QTBAG1ADC Terminal Interface Board
- GE DS200RTBAG3AHC Relay Terminal Board
These modules are typically integrated into Mark V systems for complete signal acquisition, protection, and distribution.
