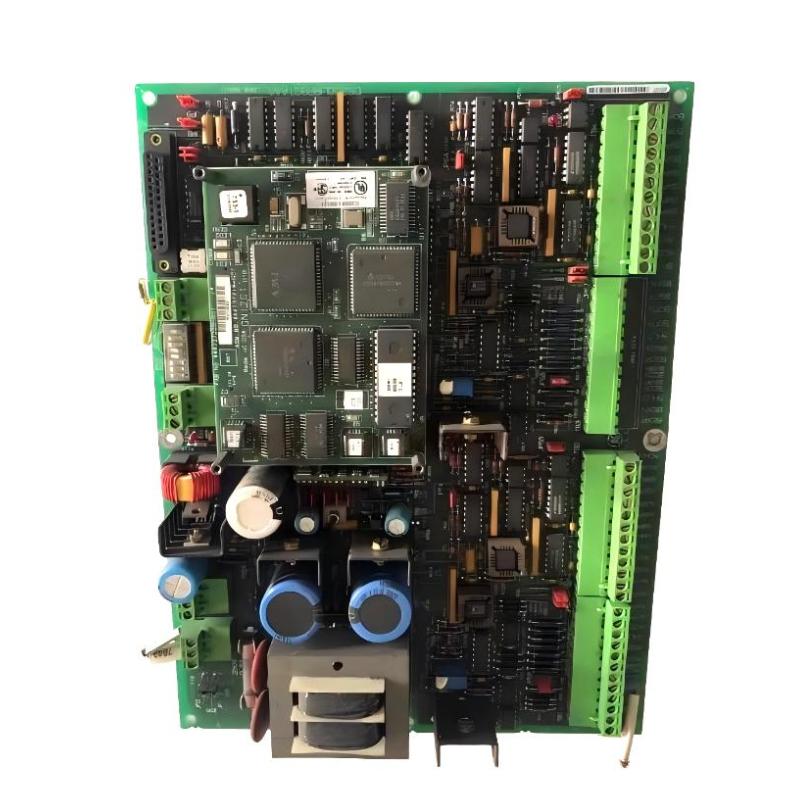

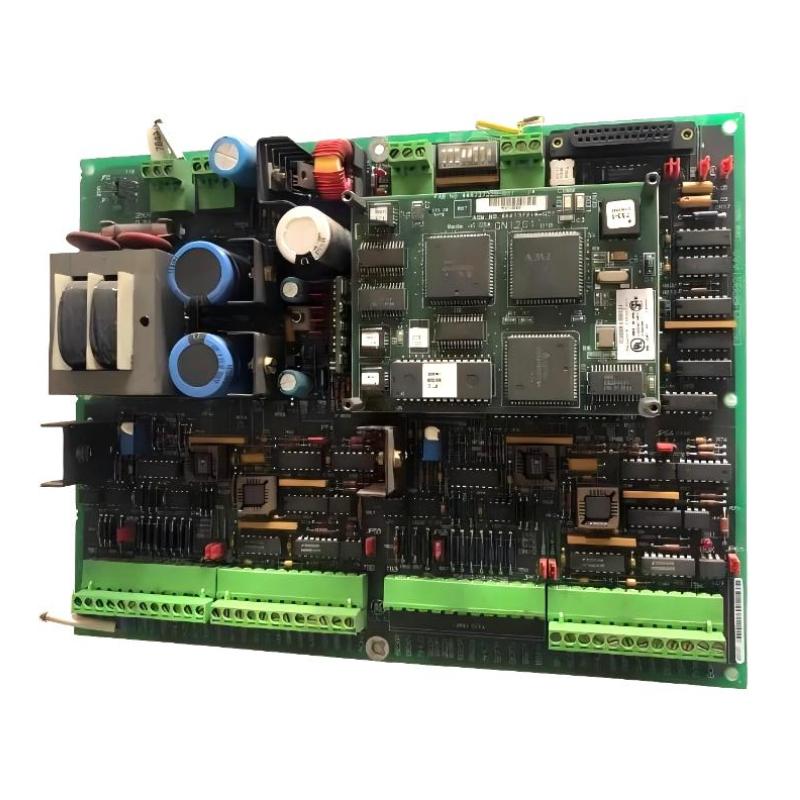

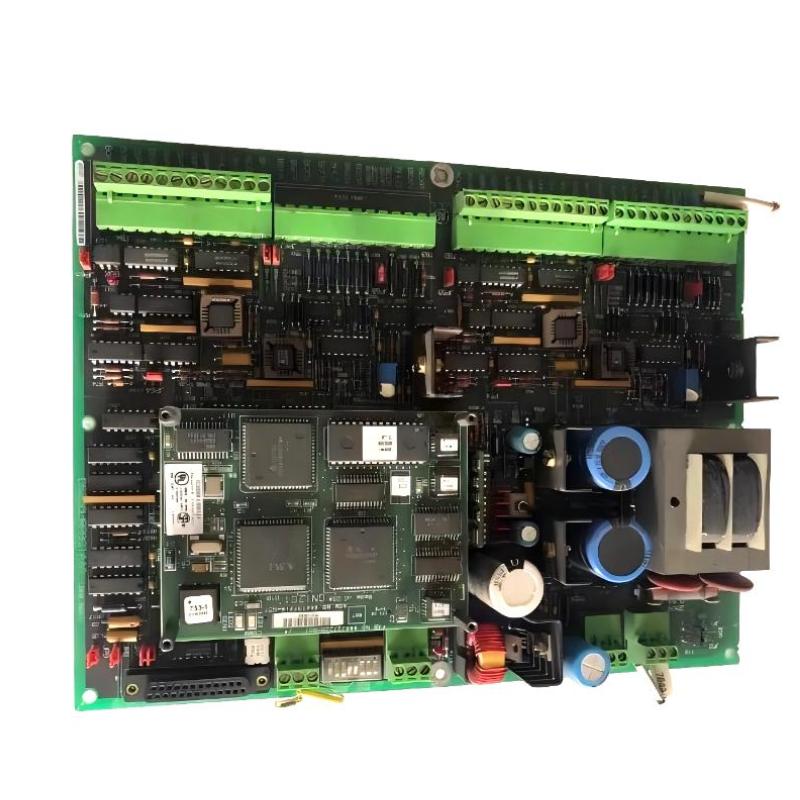

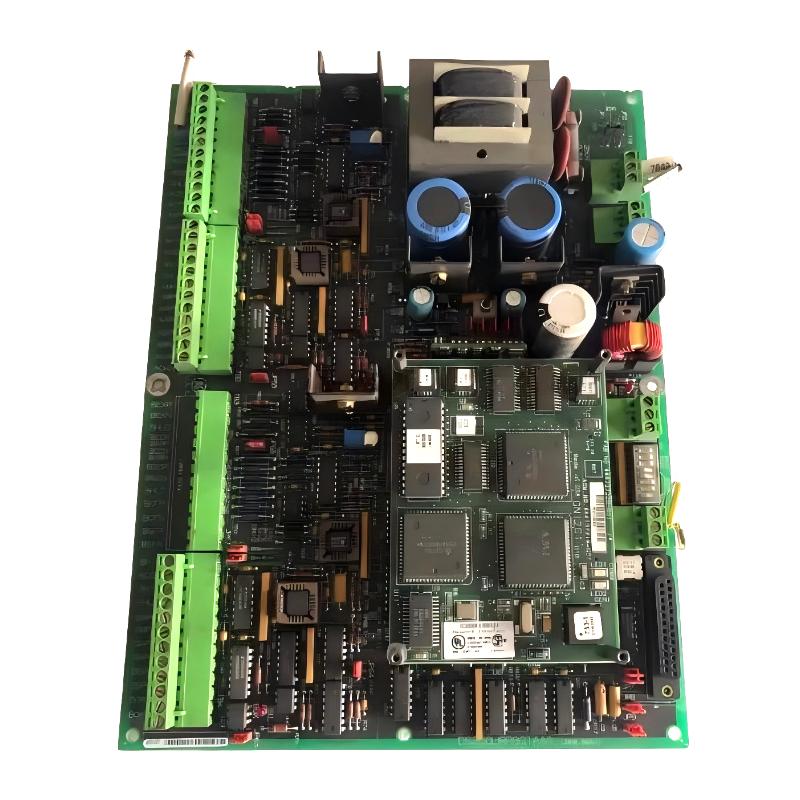

The GE DS200LRPBG1AAA is a Resolver Board designed for the GE Mark V Speedtronic turbine control system. It is responsible for converting turbine rotor position signals from a resolver into precise electrical data that can be processed by the turbine control system.
This module plays a critical role in real-time speed, position, and torque regulation of gas and steam turbines, making it an essential component in power generation and heavy industrial automation environments. Its design focuses on high accuracy, signal stability, and fault-tolerant operation under harsh industrial conditions.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200LRPBG1AAA |
| Series | Mark V Speedtronic |
| Product Type | Resolver Board |
| Function | Rotor position signal conversion |
| System Role | Turbine feedback & control interface |
| Signal Input | Analog resolver signals |
| Signal Output | Digital control signals to Mark V system |
| Diagnostic Features | LED indicators, reset switch |
| Components | ICs, resistor networks, capacitors, jumpers, FPGA |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 330 × 200 × 100 mm (turn0search3) |
| Weight | approx. 2.0 kg (turn0search3) |
| Mounting Type | Rack-mounted PCB module |
The robust physical structure ensures stable operation in vibration-heavy and high-temperature turbine environments.
Recommended Related Models
- GE DS200LRPBG1 Resolver Board (base revision)
- GE DS200TBCBG1AAA RTD Input Terminal Module
- GE DS200TBQAG1ABB Thermocouple Terminal Board
- GE DS200QTBAG1ADC RST Extension Board
- GE IS200 series Mark V I/O modules
These modules work together to form a complete turbine monitoring, protection, and control architecture.
