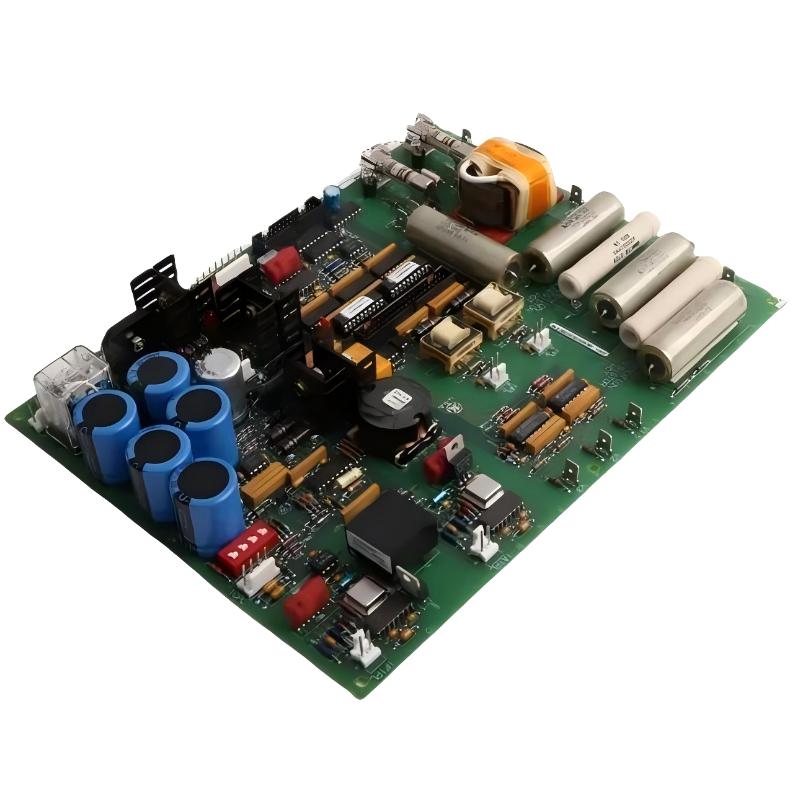

The GE DS200SDCIG1AHB is a DC Power Supply and Instrumentation Board designed for GE Mark V Speedtronic turbine control and DC drive systems. It functions as a core electrical interface module, providing regulated DC power distribution, signal conditioning, and instrumentation support for turbine control operations.
This board is commonly used in DC2000 drive systems and industrial turbine control environments where stable power delivery, precise signal processing, and system-level reliability are critical for continuous operation.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200SDCIG1AHB |
| Series | Mark V / DC2000 Drive Compatible |
| Product Type | DC Power Supply & Instrumentation Board |
| Function | Power regulation + instrumentation interface |
| System Role | Interface to DC drive control systems |
| Input Voltage | Up to 600 VAC (system dependent) |
| Output Function | DC regulated power & control signals |
| Protection | Multiple fuses + surge protection circuits |
| Control Features | SCR gating, motor field circuits, signal conditioning |
| PCB Revision | A / H / B |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 280 × 212 × 40 mm |
| Weight | approx. 0.96 kg – 2.61 lb |
| Mounting Type | Rack-mounted industrial PCB module |
The design integrates multiple power regulation and signal conditioning circuits, making it a multifunctional core board within GE drive architectures.
Recommended Related Models
- GE DS200SDCIG1ABA Power Supply Board (base revision)
- GE DS200SDCIG2ABA DC Instrumentation Module
- GE DS200LDCCH1ANA Drive Control Board
- GE DS200DCFBG1A Power Supply Module
- GE IS200 series Mark V I/O modules
These modules are often deployed together in turbine control and DC drive systems for full electrical and control integration.
