Introduction

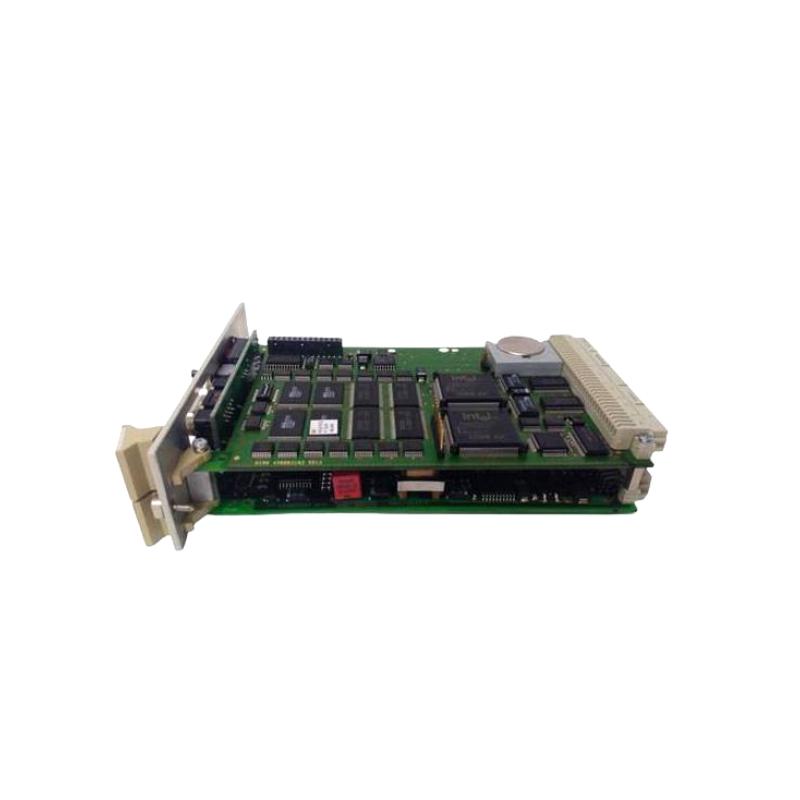

The HIMA F8651E Central Module (HIQuad System) is the cornerstone of modern safety automation. Engineered for high-stakes industrial environments, it ensures deterministic, real-time monitoring and control with SIL 3 compliance. Its compact size allows for efficient panel mounting while delivering exceptional processing power and fault tolerance. Designed to integrate seamlessly with distributed HIQuad I/O modules, F8651E provides scalable safety solutions that protect both personnel and equipment.

Technical Specifications

Specification	Details
Dimensions	257 mm × 114 mm × 30 mm
Weight	1.5 kg (3.31 lb)
Power Supply	24 V DC
Operating Temperature	-25°C to 70°C
Data Processing	Real-time signal processing
Communication Ports	HIQuad bus interface
Safety Functions	Redundant I/O, Fault detection
Diagnostics	Continuous system monitoring
Mounting	Panel or DIN rail
Certifications	IEC 61508, SIL 3

Applications

The HIMA F8651E Central Module is designed for mission-critical safety applications where reliability and precision are non-negotiable. Its capabilities make it ideal for:

Industrial automation systems requiring SIL 3-compliant safety control.
Process plants such as chemical, oil & gas, and power generation.
Railway signaling and transportation safety systems.
Emergency shutdown (ESD) and fire & gas systems.
Integration with distributed HIQuad I/O networks for seamless safety communication.

Advantages

HIMA F8651E stands out due to its combination of safety integrity, speed, and flexibility:

High Safety Integrity: SIL 3 certified for safety-critical applications.
Real-Time Reliability: Instant fault detection and deterministic response.
Modular Design: Easy integration with other HIQuad modules for scalable systems.
Redundant Architecture: Supports full redundancy to maximize uptime.
Compact & Robust: Small form factor without compromising performance or durability.

Technical FAQs

What is the module’s SIL certification level?
It is certified to SIL 3 according to IEC 61508.
Does it support redundant configurations?
Yes, the module supports full redundancy for high availability.
Which communication protocols are supported?
Compatible with HIQuad bus interfaces for distributed safety networks.
Can it operate in harsh industrial environments?
Yes, it functions reliably from -25°C to 70°C.
Is real-time diagnostics available?
Yes, continuous system monitoring and fault reporting are built-in.
How is the module mounted?
Panel or DIN rail installation is supported.
Can it integrate with other HIMA safety modules?
Fully compatible with HIQuad I/O and other HIMA modules.
What kind of I/O does it support?
Redundant digital and analog I/O for comprehensive safety monitoring.
Is firmware updateable?
Yes, updates can be applied through the HIQuad system interface.
What measures ensure data integrity?
Built-in error detection, redundancy, and safe-state transition mechanisms guarantee reliability.
